ERF_AddTKESources.H File Reference

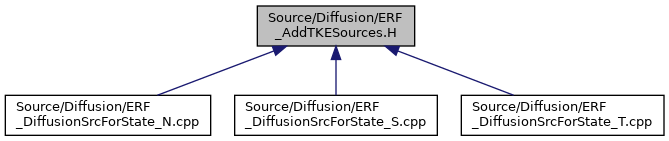

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions

 if (l_use_keqn &&(start_comp<=RhoKE_comp) &&(end_comp >=RhoKE_comp))


Function Documentation

◆ if()

if ( l_use_keqn &&  start_comp<=RhoKE_comp) &&(end_comp >=RhoKE_comp)
13  {
14  int qty_index = RhoKE_comp;
15  ParallelFor(bx,[=] AMREX_GPU_DEVICE (int i, int j, int k) noexcept
16  {
17  // Add Buoyancy Source
18  // where the SGS buoyancy flux tau_{theta,i} = -KH * dtheta/dx_i,
19  // such that for dtheta/dz < 0, there is a positive (upward) heat
20  // flux; the TKE buoyancy production is then
21  // B = g/theta_0 * tau_{theta,w}
22  // for a dry atmosphere.
23  // TODO: To account for moisture, the Brunt-Vaisala frequency,
24  // N^2 = g[1/theta * dtheta/dz + ...]
25  // **should** be a function of the water vapor and total water
26  // mixing ratios, depending on whether conditions are saturated or
27  // not (see the WRF model description, Skamarock et al 2019).
28  cell_rhs(i,j,k,qty_index) += l_abs_g * l_inv_theta0 * hfx_z(i,j,k);
29  if (!use_ref_theta) {
30  // l_inv_theta0 == 1, divide by actual theta
31  cell_rhs(i,j,k,qty_index) /= cell_prim(i,j,k,PrimTheta_comp);
32  }
33
34  // TKE shear production
35  // P = -tau_ij * S_ij = 2 * mu_turb * S_ij * S_ij
36  // Note: This assumes that the horizontal and vertical diffusivities
37  // of momentum are equal
38  cell_rhs(i,j,k,qty_index) += two*mu_turb(i,j,k,EddyDiff::Mom_v) * SmnSmn_a(i,j,k);
39
40  // TKE dissipation
41  cell_rhs(i,j,k,qty_index) -= diss(i,j,k);
42  });
43  }
two
constexpr amrex::Real two
Definition: ERF_Constants.H:8
PrimTheta_comp
#define PrimTheta_comp
Definition: ERF_IndexDefines.H:50
RhoKE_comp
#define RhoKE_comp
Definition: ERF_IndexDefines.H:38
ParallelFor
ParallelFor(bx, [=] AMREX_GPU_DEVICE(int i, int j, int k) noexcept { const Real *dx=geomdata.CellSize();const Real x=(i+0.5) *dx[0];const Real y=(j+0.5) *dx[1];const Real Omg=erf_vortex_Gaussian(x, y, xc, yc, R, beta, sigma);const Real deltaT=-(gamma - 1.0)/(2.0 *sigma *sigma) *Omg *Omg;const Real rho_norm=std::pow(1.0+deltaT, inv_gm1);const Real T=(1.0+deltaT) *T_inf;const Real p=std::pow(rho_norm, Gamma)/Gamma *rho_0 *a_inf *a_inf;const Real rho_theta=rho_0 *rho_norm *(T *std::pow(p_0/p, rdOcp));state_pert(i, j, k, RhoTheta_comp)=rho_theta - getRhoThetagivenP(p_hse(i, j, k));const Real r2d_xy=std::sqrt((x-xc) *(x-xc)+(y-yc) *(y-yc));state_pert(i, j, k, RhoScalar_comp)=0.25 *(1.0+std::cos(PI *std::min(r2d_xy, R)/R));})
use_ref_theta
const bool use_ref_theta
Definition: ERF_SetupDiff.H:16
l_inv_theta0
const Real l_inv_theta0
Definition: ERF_SetupDiff.H:17
EddyDiff::Mom_v
@ Mom_v
Definition: ERF_IndexDefines.H:193
Here is the call graph for this function:
