ERF_BuoyancyUtils.H File Reference
#include <ERF_EOS.H>
#include <ERF_Constants.H>
Include dependency graph for ERF_BuoyancyUtils.H:
This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions

AMREX_GPU_DEVICE AMREX_FORCE_INLINE amrex::Real buoyancy_dry_anelastic (int &i, int &j, int &k, amrex::Real const &grav_gpu, const amrex::Array4< const amrex::Real > &r0_arr, const amrex::Array4< const amrex::Real > &th0_arr, const amrex::Array4< const amrex::Real > &cell_data)

AMREX_GPU_DEVICE AMREX_FORCE_INLINE amrex::Real buoyancy_moist_anelastic (int &i, int &j, int &k, amrex::Real const &grav_gpu, amrex::Real const &rv_over_rd, const amrex::Array4< const amrex::Real > &r0_arr, const amrex::Array4< const amrex::Real > &th0_arr, const amrex::Array4< const amrex::Real > &qv0_arr, const amrex::Array4< const amrex::Real > &cell_data)

AMREX_GPU_DEVICE AMREX_FORCE_INLINE amrex::Real buoyancy_rhopert (int &i, int &j, int &k, const int &n_qstate, amrex::Real const &grav_gpu, const amrex::Array4< const amrex::Real > &r0_arr, const amrex::Array4< const amrex::Real > &cell_data)

AMREX_GPU_DEVICE AMREX_FORCE_INLINE amrex::Real buoyancy_dry_Tpert (int &i, int &j, int &k, amrex::Real const &grav_gpu, amrex::Real const &rd_over_cp, const amrex::Array4< const amrex::Real > &r0_arr, const amrex::Array4< const amrex::Real > &p0_arr, const amrex::Array4< const amrex::Real > &th0_arr, const amrex::Array4< const amrex::Real > &cell_data)

AMREX_GPU_DEVICE AMREX_FORCE_INLINE amrex::Real buoyancy_dry_Thpert (int &i, int &j, int &k, amrex::Real const &grav_gpu, const amrex::Array4< const amrex::Real > &r0_arr, const amrex::Array4< const amrex::Real > &th0_arr, const amrex::Array4< const amrex::Real > &cell_prim)

AMREX_GPU_DEVICE AMREX_FORCE_INLINE amrex::Real buoyancy_moist_Tpert (int &i, int &j, int &k, const int &n_qstate, amrex::Real const &grav_gpu, amrex::Real const &rd_over_cp, const amrex::Array4< const amrex::Real > &r0_arr, const amrex::Array4< const amrex::Real > &th0_arr, const amrex::Array4< const amrex::Real > &qv0_arr, const amrex::Array4< const amrex::Real > &p0_arr, const amrex::Array4< const amrex::Real > &cell_prim, const amrex::Array4< const amrex::Real > &cell_data)

AMREX_GPU_DEVICE AMREX_FORCE_INLINE amrex::Real buoyancy_moist_Thpert (int &i, int &j, int &k, const int &n_qstate, amrex::Real const &grav_gpu, const amrex::Array4< const amrex::Real > &r0_arr, const amrex::Array4< const amrex::Real > &th0_arr, const amrex::Array4< const amrex::Real > &qv0_arr, const amrex::Array4< const amrex::Real > &cell_prim)

AMREX_GPU_DEVICE AMREX_FORCE_INLINE amrex::Real buoyancy_dry_anelastic_T (int &i, int &j, int &k, amrex::Real const &grav_gpu, amrex::Real const &rd_over_cp, const amrex::Array4< const amrex::Real > &r0_arr, const amrex::Array4< const amrex::Real > &p0_arr, const amrex::Array4< const amrex::Real > &cell_data)


Function Documentation

◆ buoyancy_dry_anelastic()

AMREX_GPU_DEVICE AMREX_FORCE_INLINE amrex::Real buoyancy_dry_anelastic ( int &  i,
int &  j,
int &  k,
amrex::Real const &  grav_gpu,
const amrex::Array4< const amrex::Real > &  r0_arr,
const amrex::Array4< const amrex::Real > &  th0_arr,
const amrex::Array4< const amrex::Real > &  cell_data
)
15 {
16  // Note: this is the same term as the moist anelastic buoyancy when qv = qc = qt = 0
17  amrex::Real theta_d_hi = cell_data(i,j,k ,RhoTheta_comp)/cell_data(i,j,k ,Rho_comp);
18  amrex::Real theta_d_lo = cell_data(i,j,k-1,RhoTheta_comp)/cell_data(i,j,k-1,Rho_comp);
19
20  amrex::Real theta_d_wface = amrex::Real(0.5) * (theta_d_lo + theta_d_hi);
21  amrex::Real theta_d0_wface = amrex::Real(0.5) * (th0_arr(i,j,k) + th0_arr(i,j,k-1));
22  amrex::Real rho0_wface = amrex::Real(0.5) * (r0_arr(i,j,k) + r0_arr(i,j,k-1));
23
24  return (-rho0_wface * grav_gpu * (theta_d_wface - theta_d0_wface) / theta_d0_wface);
25 }
Rho_comp
#define Rho_comp
Definition: ERF_IndexDefines.H:36
RhoTheta_comp
#define RhoTheta_comp
Definition: ERF_IndexDefines.H:37

Referenced by make_buoyancy().

Here is the caller graph for this function:

◆ buoyancy_dry_anelastic_T()

AMREX_GPU_DEVICE AMREX_FORCE_INLINE amrex::Real buoyancy_dry_anelastic_T ( int &  i,
int &  j,
int &  k,
amrex::Real const &  grav_gpu,
amrex::Real const &  rd_over_cp,
const amrex::Array4< const amrex::Real > &  r0_arr,
const amrex::Array4< const amrex::Real > &  p0_arr,
const amrex::Array4< const amrex::Real > &  cell_data
)
214 {
215  amrex::Real rt0_hi = getRhoThetagivenP(p0_arr(i,j,k));
216  amrex::Real t0_hi = getTgivenPandTh(p0_arr(i,j,k), rt0_hi/r0_arr(i,j,k), rd_over_cp);
217  amrex::Real t_hi = getTgivenPandTh(p0_arr(i,j,k), cell_data(i,j,k,RhoTheta_comp)/r0_arr(i,j,k), rd_over_cp);
218  amrex::Real q_hi = (t_hi-t0_hi)/t0_hi;
219
220  amrex::Real rt0_lo = getRhoThetagivenP(p0_arr(i,j,k-1));
221  amrex::Real t0_lo = getTgivenPandTh(p0_arr(i,j,k-1), rt0_lo/r0_arr(i,j,k-1), rd_over_cp);
222  amrex::Real t_lo = getTgivenPandTh(p0_arr(i,j,k-1), cell_data(i,j,k-1,RhoTheta_comp)/r0_arr(i,j,k-1), rd_over_cp);
223  amrex::Real q_lo = (t_lo-t0_lo)/t0_lo;
224
225  amrex::Real r0_q_avg = amrex::Real(0.5) * (r0_arr(i,j,k) * q_hi + r0_arr(i,j,k-1) * q_lo);
226  return (-r0_q_avg * grav_gpu);
227 }
getRhoThetagivenP
AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE amrex::Real getRhoThetagivenP(const amrex::Real p, const amrex::Real qv=0.0)
Definition: ERF_EOS.H:175
getTgivenPandTh
AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE amrex::Real getTgivenPandTh(const amrex::Real P, const amrex::Real th, const amrex::Real rdOcp)
Definition: ERF_EOS.H:32
Here is the call graph for this function:

◆ buoyancy_dry_Thpert()

AMREX_GPU_DEVICE AMREX_FORCE_INLINE amrex::Real buoyancy_dry_Thpert ( int &  i,
int &  j,
int &  k,
amrex::Real const &  grav_gpu,
const amrex::Array4< const amrex::Real > &  r0_arr,
const amrex::Array4< const amrex::Real > &  th0_arr,
const amrex::Array4< const amrex::Real > &  cell_prim
)
118 {
119  amrex::Real thetaprime_hi = (cell_prim(i,j,k ,PrimTheta_comp) - th0_arr(i,j,k )) / th0_arr(i,j,k );
120  amrex::Real thetaprime_lo = (cell_prim(i,j,k-1,PrimTheta_comp) - th0_arr(i,j,k-1)) / th0_arr(i,j,k-1);
121
122  amrex::Real thp_avg = amrex::Real(0.5) * (thetaprime_hi + thetaprime_lo);
123  amrex::Real r0_avg = amrex::Real(0.5) * (r0_arr(i,j,k) + r0_arr(i,j,k-1));
124
125  return ( -r0_avg * grav_gpu * thp_avg);
126 }
PrimTheta_comp
#define PrimTheta_comp
Definition: ERF_IndexDefines.H:50

Referenced by make_buoyancy().

Here is the caller graph for this function:

◆ buoyancy_dry_Tpert()

AMREX_GPU_DEVICE AMREX_FORCE_INLINE amrex::Real buoyancy_dry_Tpert ( int &  i,
int &  j,
int &  k,
amrex::Real const &  grav_gpu,
amrex::Real const &  rd_over_cp,
const amrex::Array4< const amrex::Real > &  r0_arr,
const amrex::Array4< const amrex::Real > &  p0_arr,
const amrex::Array4< const amrex::Real > &  th0_arr,
const amrex::Array4< const amrex::Real > &  cell_data
)
94 {
95  amrex::Real t0_hi = getTgivenPandTh(p0_arr(i,j,k), th0_arr(i,j,k), rd_over_cp);
96  amrex::Real t_hi = getTgivenRandRTh(cell_data(i,j,k ,Rho_comp), cell_data(i,j,k ,RhoTheta_comp));
97
98  amrex::Real t0_lo = getTgivenPandTh(p0_arr(i,j,k-1), th0_arr(i,j,k-1), rd_over_cp);
99  amrex::Real t_lo = getTgivenRandRTh(cell_data(i,j,k-1,Rho_comp), cell_data(i,j,k-1,RhoTheta_comp));
100
101  amrex::Real tprime_hi = (t_hi-t0_hi)/t0_hi;
102  amrex::Real tprime_lo = (t_lo-t0_lo)/t0_lo;
103
104  amrex::Real tp_avg = amrex::Real(0.5) * (tprime_hi + tprime_lo);
105  amrex::Real r0_avg = amrex::Real(0.5) * (r0_arr(i,j,k) + r0_arr(i,j,k-1));
106
107  return ( -r0_avg * grav_gpu * tp_avg);
108 }
getTgivenRandRTh
AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE amrex::Real getTgivenRandRTh(const amrex::Real rho, const amrex::Real rhotheta, const amrex::Real qv=0.0)
Definition: ERF_EOS.H:46

Referenced by make_buoyancy().

Here is the call graph for this function:

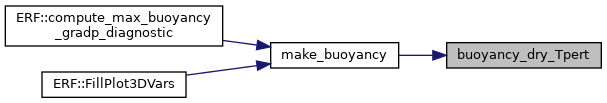

Here is the caller graph for this function:

◆ buoyancy_moist_anelastic()

AMREX_GPU_DEVICE AMREX_FORCE_INLINE amrex::Real buoyancy_moist_anelastic ( int &  i,
int &  j,
int &  k,
amrex::Real const &  grav_gpu,
amrex::Real const &  rv_over_rd,
const amrex::Array4< const amrex::Real > &  r0_arr,
const amrex::Array4< const amrex::Real > &  th0_arr,
const amrex::Array4< const amrex::Real > &  qv0_arr,
const amrex::Array4< const amrex::Real > &  cell_data
)
37 {
38  amrex::Real Fact = (1.0 - rv_over_rd); // = -0.61
39
40  amrex::Real theta_d_hi = cell_data(i,j,k,RhoTheta_comp)/cell_data(i,j,k,Rho_comp);
41  amrex::Real qv_hi = cell_data(i,j,k,RhoQ1_comp) /cell_data(i,j,k,Rho_comp);
42  amrex::Real qc_hi = cell_data(i,j,k,RhoQ2_comp) /cell_data(i,j,k,Rho_comp);
43  amrex::Real qt_hi = qv_hi + qc_hi;
44  amrex::Real theta_v_hi = theta_d_hi * (1.0 - Fact*qt_hi - rv_over_rd*qc_hi);
45
46  amrex::Real theta_d_lo = cell_data(i,j,k-1,RhoTheta_comp)/cell_data(i,j,k-1,Rho_comp);
47  amrex::Real qv_lo = cell_data(i,j,k-1,RhoQ1_comp) /cell_data(i,j,k-1,Rho_comp);
48  amrex::Real qc_lo = cell_data(i,j,k-1,RhoQ2_comp) /cell_data(i,j,k-1,Rho_comp);
49  amrex::Real qt_lo = qv_lo + qc_lo;
50  amrex::Real theta_v_lo = theta_d_lo * (1.0 - Fact*qt_lo - rv_over_rd*qc_lo);
51
52  amrex::Real theta_v0_hi = th0_arr(i,j,k ) * (1.0 - Fact*qv0_arr(i,j,k ));
53  amrex::Real theta_v0_lo = th0_arr(i,j,k-1) * (1.0 - Fact*qv0_arr(i,j,k-1));
54  amrex::Real qv0_hi = qv0_arr(i,j,k );
55  amrex::Real qv0_lo = qv0_arr(i,j,k-1);
56
57  amrex::Real q_hi = (qv_hi-qv0_hi) - qc_hi + (theta_v_hi - theta_v0_hi) / theta_v0_hi;
58  amrex::Real q_lo = (qv_lo-qv0_lo) - qc_lo + (theta_v_lo - theta_v0_lo) / theta_v0_lo;
59  amrex::Real qavg = amrex::Real(0.5) * (q_hi + q_lo);
60
61  amrex::Real r0avg = amrex::Real(0.5) * (r0_arr(i,j,k) + r0_arr(i,j,k-1));
62
63  return (-r0avg * grav_gpu * qavg);
64 }
RhoQ2_comp
#define RhoQ2_comp
Definition: ERF_IndexDefines.H:43
RhoQ1_comp
#define RhoQ1_comp
Definition: ERF_IndexDefines.H:42

Referenced by make_buoyancy().

Here is the caller graph for this function:

◆ buoyancy_moist_Thpert()

AMREX_GPU_DEVICE AMREX_FORCE_INLINE amrex::Real buoyancy_moist_Thpert ( int &  i,
int &  j,
int &  k,
const int &  n_qstate,
amrex::Real const &  grav_gpu,
const amrex::Array4< const amrex::Real > &  r0_arr,
const amrex::Array4< const amrex::Real > &  th0_arr,
const amrex::Array4< const amrex::Real > &  qv0_arr,
const amrex::Array4< const amrex::Real > &  cell_prim
)
178 {
179  amrex::Real qv_hi = (n_qstate >= 1) ? cell_prim(i,j,k ,PrimQ1_comp) : 0.0;
180  amrex::Real qc_hi = (n_qstate >= 2) ? cell_prim(i,j,k ,PrimQ2_comp) : 0.0;
181  amrex::Real qp_hi = (n_qstate >= 3) ? cell_prim(i,j,k ,PrimQ3_comp) : 0.0;
182
183  amrex::Real qv_lo = (n_qstate >= 1) ? cell_prim(i,j,k-1,PrimQ1_comp) : 0.0;
184  amrex::Real qc_lo = (n_qstate >= 2) ? cell_prim(i,j,k-1,PrimQ2_comp) : 0.0;
185  amrex::Real qp_lo = (n_qstate >= 3) ? cell_prim(i,j,k-1,PrimQ3_comp) : 0.0;
186
187  amrex::Real qv0_hi = qv0_arr(i,j,k );
188  amrex::Real qv0_lo = qv0_arr(i,j,k-1);
189
190  amrex::Real q_hi = amrex::Real(0.61) * (qv_hi-qv0_hi) - (qc_hi + qp_hi)
191  + (cell_prim(i,j,k ,PrimTheta_comp) - th0_arr(i,j,k )) / th0_arr(i,j,k );
192  amrex::Real q_lo = amrex::Real(0.61) * (qv_lo-qv0_lo) - (qc_lo + qp_lo)
193  + (cell_prim(i,j,k-1,PrimTheta_comp) - th0_arr(i,j,k-1)) / th0_arr(i,j,k-1);
194  amrex::Real qavg = amrex::Real(0.5) * (q_hi + q_lo);
195
196  amrex::Real r0avg = amrex::Real(0.5) * (r0_arr(i,j,k) + r0_arr(i,j,k-1));
197
198  return ( -r0avg * grav_gpu * qavg);
199 }
PrimQ1_comp
#define PrimQ1_comp
Definition: ERF_IndexDefines.H:53
PrimQ2_comp
#define PrimQ2_comp
Definition: ERF_IndexDefines.H:54
PrimQ3_comp
#define PrimQ3_comp
Definition: ERF_IndexDefines.H:55

Referenced by make_buoyancy().

Here is the caller graph for this function:

◆ buoyancy_moist_Tpert()

AMREX_GPU_DEVICE AMREX_FORCE_INLINE amrex::Real buoyancy_moist_Tpert ( int &  i,
int &  j,
int &  k,
const int &  n_qstate,
amrex::Real const &  grav_gpu,
amrex::Real const &  rd_over_cp,
const amrex::Array4< const amrex::Real > &  r0_arr,
const amrex::Array4< const amrex::Real > &  th0_arr,
const amrex::Array4< const amrex::Real > &  qv0_arr,
const amrex::Array4< const amrex::Real > &  p0_arr,
const amrex::Array4< const amrex::Real > &  cell_prim,
const amrex::Array4< const amrex::Real > &  cell_data
)
141 {
142  amrex::Real qv_hi = (n_qstate >= 1) ? cell_prim(i,j,k ,PrimQ1_comp) : 0.0;
143  amrex::Real qc_hi = (n_qstate >= 2) ? cell_prim(i,j,k ,PrimQ2_comp) : 0.0;
144  amrex::Real qp_hi = (n_qstate >= 3) ? cell_prim(i,j,k ,PrimQ3_comp) : 0.0;
145
146  amrex::Real qv_lo = (n_qstate >= 1) ? cell_prim(i,j,k-1,PrimQ1_comp) : 0.0;
147  amrex::Real qc_lo = (n_qstate >= 2) ? cell_prim(i,j,k-1,PrimQ2_comp) : 0.0;
148  amrex::Real qp_lo = (n_qstate >= 3) ? cell_prim(i,j,k-1,PrimQ3_comp) : 0.0;
149
150  amrex::Real t_hi = getTgivenRandRTh(cell_data(i,j,k ,Rho_comp), cell_data(i,j,k ,RhoTheta_comp), qv_hi);
151  amrex::Real t_lo = getTgivenRandRTh(cell_data(i,j,k-1,Rho_comp), cell_data(i,j,k-1,RhoTheta_comp), qv_lo);
152
153  amrex::Real t0_hi = getTgivenPandTh(p0_arr(i,j,k ), th0_arr(i,j,k ), rd_over_cp);
154  amrex::Real t0_lo = getTgivenPandTh(p0_arr(i,j,k-1), th0_arr(i,j,k-1), rd_over_cp);
155
156  amrex::Real qv0_hi = qv0_arr(i,j,k );
157  amrex::Real qv0_lo = qv0_arr(i,j,k-1);
158
159  amrex::Real q_hi = amrex::Real(0.61) * (qv_hi-qv0_hi) - (qc_hi + qp_hi) + (t_hi-t0_hi)/t0_hi;
160  amrex::Real q_lo = amrex::Real(0.61) * (qv_lo-qv0_lo) - (qc_lo + qp_lo) + (t_lo-t0_lo)/t0_lo;
161  amrex::Real qavg = amrex::Real(0.5) * (q_hi + q_lo);
162
163  amrex::Real r0avg = amrex::Real(0.5) * (r0_arr(i,j,k) + r0_arr(i,j,k-1));
164
165  return ( -r0avg * grav_gpu * qavg);
166 }

Referenced by make_buoyancy().

Here is the call graph for this function:

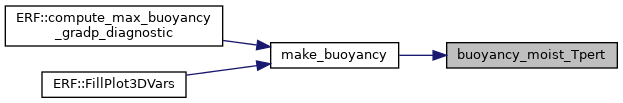

Here is the caller graph for this function:

◆ buoyancy_rhopert()

AMREX_GPU_DEVICE AMREX_FORCE_INLINE amrex::Real buoyancy_rhopert ( int &  i,
int &  j,
int &  k,
const int &  n_qstate,
amrex::Real const &  grav_gpu,
const amrex::Array4< const amrex::Real > &  r0_arr,
const amrex::Array4< const amrex::Real > &  cell_data
)
74 {
75  amrex::Real rhop_hi = cell_data(i,j,k ,Rho_comp) - r0_arr(i,j,k );
76  amrex::Real rhop_lo = cell_data(i,j,k-1,Rho_comp) - r0_arr(i,j,k-1);
77  for (int q_offset(0); q_offset<n_qstate; ++q_offset) {
78  rhop_hi += cell_data(i,j,k ,RhoQ1_comp+q_offset);
79  rhop_lo += cell_data(i,j,k-1,RhoQ1_comp+q_offset);
80  }
81  return( grav_gpu * amrex::Real(0.5) * ( rhop_hi + rhop_lo ) );
82 }

Referenced by make_buoyancy().

Here is the caller graph for this function:
