ERF_FillZeroAreaFaceFluxes.cpp File Reference

#include "ERF.H"
#include "ERF_Utils.H"

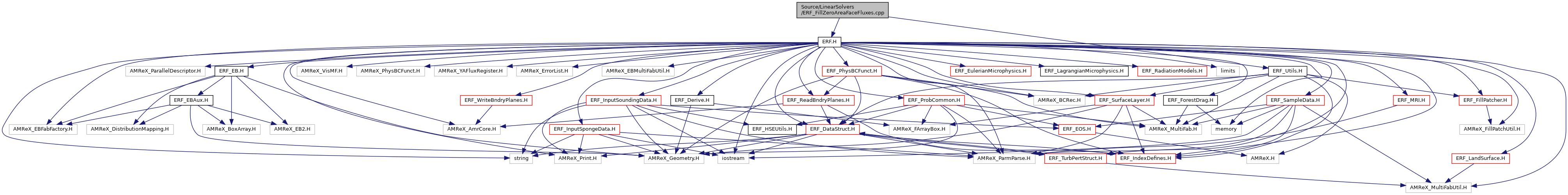

Include dependency graph for ERF_FillZeroAreaFaceFluxes.cpp:

Functions
template<typename T >
void	FillZeroAreaFaceFluxes (MultiFab &phi, Array< MultiFab, AMREX_SPACEDIM > &fluxes, const Geometry &geom, EBFArrayBoxFactory const &ebfact, T const &ebfact_u, T const &ebfact_v, T const &ebfact_w)
template void	FillZeroAreaFaceFluxes (amrex::MultiFab &, amrex::Array< amrex::MultiFab, AMREX_SPACEDIM > &, const amrex::Geometry &, amrex::EBFArrayBoxFactory const &, amrex::EBFArrayBoxFactory const &, amrex::EBFArrayBoxFactory const &, amrex::EBFArrayBoxFactory const &)
template void	FillZeroAreaFaceFluxes (amrex::MultiFab &, amrex::Array< amrex::MultiFab, AMREX_SPACEDIM > &, const amrex::Geometry &, amrex::EBFArrayBoxFactory const &, eb_aux_ const &, eb_aux_ const &, eb_aux_ const &)

Function Documentation

FillZeroAreaFaceFluxes() [1/3]

template void FillZeroAreaFaceFluxes	(	amrex::MultiFab &	,
		amrex::Array< amrex::MultiFab, AMREX_SPACEDIM > &	,
		const amrex::Geometry &	,
		amrex::EBFArrayBoxFactory const &	,
		amrex::EBFArrayBoxFactory const &	,
		amrex::EBFArrayBoxFactory const &	,
		amrex::EBFArrayBoxFactory const &
	)

FillZeroAreaFaceFluxes() [2/3]

template void FillZeroAreaFaceFluxes	(	amrex::MultiFab &	,
		amrex::Array< amrex::MultiFab, AMREX_SPACEDIM > &	,
		const amrex::Geometry &	,
		amrex::EBFArrayBoxFactory const &	,
		eb_aux_ const &	,
		eb_aux_ const &	,
		eb_aux_ const &
	)

FillZeroAreaFaceFluxes() [3/3]

template<typename T >

void FillZeroAreaFaceFluxes	(	MultiFab &	phi,
		Array< MultiFab, AMREX_SPACEDIM > &	fluxes,
		const Geometry &	geom,
		EBFArrayBoxFactory const &	ebfact,
		T const &	ebfact_u,
		T const &	ebfact_v,
		T const &	ebfact_w
	)

Compute phi gradients where the area of the face is zero

At such a face one of the two adjacent cells is covered, so the gradient is extrapolated from the two nearest face gradients on the uncovered side, which reaches three cells away. Give phi three filled ghost cells to get that stencil everywhere; with fewer, faces near the edge of a box fall back to a first-order one-sided gradient, and the result then depends on the grid decomposition.

Template Parameters

T	EB factory or auxiliary EB data type for face-centered grids

Parameters

phi	Cell-centered solution used to compute gradients, with its ghost cells filled
fluxes	Face-centered gradient fluxes to fill
geom	Geometry used for inverse cell spacing
ebfact	Cell-centered embedded-boundary factory
ebfact_u	Embedded-boundary data on x-faces
ebfact_v	Embedded-boundary data on y-faces
ebfact_w	Embedded-boundary data on z-faces

{
    BL_PROFILE("ERF::FillZeroAreaFaceFluxes()");

    const GpuArray<Real, AMREX_SPACEDIM> dxInv = geom.InvCellSizeArray();

    for (MFIter mfi(phi,TileNoZ()); mfi.isValid(); ++mfi)
    {
        const Box& tbx = mfi.tilebox();
        const Box& xbx = mfi.nodaltilebox(0);
        const Box& ybx = mfi.nodaltilebox(1);
        const Box& zbx = mfi.nodaltilebox(2);

        // EBCellFlagFab const& cflag_fab = (ebfact.get_const_factory())->getMultiEBCellFlagFab()[mfi];
        EBCellFlagFab const& cflag_fab = (ebfact.getMultiEBCellFlagFab())[mfi];
        Array4<const EBCellFlag> cflag = cflag_fab.const_array();

        if (cflag_fab.getType(tbx) == FabType::singlevalued)
        {
            Array4<const Real> apx = ebfact.getAreaFrac()[0]->const_array(mfi);
            Array4<const Real> apy = ebfact.getAreaFrac()[1]->const_array(mfi);
            Array4<const Real> apz = ebfact.getAreaFrac()[2]->const_array(mfi);

            Array4<const EBCellFlag> u_cflag = ebfact_u.getMultiEBCellFlagFab()[mfi].const_array();
            Array4<const EBCellFlag> v_cflag = ebfact_v.getMultiEBCellFlagFab()[mfi].const_array();
            Array4<const EBCellFlag> w_cflag = ebfact_w.getMultiEBCellFlagFab()[mfi].const_array();

            Array4<Real const> const& p_arr = phi.const_array(mfi);
            Array4<Real> const& fx = fluxes[0].array(mfi);
            Array4<Real> const& fy = fluxes[1].array(mfi);
            Array4<Real> const& fz = fluxes[2].array(mfi);

            // The region of phi that we may read: this FAB's own cells, less any that lie
            // outside the domain in a non-periodic direction, since the FillBoundary done
            // before this call leaves those unfilled. The three-cell stencils below reach
            // three cells past the tile at a face on the box edge, so they must be checked
            // against this rather than assumed to fit (issue #3699)
            const Box rbx = phi[mfi].box() & geom.growPeriodicDomain(phi.nGrowVect());
            const auto rlo = lbound(rbx);
            const auto rhi = ubound(rbx);

            ParallelFor(xbx, ybx, zbx,
            // x-face
            [=] AMREX_GPU_DEVICE (int i, int j, int k) noexcept
            {
                if (apx(i,j,k) == zero) {
                    if (!u_cflag(i,j,k).isCovered()) {
                        if (cflag(i,j,k).isCovered() && !cflag(i-1,j,k).isCovered()) {
                            // Extrapolate from the uncovered side, at i-1 and below
                            if (i-3 >= rlo.x) {
                                fx(i,j,k) = dxInv[0] * (p_arr(i-3,j,k) - three*p_arr(i-2,j,k) + two*p_arr(i-1,j,k));
                            } else if (i-2 >= rlo.x) {
                                fx(i,j,k) = dxInv[0] * (p_arr(i-1,j,k) - p_arr(i-2,j,k));
                            }
                        } else if (cflag(i-1,j,k).isCovered() && !cflag(i,j,k).isCovered()) {
                            // Extrapolate from the uncovered side, at i and above
                            if (i+2 <= rhi.x) {
                                fx(i,j,k) = dxInv[0] * (three*p_arr(i+1,j,k) - p_arr(i+2,j,k) - two*p_arr(i,j,k));
                            } else if (i+1 <= rhi.x) {
                                fx(i,j,k) = dxInv[0] * (p_arr(i+1,j,k) - p_arr(i,j,k));
                            }
                        }
                    }
                }
            },
            // y-face
            [=] AMREX_GPU_DEVICE (int i, int j, int k) noexcept
            {
                if (apy(i,j,k) == zero) {
                    if (!v_cflag(i,j,k).isCovered()) {
                        if (cflag(i,j,k).isCovered() && !cflag(i,j-1,k).isCovered()) {
                            // Extrapolate from the uncovered side, at j-1 and below
                            if (j-3 >= rlo.y) {
                                fy(i,j,k) = dxInv[1] * (p_arr(i,j-3,k) - three*p_arr(i,j-2,k) + two*p_arr(i,j-1,k));
                            } else if (j-2 >= rlo.y) {
                                fy(i,j,k) = dxInv[1] * (p_arr(i,j-1,k) - p_arr(i,j-2,k));
                            }
                        } else if (cflag(i,j-1,k).isCovered() && !cflag(i,j,k).isCovered()) {
                            // Extrapolate from the uncovered side, at j and above
                            if (j+2 <= rhi.y) {
                                fy(i,j,k) = dxInv[1] * (three*p_arr(i,j+1,k) - p_arr(i,j+2,k) - two*p_arr(i,j,k));
                            } else if (j+1 <= rhi.y) {
                                fy(i,j,k) = dxInv[1] * (p_arr(i,j+1,k) - p_arr(i,j,k));
                            }
                        }
                    }
                }
            },
            // z-face
            [=] AMREX_GPU_DEVICE (int i, int j, int k) noexcept
            {
                if (apz(i,j,k) == zero) {
                    if (!w_cflag(i,j,k).isCovered()) {
                        if (cflag(i,j,k).isCovered() && !cflag(i,j,k-1).isCovered()) {
                            // Extrapolate from the uncovered side, at k-1 and below
                            if (k-3 >= rlo.z) {
                                fz(i,j,k) = dxInv[2] * (p_arr(i,j,k-3) - three*p_arr(i,j,k-2) + two*p_arr(i,j,k-1));
                            } else if (k-2 >= rlo.z) {
                                fz(i,j,k) = dxInv[2] * (p_arr(i,j,k-1) - p_arr(i,j,k-2));
                            }
                        } else if (cflag(i,j,k-1).isCovered() && !cflag(i,j,k).isCovered()) {
                            // Extrapolate from the uncovered side, at k and above
                            if (k+2 <= rhi.z) {
                                fz(i,j,k) = dxInv[2] * (three*p_arr(i,j,k+1) - p_arr(i,j,k+2) - two*p_arr(i,j,k));
                            } else if (k+1 <= rhi.z) {
                                fz(i,j,k) = dxInv[2] * (p_arr(i,j,k+1) - p_arr(i,j,k));
                            }
                        }
                    }
                }
            });
        } // single-valued
    } // mfi
}

Referenced by solve_with_EB_mlmg().

Here is the call graph for this function:

Here is the caller graph for this function:
