#include <AMReX_Array.H>
#include <AMReX_Array4.H>
#include <AMReX_Box.H>
#include <AMReX_BoxArray.H>
#include <AMReX_DistributionMapping.H>
#include <AMReX_Geometry.H>
#include <AMReX_MultiFab.H>
#include <AMReX_REAL.H>
#include <algorithm>
#include <cmath>
#include <limits>

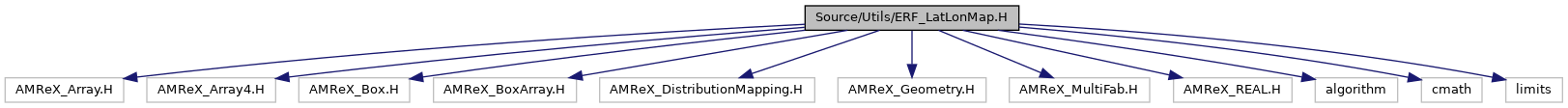

Include dependency graph for ERF_LatLonMap.H:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	LatLonLocation

class	LatLonMap

Enumerations
enum class	LatLonStatus { Ok , Degenerate , TooFar }

Functions
bool	invert_latlon_offset (amrex::Real dlat, amrex::Real dlon, amrex::Real dlat_di, amrex::Real dlon_di, amrex::Real dlat_dj, amrex::Real dlon_dj, amrex::Real &di, amrex::Real &dj)

amrex::Real	wrap_longitude_difference (amrex::Real dlon)

void	grid_rotation_from_latlon (const amrex::Array4< const amrex::Real > &ll, const amrex::Box &dom, int i, int j, amrex::Real &cos_alpha, amrex::Real &sin_alpha)

LatLonStatus	locate_latlon_on_grid (const amrex::Array4< const amrex::Real > &ll, const amrex::Box &dom, const amrex::GpuArray< amrex::Real, AMREX_SPACEDIM > &problo, const amrex::GpuArray< amrex::Real, AMREX_SPACEDIM > &dx, amrex::Real req_lat, amrex::Real req_lon, LatLonLocation &loc)

void	pack_latlon (amrex::MultiFab &latlon, const amrex::MultiFab &lat, const amrex::MultiFab &lon)

Enumeration Type Documentation

◆ LatLonStatus

enum LatLonStatus

strong

Enumerator
Ok
Degenerate
TooFar

                         {
     Ok,         // placed
     Degenerate, // the lat/lon gradients are parallel near the point
     TooFar      // more than one cell from the nearest mass point: outside the domain
 };

Function Documentation

◆ grid_rotation_from_latlon()

void grid_rotation_from_latlon	(	const amrex::Array4< const amrex::Real > &	ll,
		const amrex::Box &	dom,
		int	i,
		int	j,
		amrex::Real &	cos_alpha,
		amrex::Real &	sin_alpha
	)

◆ invert_latlon_offset()

bool invert_latlon_offset	(	amrex::Real	dlat,
		amrex::Real	dlon,
		amrex::Real	dlat_di,
		amrex::Real	dlon_di,
		amrex::Real	dlat_dj,
		amrex::Real	dlon_dj,
		amrex::Real &	di,
		amrex::Real &	dj
	)

inline

 {
     const amrex::Real scale = std::max(std::max(std::abs(dlat_di), std::abs(dlon_di)),
                                        std::max(std::abs(dlat_dj), std::abs(dlon_dj)));
     const amrex::Real det = dlat_di*dlon_dj - dlat_dj*dlon_di;
     const amrex::Real rel = std::max(amrex::Real(1.0e-12),
                                      amrex::Real(64) * std::numeric_limits<amrex::Real>::epsilon());
     if (scale <= amrex::Real(0.0) || std::abs(det) <= rel*scale*scale) {
         return false;
     }
     di = ( dlat*dlon_dj - dlon*dlat_dj) / det;
     dj = (-dlat*dlon_di + dlon*dlat_di) / det;
     return true;
 }

Referenced by locate_latlon_on_grid().

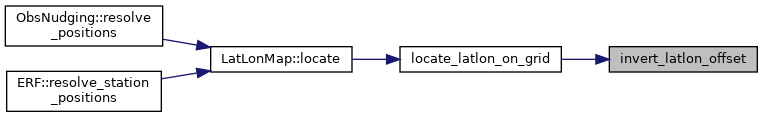

Here is the caller graph for this function:

◆ locate_latlon_on_grid()

LatLonStatus locate_latlon_on_grid	(	const amrex::Array4< const amrex::Real > &	ll,
		const amrex::Box &	dom,
		const amrex::GpuArray< amrex::Real, AMREX_SPACEDIM > &	problo,
		const amrex::GpuArray< amrex::Real, AMREX_SPACEDIM > &	dx,
		amrex::Real	req_lat,
		amrex::Real	req_lon,
		LatLonLocation &	loc
	)

◆ pack_latlon()

void pack_latlon	(	amrex::MultiFab &	latlon,
		const amrex::MultiFab &	lat,
		const amrex::MultiFab &	lon
	)

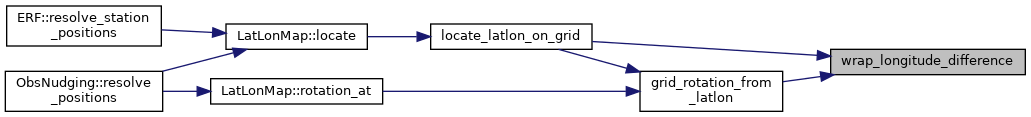

◆ wrap_longitude_difference()

amrex::Real wrap_longitude_difference ( amrex::Real dlon )
