ERF_NOAHMP_Fields.H File Reference

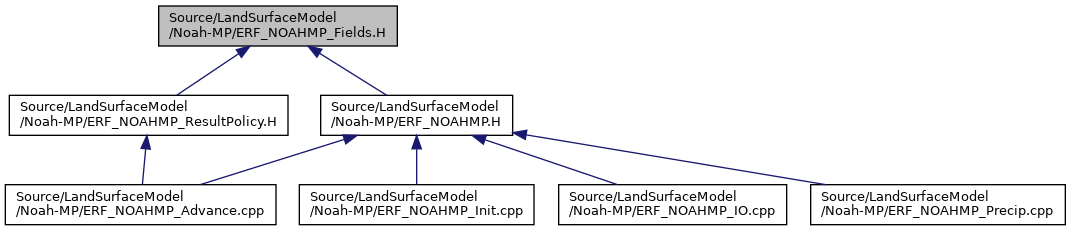

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Namespaces
	LsmData_NOAHMP
	LsmFlux_NOAHMP
	NoahmpPrecipSlot
	NoahmpInputComp
	NoahmpOutputComp

Macros
#define	NOAHMP_LSMDATA_FIELDS(X)
#define	NOAHMP_INPUT_3D_FIELDS(X)
#define	NOAHMP_INPUT_2D_FIELDS(X)
#define	NOAHMP_OUTPUT_2D_FIELDS_HEAD(X)
#define	NOAHMP_OUTPUT_2D_FIELDS_TAIL(X)
#define	NOAHMP_OUTPUT_2D_FIELDS(X)
#define	NOAHMP_RESULT_FIELDS(X)
#define	NOAHMP_ENUM(comp)   comp,
#define	NOAHMP_QUOTE(comp)   #comp,
#define	NOAHMP_COMP(comp, member)   comp,

Enumerations
enum	{ LsmData_NOAHMP::NumVars }
enum	{   LsmFlux_NOAHMP::t_flux = 0 , LsmFlux_NOAHMP::q_flux , LsmFlux_NOAHMP::tau13 , LsmFlux_NOAHMP::tau23 ,   LsmFlux_NOAHMP::NumVars }
enum	{   NoahmpPrecipSlot::total = 0 , NoahmpPrecipSlot::rain , NoahmpPrecipSlot::snow , NoahmpPrecipSlot::graupel ,   NoahmpPrecipSlot::hail , NoahmpPrecipSlot::NumSlots }
enum	{   NoahmpInputComp::rainbl , NoahmpInputComp::sr_in , NoahmpInputComp::mp_rainnc , NoahmpInputComp::mp_snow ,   NoahmpInputComp::mp_graup , NoahmpInputComp::NumComps }
enum	{   NoahmpOutputComp::albsfcdir_vis , NoahmpOutputComp::albsfcdir_nir , NoahmpOutputComp::albsfcdif_vis , NoahmpOutputComp::albsfcdif_nir ,   NoahmpOutputComp::o_smstav , NoahmpOutputComp::o_smstot , NoahmpOutputComp::NumComps }

Macro Definition Documentation

NOAHMP_COMP

#define NOAHMP_COMP	(		comp,
			member
	)		comp,

NOAHMP_ENUM

#define NOAHMP_ENUM

(

comp

)

comp,

NOAHMP_INPUT_2D_FIELDS

#define NOAHMP_INPUT_2D_FIELDS

(

X

)

Value:

    /*    ERF comp      NoahmpIO member  */                                   \
    X(    swdown,       SWDOWN  )                                             \
    X(    glw,          GLW     )                                             \
    X(    coszen,       COSZEN  )

NOAHMP_INPUT_3D_FIELDS

#define NOAHMP_INPUT_3D_FIELDS

(

X

)

Value:

    /*    ERF comp      NoahmpIO member  */                                   \
    X(    u_phy,        U_PHY   )                                             \
    X(    v_phy,        V_PHY   )                                             \
    X(    t_phy,        T_PHY   )                                             \
    X(    qv_curr,      QV_CURR )                                             \
    X(    p8w,          P8W     )

NOAHMP_LSMDATA_FIELDS

#define NOAHMP_LSMDATA_FIELDS

(

X

)

Value:

    /* radiation coupling */                                                  \
    X(t_sfc)             X(sfc_emis)                                          \
    X(sfc_alb_dir_vis)   X(sfc_alb_dir_nir)                                   \
    X(sfc_alb_dif_vis)   X(sfc_alb_dif_nir)                                   \
    X(cos_zenith_angle)  X(sw_flux_dn)                                        \
    X(sw_flux_dn_dir_vis) X(sw_flux_dn_dir_nir)                               \
    X(sw_flux_dn_dif_vis) X(sw_flux_dn_dif_nir)                               \
    X(lw_flux_dn)                                                             \
    /* land return-term diagnostics */                                       \
    X(grdflx) X(fira) X(sav) X(sag) X(albedo)                                 \
    X(sfcrunoff) X(udrunoff) X(smstav) X(smstot)                              \
    /* native Noah-MP 2-m bundle */                                           \
    X(noahmp_temperature_2m_vegetated)                                       \
    X(noahmp_temperature_2m_bare)                                            \
    X(noahmp_water_vapor_mixing_ratio_2m_vegetated)                           \
    X(noahmp_water_vapor_mixing_ratio_2m_bare)                                \
    X(noahmp_vegetation_fraction)

NOAHMP_OUTPUT_2D_FIELDS

#define NOAHMP_OUTPUT_2D_FIELDS

(

X

)

Value:

                                   NOAHMP_OUTPUT_2D_FIELDS_HEAD(X)            \
                                   NOAHMP_OUTPUT_2D_FIELDS_TAIL(X)

NOAHMP_OUTPUT_2D_FIELDS_HEAD

#define NOAHMP_OUTPUT_2D_FIELDS_HEAD

(

X

)

Value:

    /*    ERF comp      NoahmpIO member  */                                   \
    X(    hfx,          HFX     )                                             \
    X(    lh,           LH      )                                             \
    X(    tau_ew,       TAU_EW  )                                             \
    X(    tau_ns,       TAU_NS  )                                             \
    X(    tsk,          TSK     )                                             \
    X(    emiss,        EMISS   )

NOAHMP_OUTPUT_2D_FIELDS_TAIL

#define NOAHMP_OUTPUT_2D_FIELDS_TAIL

(

X

)

Value:

    /*    ERF comp      NoahmpIO member  */                                   \
    X(    o_grdflx,     GRDFLX    )                                           \
    X(    o_fira,       FIRAXY    )                                           \
    X(    o_sav,        SAVXY     )                                           \
    X(    o_sag,        SAGXY     )                                           \
    X(    o_albedo,     ALBEDO    )                                           \
    X(    o_sfcrunoff,  SFCRUNOFF )                                           \
    X(    o_udrunoff,   UDRUNOFF  )                                           \
    X(    o_noahmp_t2m_veg,  T2MVXY )                                         \
    X(    o_noahmp_t2m_bare, T2MBXY )                                         \
    X(    o_noahmp_q2m_veg,  Q2MVXY )                                         \
    X(    o_noahmp_q2m_bare, Q2MBXY )                                         \
    X(    o_noahmp_fveg,     FVEGXY )

NOAHMP_QUOTE

#define NOAHMP_QUOTE

(

comp

)

#comp,

NOAHMP_RESULT_FIELDS

#define NOAHMP_RESULT_FIELDS

(

X

)

Value:

    /*   ERF Array4 alias  LsmData comp       Output comp    */               \
    X(   TSK,              t_sfc,             tsk           )                  \
    X(   EMISS,            sfc_emis,          emiss         )                  \
    X(   ALBSFCDIR_VIS,    sfc_alb_dir_vis,   albsfcdir_vis )                  \
    X(   ALBSFCDIR_NIR,    sfc_alb_dir_nir,   albsfcdir_nir )                  \
    X(   ALBSFCDIF_VIS,    sfc_alb_dif_vis,   albsfcdif_vis )                  \
    X(   ALBSFCDIF_NIR,    sfc_alb_dif_nir,   albsfcdif_nir )                  \
    X(   GRDFLX_o,         grdflx,            o_grdflx      )                  \
    X(   FIRA_o,           fira,              o_fira        )                  \
    X(   SAV_o,            sav,               o_sav         )                  \
    X(   SAG_o,            sag,               o_sag         )                  \
    X(   ALBEDO_o,         albedo,            o_albedo      )                  \
    X(   SFCRUNOFF_o,      sfcrunoff,         o_sfcrunoff   )                  \
    X(   UDRUNOFF_o,       udrunoff,          o_udrunoff    )                  \
    X(   T2MVXY_o,         noahmp_temperature_2m_vegetated, o_noahmp_t2m_veg ) \
    X(   T2MBXY_o,         noahmp_temperature_2m_bare,      o_noahmp_t2m_bare) \
    X(   Q2MVXY_o,         noahmp_water_vapor_mixing_ratio_2m_vegetated, o_noahmp_q2m_veg ) \
    X(   Q2MBXY_o,         noahmp_water_vapor_mixing_ratio_2m_bare,      o_noahmp_q2m_bare) \
    X(   FVEGXY_o,         noahmp_vegetation_fraction, o_noahmp_fveg       )
