ERF_PlanarBoundary.H File Reference

#include <AMReX_BoxArray.H>
#include <AMReX_DistributionMapping.H>
#include <AMReX_GpuQualifiers.H>
#include <AMReX_IndexType.H>
#include <AMReX_MultiFab.H>
#include <AMReX_Periodicity.H>
#include <AMReX_Vector.H>
#include <algorithm>
#include <memory>

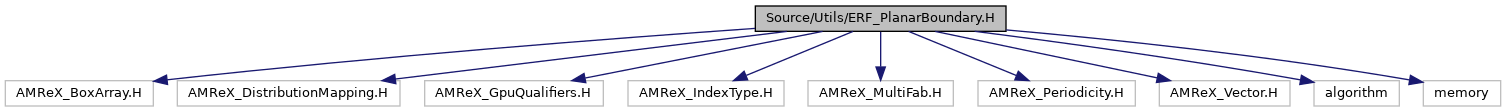

Include dependency graph for ERF_PlanarBoundary.H:

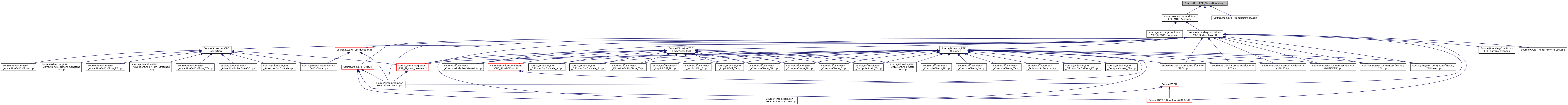

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	PlanarBoundary
struct	PlanarBoundary::Buffer

Functions
std::unique_ptr< amrex::MultiFab >	copy_ground_plane (const amrex::MultiFab &src, int klo)
void	sum_over_stacked_boxes (amrex::MultiFab &mf, int comp, int ncomp)

Function Documentation

copy_ground_plane()

std::unique_ptr<amrex::MultiFab> copy_ground_plane	(	const amrex::MultiFab &	src,
		int	klo
	)

The ground plane of a field on a level's 3D grids, on one planar box per 3D box.

Box ib of the result is the footprint of box ib of src, cut down to the plane k = klo in the index type of src (so a nodal-in-z field keeps the nodes klo and klo+1), on the rank of box ib. It therefore lines up, box for box, with any MultiFab on the collapsed BoxArray (ba2d) and the level's DistributionMapping, and a kernel that reads src at klo can read it instead from any box, including one that starts above the ground.

Each planar box first takes the lowest plane of its own 3D box, moved down to klo; the ground plane is then copied in from the boxes that hold it. Where no box of the level reaches the ground (a refined level aloft), the planar box keeps that lowest plane: a finite stand-in, not the ground, which callers must not report as the ground.

Parameters

[in]	src	field on the level's 3D grids (any index type, any number of components)
[in]	klo	index of the lowest cell of the domain

sum_over_stacked_boxes()

void sum_over_stacked_boxes	(	amrex::MultiFab &	mf,
		int	comp,
		int	ncomp
	)

Finish a column sum computed box by box on a planar MultiFab.

A column sum over a level's 3D grids, accumulated into the planar box of each 3D box, holds in each planar box only the part of the column inside its own 3D box. When the 3D BoxArray is split in z, several planar boxes cover one column; this adds their parts and gives every one of them the whole sum. A planar BoxArray without overlapping boxes is left as it is.

Parameters

[in,out]	mf	planar MultiFab, one box per 3D box, cell-centered, no ghost cells used
[in]	comp	first component holding a column sum
[in]	ncomp	number of components
