ERF_Substep_MT.cpp File Reference

#include <ERF_TI_fast_headers.H>
#include "ERF_Constants.H"

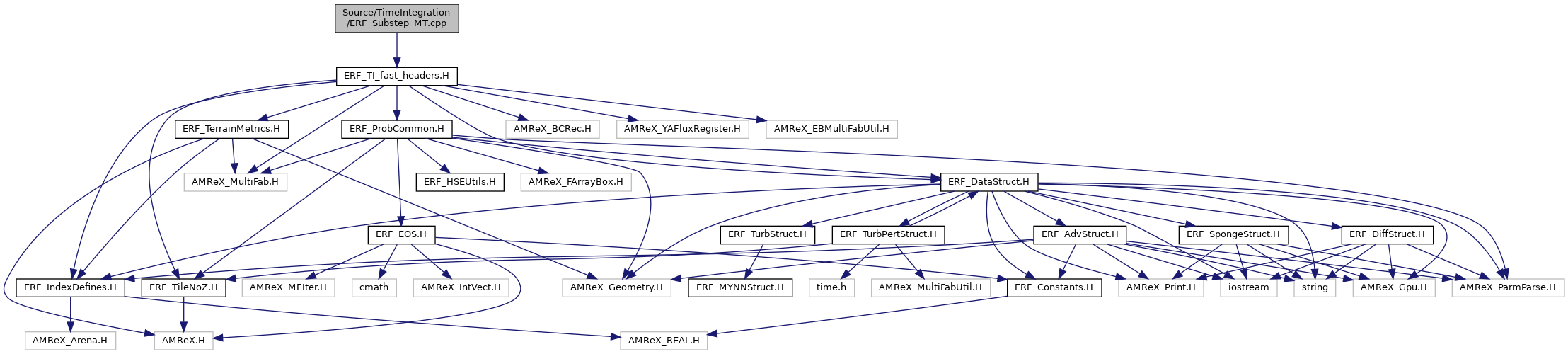

Include dependency graph for ERF_Substep_MT.cpp:

Functions
void	erf_substep_MT (int step, int, int level, int finest_level, Vector< MultiFab > &S_slow_rhs, const Vector< MultiFab > &S_prev, Vector< MultiFab > &S_stg_data, const MultiFab &S_stg_prim, const MultiFab &qt, const MultiFab &pi_stage, const MultiFab &fast_coeffs, Vector< MultiFab > &S_data, MultiFab &lagged_delta_rt, MultiFab &avg_xmom, MultiFab &avg_ymom, MultiFab &avg_zmom, const MultiFab &cc_src, const MultiFab &xmom_src, const MultiFab &ymom_src, const MultiFab &zmom_src, const Geometry geom, const Real gravity, const bool use_lagged_delta_rt, std::unique_ptr< MultiFab > &z_t_rk, const MultiFab *z_t_pert, std::unique_ptr< MultiFab > &z_phys_nd_old, std::unique_ptr< MultiFab > &z_phys_nd_new, std::unique_ptr< MultiFab > &z_phys_nd_stg, std::unique_ptr< MultiFab > &detJ_cc_old, std::unique_ptr< MultiFab > &detJ_cc_new, std::unique_ptr< MultiFab > &detJ_cc_stg, const double dtau_d, const Real facinv, Vector< std::unique_ptr< MultiFab >> &mapfac, YAFluxRegister *fr_as_crse, YAFluxRegister *fr_as_fine, bool l_use_moisture, bool l_reflux, bool, const Real *sinesq_stag_d, const Real l_damp_coef, const Real beta_d)

Function Documentation

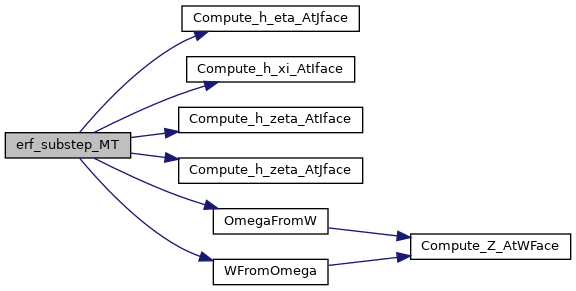

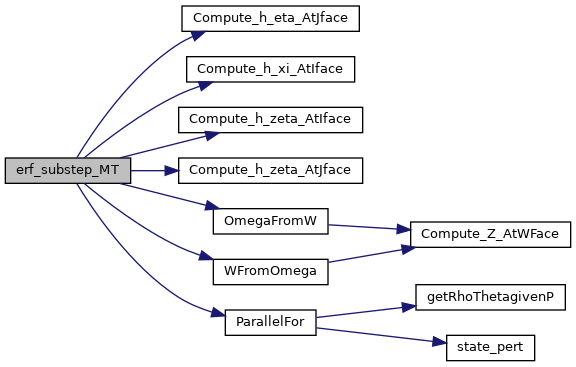

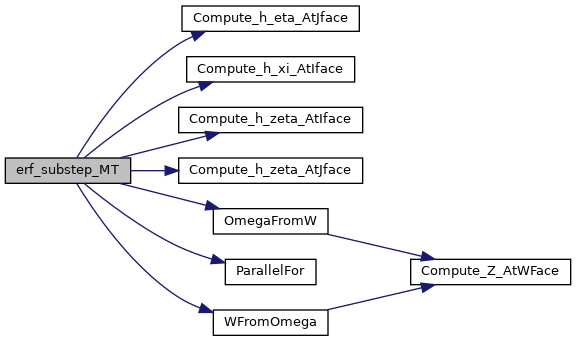

erf_substep_MT()

void erf_substep_MT	(	int	step,
		int	,
		int	level,
		int	finest_level,
		Vector< MultiFab > &	S_slow_rhs,
		const Vector< MultiFab > &	S_prev,
		Vector< MultiFab > &	S_stg_data,
		const MultiFab &	S_stg_prim,
		const MultiFab &	qt,
		const MultiFab &	pi_stage,
		const MultiFab &	fast_coeffs,
		Vector< MultiFab > &	S_data,
		MultiFab &	lagged_delta_rt,
		MultiFab &	avg_xmom,
		MultiFab &	avg_ymom,
		MultiFab &	avg_zmom,
		const MultiFab &	cc_src,
		const MultiFab &	xmom_src,
		const MultiFab &	ymom_src,
		const MultiFab &	zmom_src,
		const Geometry	geom,
		const Real	gravity,
		const bool	use_lagged_delta_rt,
		std::unique_ptr< MultiFab > &	z_t_rk,
		const MultiFab *	z_t_pert,
		std::unique_ptr< MultiFab > &	z_phys_nd_old,
		std::unique_ptr< MultiFab > &	z_phys_nd_new,
		std::unique_ptr< MultiFab > &	z_phys_nd_stg,
		std::unique_ptr< MultiFab > &	detJ_cc_old,
		std::unique_ptr< MultiFab > &	detJ_cc_new,
		std::unique_ptr< MultiFab > &	detJ_cc_stg,
		const double	dtau_d,
		const Real	facinv,
		Vector< std::unique_ptr< MultiFab >> &	mapfac,
		YAFluxRegister *	fr_as_crse,
		YAFluxRegister *	fr_as_fine,
		bool	l_use_moisture,
		bool	l_reflux,
		bool	,
		const Real *	sinesq_stag_d,
		const Real	l_damp_coef,
		const Real	beta_d
	)

Function for computing the fast RHS with moving terrain

Parameters

[in]	step	which fast time step within each Runge-Kutta step
[in]	nrk	which Runge-Kutta step
[in]	level	level of resolution
[in]	finest_level	finest level of resolution
[in]	S_slow_rhs	slow RHS computed in erf_slow_rhs_pre
[in]	S_prev	previous solution
[in]	S_stg_data	solution at previous RK stage
[in]	S_stg_prim	primitive variables at previous RK stage
[in]	pi_stage	Exner function at previous RK stage
[in]	fast_coeffs	coefficients for the tridiagonal solve used in the fast integrator, and beta_s on the w-faces (component 5)
[out]	S_data	current solution
[in,out]	lagged_delta_rt
[in,out]	avg_xmom	time-averaged x-momentum to be used for updating slow variables
[in,out]	avg_ymom	time-averaged y-momentum to be used for updating slow variables
[in,out]	avg_zmom	time-averaged z-momentum to be used for updating slow variables
[in]	cc_src	source terms for conserved variables
[in]	xmom_src	source terms for x-momentum
[in]	ymom_src	source terms for y-momentum
[in]	zmom_src	source terms for z-momentum
[in]	geom	container for geometric information
[in]	gravity	Magnitude of gravity
[in]	use_lagged_delta_rt	define lagged_delta_rt for our next step
[in]	z_t_rk	rate of change of grid height – only relevant for moving terrain
[in]	z_t_pert	rate of change of grid height – interpolated between RK stages
[in]	z_phys_nd_old	height coordinate at nodes at old time
[in]	z_phys_nd_new	height coordinate at nodes at new time
[in]	z_phys_nd_stg	height coordinate at nodes at previous stage
[in]	detJ_cc_old	Jacobian of the metric transformation at old time
[in]	detJ_cc_new	Jacobian of the metric transformation at new time
[in]	detJ_cc_stg	Jacobian of the metric transformation at previous stage
[in]	dtau	fast time step
[in]	facinv	inverse factor for time-averaging the momenta
[in]	mapfac	vector of map factors
[in,out]	fr_as_crse	YAFluxRegister at level l at level l / l+1 interface
[in,out]	fr_as_fine	YAFluxRegister at level l at level l-1 / l interface
[in]	l_use_moisture
[in]	l_reflux	should we add fluxes to the FluxRegisters?
[in]	l_damp_coef
[in]	beta_d	divergence damping coefficient: how far (rho theta) is projected forward

{
    BL_PROFILE_REGION("erf_substep_MT()");

    Real dtau = static_cast<Real>(dtau_d);

    Real RvOverRd = R_v / R_d;

    bool l_rayleigh_impl_for_w = (sinesq_stag_d != nullptr);

    const Real* dx = geom.CellSize();
    const GpuArray<Real, AMREX_SPACEDIM> dxInv = geom.InvCellSizeArray();
    const int domlo_z = geom.Domain().smallEnd(2);
    const int domhi_z = geom.Domain().bigEnd(2);

    Real dxi = dxInv[0];
    Real dyi = dxInv[1];
    Real dzi = dxInv[2];

    MultiFab     coeff_A_mf(fast_coeffs, make_alias, 0, 1);
    MultiFab inv_coeff_B_mf(fast_coeffs, make_alias, 1, 1);
    MultiFab     coeff_C_mf(fast_coeffs, make_alias, 2, 1);
    MultiFab     coeff_P_mf(fast_coeffs, make_alias, 3, 1);
    MultiFab     coeff_Q_mf(fast_coeffs, make_alias, 4, 1);

    // beta_s on the w-faces, from which
    //    beta_1 = myhalf * (one - beta_s) multiplies explicit terms
    //    beta_2 = myhalf * (one + beta_s) multiplies implicit terms
    MultiFab      beta_s_mf(fast_coeffs, make_alias, 5, 1);

    // *************************************************************************
    // Set gravity as a vector
    const    Array<Real,AMREX_SPACEDIM> grav{zero, zero, -gravity};
    const GpuArray<Real,AMREX_SPACEDIM> grav_gpu{grav[0], grav[1], grav[2]};

    MultiFab extrap(S_data[IntVars::cons].boxArray(),S_data[IntVars::cons].DistributionMap(),1,1);

    MultiFab Omega(S_data[IntVars::zmom].boxArray(), S_data[IntVars::zmom].DistributionMap(), 1, 1);

    // *************************************************************************
    // Define updates in the current RK stg
    // *************************************************************************
#ifdef _OPENMP
#pragma omp parallel if (Gpu::notInLaunchRegion())
#endif
    {
    FArrayBox temp_rhs_fab;

    FArrayBox RHS_fab;
    FArrayBox soln_fab;

    std::array<FArrayBox,AMREX_SPACEDIM> flux;

    //  NOTE: we leave tiling off here for efficiency -- to make this loop work with tiling
    //        will require additional changes
    for ( MFIter mfi(S_stg_data[IntVars::cons],false); mfi.isValid(); ++mfi)
    {
        Box bx  = mfi.tilebox();
        Box tbx = surroundingNodes(bx,0);
        Box tby = surroundingNodes(bx,1);
        Box tbz = surroundingNodes(bx,2);

        Box vbx = mfi.validbox();
        const auto& vbx_hi = ubound(vbx);

        // The vertical solve below takes the bottom of the box as the moving terrain and the
        // top of the box as the top of the domain, so a grid that is split in z (level 0 with
        // max_grid_size_z below the domain height) or a refined grid with c/f faces in z
        // would be solved for with the wrong boundary rows
        AMREX_ALWAYS_ASSERT_WITH_MESSAGE(vbx.smallEnd(2) == domlo_z && vbx.bigEnd(2) == domhi_z,
            "erf_substep_MT: MovingFittedMesh requires every grid to span the full height of the domain");

        const Array4<Real const>& xmom_src_arr   = xmom_src.const_array(mfi);
        const Array4<Real const>& ymom_src_arr   = ymom_src.const_array(mfi);
        const Array4<Real const>& zmom_src_arr   = zmom_src.const_array(mfi);
        const Array4<Real const>& cc_src_arr     = cc_src.const_array(mfi);

        const Array4<const Real> & stg_cons = S_stg_data[IntVars::cons].const_array(mfi);
        const Array4<const Real> & stg_xmom = S_stg_data[IntVars::xmom].const_array(mfi);
        const Array4<const Real> & stg_ymom = S_stg_data[IntVars::ymom].const_array(mfi);
        const Array4<const Real> & stg_zmom = S_stg_data[IntVars::zmom].const_array(mfi);
        const Array4<const Real> & prim     = S_stg_prim.const_array(mfi);
        const Array4<const Real> & qt_arr   = qt.const_array(mfi);

        const Array4<const Real>& slow_rhs_cons  = S_slow_rhs[IntVars::cons].const_array(mfi);
        const Array4<const Real>& slow_rhs_rho_u = S_slow_rhs[IntVars::xmom].const_array(mfi);
        const Array4<const Real>& slow_rhs_rho_v = S_slow_rhs[IntVars::ymom].const_array(mfi);
        const Array4<const Real>& slow_rhs_rho_w = S_slow_rhs[IntVars::zmom].const_array(mfi);

        const Array4<Real>& cur_cons = S_data[IntVars::cons].array(mfi);
        const Array4<Real>& cur_xmom = S_data[IntVars::xmom].array(mfi);
        const Array4<Real>& cur_ymom = S_data[IntVars::ymom].array(mfi);
        const Array4<Real>& cur_zmom = S_data[IntVars::zmom].array(mfi);

        const Array4<Real>& lagged = lagged_delta_rt.array(mfi);

        const Array4<const Real>& prev_cons = S_prev[IntVars::cons].const_array(mfi);
        const Array4<const Real>& prev_xmom = S_prev[IntVars::xmom].const_array(mfi);
        const Array4<const Real>& prev_ymom = S_prev[IntVars::ymom].const_array(mfi);
        const Array4<const Real>& prev_zmom = S_prev[IntVars::zmom].const_array(mfi);

        // These store the advection momenta which we will use to update the slow variables
        const Array4<Real>& avg_xmom_arr = avg_xmom.array(mfi);
        const Array4<Real>& avg_ymom_arr = avg_ymom.array(mfi);
        const Array4<Real>& avg_zmom_arr = avg_zmom.array(mfi);

        const Array4<const Real>& z_nd_old = z_phys_nd_old->const_array(mfi);
        const Array4<const Real>& z_nd_new = z_phys_nd_new->const_array(mfi);
        const Array4<const Real>& z_nd_stg = z_phys_nd_stg->const_array(mfi);
        const Array4<const Real>& detJ_old =   detJ_cc_old->const_array(mfi);
        const Array4<const Real>& detJ_new =   detJ_cc_new->const_array(mfi);
        const Array4<const Real>& detJ_stg =   detJ_cc_stg->const_array(mfi);

        const Array4<const Real>& z_t_arr  = z_t_rk->const_array(mfi);
        const Array4<const Real>& zp_t_arr = z_t_pert->const_array(mfi);

        const Array4<      Real>& omega_arr = Omega.array(mfi);

        // Map factors
        const Array4<const Real>& mf_mx = mapfac[MapFacType::m_x]->const_array(mfi);
        const Array4<const Real>& mf_my = mapfac[MapFacType::m_y]->const_array(mfi);
        const Array4<const Real>& mf_ux = mapfac[MapFacType::u_x]->const_array(mfi);
        const Array4<const Real>& mf_vy = mapfac[MapFacType::v_y]->const_array(mfi);

        // *********************************************************************
        // This must be done before we set cur_xmom and cur_ymom, since those
        //      in fact point to the same array as prev_xmom and prev_ymom
        // *********************************************************************
        Box gbxo = mfi.nodaltilebox(2);
        {
        BL_PROFILE("fast_MT_making_omega");
        Box gbxo_lo = gbxo; gbxo_lo.setBig(2,0);
        ParallelFor(gbxo_lo, [=] AMREX_GPU_DEVICE (int i, int j, int k) noexcept {
            omega_arr(i,j,k) = zero;
        });
        Box gbxo_hi = gbxo; gbxo_hi.setSmall(2,gbxo.bigEnd(2));
        ParallelFor(gbxo_hi, [=] AMREX_GPU_DEVICE (int i, int j, int k) noexcept {
            omega_arr(i,j,k) = prev_zmom(i,j,k) - stg_zmom(i,j,k) - zp_t_arr(i,j,k);
        });

        // gbxo_lo covers k<=0 and gbxo_hi covers the box's top face, so the mid box is
        // [max(smallEnd,1), bigEnd-1]. Using max() never EXPANDS the box past the FAB,
        // which is what setSmall(2,1) does for a box that starts above k=1.
        Box gbxo_mid = gbxo;
        gbxo_mid.setSmall(2, std::max(gbxo.smallEnd(2), 1));
        gbxo_mid.setBig  (2, gbxo.bigEnd(2)-1);

        ParallelFor(gbxo_mid, [=] AMREX_GPU_DEVICE (int i, int j, int k) noexcept {
            omega_arr(i,j,k) =
                ( OmegaFromW(i,j,k,prev_zmom(i,j,k),prev_xmom,prev_ymom,mf_ux,mf_vy,z_nd_old,dxInv)
                 -OmegaFromW(i,j,k, stg_zmom(i,j,k), stg_xmom, stg_ymom,mf_ux,mf_vy,z_nd_old,dxInv) )
                - zp_t_arr(i,j,k);
        });
        } // end profile
        // *********************************************************************

        const Array4<const Real>& pi_stage_ca = pi_stage.const_array(mfi);

        const Array4<Real>& theta_extrap = extrap.array(mfi);

        // Note: it is important to grow the tilebox rather than use growntilebox because
        //       we need to fill the ghost cells of the tilebox so we can use them below
        Box gbx   = mfi.tilebox();  gbx.grow(1);
        Box gtbx  = mfi.nodaltilebox(0); gtbx.grow(1); gtbx.setSmall(2,0);
        Box gtby  = mfi.nodaltilebox(1); gtby.grow(1); gtby.setSmall(2,0);

        if (step == 0) {
            ParallelFor(gbx,
            [=] AMREX_GPU_DEVICE (int i, int j, int k) noexcept {
                cur_cons(i,j,k,Rho_comp)      = prev_cons(i,j,k,Rho_comp);
                cur_cons(i,j,k,RhoTheta_comp) = prev_cons(i,j,k,RhoTheta_comp);

                Real delta_rt  =  cur_cons(i,j,k,RhoTheta_comp) - stg_cons(i,j,k,RhoTheta_comp);
                theta_extrap(i,j,k) = delta_rt;

                // NOTE: qv is not changing over the fast steps so we use the stage data
                Real qv = (l_use_moisture) ? prim(i,j,k,PrimQ1_comp) : zero;
                theta_extrap(i,j,k) *= (one + RvOverRd*qv);

                // We define lagged_delta_rt for our next step as the current delta_rt
                lagged(i,j,k) = delta_rt;
            });
        } else if (use_lagged_delta_rt) {
            // This is the default for cases with no or static terrain
            ParallelFor(gbx,
            [=] AMREX_GPU_DEVICE (int i, int j, int k) noexcept {
                Real delta_rt = cur_cons(i,j,k,RhoTheta_comp) - stg_cons(i,j,k,RhoTheta_comp);
                theta_extrap(i,j,k) = delta_rt + beta_d * (delta_rt - lagged(i,j,k));

                // NOTE: qv is not changing over the fast steps so we use the stage data
                Real qv = (l_use_moisture) ? prim(i,j,k,PrimQ1_comp) : zero;
                theta_extrap(i,j,k) *= (one + RvOverRd*qv);

                // We define lagged_delta_rt for our next step as the current delta_rt
                lagged(i,j,k) = delta_rt;
            });
        } else {
            // For the moving wave problem, this choice seems more robust
            ParallelFor(gbx,
            [=] AMREX_GPU_DEVICE (int i, int j, int k) noexcept {
                theta_extrap(i,j,k) = cur_cons(i,j,k,RhoTheta_comp) - stg_cons(i,j,k,RhoTheta_comp);

                // NOTE: qv is not changing over the fast steps so we use the stage data
                Real qv = (l_use_moisture) ? prim(i,j,k,PrimQ1_comp) : zero;
                theta_extrap(i,j,k) *= (one + RvOverRd*qv);
            });
        } // if step

        RHS_fab.resize     (tbz,1, The_Async_Arena());
        soln_fab.resize    (tbz,1, The_Async_Arena());
        temp_rhs_fab.resize(tbz,2, The_Async_Arena());

        auto const& RHS_a        =      RHS_fab.array();
        auto const& soln_a       =     soln_fab.array();
        auto const& temp_rhs_arr = temp_rhs_fab.array();

        auto const&     coeffA_a =     coeff_A_mf.array(mfi);
        auto const& inv_coeffB_a = inv_coeff_B_mf.array(mfi);
        auto const&     coeffC_a =     coeff_C_mf.array(mfi);
        auto const&     coeffP_a =     coeff_P_mf.array(mfi);
        auto const&     coeffQ_a =     coeff_Q_mf.array(mfi);
        auto const&     beta_s_a =      beta_s_mf.const_array(mfi);

        // *********************************************************************
        // Define updates in the RHS of {x, y, z}-momentum equations
        // *********************************************************************
        {
        BL_PROFILE("substep_xymom_T");
        ParallelFor(tbx, tby,
        [=] AMREX_GPU_DEVICE (int i, int j, int k)
        {
                // Add (negative) gradient of (rho theta) multiplied by lagged "pi"
                Real h_xi_old   = Compute_h_xi_AtIface(i, j, k, dxInv, z_nd_old);
                Real h_zeta_old = Compute_h_zeta_AtIface(i, j, k, dxInv, z_nd_old);
                Real gp_xi = (theta_extrap(i,j,k) - theta_extrap(i-1,j,k)) * dxi;
                Real gp_zeta_on_iface = (k == 0) ?
                   myhalf  * dzi * ( theta_extrap(i-1,j,k+1) + theta_extrap(i,j,k+1)
                                   - theta_extrap(i-1,j,k  ) - theta_extrap(i,j,k  ) ) :
                   fourth  * dzi * ( theta_extrap(i-1,j,k+1) + theta_extrap(i,j,k+1)
                                   - theta_extrap(i-1,j,k-1) - theta_extrap(i,j,k-1) );
                Real gpx = h_zeta_old * gp_xi - h_xi_old * gp_zeta_on_iface;
                gpx *= mf_ux(i,j,0);

                Real q = (l_use_moisture) ? myhalf * (qt_arr(i-1,j,k) + qt_arr(i,j,k)) : zero;

                Real pi_c =  myhalf * (pi_stage_ca(i-1,j,k) + pi_stage_ca(i  ,j,k));
                Real fast_rhs_rho_u = -Gamma * R_d * pi_c * gpx / (one + q);

                // We have already scaled the source terms to have the extra factor of dJ
                cur_xmom(i,j,k) = h_zeta_old * prev_xmom(i,j,k) + dtau * fast_rhs_rho_u
                                                                + dtau * slow_rhs_rho_u(i,j,k)
                                                                + dtau * xmom_src_arr(i,j,k);
        },
        [=] AMREX_GPU_DEVICE (int i, int j, int k)
        {
                // Add (negative) gradient of (rho theta) multiplied by lagged "pi"
                Real h_eta_old  = Compute_h_eta_AtJface(i, j, k, dxInv, z_nd_old);
                Real h_zeta_old = Compute_h_zeta_AtJface(i, j, k, dxInv, z_nd_old);
                Real gp_eta = (theta_extrap(i,j,k) -theta_extrap(i,j-1,k)) * dyi;
                Real gp_zeta_on_jface = (k == 0) ?
                    myhalf  * dzi * ( theta_extrap(i,j,k+1) + theta_extrap(i,j-1,k+1)
                                    - theta_extrap(i,j,k  ) - theta_extrap(i,j-1,k  ) ) :
                    fourth  * dzi * ( theta_extrap(i,j,k+1) + theta_extrap(i,j-1,k+1)
                                    - theta_extrap(i,j,k-1) - theta_extrap(i,j-1,k-1) );
                Real gpy = h_zeta_old * gp_eta - h_eta_old  * gp_zeta_on_jface;
                gpy *= mf_vy(i,j,0);

                Real q = (l_use_moisture) ? myhalf * (qt_arr(i,j-1,k) + qt_arr(i,j,k)) : zero;

                Real pi_c =  myhalf * (pi_stage_ca(i,j-1,k) + pi_stage_ca(i,j  ,k));
                Real fast_rhs_rho_v = -Gamma * R_d * pi_c * gpy / (one + q);

                // We have already scaled the source terms to have the extra factor of dJ
                cur_ymom(i, j, k) = h_zeta_old * prev_ymom(i,j,k) + dtau * fast_rhs_rho_v
                                                                  + dtau * slow_rhs_rho_v(i,j,k)
                                                                  + dtau * ymom_src_arr(i,j,k);
        });
        } // end profile

        // *************************************************************************
        // Define flux arrays for use in advection
        // *************************************************************************
        for (int dir = 0; dir < AMREX_SPACEDIM; ++dir) {
            flux[dir].resize(surroundingNodes(bx,dir),2,The_Async_Arena());
            flux[dir].setVal<RunOn::Device>(0);
        }
        const GpuArray<const Array4<Real>, AMREX_SPACEDIM>
            flx_arr{{AMREX_D_DECL(flux[0].array(), flux[1].array(), flux[2].array())}};

        // *********************************************************************
        {
        BL_PROFILE("fast_T_making_rho_rhs");
        ParallelFor(bx, [=] AMREX_GPU_DEVICE (int i, int j, int k) noexcept
        {
            Real h_zeta_stg_xlo = Compute_h_zeta_AtIface(i,  j  , k, dxInv, z_nd_stg);
            Real h_zeta_stg_xhi = Compute_h_zeta_AtIface(i+1,j  , k, dxInv, z_nd_stg);
            Real xflux_lo = cur_xmom(i  ,j,k) - stg_xmom(i  ,j,k)*h_zeta_stg_xlo;
            Real xflux_hi = cur_xmom(i+1,j,k) - stg_xmom(i+1,j,k)*h_zeta_stg_xhi;

            Real h_zeta_stg_yhi = Compute_h_zeta_AtJface(i,  j+1, k, dxInv, z_nd_stg);
            Real h_zeta_stg_ylo = Compute_h_zeta_AtJface(i,  j  , k, dxInv, z_nd_stg);
            Real yflux_lo = cur_ymom(i,j  ,k) - stg_ymom(i,j  ,k)*h_zeta_stg_ylo;
            Real yflux_hi = cur_ymom(i,j+1,k) - stg_ymom(i,j+1,k)*h_zeta_stg_yhi;

            // NOTE: we are saving the (1/J) weighting for later when we add this to rho and theta
            temp_rhs_arr(i,j,k,0) = ( xflux_hi - xflux_lo ) * dxi + ( yflux_hi - yflux_lo ) * dyi;
            temp_rhs_arr(i,j,k,1) = (( xflux_hi * (prim(i,j,k,0) + prim(i+1,j,k,0)) -
                                       xflux_lo * (prim(i,j,k,0) + prim(i-1,j,k,0)) ) * dxi +
                                     ( yflux_hi * (prim(i,j,k,0) + prim(i,j+1,k,0)) -
                                       yflux_lo * (prim(i,j,k,0) + prim(i,j-1,k,0)) ) * dyi) * myhalf;

            if (l_reflux) {
                (flx_arr[0])(i,j,k,0) = xflux_lo;
                (flx_arr[0])(i,j,k,1) = (flx_arr[0])(i  ,j,k,0) * myhalf * (prim(i,j,k,0) + prim(i-1,j,k,0));

                (flx_arr[1])(i,j,k,0) = yflux_lo;
                (flx_arr[1])(i,j,k,1) = (flx_arr[1])(i,j  ,k,0) * myhalf * (prim(i,j,k,0) + prim(i,j-1,k,0));

                if (i == vbx_hi.x) {
                    (flx_arr[0])(i+1,j,k,0) = xflux_hi;
                    (flx_arr[0])(i+1,j,k,1) = (flx_arr[0])(i+1,j,k,0) * myhalf * (prim(i,j,k,0) + prim(i+1,j,k,0));
                }
                if (j == vbx_hi.y) {
                    (flx_arr[1])(i,j+1,k,0) = yflux_hi;
                    (flx_arr[1])(i,j+1,k,1) = (flx_arr[1])(i,j+1,k,0) * myhalf * (prim(i,j,k,0) + prim(i,j+1,k,0));
                }
            }
        });
        } // end profile

        ParallelFor(tbx, tby,
        [=] AMREX_GPU_DEVICE (int i, int j, int k)
        {
            Real h_zeta_new = Compute_h_zeta_AtIface(i, j, k, dxInv, z_nd_new);
            cur_xmom(i, j, k) /= h_zeta_new;
            avg_xmom_arr(i,j,k) += facinv*(cur_xmom(i,j,k) - stg_xmom(i,j,k));
        },
        [=] AMREX_GPU_DEVICE (int i, int j, int k)
        {
            Real h_zeta_new = Compute_h_zeta_AtJface(i, j, k, dxInv, z_nd_new);
            cur_ymom(i, j, k) /= h_zeta_new;
            avg_ymom_arr(i,j,k) += facinv*(cur_ymom(i,j,k) - stg_ymom(i,j,k));
        });

        Box bx_shrunk_in_k = bx;
        int klo = tbz.smallEnd(2);
        int khi = tbz.bigEnd(2);
        bx_shrunk_in_k.setSmall(2,klo+1);
        bx_shrunk_in_k.setBig(2,khi-1);

        // Note that the notes use "g" to mean the magnitude of gravity, so it is positive
        // We set grav_gpu[2] to be the vector component which is negative
        // We define halfg to match the notes (which is why we take the absolute value)
        Real halfg = std::abs(myhalf * grav_gpu[2]);

        {
        BL_PROFILE("fast_loop_on_shrunk_t");
        //Note we don't act on the bottom or top boundaries of the domain
        ParallelFor(bx_shrunk_in_k, [=] AMREX_GPU_DEVICE (int i, int j, int k)
        {
            Real     dJ_old_kface = myhalf * (detJ_old(i,j,k) + detJ_old(i,j,k-1));
            Real     dJ_new_kface = myhalf * (detJ_new(i,j,k) + detJ_new(i,j,k-1));
            Real     dJ_stg_kface = myhalf * (detJ_stg(i,j,k) + detJ_stg(i,j,k-1));

            Real coeff_P = coeffP_a(i,j,k);
            Real coeff_Q = coeffQ_a(i,j,k);

            Real theta_t_lo  = myhalf * ( prim(i,j,k-2,PrimTheta_comp) + prim(i,j,k-1,PrimTheta_comp) );
            Real theta_t_mid = myhalf * ( prim(i,j,k-1,PrimTheta_comp) + prim(i,j,k  ,PrimTheta_comp) );
            Real theta_t_hi  = myhalf * ( prim(i,j,k  ,PrimTheta_comp) + prim(i,j,k+1,PrimTheta_comp) );

            // line 2 last two terms (order dtau)
            Real R0_tmp  = coeff_P * cur_cons(i,j,k  ,RhoTheta_comp)
                         + coeff_Q * cur_cons(i,j,k-1,RhoTheta_comp)
                         - coeff_P * stg_cons(i,j,k  ,RhoTheta_comp) * (dJ_stg_kface/dJ_old_kface)
                         - coeff_Q * stg_cons(i,j,k-1,RhoTheta_comp) * (dJ_stg_kface/dJ_old_kface)
                       - halfg   * ( cur_cons(i,j,k,Rho_comp) + cur_cons(i,j,k-1,Rho_comp) )
                       + halfg   * ( stg_cons(i,j,k,Rho_comp) + stg_cons(i,j,k-1,Rho_comp) ) * (dJ_stg_kface/dJ_old_kface);

            // line 3 residuals (order dtau^2) one <-> beta_2
            Real R1_tmp = - halfg * ( slow_rhs_cons(i,j,k  ,Rho_comp) + slow_rhs_cons(i,j,k-1,Rho_comp))
                          + coeff_P * slow_rhs_cons(i,j,k  ,RhoTheta_comp) + coeff_Q * slow_rhs_cons(i,j,k-1,RhoTheta_comp);

            Real Omega_kp1 = omega_arr(i,j,k+1);
            Real Omega_k   = omega_arr(i,j,k  );
            Real Omega_km1 = omega_arr(i,j,k-1);

            // Explicit part of the vertical flux on each face is beta_1 * Omega. beta_1 on face k
            // is factored out, and dbeta_1 is how much larger beta_1 is on the neighbouring faces,
            // which is exactly zero (so the roundoff is that of a scalar beta_1) for uniform beta_s
            Real beta_1      = myhalf * (one - beta_s_a(i,j,k));
            Real dbeta_1_kp1 = myhalf * (one - beta_s_a(i,j,k+1)) - beta_1;
            Real dbeta_1_km1 = myhalf * (one - beta_s_a(i,j,k-1)) - beta_1;

            Real detJdiff = (detJ_old(i,j,k) - detJ_old(i,j,k-1)) / (detJ_old(i,j,k)*detJ_old(i,j,k-1));

            // consolidate lines 4&5 (order dtau^2)
            R1_tmp += halfg * ( beta_1 * dzi * (Omega_kp1/detJ_old(i,j,k) + detJdiff*Omega_k - Omega_km1/detJ_old(i,j,k-1))
                              + dzi * (dbeta_1_kp1*Omega_kp1/detJ_old(i,j,k) - dbeta_1_km1*Omega_km1/detJ_old(i,j,k-1))
                                + temp_rhs_arr(i,j,k,Rho_comp)/detJ_old(i,j,k) + temp_rhs_arr(i,j,k-1,Rho_comp)/detJ_old(i,j,k-1) );

            // consolidate lines 6&7 (order dtau^2)
            R1_tmp += -(
                 coeff_P/detJ_old(i,j,k  ) * ( beta_1 * dzi * (Omega_kp1*theta_t_hi - Omega_k*theta_t_mid) + dzi * dbeta_1_kp1*Omega_kp1*theta_t_hi
                                              +temp_rhs_arr(i,j,k  ,RhoTheta_comp) ) +
                 coeff_Q/detJ_old(i,j,k-1) * ( beta_1 * dzi * (Omega_k*theta_t_mid - Omega_km1*theta_t_lo) - dzi * dbeta_1_km1*Omega_km1*theta_t_lo
                                              +temp_rhs_arr(i,j,k-1,RhoTheta_comp) ) );

            // line 1
            RHS_a(i,j,k) = prev_zmom(i,j,k) - (dJ_stg_kface/dJ_old_kface) * stg_zmom(i,j,k)
                           + dtau * slow_rhs_rho_w(i,j,k) / dJ_stg_kface
                           + dtau * zmom_src_arr(i,j,k);

            RHS_a(i,j,k) += dtau * R0_tmp;

            Real beta_2 = myhalf * (one + beta_s_a(i,j,k));
            RHS_a(i,j,k) += dtau                * dtau*beta_2*R1_tmp;

            // We cannot use omega_arr here since that was built with old_rho_u and old_rho_v ...
            Real UppVpp = (dJ_new_kface/dJ_old_kface) * OmegaFromW(i,j,k,0.,cur_xmom,cur_ymom,mf_ux,mf_vy,z_nd_new,dxInv)
                         -(dJ_stg_kface/dJ_old_kface) * OmegaFromW(i,j,k,0.,stg_xmom,stg_ymom,mf_ux,mf_vy,z_nd_stg,dxInv);
            RHS_a(i,j,k) += UppVpp;
        });
        } // end profile

        Box b2d = tbz; // Copy constructor
        b2d.setRange(2,0);

        auto const lo = lbound(bx);
        auto const hi = ubound(bx);

        {
        BL_PROFILE("substep_b2d_loop_t");

#ifdef AMREX_USE_GPU
        ParallelFor(b2d, [=] AMREX_GPU_DEVICE (int i, int j, int)
        {
            // Moving terrain
            Real rho_on_bdy = myhalf * ( prev_cons(i,j,lo.z) + prev_cons(i,j,lo.z-1) );
            RHS_a(i,j,lo.z) = rho_on_bdy * zp_t_arr(i,j,lo.z);

            soln_a(i,j,lo.z) = RHS_a(i,j,lo.z) * inv_coeffB_a(i,j,lo.z);

            // Zero at the domain top: Omega'' = 0 at a wall, and Omega''_top = Omega''_top-1
            // for outflow, the matrix row set in make_fast_coeffs deciding which
            RHS_a(i,j,hi.z+1) = (hi.z == domhi_z)
                                ? zero
                                : dtau * (slow_rhs_rho_w(i,j,hi.z+1) + zmom_src_arr(i,j,hi.z+1));

            for (int k = lo.z+1; k <= hi.z+1; k++) {
                soln_a(i,j,k) = (RHS_a(i,j,k)-coeffA_a(i,j,k)*soln_a(i,j,k-1)) * inv_coeffB_a(i,j,k);
            }

            for (int k = hi.z; k >= lo.z; k--) {
                soln_a(i,j,k) -= ( coeffC_a(i,j,k) * inv_coeffB_a(i,j,k) ) * soln_a(i,j,k+1);
            }

           // We assume that Omega == w at the top boundary and that changes in J there are irrelevant
            cur_zmom(i,j,hi.z+1) = stg_zmom(i,j,hi.z+1) + soln_a(i,j,hi.z+1);
        });
#else
        for (int j = lo.y; j <= hi.y; ++j) {
             AMREX_PRAGMA_SIMD
             for (int i = lo.x; i <= hi.x; ++i) {

                 Real rho_on_bdy = myhalf * ( prev_cons(i,j,lo.z) + prev_cons(i,j,lo.z-1) );
                 RHS_a(i,j,lo.z) = rho_on_bdy * zp_t_arr(i,j,lo.z);

                 soln_a(i,j,lo.z) = RHS_a(i,j,lo.z) * inv_coeffB_a(i,j,lo.z);
             }
        }

        for (int j = lo.y; j <= hi.y; ++j) {
             AMREX_PRAGMA_SIMD
             for (int i = lo.x; i <= hi.x; ++i) {
                 // Zero at the domain top: Omega'' = 0 at a wall, and Omega''_top = Omega''_top-1
                 // for outflow, the matrix row set in make_fast_coeffs deciding which
                 RHS_a(i,j,hi.z+1) = (hi.z == domhi_z)
                                     ? zero
                                     : dtau * (slow_rhs_rho_w(i,j,hi.z+1) + zmom_src_arr(i,j,hi.z+1));
             }
        }
        for (int k = lo.z+1; k <= hi.z+1; ++k) {
             for (int j = lo.y; j <= hi.y; ++j) {
                 AMREX_PRAGMA_SIMD
                 for (int i = lo.x; i <= hi.x; ++i) {
                     soln_a(i,j,k) = (RHS_a(i,j,k)-coeffA_a(i,j,k)*soln_a(i,j,k-1)) * inv_coeffB_a(i,j,k);
                 }
           }
        }
        for (int k = hi.z; k >= lo.z; --k) {
             for (int j = lo.y; j <= hi.y; ++j) {
                 AMREX_PRAGMA_SIMD
                 for (int i = lo.x; i <= hi.x; ++i) {
                     soln_a(i,j,k) -= ( coeffC_a(i,j,k) * inv_coeffB_a(i,j,k) ) * soln_a(i,j,k+1);
                 }
             }
        }

        // We assume that Omega == w at the top boundary and that changes in J there are irrelevant
        for (int j = lo.y; j <= hi.y; ++j) {
             AMREX_PRAGMA_SIMD
             for (int i = lo.x; i <= hi.x; ++i) {
                cur_zmom(i,j,hi.z+1) = stg_zmom(i,j,hi.z+1) + soln_a(i,j,hi.z+1);
            }
        }
#endif
        } // end profile

        {
        BL_PROFILE("substep_new_drhow");
        tbz.setBig(2,hi.z);
        ParallelFor(tbz, [=] AMREX_GPU_DEVICE (int i, int j, int k)
        {
            Real rho_on_face = myhalf * (cur_cons(i,j,k,Rho_comp) + cur_cons(i,j,k-1,Rho_comp));

            if (k == lo.z) {
                cur_zmom(i,j,k) = WFromOmega(i,j,k,rho_on_face*(z_t_arr(i,j,k)+zp_t_arr(i,j,k)),
                                             cur_xmom,cur_ymom,mf_ux,mf_vy,z_nd_new,dxInv);

                // We need to set this here because it is used to define zflux_lo below
                soln_a(i,j,k) = zero;

            } else {

                Real UppVpp = WFromOmega(i,j,k,zero,cur_xmom,cur_ymom,mf_ux,mf_vy,z_nd_new,dxInv)
                            - WFromOmega(i,j,k,zero,stg_xmom,stg_ymom,mf_ux,mf_vy,z_nd_stg,dxInv);
                Real wpp = soln_a(i,j,k) + UppVpp;
                Real dJ_old_kface = myhalf * (detJ_old(i,j,k) + detJ_old(i,j,k-1));
                Real dJ_new_kface = myhalf * (detJ_new(i,j,k) + detJ_new(i,j,k-1));

                cur_zmom(i,j,k) = dJ_old_kface * (stg_zmom(i,j,k) + wpp);
                cur_zmom(i,j,k) /= dJ_new_kface;

                soln_a(i,j,k) = OmegaFromW(i,j,k,cur_zmom(i,j,k),cur_xmom,cur_ymom,mf_ux,mf_vy,z_nd_new,dxInv)
                              - OmegaFromW(i,j,k,stg_zmom(i,j,k),stg_xmom,stg_ymom,mf_ux,mf_vy,z_nd_stg,dxInv);
                soln_a(i,j,k) -= rho_on_face * zp_t_arr(i,j,k);
            }

            if (l_rayleigh_impl_for_w && k > 0) {
              Real damping_coeff = l_damp_coef * dtau * sinesq_stag_d[k];
              cur_zmom(i,j,k) /= (one + damping_coeff);
            }
        });
        } // end profile

        // **************************************************************************
        // Define updates in the RHS of rho and (rho theta)
        // **************************************************************************
        {
        BL_PROFILE("fast_rho_final_update");
        ParallelFor(bx, [=] AMREX_GPU_DEVICE (int i, int j, int k) noexcept
        {
              Real zflux_lo = myhalf * (one + beta_s_a(i,j,k  )) * soln_a(i,j,k  )
                            + myhalf * (one - beta_s_a(i,j,k  )) * omega_arr(i,j,k  );
              Real zflux_hi = myhalf * (one + beta_s_a(i,j,k+1)) * soln_a(i,j,k+1)
                            + myhalf * (one - beta_s_a(i,j,k+1)) * omega_arr(i,j,k+1);

              // Note that in the solve we effectively impose new_drho_w(i,j,vbx_hi.z+1)=0
              // so we don't update avg_zmom at k=vbx_hi.z+1
              avg_zmom_arr(i,j,k)      += facinv*zflux_lo / (mf_mx(i,j,0) * mf_my(i,j,0));
              if (l_reflux) {
                  (flx_arr[2])(i,j,k,0) =        zflux_lo / (mf_mx(i,j,0) * mf_my(i,j,0));
              }

              // Note that the factor of (1/J) in the fast source term is canceled
              // when we multiply old and new by detJ_old and detJ_new , respectively
              // We have already scaled the slow source term to have the extra factor of dJ
              Real fast_rhs_rho = -(temp_rhs_arr(i,j,k,0) + ( zflux_hi - zflux_lo ) * dzi);
              Real fast_rhs_rhotheta = -( temp_rhs_arr(i,j,k,1) + myhalf *
                                        ( zflux_hi * (prim(i,j,k) + prim(i,j,k+1))
                                        - zflux_lo * (prim(i,j,k) + prim(i,j,k-1)) ) * dzi );

              cur_cons(i,j,k,0) *= (detJ_old(i,j,k)/detJ_new(i,j,k));
              cur_cons(i,j,k,1) *= (detJ_old(i,j,k)/detJ_new(i,j,k));

              cur_cons(i,j,k,0) += dtau * ( slow_rhs_cons(i,j,k,0) + fast_rhs_rho      / detJ_new(i,j,k));
              cur_cons(i,j,k,1) += dtau * ( slow_rhs_cons(i,j,k,1) + fast_rhs_rhotheta / detJ_new(i,j,k));

              if (l_reflux) {
                  (flx_arr[2])(i,j,k,1) = (flx_arr[2])(i,j,k,0) * myhalf * (prim(i,j,k) + prim(i,j,k-1));
              }

              if (k == vbx_hi.z) {
                  avg_zmom_arr(i,j,k+1)      += facinv * zflux_hi / (mf_mx(i,j,0) * mf_my(i,j,0));
                  if (l_reflux) {
                      (flx_arr[2])(i,j,k+1,0) =          zflux_hi / (mf_mx(i,j,0) * mf_my(i,j,0));
                      (flx_arr[2])(i,j,k+1,1) = (flx_arr[2])(i,j,k+1,0) * myhalf * (prim(i,j,k) + prim(i,j,k+1));
                  }
              }

              // add in source terms for cell-centered conserved variables
              cur_cons(i,j,k,Rho_comp)      += dtau * cc_src_arr(i,j,k,Rho_comp);
              cur_cons(i,j,k,RhoTheta_comp) += dtau * cc_src_arr(i,j,k,RhoTheta_comp);
        });
        } // end profile

        // We only add to the flux registers in the final RK step
        if (l_reflux) {
            int strt_comp_reflux = 0;
            // For now we don't reflux (rho theta) because it seems to create issues at c/f boundaries
            int  num_comp_reflux = 1;
            if (level < finest_level) {
                fr_as_crse->CrseAdd(mfi,
                    {{AMREX_D_DECL(&(flux[0]), &(flux[1]), &(flux[2]))}},
                    dx, dtau, strt_comp_reflux, strt_comp_reflux, num_comp_reflux, RunOn::Device);
            }
            if (level > 0) {
                fr_as_fine->FineAdd(mfi,
                    {{AMREX_D_DECL(&(flux[0]), &(flux[1]), &(flux[2]))}},
                    dx, dtau, strt_comp_reflux, strt_comp_reflux, num_comp_reflux, RunOn::Device);
            }

            // This is necessary here so we don't go on to the next FArrayBox without
            // having finished copying the fluxes into the FluxRegisters (since the fluxes
            // are stored in temporary FArrayBox's)
            Gpu::streamSynchronize();

        } // two-way coupling

    } // mfi
    } // OMP
}

Here is the call graph for this function:
