WriteBndryPlanes Class Reference

#include <ERF_WriteBndryPlanes.H>

Collaboration diagram for WriteBndryPlanes:

Public Member Functions
	WriteBndryPlanes (amrex::Vector< amrex::BoxArray > &grids, amrex::Vector< amrex::Geometry > &geom)
void	write_planes (int t_step, double time, amrex::Vector< amrex::Vector< amrex::MultiFab >> &vars_new, bool is_moist)
bool	start_series (int start_step, double start_time, bool restarting)

Static Public Member Functions
static int	get_bndry_lev ()
	Level the planes are taken from. More...
static int	rows_to_keep (const amrex::Vector< int > &steps, const amrex::Vector< double > &times, int start_step, double start_time, bool restarting)

Private Attributes
amrex::Box	target_box
	IO output box region. More...
amrex::Vector< amrex::Geometry > &	m_geom
	Geometry objects for all levels. More...
std::string	m_filename {""}
	File name for IO. More...
std::string	m_time_file {""}
	File name for Native time file. More...
amrex::Vector< std::string >	m_var_names
	Variables for IO. More...
amrex::Vector< std::string >	m_kept_rows
	Rows of time.dat the run continues from, written back before its first plane (I/O rank) More...
bool	m_rewrite_time_file = false
	Whether time.dat still has to be rewritten to m_kept_rows (I/O rank) More...
amrex::Vector< double >	m_in_times
	Timestep and times to be stored in time.dat. More...
amrex::Vector< int >	m_in_timesteps
int	m_in_rad = 1
	controls extents on native bndry output More...
const int	m_out_rad = 1
const int	m_extent_rad = 0

Static Private Attributes
static int	bndry_lev = 0

Detailed Description

Interface for writing boundary planes

This class performs the necessary file operations to write boundary planes

Constructor & Destructor Documentation

WriteBndryPlanes()

WriteBndryPlanes::WriteBndryPlanes ( amrex::Vector< amrex::BoxArray > &  grids, amrex::Vector< amrex::Geometry > &  geom  )

explicit

Constructor for the WriteBndryPlanes class for writing the contents of boundary planes to an output file

Parameters

grids	Vector of BoxArrays containing the grids at each level in the AMR
geom	Vector of Geometry containing the geometry at each level in the AMR

                                                            : m_geom(geom)
{
    ParmParse pp("erf");

    // Get the radius inside the domain
    pp.queryAdd("in_rad",m_in_rad);

    // User-specified region is given in physical coordinates, not index space
    std::vector<Real> box_lo(3), box_hi(3);
    pp.getarr("bndry_output_box_lo",box_lo,0,2);
    pp.getarr("bndry_output_box_hi",box_hi,0,2);

    // If the target area is contained at a finer level, use the finest data possible.
    // target_box is expressed in the index space of bndry_lev, so it must only be set
    // together with bndry_lev; each level's candidate box is kept in a local variable.
    for (int ilev = 0; ilev < grids.size(); ilev++) {

        const Real* xLo   = m_geom[ilev].ProbLo();
        auto const dxi    = geom[ilev].InvCellSizeArray();
        const Box& domain = m_geom[ilev].Domain();

        // We create the smallest box that contains all of the cell centers
        // in the physical region specified
        int ilo = static_cast<int>(Math::floor((box_lo[0] - xLo[0]) * dxi[0] + Real(.5)));
        int jlo = static_cast<int>(Math::floor((box_lo[1] - xLo[1]) * dxi[1] + Real(.5)));
        int ihi = static_cast<int>(Math::floor((box_hi[0] - xLo[0]) * dxi[0] + Real(.5)))-1;
        int jhi = static_cast<int>(Math::floor((box_hi[1] - xLo[1]) * dxi[1] + Real(.5)))-1;

        // Map this to index space -- for now we do no interpolation
        Box box_this_lev(IntVect(ilo,jlo,0),
                         IntVect(ihi,jhi,domain.bigEnd(2)));

        // The boundary register reaches m_out_rad cells outside the box in x and y. Those cells
        // may lie outside the domain: write_planes reads them from the ghost cells, which
        // ERF::write_bndry_planes fills first. Only the part inside the domain has to be
        // covered by the grids at this level.
        Box gbx = box_this_lev; gbx.grow(IntVect(m_out_rad,m_out_rad,0));
        gbx &= domain;

        // The box itself has to lie inside the domain: past the m_out_rad ghost cells there
        // is no data to copy from
        if (ilev == 0) {
            if (!box_this_lev.ok()) {
                Abort("WriteBndryPlanes: erf.bndry_output_box_lo/hi do not contain any cell centers");
            }
            if (!domain.contains(box_this_lev)) {
                Abort("WriteBndryPlanes: the box given by erf.bndry_output_box_lo/hi must lie"
                      " inside the domain");
            }

            // Default to level 0
            target_box = box_this_lev;
        }

        // Use this level's data only if its grids fully contain the requested region
        if (grids[ilev].contains(gbx)) {
            bndry_lev  = ilev;
            target_box = box_this_lev;
        }
    }

    // The folder "m_filename" will contain the time series of data and the time.dat file
    pp.get("bndry_output_planes_file", m_filename);

    m_time_file = m_filename + "/time.dat";

    if (pp.contains("bndry_output_var_names"))
    {
        int num_vars = pp.countval("bndry_output_var_names");
        m_var_names.resize(num_vars);
        pp.queryarr("bndry_output_var_names",m_var_names,0,num_vars);
    }
}

Here is the call graph for this function:

Member Function Documentation

get_bndry_lev()

static int WriteBndryPlanes::get_bndry_lev ( )

inlinestatic

Level the planes are taken from.

{ return bndry_lev; }

Referenced by ERF::write_bndry_planes().

Here is the caller graph for this function:

rows_to_keep()

int WriteBndryPlanes::rows_to_keep ( const amrex::Vector< int > &  steps, const amrex::Vector< double > &  times, int  start_step, double  start_time, bool  restarting  )

static

How many leading rows of a time.dat with these steps and times a run starting at start_step and start_time keeps: on a restart the rows up to and including the restart that increase in step and time and are not later than the restart; on a fresh start none.

Number of leading rows of time.dat that a run starting at step start_step keeps.

A restart replays the steps after its checkpoint, so the rows for those steps – written by a run that went on past the checkpoint – are dropped and written again. Rows also stop being kept at the first one whose step or time does not increase, or that is later than the restart, or that is at the restart step but not at the restart time: those were not written by the run being continued. A fresh start begins a new series.

Parameters

steps	Step column of time.dat, in file order
times	Time column of time.dat, in file order
start_step	Step the run starts at
start_time	Time the run starts at, as written in time.dat
restarting	Whether the run starts from a checkpoint

{
    if (!restarting) { return 0; }
    // The times of the run being continued are the restart's own to the last bit (time.dat and
    // the checkpoint both hold 17 digits); a few units in the last place only allow for a
    // time.dat written by hand, and stay far below any plane spacing also at a calendar clock
    const double tol = 16.0 * std::numeric_limits<double>::epsilon() * std::max(1.0, std::abs(start_time));
    int nkeep = 0;
    for (int i = 0; i < steps.size(); ++i) {
        if (steps[i] > start_step || times[i] > start_time + tol) { break; }
        if (i > 0 && (steps[i] <= steps[i-1] || times[i] <= times[i-1])) { break; }
        if (steps[i] == start_step && std::abs(times[i] - start_time) > tol) { break; }
        ++nkeep;
    }
    return nkeep;
}

Referenced by start_series().

Here is the caller graph for this function:

start_series()

bool WriteBndryPlanes::start_series	(	int	start_step,
		double	start_time,
		bool	restarting
	)

Decide which rows of time.dat a run starting at step start_step (at time start_time, with start_time the absolute time written in time.dat) continues from: a restart keeps the rows the run before it wrote up to that step, a fresh start keeps none. The file is rewritten only when the run writes its first plane, so a run that stops before then leaves it as it was. Returns whether the kept rows end with a plane at start_step itself.

Decide which rows of time.dat a run starting at step start_step continues from, and say whether the series already holds the plane at that step. Only the I/O rank reads the file; every rank gets the answer. The file itself is rewritten by write_planes, just before the run's first row, so a run that stops before its first plane leaves the series as it found it.

Parameters

start_step	Step the run starts at (the restart step, or 0)
start_time	Time the run starts at, as written in time.dat
restarting	Whether the run starts from a checkpoint

{
    int has_start_plane = 0;
    if (ParallelDescriptor::IOProcessor()) {
        std::ifstream in(m_time_file);
        if (in.good()) {
            // Every line counts, so that a line that does not parse -- a partial last row left
            // by a run that stopped while writing it, say -- is dropped with the rows after it
            Vector<std::string> rows;
            Vector<int> steps;
            Vector<double> times;
            int nlines = 0;
            std::string line;
            while (std::getline(in, line)) {
                ++nlines;
                std::istringstream row(line);
                int step;
                double time;
                if (static_cast<int>(rows.size()) + 1 < nlines || !(row >> step >> time)) { continue; }
                rows.push_back(line);
                steps.push_back(step);
                times.push_back(time);
            }
            in.close();

            const int nkeep = rows_to_keep(steps, times, start_step, start_time, restarting);
            has_start_plane = (nkeep > 0 && steps[nkeep-1] == start_step) ? 1 : 0;

            // A row whose step or time does not increase, anywhere in the file, or a row at or
            // before the restart that does not continue the kept rows, cannot come from one run
            bool broken = false;
            for (int i = 1; i < rows.size(); ++i) {
                if (steps[i] <= steps[i-1] || times[i] <= times[i-1]) { broken = true; }
            }
            if (restarting && nkeep < rows.size() && steps[nkeep] <= start_step) { broken = true; }

            if (restarting && broken) {
                Warning("WriteBndryPlanes: " + m_time_file + " does not hold one run's series: a step "
                        "or time does not increase, or a row at or before the restart step " +
                        std::to_string(start_step) + " is not at a time of this run. Only its first " +
                        std::to_string(nkeep) + " rows are kept. A series that an earlier ERF version "
                        "wrote across a restart has such a row, and its step-0 plane holds the "
                        "restart state; write that series again.");
            } else if (nkeep < nlines) {
                if (restarting) {
                    Print() << "WriteBndryPlanes: keeping " << nkeep << " of the " << nlines
                            << " rows of " << m_time_file << " up to the restart step "
                            << start_step << ", from this run's first plane on" << std::endl;
                } else {
                    Print() << "WriteBndryPlanes: a fresh start begins a new series; the "
                            << nlines << " rows of " << m_time_file
                            << " are dropped with this run's first plane" << std::endl;
                }
            }

            // Rewrite even when every row is kept: a last row without its newline would
            // otherwise run into the next row written
            m_kept_rows.clear();
            for (int i = 0; i < nkeep; ++i) {
                m_kept_rows.push_back(rows[i]);
            }
            m_rewrite_time_file = true;
        }
    }
    ParallelDescriptor::Bcast(&has_start_plane, 1, ParallelDescriptor::IOProcessorNumber(),
                              ParallelDescriptor::Communicator());
    return has_start_plane == 1;
}

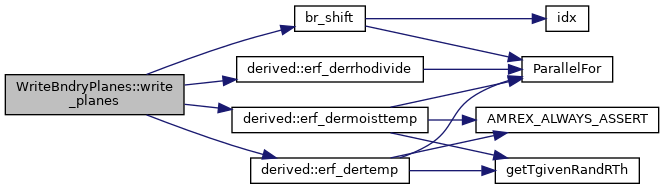

Here is the call graph for this function:

write_planes()

void WriteBndryPlanes::write_planes	(	int	t_step,
		double	time,
		amrex::Vector< amrex::Vector< amrex::MultiFab >> &	vars_new,
		bool	is_moist
	)

Function to write the specified grid data to an output file

Parameters

t_step	Timestep number
time	Current time
vars_new	Grid data for all variables across the AMR hierarchy
is_moist	Whether moist state components are included in the output

{
    BL_PROFILE("ERF::WriteBndryPlanes::write_planes");

    MultiFab& S    = vars_new[bndry_lev][Vars::cons];
    MultiFab& xvel = vars_new[bndry_lev][Vars::xvel];
    MultiFab& yvel = vars_new[bndry_lev][Vars::yvel];
    MultiFab& zvel = vars_new[bndry_lev][Vars::zvel];

    // A moist temperature plane is computed with qv (erf_dermoisttemp), and the reader needs that
    // qv to convert it back to theta: without a qv plane it cannot be read correctly
    if (is_moist) {
        bool writes_temperature = false;
        bool writes_qv          = false;
        for (const auto& name : m_var_names) {
            if (name == "temperature") { writes_temperature = true; }
            if (name == "qv")          { writes_qv          = true; }
        }
        if (writes_temperature && !writes_qv) {
            Abort("erf.bndry_output_var_names writes temperature but not qv in a moist run: the"
                  " temperature includes qv, and the reader needs the qv planes to convert it back"
                  " to theta.  Add qv to erf.bndry_output_var_names, or write theta instead of"
                  " temperature");
        }
    }

    const std::string chkname =
        m_filename + Concatenate("/bndry_output", t_step);

    //Print() << "Writing boundary planes at time " << time_d << std::endl;

    const std::string level_prefix = "Level_";
    PreBuildDirectorHierarchy(chkname, level_prefix, 1, true);

    // note: by using the entire domain box we end up using 1 processor
    // to hold all boundaries
    BoxArray ba(target_box);
    DistributionMapping dm{ba};

    IntVect new_hi = target_box.bigEnd() - target_box.smallEnd();
    Box target_box_shifted(IntVect(0,0,0),new_hi);
    BoxArray ba_shifted(target_box_shifted);

    for (int i = 0; i < m_var_names.size(); i++)
    {
        std::string var_name = m_var_names[i];
        std::string filename = MultiFabFileFullPrefix(bndry_lev, chkname, level_prefix, var_name);

        int ncomp;
        if (var_name == "velocity") {
            ncomp = AMREX_SPACEDIM;
        } else {
            ncomp = 1;
        }

        BndryRegister bndry        (ba        , dm, m_in_rad, m_out_rad, m_extent_rad, ncomp);
        BndryRegister bndry_shifted(ba_shifted, dm, m_in_rad, m_out_rad, m_extent_rad, ncomp);

        // Read the cells around the box from the ghost cells where they lie outside the grids
        int nghost = m_out_rad;
        if (var_name == "density")
        {
            bndry.copyFrom(S, nghost, Rho_comp, 0, ncomp, m_geom[bndry_lev].periodicity());

        } else if (var_name == "temperature") {
            MultiFab Temp(S.boxArray(),S.DistributionMap(),ncomp,m_out_rad);
            for (MFIter mfi(Temp, TilingIfNotGPU()); mfi.isValid(); ++mfi)
            {
                const Box& bx = mfi.growntilebox(m_out_rad);
                Real time = static_cast<Real>(time_d);
                if (is_moist) {
                    // NOTE: we send in S[mfi] where we should send in (*z_phys_cc[lev])[mfi] because we know this routine doesn't use it
                    derived::erf_dermoisttemp(bx, Temp[mfi], 0, 1, S[mfi], S[mfi], m_geom[bndry_lev], time, nullptr, bndry_lev);
                } else {
                    // NOTE: we send in S[mfi] where we should send in (*z_phys_cc[lev])[mfi] because we know this routine doesn't use it
                    derived::erf_dertemp(bx, Temp[mfi], 0, 1, S[mfi], S[mfi], m_geom[bndry_lev], time, nullptr, bndry_lev);
                }
            }
            bndry.copyFrom(Temp, nghost, 0, 0, ncomp, m_geom[bndry_lev].periodicity());
        } else if (var_name == "theta") {
            MultiFab Temp(S.boxArray(),S.DistributionMap(),ncomp,m_out_rad);
            for (MFIter mfi(Temp, TilingIfNotGPU()); mfi.isValid(); ++mfi)
            {
                const Box& bx = mfi.growntilebox(m_out_rad);
                derived::erf_derrhodivide(bx, Temp[mfi], S[mfi], RhoTheta_comp);
            }
            bndry.copyFrom(Temp, nghost, 0, 0, ncomp, m_geom[bndry_lev].periodicity());
        } else if (var_name == "scalar") {
            MultiFab Temp(S.boxArray(),S.DistributionMap(),ncomp,m_out_rad);
            for (MFIter mfi(Temp, TilingIfNotGPU()); mfi.isValid(); ++mfi)
            {
                const Box& bx = mfi.growntilebox(m_out_rad);
                derived::erf_derrhodivide(bx, Temp[mfi], S[mfi], RhoScalar_comp);
            }
            bndry.copyFrom(Temp, nghost, 0, 0, ncomp, m_geom[bndry_lev].periodicity());
        } else if (var_name == "ke") {
            MultiFab Temp(S.boxArray(),S.DistributionMap(),ncomp,m_out_rad);
            for (MFIter mfi(Temp, TilingIfNotGPU()); mfi.isValid(); ++mfi)
            {
                const Box& bx = mfi.growntilebox(m_out_rad);
                derived::erf_derrhodivide(bx, Temp[mfi], S[mfi], RhoKE_comp);
            }
            bndry.copyFrom(Temp, nghost, 0, 0, ncomp, m_geom[bndry_lev].periodicity());
        } else if (var_name == "qv") {
            MultiFab Temp(S.boxArray(),S.DistributionMap(),ncomp,m_out_rad);
            if (S.nComp() > RhoQ2_comp) {
                for (MFIter mfi(Temp, TilingIfNotGPU()); mfi.isValid(); ++mfi)
                {
                    const Box& bx = mfi.growntilebox(m_out_rad);
                    derived::erf_derrhodivide(bx, Temp[mfi], S[mfi], RhoQ1_comp);
                }
            } else {
                Temp.setVal(0.);
            }
            bndry.copyFrom(Temp, nghost, 0, 0, ncomp, m_geom[bndry_lev].periodicity());
        } else if (var_name == "qc") {
            MultiFab Temp(S.boxArray(),S.DistributionMap(),ncomp,m_out_rad);
            if (S.nComp() > RhoQ2_comp) {
                for (MFIter mfi(Temp, TilingIfNotGPU()); mfi.isValid(); ++mfi)
                {
                    const Box& bx = mfi.growntilebox(m_out_rad);
                    derived::erf_derrhodivide(bx, Temp[mfi], S[mfi], RhoQ2_comp);
                }
            } else {
                Temp.setVal(0.);
            }
            bndry.copyFrom(Temp, nghost, 0, 0, ncomp, m_geom[bndry_lev].periodicity());
        } else if (var_name == "velocity") {
            MultiFab Vel(S.boxArray(), S.DistributionMap(), 3, m_out_rad);
            average_face_to_cellcenter(Vel,0,Array<const MultiFab*,3>{&xvel,&yvel,&zvel},m_out_rad);
            bndry.copyFrom(Vel, nghost, 0, 0, ncomp, m_geom[bndry_lev].periodicity());
        } else {
            //Print() << "Trying to write planar output for " << var_name << std::endl;
            Error("Don't know how to output this variable");
        }

        for (OrientationIter oit; oit != nullptr; ++oit) {
            auto ori = oit();
            if (ori.coordDir() < 2) {
                std::string facename = Concatenate(filename + '_', ori, 1);
                br_shift(oit, bndry, bndry_shifted);
                bndry_shifted[ori].write(facename);
            }
        }

    } // loop over num_vars

    // Writing time.dat
    if (ParallelDescriptor::IOProcessor()) {
        // The rows this run continues from replace the file before its first row, through a
        // temporary file so that a crash leaves either the old file or the new one
        if (m_rewrite_time_file) {
            const std::string tmp_file = m_time_file + ".tmp";
            std::ofstream out(tmp_file, std::ios::out | std::ios::trunc);
            for (const auto& row : m_kept_rows) {
                out << row << '\n';
            }
            out.close();
            if (out.fail()) {
                Abort("WriteBndryPlanes: cannot write " + tmp_file);
            }
            std::error_code ec;
            std::filesystem::rename(tmp_file, m_time_file, ec);
            if (ec) {
                Abort("WriteBndryPlanes: cannot replace " + m_time_file + " with " + tmp_file + ": " + ec.message());
            }
            m_rewrite_time_file = false;
            m_kept_rows.clear();
        }
        std::ofstream oftime(m_time_file, std::ios::out | std::ios::app);
        oftime << std::setprecision(17) << t_step << ' ' << time_d << '\n';
        oftime.close();
    }
}

Here is the call graph for this function:

Member Data Documentation

bndry_lev

int WriteBndryPlanes::bndry_lev = 0

staticprivate

Referenced by get_bndry_lev(), write_planes(), and WriteBndryPlanes().

m_extent_rad

const int WriteBndryPlanes::m_extent_rad = 0

private

Referenced by write_planes().

m_filename

std::string WriteBndryPlanes::m_filename {""}

private

File name for IO.

Referenced by write_planes(), and WriteBndryPlanes().

m_geom

amrex::Vector<amrex::Geometry>& WriteBndryPlanes::m_geom

private

Geometry objects for all levels.

Referenced by write_planes(), and WriteBndryPlanes().

m_in_rad

int WriteBndryPlanes::m_in_rad = 1

private

controls extents on native bndry output

Referenced by write_planes(), and WriteBndryPlanes().

m_in_times

amrex::Vector<double> WriteBndryPlanes::m_in_times

private

Timestep and times to be stored in time.dat.

m_in_timesteps

amrex::Vector<int> WriteBndryPlanes::m_in_timesteps

private

m_kept_rows

amrex::Vector<std::string> WriteBndryPlanes::m_kept_rows

private

Rows of time.dat the run continues from, written back before its first plane (I/O rank)

Referenced by start_series(), and write_planes().

m_out_rad

const int WriteBndryPlanes::m_out_rad = 1

private

Referenced by write_planes(), and WriteBndryPlanes().

m_rewrite_time_file

bool WriteBndryPlanes::m_rewrite_time_file = false

private

Whether time.dat still has to be rewritten to m_kept_rows (I/O rank)

Referenced by start_series(), and write_planes().

m_time_file

std::string WriteBndryPlanes::m_time_file {""}

private

File name for Native time file.

Referenced by start_series(), write_planes(), and WriteBndryPlanes().

m_var_names

amrex::Vector<std::string> WriteBndryPlanes::m_var_names

private

Variables for IO.

Referenced by write_planes(), and WriteBndryPlanes().

target_box

amrex::Box WriteBndryPlanes::target_box

private

IO output box region.

Referenced by write_planes(), and WriteBndryPlanes().

---

The documentation for this class was generated from the following files:

• Source/IO/ERF_WriteBndryPlanes.H
• Source/IO/ERF_WriteBndryPlanes.cpp
