shoc Namespace Reference

Namespaces
	constants

Classes
struct	ShocEnergyFixerView

Enumerations
enum class	InitRunOn { Host , Device }

Functions
ShocEnergyFixerView	make_energy_fixer_view (ShocColumnData &col, bool include_momentum_energy)
AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE int	diagnose_active_top (const amrex::Array4< const amrex::Real > &tke, int ic, int nlev) noexcept
AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE void	apply_energy_fix_column (const ShocEnergyFixerView &v, int ic, double dt_d) noexcept
InitRunOn	default_init_run_on ()
void	set_fab_val (amrex::FArrayBox &fab, amrex::Real value, InitRunOn run_on)
AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE amrex::Real	height_agl (amrex::Real z, amrex::Real z_sfc) noexcept
void	sync_if_needed ()
AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE amrex::Real	latent_sublimation () noexcept
AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE amrex::Real	condensate_latent_heat (amrex::Real qc, amrex::Real qi) noexcept
AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE amrex::Real	theta_from_thetal (amrex::Real thetal, amrex::Real qc, amrex::Real qi, amrex::Real exner) noexcept
AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE amrex::Real	temperature_from_thetal (amrex::Real thetal, amrex::Real qc, amrex::Real qi, amrex::Real exner) noexcept
AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE amrex::Real	thetal_from_theta (amrex::Real theta, amrex::Real qc, amrex::Real qi, amrex::Real exner) noexcept
AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE amrex::Real	moist_energy (amrex::Real tabs, amrex::Real z, amrex::Real qv, amrex::Real qc, amrex::Real qi, amrex::Real u, amrex::Real v, amrex::Real tke) noexcept
AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE void	reconstruct_pdf_state (amrex::Real thetal, amrex::Real qw, amrex::Real exner, amrex::Real qi_seed, amrex::Real pdf_ql, amrex::Real &tabs, amrex::Real &qv, amrex::Real &qc, amrex::Real &qi) noexcept

Enumeration Type Documentation

InitRunOn

enum shoc::InitRunOn

strong

Enumerator
Host
Device

                     {
    Host,
    Device
};

Function Documentation

apply_energy_fix_column()

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE void shoc::apply_energy_fix_column ( const ShocEnergyFixerView &  v, int  ic, double  dt_d  )

noexcept

{
    amrex::Real dt = static_cast<amrex::Real>(dt_d);

    const int shoc_top = diagnose_active_top(v.tke, ic, v.nlev);
    if (shoc_top < 0) {
        return;
    }

    amrex::Real energy_before = amrex::Real(0.0);
    amrex::Real energy_after = amrex::Real(0.0);
    amrex::Real air_mass = amrex::Real(0.0);

    for (int k = 0; k <= shoc_top; ++k) {
        const amrex::Real mass = v.rho(ic,k,0) * v.dz(ic,k,0);
        const amrex::Real tabs_old = shoc::temperature_from_thetal(v.thetal_base(ic,k,0),
                                                                    v.qc_base(ic,k,0),
                                                                    v.qi_base(ic,k,0),
                                                                    v.exner(ic,k,0));

        amrex::Real tabs_new = amrex::Real(0.0);
        amrex::Real qv_new = amrex::Real(0.0);
        amrex::Real qc_new = amrex::Real(0.0);
        amrex::Real qi_new = amrex::Real(0.0);
        shoc::reconstruct_pdf_state(v.thetal(ic,k,0), v.qw(ic,k,0), v.exner(ic,k,0),
                                    v.qi_base(ic,k,0), v.shoc_ql(ic,k,0),
                                    tabs_new, qv_new, qc_new, qi_new);

        energy_before += mass * moist_energy(tabs_old, v.zt(ic,k,0),
                                             v.qv_base(ic,k,0), v.qc_base(ic,k,0), v.qi_base(ic,k,0),
                                             v.u_base(ic,k,0), v.v_base(ic,k,0), v.tke_base(ic,k,0));
        const amrex::Real u_after = v.include_momentum_energy
            ? v.u(ic,k,0) : v.u_base(ic,k,0);
        const amrex::Real v_after = v.include_momentum_energy
            ? v.v(ic,k,0) : v.v_base(ic,k,0);
        energy_after += mass * moist_energy(tabs_new, v.zt(ic,k,0),
                                            qv_new, qc_new, qi_new,
                                            u_after, v_after, v.tke(ic,k,0));
        air_mass += mass;
    }

    if (air_mass <= amrex::Real(0.0)) {
        return;
    }

    const amrex::Real latent_flux_coeff = L_v + constants::latent_ice();
    const amrex::Real energy_target = energy_before
        + dt * v.rho(ic,0,0)
        * (Cp_d * v.exner(ic,0,0) * v.surf_sens_flux(ic,0,0)
           + latent_flux_coeff * v.surf_lat_flux(ic,0,0));
    const amrex::Real delta_tabs = (energy_target - energy_after) / (Cp_d * air_mass);

    for (int k = 0; k <= shoc_top; ++k) {
        v.thetal(ic,k,0) += delta_tabs / amrex::max(v.exner(ic,k,0), amrex::Real(1.0e-12));
    }
}

Referenced by ShocEnergyFixer::apply_column(), and ShocImplicit::finalize_from_pdf().

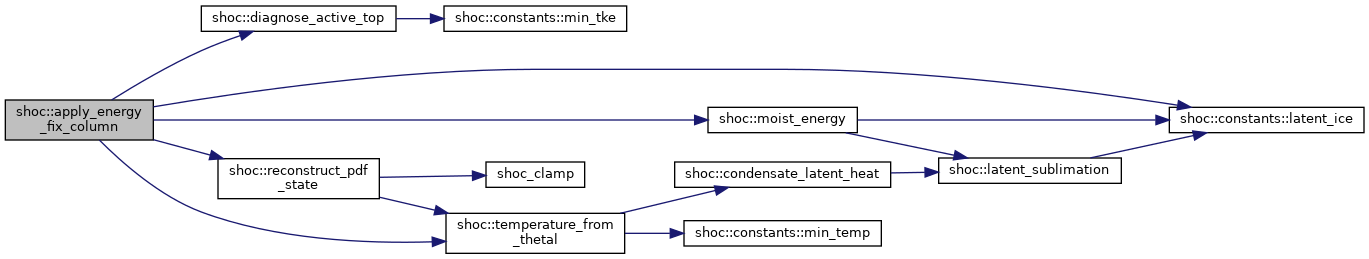

Here is the call graph for this function:

Here is the caller graph for this function:

condensate_latent_heat()

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE amrex::Real shoc::condensate_latent_heat ( amrex::Real  qc, amrex::Real  qi  )

noexcept

{
    return L_v * amrex::max(amrex::Real(0.0), qc)
         + latent_sublimation() * amrex::max(amrex::Real(0.0), qi);
}

Referenced by temperature_from_thetal(), theta_from_thetal(), and thetal_from_theta().

Here is the call graph for this function:

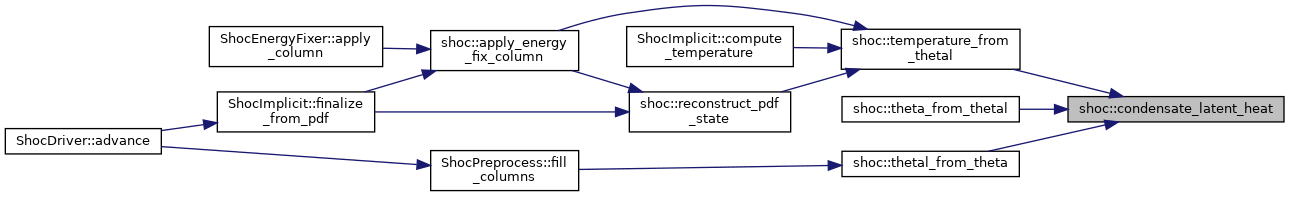

Here is the caller graph for this function:

default_init_run_on()

InitRunOn shoc::default_init_run_on ( )

inline

{
#ifdef AMREX_USE_GPU
    return InitRunOn::Device;
#else
    return InitRunOn::Host;
#endif
}

Referenced by ShocDriver::advance().

Here is the caller graph for this function:

diagnose_active_top()

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE int shoc::diagnose_active_top ( const amrex::Array4< const amrex::Real > &  tke, int  ic, int  nlev  )

noexcept

{
    int shoc_top = -1;
    for (int k = nlev - 1; k >= 0; --k) {
        if (tke(ic,k,0) > constants::active_tke_threshold()) {
            shoc_top = k;
            break;
        }
    }
    return shoc_top;
}

Referenced by apply_energy_fix_column(), and ShocEnergyFixer::diagnose_active_top().

Here is the call graph for this function:

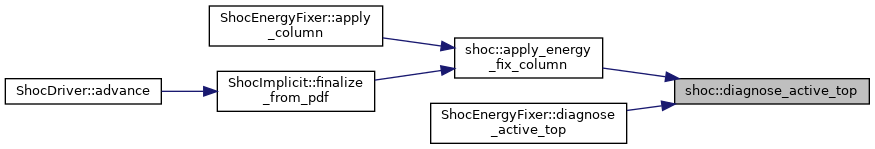

Here is the caller graph for this function:

height_agl()

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE amrex::Real shoc::height_agl ( amrex::Real  z, amrex::Real  z_sfc  )

noexcept

{
    return amrex::max(amrex::Real(0.0), z - z_sfc);
}

Referenced by ShocStructure::diagnose_length_and_brunt(), ShocStructure::diagnose_pblh(), ShocStructure::diagnose_surface_layer(), and ShocTKE::diagnose_tke_and_diffusivities().

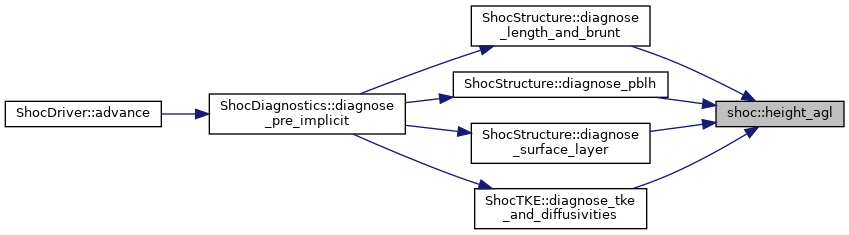

Here is the caller graph for this function:

latent_sublimation()

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE amrex::Real shoc::latent_sublimation ( )

noexcept

{
    return L_v + constants::latent_ice();
}

Referenced by condensate_latent_heat(), and moist_energy().

Here is the call graph for this function:

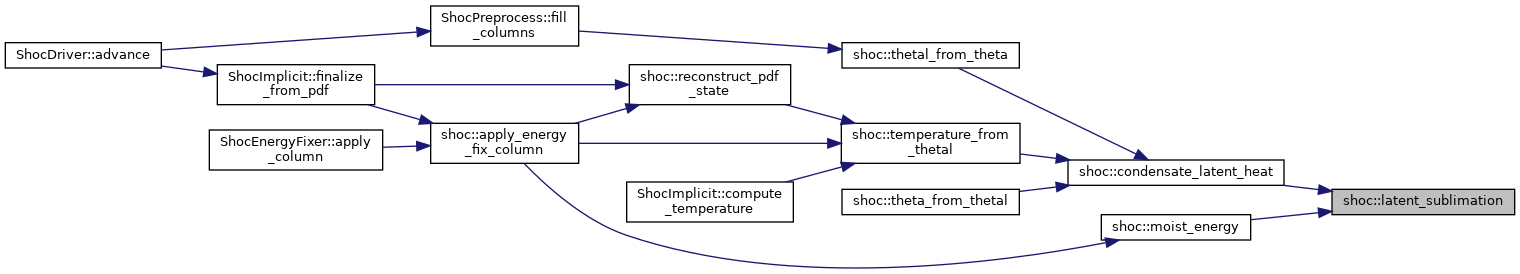

Here is the caller graph for this function:

make_energy_fixer_view()

ShocEnergyFixerView shoc::make_energy_fixer_view ( ShocColumnData &  col, bool  include_momentum_energy  )

inline

{
    return {
        col.rho.const_array(),
        col.dz.const_array(),
        col.zt.const_array(),
        col.exner.const_array(),
        col.surf_sens_flux.const_array(),
        col.surf_lat_flux.const_array(),
        col.thetal_base.const_array(),
        col.qv_base.const_array(),
        col.qc_base.const_array(),
        col.qi_base.const_array(),
        col.u_base.const_array(),
        col.v_base.const_array(),
        col.tke_base_state.const_array(),
        col.thetal.array(),
        col.qw.const_array(),
        col.u.const_array(),
        col.v.const_array(),
        col.tke.const_array(),
        col.shoc_ql.const_array(),
        col.layout.nlev,
        include_momentum_energy
    };
}

Referenced by ShocEnergyFixer::apply_column(), and ShocImplicit::finalize_from_pdf().

Here is the caller graph for this function:

moist_energy()

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE amrex::Real shoc::moist_energy ( amrex::Real  tabs, amrex::Real  z, amrex::Real  qv, amrex::Real  qc, amrex::Real  qi, amrex::Real  u, amrex::Real  v, amrex::Real  tke  )

noexcept

{
    // Ice-reference moist energy has no explicit qi term; qi is retained in
    // the signature so callers pass a complete vapor/liquid/ice state.
    amrex::ignore_unused(qi);
    return Cp_d * tabs
         + CONST_GRAV * z
         + amrex::Real(0.5) * (u * u + v * v)
         + tke
         + latent_sublimation() * qv
         + constants::latent_ice() * amrex::max(amrex::Real(0.0), qc);
}

Referenced by apply_energy_fix_column().

Here is the call graph for this function:

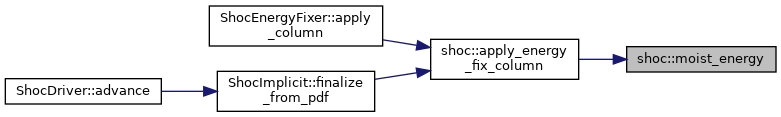

Here is the caller graph for this function:

reconstruct_pdf_state()

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE void shoc::reconstruct_pdf_state ( amrex::Real  thetal, amrex::Real  qw, amrex::Real  exner, amrex::Real  qi_seed, amrex::Real  pdf_ql, amrex::Real &  tabs, amrex::Real &  qv, amrex::Real &  qc, amrex::Real &  qi  )

noexcept

{
    // Interim native-SHOC contract: preserve any existing ice seed for
    // phase-aware thermodynamics, but do not create or repartition cloud ice.
    const amrex::Real qi_total = shoc_clamp(qi_seed, amrex::Real(0.0), amrex::max(amrex::Real(0.0), qw));
    const amrex::Real ql_total = shoc_clamp(pdf_ql, amrex::Real(0.0), amrex::max(amrex::Real(0.0), qw - qi_total));

    qc = ql_total;
    qi = qi_total;
    tabs = temperature_from_thetal(thetal, qc, qi, exner);
    qv = amrex::max(amrex::Real(0.0), qw - qc - qi);
}

Referenced by apply_energy_fix_column(), and ShocImplicit::finalize_from_pdf().

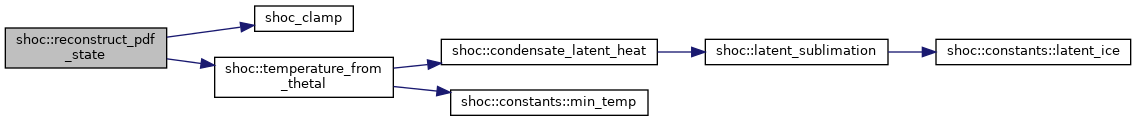

Here is the call graph for this function:

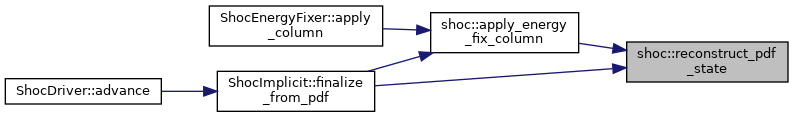

Here is the caller graph for this function:

set_fab_val()

void shoc::set_fab_val ( amrex::FArrayBox &  fab, amrex::Real  value, InitRunOn  run_on  )

inline

{
    if (run_on == InitRunOn::Host) {
        fab.template setVal<amrex::RunOn::Host>(value);
    } else {
        fab.template setVal<amrex::RunOn::Device>(value);
    }
}

Referenced by reset_shoc_column_data().

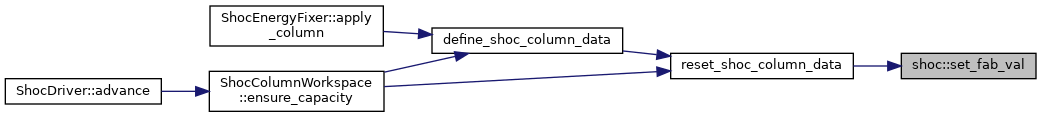

Here is the caller graph for this function:

sync_if_needed()

void shoc::sync_if_needed ( )

inline

{
    // Test-owned helper for host-side assertions. Production SHOC code should
    // keep synchronization out of the runtime path and use this only through
    // shoc_test::run_and_sync or other explicit test utilities.
#ifdef AMREX_USE_GPU
    amrex::Gpu::streamSynchronize();
#endif
}

temperature_from_thetal()

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE amrex::Real shoc::temperature_from_thetal ( amrex::Real  thetal, amrex::Real  qc, amrex::Real  qi, amrex::Real  exner  )

noexcept

{
    return amrex::max(constants::min_temp(),
                      thetal * amrex::max(exner, amrex::Real(1.0e-12))
                      + condensate_latent_heat(qc, qi) / Cp_d);
}

Referenced by apply_energy_fix_column(), ShocImplicit::compute_temperature(), and reconstruct_pdf_state().

Here is the call graph for this function:

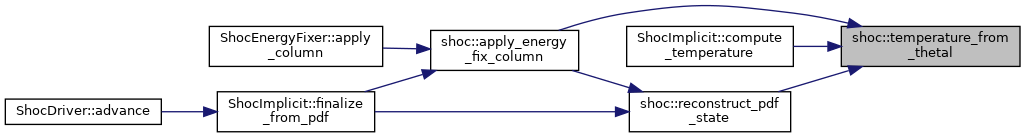

Here is the caller graph for this function:

theta_from_thetal()

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE amrex::Real shoc::theta_from_thetal ( amrex::Real  thetal, amrex::Real  qc, amrex::Real  qi, amrex::Real  exner  )

noexcept

{
    return thetal
         + condensate_latent_heat(qc, qi)
           / (Cp_d * amrex::max(exner, amrex::Real(1.0e-12)));
}

Here is the call graph for this function:

thetal_from_theta()

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE amrex::Real shoc::thetal_from_theta ( amrex::Real  theta, amrex::Real  qc, amrex::Real  qi, amrex::Real  exner  )

noexcept

{
    return theta
         - condensate_latent_heat(qc, qi)
           / (Cp_d * amrex::max(exner, amrex::Real(1.0e-12)));
}

Referenced by ShocPreprocess::fill_columns().

Here is the call graph for this function:

Here is the caller graph for this function:
