surface_diagnostics Namespace Reference

Enumerations
enum class	SurfaceDiagnosticSource : int {   Missing = 0 , SurfaceLayerLand = 1 , LSMLand = 2 , SurfaceLayerFallback = 3 ,   SurfaceLayerSea = 4 , Custom = 5 , RICO = 6 }

Functions
AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE int	to_int (SurfaceDiagnosticSource source) noexcept
AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE amrex::Real	to_plot_value (SurfaceDiagnosticSource source) noexcept
AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE SurfaceDiagnosticSource	classify_scalar_source (bool is_custom, bool is_rico, bool is_land, bool has_lsm_flux, bool lsm_flux_is_valid) noexcept
const char *	source_name (SurfaceDiagnosticSource source) noexcept

Enumeration Type Documentation

SurfaceDiagnosticSource

enum surface_diagnostics::SurfaceDiagnosticSource : int

strong

Enumerator
Missing
SurfaceLayerLand
LSMLand
SurfaceLayerFallback
SurfaceLayerSea
Custom
RICO

{
    Missing              = 0,
    SurfaceLayerLand     = 1,
    LSMLand              = 2,
    SurfaceLayerFallback = 3,
    SurfaceLayerSea      = 4,
    Custom               = 5,
    RICO                 = 6
};

Function Documentation

classify_scalar_source()

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE SurfaceDiagnosticSource surface_diagnostics::classify_scalar_source ( bool  is_custom, bool  is_rico, bool  is_land, bool  has_lsm_flux, bool  lsm_flux_is_valid  )

noexcept

Classify the provenance of a scalar surface flux.

Parameters

[in]	is_custom	whether the custom flux mode is active
[in]	is_rico	whether the RICO flux mode is active
[in]	is_land	whether the cell is classified as land
[in]	has_lsm_flux	whether an LSM flux array is available
[in]	lsm_flux_is_valid	whether the LSM flux value is valid

{
    if (is_land && has_lsm_flux && lsm_flux_is_valid) {
        return SurfaceDiagnosticSource::LSMLand;
    }
    if (is_custom) {
        return SurfaceDiagnosticSource::Custom;
    }
    if (is_rico) {
        return SurfaceDiagnosticSource::RICO;
    }
    if (is_land && has_lsm_flux && !lsm_flux_is_valid) {
        return SurfaceDiagnosticSource::SurfaceLayerFallback;
    }
    if (is_land) {
        return SurfaceDiagnosticSource::SurfaceLayerLand;
    }
    return SurfaceDiagnosticSource::SurfaceLayerSea;
}

Referenced by SurfaceLayer::compute_SurfaceLayer_bcs().

Here is the call graph for this function:

Here is the caller graph for this function:

source_name()

const char* surface_diagnostics::source_name ( SurfaceDiagnosticSource  source )

inlinenoexcept

Return the string name for a diagnostic source enum value.

Parameters

[in]

source

diagnostic source enum value

{
    switch (source) {
    case SurfaceDiagnosticSource::Missing:              return "missing";
    case SurfaceDiagnosticSource::SurfaceLayerLand:     return "surface_layer_land";
    case SurfaceDiagnosticSource::LSMLand:              return "lsm_land";
    case SurfaceDiagnosticSource::SurfaceLayerFallback: return "surface_layer_fallback";
    case SurfaceDiagnosticSource::SurfaceLayerSea:      return "surface_layer_sea";
    case SurfaceDiagnosticSource::Custom:               return "custom";
    case SurfaceDiagnosticSource::RICO:                 return "rico";
    }
    return "unknown";
}

to_int()

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE int surface_diagnostics::to_int ( SurfaceDiagnosticSource  source )

noexcept

Convert a diagnostic source enum to its integer code.

Parameters

[in]

source

diagnostic source enum value

{
    return static_cast<int>(source);
}

Referenced by near_surface_diagnostics::fill(), and to_plot_value().

Here is the caller graph for this function:

to_plot_value()

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE amrex::Real surface_diagnostics::to_plot_value ( SurfaceDiagnosticSource  source )

noexcept

Convert a diagnostic source enum to the Real value written to plotfiles.

Parameters

[in]

source

diagnostic source enum value

{
    return static_cast<amrex::Real>(to_int(source));
}

Referenced by SurfaceLayer::compute_SurfaceLayer_bcs(), SurfaceLayer::compute_SurfaceLayer_bcs_EB(), near_surface_diagnostics::fill(), and SurfaceLayer::make_SurfaceLayer_at_level().

Here is the call graph for this function:

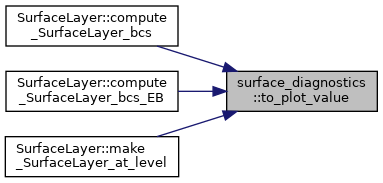

Here is the caller graph for this function:
