LineSampler Struct Reference

#include <ERF_SampleData.H>

Collaboration diagram for LineSampler:

Public Member Functions
	LineSampler ()
void	write_coords (amrex::Vector< std::unique_ptr< amrex::MultiFab > > &z_phys_cc)
void	get_sample_data (amrex::Vector< amrex::Geometry > &, amrex::Vector< amrex::Vector< amrex::MultiFab >> &vars_new)
void	write_sample_data (amrex::Vector< amrex::Real > &time, amrex::Vector< int > &level_steps, amrex::Vector< amrex::IntVect > &ref_ratio, amrex::Vector< amrex::Geometry > &geom)
void	write_line_ascii (amrex::Vector< amrex::Real > &time)
void	write_line_plotfile (amrex::Vector< amrex::Real > &time, amrex::Vector< int > &level_steps, amrex::Vector< amrex::IntVect > &ref_ratio, amrex::Vector< amrex::Geometry > &geom)

Public Attributes
amrex::Vector< int >	m_dir
amrex::Vector< int >	m_lev
amrex::Vector< amrex::Box >	m_bnd_bx
amrex::Vector< amrex::MultiFab >	m_ls_mf
amrex::Vector< std::string >	m_name
bool	m_write_ascii {false}
amrex::Vector< std::string >	m_varnames {"magvel","theta"}
amrex::Vector< std::unique_ptr< std::fstream > >	m_datastream

Constructor & Destructor Documentation

LineSampler()

LineSampler::LineSampler ( )

inline

    {
        amrex::ParmParse pp("erf");

        // Count number of lo and hi points define the line
        int n_line_lo  = pp.countval("sample_line_lo") / AMREX_SPACEDIM;
        int n_line_hi  = pp.countval("sample_line_hi") / AMREX_SPACEDIM;
        int n_line_dir = pp.countval("sample_line_dir");
        AMREX_ALWAYS_ASSERT( (n_line_lo==n_line_hi ) &&
                             (n_line_lo==n_line_dir) );

        // Parse the data
        if (n_line_lo > 0) {
            // Parse lo
            amrex::Vector<int> idx_lo; idx_lo.resize(n_line_lo*AMREX_SPACEDIM);
            amrex::Vector<amrex::IntVect> iv_lo; iv_lo.resize(n_line_lo);
            pp.queryarr("sample_line_lo",idx_lo,0,n_line_lo*AMREX_SPACEDIM);
            for (int i(0); i < n_line_lo; i++) {
                amrex::IntVect iv(idx_lo[AMREX_SPACEDIM*i+0],
                                  idx_lo[AMREX_SPACEDIM*i+1],
                                  idx_lo[AMREX_SPACEDIM*i+2]);
                iv_lo[i] = iv;
            }

            // Parse hi
            amrex::Vector<int> idx_hi; idx_hi.resize(n_line_hi*AMREX_SPACEDIM);
            amrex::Vector<amrex::IntVect> iv_hi; iv_hi.resize(n_line_hi);
            pp.queryarr("sample_line_hi",idx_hi,0,n_line_hi*AMREX_SPACEDIM);
            for (int i(0); i < n_line_hi; i++) {
                amrex::IntVect iv(idx_hi[AMREX_SPACEDIM*i+0],
                                  idx_hi[AMREX_SPACEDIM*i+1],
                                  idx_hi[AMREX_SPACEDIM*i+2]);
                iv_hi[i] = iv;
            }

            // Construct vector of bounding boxes
            m_bnd_bx.resize(n_line_lo);
            for (int i = 0; i < n_line_hi; i++){
                amrex::Box lbx(iv_lo[i],iv_hi[i]);
                m_bnd_bx[i] = lbx;
            }

            // Parse directionality
            m_dir.resize(n_line_dir);
            pp.queryarr("sample_line_dir",m_dir,0,n_line_dir);

            // Parse names
            std::string name_base = "plt_line_";
            m_name.resize(n_line_lo);
            int n_names = pp.countval("sample_line_name");
            if (n_names > 0) {
                AMREX_ALWAYS_ASSERT( n_names==n_line_lo );
                pp.queryarr("sample_line_name",m_name,0,n_names);
            } else {
                for (int iline(0); iline<n_line_lo; ++iline) {
                    m_name[iline] = amrex::Concatenate(name_base, iline , 5);
                }
            }

            // Allocate space for level indicator
            m_lev.resize(n_line_dir,0);

            // Allocate space for MF pointers
            m_ls_mf.resize(n_line_lo);

            // Get requested vars
            if (pp.countval("line_sampling_vars") > 0) {
                m_varnames.clear();
                amrex::Vector<std::string> requested_vars;
                pp.queryarr("line_sampling_vars",requested_vars);
                amrex::Print() << "Selected line sampling vars :";
                if (containerHasElement(requested_vars, "density")) {
                    m_varnames.push_back("density");
                    amrex::Print() << " " << "density";
                }
                if (containerHasElement(requested_vars, "x_velocity")) {
                    m_varnames.push_back("x_velocity");
                    amrex::Print() << " " << "x_velocity";
                }
                if (containerHasElement(requested_vars, "y_velocity")) {
                    m_varnames.push_back("y_velocity");
                    amrex::Print() << " " << "y_velocity";
                }
                if (containerHasElement(requested_vars, "z_velocity")) {
                    m_varnames.push_back("z_velocity");
                    amrex::Print() << " " << "z_velocity";
                }
                if (containerHasElement(requested_vars, "magvel")) {
                    m_varnames.push_back("magvel");
                    amrex::Print() << " " << "magvel";
                }
                if (containerHasElement(requested_vars, "theta")) {
                    m_varnames.push_back("theta");
                    amrex::Print() << " " << "theta";
                }
                if (containerHasElement(requested_vars, "qv")) {
                    m_varnames.push_back("qv");
                    amrex::Print() << " " << "qv";
                }
                if (containerHasElement(requested_vars, "qc")) {
                    m_varnames.push_back("qc");
                    amrex::Print() << " " << "qc";
                }
                if (containerHasElement(requested_vars, "pressure")) {
                    m_varnames.push_back("pressure");
                    amrex::Print() << " " << "pressure";
                }
                amrex::Print() << std::endl;
            }

            // Write outputs to text files, one file per variable, with all
            // times appended to the same file
            pp.query("line_sampling_text_output",m_write_ascii);
            if (m_write_ascii && amrex::ParallelDescriptor::IOProcessor()) {
                int nvar = static_cast<int>(m_varnames.size());
                m_datastream.resize(n_line_lo * nvar);
                int i = 0;
                for (int iline(0); iline<n_line_lo; ++iline) {
                    for (int ivar(0); ivar<nvar; ++ivar) {
                        std::string filename = m_name[iline] + "." + m_varnames[ivar];
                        m_datastream[i] = std::make_unique<std::fstream>();
                        m_datastream[i]->open(filename.c_str(),std::ios::out|std::ios::app);
                        if (!m_datastream[i]->good()) {
                            amrex::FileOpenFailed(filename);
                        }
                        i++;
                    }
                }
            }
        }
    }

Here is the call graph for this function:

Member Function Documentation

get_sample_data()

void LineSampler::get_sample_data ( amrex::Vector< amrex::Geometry > &  , amrex::Vector< amrex::Vector< amrex::MultiFab >> &  vars_new  )

inline

    {
        int nlev  = static_cast<int>(vars_new.size());
        int nline = static_cast<int>(m_bnd_bx.size());
        int ncomp = static_cast<int>(m_varnames.size());

        int qv_comp = -1;

        // Loop over each line
        for (int iline(0); iline<nline; ++iline) {
            int dir = m_dir[iline];
            amrex::Box bnd_bx   = m_bnd_bx[iline];
            amrex::IntVect cell = bnd_bx.smallEnd();

            // Search each level to get the finest data possible
            for (int ilev(nlev-1); ilev>=0; --ilev) {

                // Construct CC velocities
                amrex::MultiFab mf_cc_vel;
                auto ba = vars_new[ilev][Vars::cons].boxArray();
                auto dm = vars_new[ilev][Vars::cons].DistributionMap();
                mf_cc_vel.define(ba, dm, AMREX_SPACEDIM, amrex::IntVect(1,1,1));
                average_face_to_cellcenter(mf_cc_vel,0,
                                           amrex::Array<const amrex::MultiFab*,3>{&vars_new[ilev][Vars::xvel],
                                                                                  &vars_new[ilev][Vars::yvel],
                                                                                  &vars_new[ilev][Vars::zvel]});

                // Construct vector of MFs holding T and WSP
                amrex::MultiFab mf_cc_data;
                mf_cc_data.define(ba, dm, ncomp, 1);

                int mf_comp = 0;

                if (containerHasElement(m_varnames, "density")) {
                    amrex::MultiFab::Copy(mf_cc_data, vars_new[ilev][Vars::cons], Rho_comp, mf_comp, 1, 0);
                    mf_comp += 1;
                }

                if (containerHasElement(m_varnames, "x_velocity")) {
                    amrex::MultiFab::Copy(mf_cc_data, mf_cc_vel, 0, mf_comp, 1, 0);
                    mf_comp += 1;
                }
                if (containerHasElement(m_varnames, "y_velocity")) {
                    amrex::MultiFab::Copy(mf_cc_data, mf_cc_vel, 1, mf_comp, 1, 0);
                    mf_comp += 1;
                }
                if (containerHasElement(m_varnames, "z_velocity")) {
                    amrex::MultiFab::Copy(mf_cc_data, mf_cc_vel, 2, mf_comp, 1, 0);
                    mf_comp += 1;
                }

                if (containerHasElement(m_varnames, "magvel")) {
#ifdef _OPENMP
#pragma omp parallel if (amrex::Gpu::notInLaunchRegion())
#endif
                    for (amrex::MFIter mfi(mf_cc_data, amrex::TilingIfNotGPU()); mfi.isValid(); ++mfi) {
                        const amrex::Box& tbx = mfi.tilebox();
                        auto const& dfab = mf_cc_data.array(mfi);
                        auto const& vfab = mf_cc_vel.array(mfi);

                        amrex::ParallelFor(tbx, [=] AMREX_GPU_DEVICE(int i, int j, int k) noexcept
                        {
                            dfab(i,j,k,mf_comp) = std::sqrt(vfab(i,j,k,0)*vfab(i,j,k,0)
                                                          + vfab(i,j,k,1)*vfab(i,j,k,1)
                                                          + vfab(i,j,k,2)*vfab(i,j,k,2)) ;
                        });
                    }
                    mf_comp += 1;
                }

                if (containerHasElement(m_varnames, "theta")) {
#ifdef _OPENMP
#pragma omp parallel if (amrex::Gpu::notInLaunchRegion())
#endif
                    for (amrex::MFIter mfi(mf_cc_data, amrex::TilingIfNotGPU()); mfi.isValid(); ++mfi) {
                        const amrex::Box& tbx = mfi.tilebox();
                        auto const& dfab = mf_cc_data.array(mfi);
                        auto const& cfab = vars_new[ilev][Vars::cons].array(mfi);

                        amrex::ParallelFor(tbx, [=] AMREX_GPU_DEVICE(int i, int j, int k) noexcept
                        {
                            dfab(i,j,k,mf_comp) = cfab(i,j,k,RhoTheta_comp) / cfab(i,j,k,Rho_comp);
                        });
                    }
                    mf_comp += 1;
                }

                if (containerHasElement(m_varnames, "qv")) {
                    // if qv is requested, assume that we have moisture
                    if (qv_comp >= 0) AMREX_ALWAYS_ASSERT(qv_comp == mf_comp);
                    qv_comp = mf_comp;
#ifdef _OPENMP
#pragma omp parallel if (amrex::Gpu::notInLaunchRegion())
#endif
                    for (amrex::MFIter mfi(mf_cc_data, amrex::TilingIfNotGPU()); mfi.isValid(); ++mfi) {
                        const amrex::Box& tbx = mfi.tilebox();
                        auto const& dfab = mf_cc_data.array(mfi);
                        auto const& cfab = vars_new[ilev][Vars::cons].array(mfi);

                        amrex::ParallelFor(tbx, [=] AMREX_GPU_DEVICE(int i, int j, int k) noexcept
                        {
                            dfab(i,j,k,mf_comp) = cfab(i,j,k,RhoQ1_comp) / cfab(i,j,k,Rho_comp);
                        });
                    }
                    mf_comp += 1;
                }
                if (containerHasElement(m_varnames, "qc")) {
#ifdef _OPENMP
#pragma omp parallel if (amrex::Gpu::notInLaunchRegion())
#endif
                    for (amrex::MFIter mfi(mf_cc_data, amrex::TilingIfNotGPU()); mfi.isValid(); ++mfi) {
                        const amrex::Box& tbx = mfi.tilebox();
                        auto const& dfab = mf_cc_data.array(mfi);
                        auto const& cfab = vars_new[ilev][Vars::cons].array(mfi);

                        amrex::ParallelFor(tbx, [=] AMREX_GPU_DEVICE(int i, int j, int k) noexcept
                        {
                            dfab(i,j,k,mf_comp) = cfab(i,j,k,RhoQ2_comp) / cfab(i,j,k,Rho_comp);
                        });
                    }
                    mf_comp += 1;
                }

                if (containerHasElement(m_varnames, "pressure") && (qv_comp >= 0)) {
                    // if qv is requested, assume that we have moisture
#ifdef _OPENMP
#pragma omp parallel if (amrex::Gpu::notInLaunchRegion())
#endif
                    for (amrex::MFIter mfi(mf_cc_data, amrex::TilingIfNotGPU()); mfi.isValid(); ++mfi) {
                        const amrex::Box& tbx = mfi.tilebox();
                        auto const& dfab = mf_cc_data.array(mfi);
                        auto const& cfab = vars_new[ilev][Vars::cons].array(mfi);

                        amrex::ParallelFor(tbx, [=] AMREX_GPU_DEVICE(int i, int j, int k) noexcept
                        {
                            dfab(i,j,k,mf_comp) = getPgivenRTh(cfab(i,j,k,RhoTheta_comp),
                                                               dfab(i,j,k,qv_comp));
                        });
                    }
                    mf_comp += 1;
                }
                else if (containerHasElement(m_varnames, "pressure")) {
                    // pressure requested w/o qv, assume dry
#ifdef _OPENMP
#pragma omp parallel if (amrex::Gpu::notInLaunchRegion())
#endif
                    for (amrex::MFIter mfi(mf_cc_data, amrex::TilingIfNotGPU()); mfi.isValid(); ++mfi) {
                        const amrex::Box& tbx = mfi.tilebox();
                        auto const& dfab = mf_cc_data.array(mfi);
                        auto const& cfab = vars_new[ilev][Vars::cons].array(mfi);

                        amrex::ParallelFor(tbx, [=] AMREX_GPU_DEVICE(int i, int j, int k) noexcept
                        {
                            dfab(i,j,k,mf_comp) = getPgivenRTh(cfab(i,j,k,RhoTheta_comp));
                        });
                    }
                    mf_comp += 1;
                }

                  m_lev[iline] = ilev;
                m_ls_mf[iline] = get_line_data(mf_cc_data, dir, cell, bnd_bx);

                // We can stop if we got the entire line
                auto min_bnd_bx = m_ls_mf[iline].boxArray().minimalBox();
                if (bnd_bx == min_bnd_bx) { break; }

            } // ilev
        }// iline
    }

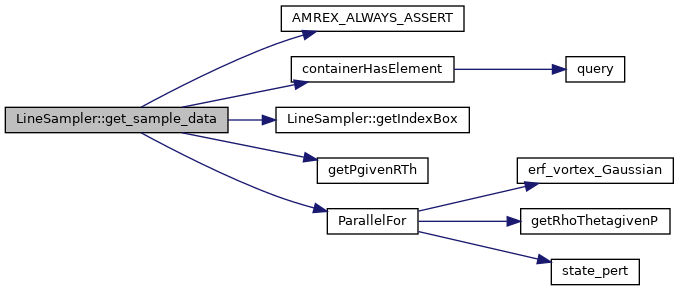

Here is the call graph for this function:

write_coords()

void LineSampler::write_coords ( amrex::Vector< std::unique_ptr< amrex::MultiFab > > &  z_phys_cc )

inline

    {
        if (!m_write_ascii) return;

        amrex::Print() << "Writing out line coordinates to text" << std::endl;

        for (int lev(0); lev < z_phys_cc.size(); ++lev) {
            // Write one text file per level
            std::ofstream outfile;
            if (amrex::ParallelDescriptor::IOProcessor()) {
                std::string fname = amrex::Concatenate("plt_line_lev", lev, 1);
                fname += ".zcc";
                outfile.open(fname);

                if (!outfile.is_open()) {
                    amrex::AllPrint() << "Could not open " << fname << std::endl;
                }
            }

            // Loop over each line
            int nline = static_cast<int>(m_ls_mf.size());
            for (int iline(0); iline<nline; ++iline) {
                int dir = m_dir[iline];
                amrex::Box bnd_bx = m_bnd_bx[iline];
                amrex::IntVect first_cell = bnd_bx.smallEnd();

                // Create multifab with "sampled" z_phys values
                amrex::MultiFab line_coords_mf = get_line_data(
                    *z_phys_cc[lev], dir, first_cell, bnd_bx
                );

                // Convert multifab to vector
                amrex::Gpu::HostVector<amrex::Real> vec = sumToLine(
                    line_coords_mf, 0, 1, bnd_bx, dir
                );

                // Append to file
                if (amrex::ParallelDescriptor::IOProcessor()) {
                    for (const auto& zval : vec) {
                        outfile << " " << zval;
                    }
                    outfile << std::endl;
                }
            } // line loop

            outfile.close();
        } // level loop
    }

write_line_ascii()

void LineSampler::write_line_ascii ( amrex::Vector< amrex::Real > &  time )

inline

    {
        // same as definitions in ERF.H
        constexpr int datwidth = 14;
        constexpr int datprecision = 6;
        constexpr int timeprecision = 13;

        int nline = static_cast<int>(m_ls_mf.size());
        int nvar  = static_cast<int>(m_varnames.size());
        for (int iline(0); iline<nline; ++iline) {
            int dir = m_dir[iline];
            int lev = m_lev[iline];
            amrex::Real m_time = time[lev];
            amrex::Box m_dom = m_bnd_bx[iline];

            for (int ivar(0); ivar<nvar; ++ivar) {
                // Convert multifab to vector
                amrex::Gpu::HostVector<amrex::Real> vec = sumToLine(m_ls_mf[iline], ivar, 1, m_dom, dir);

                if (amrex::ParallelDescriptor::IOProcessor()) {
                    int ifile = iline*nvar + ivar;
                    std::ostream& fs = *m_datastream[ifile];
                    fs << std::setw(datwidth) << std::setprecision(timeprecision) << m_time
                       << std::setw(datwidth) << std::setprecision(datprecision);
                    for (const auto& val : vec) {
                        fs << " " << val;
                    }
                    fs << std::endl;
                }
            }
        }
    }

Referenced by write_sample_data().

Here is the caller graph for this function:

write_line_plotfile()

void LineSampler::write_line_plotfile ( amrex::Vector< amrex::Real > &  time, amrex::Vector< int > &  level_steps, amrex::Vector< amrex::IntVect > &  ref_ratio, amrex::Vector< amrex::Geometry > &  geom  )

inline

    {
        int nline = static_cast<int>(m_ls_mf.size());
        for (int iline(0); iline<nline; ++iline) {
            // Data members that can be used as-is
            int dir = m_dir[iline];
            int lev = m_lev[iline];
            amrex::Real m_time = time[lev];
            amrex::Vector<int> m_level_steps = {level_steps[lev]};
            amrex::Vector<amrex::IntVect> m_ref_ratio  = {ref_ratio[lev]};

            // Create modified geometry object corresponding to the line
            auto plo = geom[lev].ProbLo();
            auto dx  = geom[lev].CellSize();
            amrex::Vector<amrex::Geometry> m_geom; m_geom.resize(1);
            amrex::Vector<int> is_per(AMREX_SPACEDIM,0);
            amrex::Box m_dom = m_bnd_bx[iline];
            amrex::RealBox m_rb;
            for (int d(0); d<AMREX_SPACEDIM; ++d) {
                amrex::Real offset = (d==dir) ? 0 : 0.5;
                amrex::Real lo = plo[d] + ( m_dom.smallEnd(d) - offset ) * dx[d];
                amrex::Real hi = plo[d] + ( m_dom.bigEnd(d)   + offset ) * dx[d];

                m_rb.setLo(d,lo);
                m_rb.setHi(d,hi);

                is_per[d] = geom[lev].isPeriodic(d);
            }
            m_geom[0].define(m_dom, &m_rb, geom[lev].Coord(), is_per.data());

            // Create plotfile name
            std::string name_line = m_name[iline];
            name_line += "_step_";
            std::string plotfilename = amrex::Concatenate(name_line, m_level_steps[0], 5);

            // Get the data
            amrex::Vector<const amrex::MultiFab*> mf = {&(m_ls_mf[iline])};

            // Write each line
            WriteMultiLevelPlotfile(plotfilename, 1, mf,
                                    m_varnames, m_geom, m_time,
                                    m_level_steps, m_ref_ratio);
        }
    }

Referenced by write_sample_data().

Here is the call graph for this function:

Here is the caller graph for this function:

write_sample_data()

void LineSampler::write_sample_data ( amrex::Vector< amrex::Real > &  time, amrex::Vector< int > &  level_steps, amrex::Vector< amrex::IntVect > &  ref_ratio, amrex::Vector< amrex::Geometry > &  geom  )

inline

    {
        if (m_write_ascii) {
            write_line_ascii(time);
        } else {
            write_line_plotfile(time, level_steps, ref_ratio, geom);
        }
    }

Here is the call graph for this function:

Member Data Documentation

m_bnd_bx

amrex::Vector<amrex::Box> LineSampler::m_bnd_bx

Referenced by get_sample_data(), LineSampler(), write_coords(), write_line_ascii(), and write_line_plotfile().

m_datastream

amrex::Vector<std::unique_ptr<std::fstream> > LineSampler::m_datastream

Referenced by LineSampler(), and write_line_ascii().

m_dir

amrex::Vector<int> LineSampler::m_dir

Referenced by get_sample_data(), LineSampler(), write_coords(), write_line_ascii(), and write_line_plotfile().

m_lev

amrex::Vector<int> LineSampler::m_lev

Referenced by get_sample_data(), LineSampler(), write_line_ascii(), and write_line_plotfile().

m_ls_mf

amrex::Vector<amrex::MultiFab> LineSampler::m_ls_mf

Referenced by get_sample_data(), LineSampler(), write_coords(), write_line_ascii(), and write_line_plotfile().

m_name

amrex::Vector<std::string> LineSampler::m_name

Referenced by LineSampler(), and write_line_plotfile().

m_varnames

amrex::Vector<std::string> LineSampler::m_varnames {"magvel","theta"}

Referenced by get_sample_data(), LineSampler(), write_line_ascii(), and write_line_plotfile().

m_write_ascii

bool LineSampler::m_write_ascii {false}

Referenced by LineSampler(), write_coords(), and write_sample_data().

---

The documentation for this struct was generated from the following file:

• Source/IO/ERF_SampleData.H
