#include <ERF_MaterialProperties.H>

Inheritance diagram for MaterialPropertiesCore:

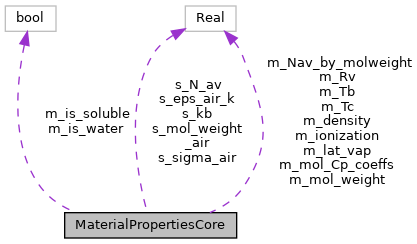

Collaboration diagram for MaterialPropertiesCore:

Public Member Functions
AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE amrex::Real	molarHeatCapacity (const amrex::Real a_T) const
	Return the molar heat capacity. More...

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE amrex::Real	surfaceTension (const amrex::Real a_T) const
	Compute the surface tension coeff given temperature. More...

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE amrex::Real	coeffCurv (const amrex::Real a_T) const
	Return the coeff of curvature given the temperature. More...

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE amrex::Real	coeffVPSolute () const
	Return the vapour pressure coefficient. More...

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE amrex::Real	coeffMolecularDiffusion (const amrex::Real a_T, const amrex::Real a_P) const
	Return the molecular diffusion coefficient given temperature and pressure. More...

Public Attributes
amrex::Real	m_density = DBL_MAX

amrex::Real	m_ionization = DBL_MAX

amrex::Real	m_mol_weight = DBL_MAX

amrex::Real	m_lat_vap = DBL_MAX

amrex::Real	m_Rv = DBL_MAX

amrex::Real	m_Tc = DBL_MAX

amrex::Real	m_Tb = DBL_MAX

amrex::Real	m_Nav_by_molweight = DBL_MAX

amrex::Real	m_mol_Cp_coeffs [7]

bool	m_is_soluble = false

bool	m_is_water = false

Static Public Attributes
static constexpr amrex::Real	s_N_av = 6.02214076e23

static constexpr amrex::Real	s_kb = 1.380649e-23

static constexpr amrex::Real	s_mol_weight_air = 0.0289647

static constexpr amrex::Real	s_sigma_air = 3.62e-10

static constexpr amrex::Real	s_eps_air_k = 97

Member Function Documentation

◆ coeffCurv()

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE amrex::Real MaterialPropertiesCore::coeffCurv ( const amrex::Real a_T ) const

inline

Return the coeff of curvature given the temperature.

     {
         auto surf_tens = surfaceTension(a_T);
         auto retval = 2 * surf_tens / (m_Rv * m_density);
         return retval;
     }

Here is the call graph for this function:

◆ coeffMolecularDiffusion()

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE amrex::Real MaterialPropertiesCore::coeffMolecularDiffusion	(	const amrex::Real	a_T,
		const amrex::Real	a_P
	)		const

inline

Return the molecular diffusion coefficient given temperature and pressure.

     {
         if (m_is_water) {

             return diffelq; // from ERF_Constants.H (2.21e-05 [m^2 s^{-1}])

         } else {

             auto mol_weight_v = s_N_av/m_Nav_by_molweight;
             auto sigma = 1.18e-8 * std::cbrt(mol_weight_v/m_density);
             auto sigma_v_air = 0.5 * (sigma + s_sigma_air);

             auto eps_v = 1.15 * m_Tb * s_kb;
             auto eps_v_air = std::sqrt( eps_v * s_eps_air_k * s_kb);
             auto T_star = a_T / (eps_v_air/s_kb);

             auto omegaD =    1.06036 / std::pow(T_star, 0.1561)
                           +  0.193   / std::exp(0.47635*T_star)
                           +  1.03587 / std::exp(1.52996*T_star)
                           +  1.76474 / std::exp(3.89411*T_star);

             auto term1 = 3 * std::sqrt( s_kb*a_T * s_kb*a_T * s_kb*a_T);
             auto term2 = 8.0 * std::sqrt(2*PI) * a_P * sigma_v_air*sigma_v_air * omegaD;
             auto term3 = std::sqrt( m_Nav_by_molweight + s_N_av/s_mol_weight_air );

             auto retval = term1*term3/term2;
             return retval;
         }
     }

◆ coeffVPSolute()

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE amrex::Real MaterialPropertiesCore::coeffVPSolute ( ) const

inline

Return the vapour pressure coefficient.

     {
         auto retval = (0.75/PI)*(m_mol_weight/m_density);
         if (m_is_water) {
             retval = 4.3e-06;
         }
         return retval;
     }

◆ molarHeatCapacity()

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE amrex::Real MaterialPropertiesCore::molarHeatCapacity ( const amrex::Real a_T ) const

inline

Return the molar heat capacity.

     {
         auto retval = 0.0;
         auto term = 1.0;
         for (auto i = 0; i < 7; i++) {
             retval += (m_mol_Cp_coeffs[i] * term);
             term *= a_T;
         }
         return retval;
     }

Referenced by surfaceTension().

Here is the caller graph for this function:

◆ surfaceTension()

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE amrex::Real MaterialPropertiesCore::surfaceTension ( const amrex::Real a_T ) const

inline

Compute the surface tension coeff given temperature.

     {
         if (m_is_water) {
             return amrex::Real(0.076148325); // N m^{-1}
         } else {
             auto term1 = 6.0 * std::cbrt(s_N_av);
             auto term2 = std::cbrt((m_density/m_mol_weight)*(m_density/m_mol_weight));
             auto retval = molarHeatCapacity(a_T)*(term2/term1)*(m_Tc - a_T);
             return retval;
         }
     }

Referenced by coeffCurv().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ m_density

amrex::Real MaterialPropertiesCore::m_density = DBL_MAX

density

Referenced by coeffCurv(), coeffMolecularDiffusion(), coeffVPSolute(), MaterialProperties::MaterialProperties(), MaterialProperties::print(), and surfaceTension().

◆ m_ionization

amrex::Real MaterialPropertiesCore::m_ionization = DBL_MAX

ionization

Referenced by MaterialProperties::MaterialProperties(), and MaterialProperties::print().

◆ m_is_soluble

bool MaterialPropertiesCore::m_is_soluble = false

is soluble in water?

Referenced by MaterialProperties::MaterialProperties().

◆ m_is_water

bool MaterialPropertiesCore::m_is_water = false

is this water?

Referenced by coeffMolecularDiffusion(), coeffVPSolute(), MaterialProperties::MaterialProperties(), and surfaceTension().

◆ m_lat_vap

amrex::Real MaterialPropertiesCore::m_lat_vap = DBL_MAX

latent heat of vaporization

Referenced by MaterialProperties::MaterialProperties(), and MaterialProperties::print().

◆ m_mol_Cp_coeffs

amrex::Real MaterialPropertiesCore::m_mol_Cp_coeffs[7]

Initial value:

= {  amrex::Real(DBL_MAX),
                                        amrex::Real(DBL_MAX),
                                        amrex::Real(DBL_MAX),
                                        amrex::Real(DBL_MAX),
                                        amrex::Real(DBL_MAX),
                                        amrex::Real(DBL_MAX),
                                        amrex::Real(DBL_MAX) }

vector of molar heat capacity polynomial coeffs

Referenced by MaterialProperties::MaterialProperties(), molarHeatCapacity(), and MaterialProperties::print().

◆ m_mol_weight

amrex::Real MaterialPropertiesCore::m_mol_weight = DBL_MAX

molecular weight (condensate)

Referenced by coeffVPSolute(), MaterialProperties::MaterialProperties(), MaterialProperties::print(), and surfaceTension().

◆ m_Nav_by_molweight

amrex::Real MaterialPropertiesCore::m_Nav_by_molweight = DBL_MAX

Avogadro number by vapour mol. weight

Referenced by coeffMolecularDiffusion(), MaterialProperties::MaterialProperties(), and MaterialProperties::print().

◆ m_Rv

amrex::Real MaterialPropertiesCore::m_Rv = DBL_MAX

gas constant for vapour of this material

Referenced by coeffCurv(), MaterialProperties::MaterialProperties(), and MaterialProperties::print().

◆ m_Tb

amrex::Real MaterialPropertiesCore::m_Tb = DBL_MAX

boiling temperature

Referenced by coeffMolecularDiffusion(), MaterialProperties::MaterialProperties(), and MaterialProperties::print().

◆ m_Tc

amrex::Real MaterialPropertiesCore::m_Tc = DBL_MAX

critical temperature for surface tension

Referenced by MaterialProperties::MaterialProperties(), MaterialProperties::print(), and surfaceTension().

◆ s_eps_air_k

constexpr amrex::Real MaterialPropertiesCore::s_eps_air_k = 97

staticconstexpr

Temperature parameter for air [K]

Referenced by coeffMolecularDiffusion().

◆ s_kb

constexpr amrex::Real MaterialPropertiesCore::s_kb = 1.380649e-23

staticconstexpr

Boltzmann constant [J K^{-1}]

Referenced by coeffMolecularDiffusion().

◆ s_mol_weight_air

constexpr amrex::Real MaterialPropertiesCore::s_mol_weight_air = 0.0289647

staticconstexpr

Molecular weight of air [kg mol^{-1}]

Referenced by coeffMolecularDiffusion().

◆ s_N_av

constexpr amrex::Real MaterialPropertiesCore::s_N_av = 6.02214076e23

staticconstexpr

Avogadro's number

Referenced by coeffMolecularDiffusion(), and surfaceTension().

◆ s_sigma_air

constexpr amrex::Real MaterialPropertiesCore::s_sigma_air = 3.62e-10

staticconstexpr

Molecular length scale of air [m]

Referenced by coeffMolecularDiffusion().

The documentation for this struct was generated from the following file:

Source/MaterialProperties/ERF_MaterialProperties.H
