bulk_coeff_flux Struct Reference

#include <ERF_MOSTStress.H>

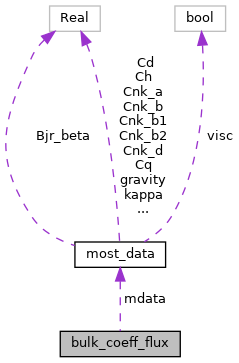

Collaboration diagram for bulk_coeff_flux:
Collaboration graph
[legend]

Public Member Functions

 bulk_coeff_flux (amrex::Real m_Cd, amrex::Real m_Ch, amrex::Real m_Cq)

AMREX_GPU_DEVICE AMREX_FORCE_INLINE amrex::Real compute_q_flux (const int &i, const int &j, const int &k, const int &, const amrex::Array4< const amrex::Real > &cons_arr, const amrex::Array4< const amrex::Real > &velx_arr, const amrex::Array4< const amrex::Real > &vely_arr, const amrex::Array4< const amrex::Real > &, const amrex::Array4< const amrex::Real > &, const amrex::Array4< const amrex::Real > &, const amrex::Array4< const amrex::Real > &, const amrex::Array4< const amrex::Real > &, const amrex::Array4< const amrex::Real > &q_surf_arr) const

AMREX_GPU_DEVICE AMREX_FORCE_INLINE amrex::Real compute_t_flux (const int &i, const int &j, const int &k, const int &, const amrex::Array4< const amrex::Real > &cons_arr, const amrex::Array4< const amrex::Real > &velx_arr, const amrex::Array4< const amrex::Real > &vely_arr, const amrex::Array4< const amrex::Real > &, const amrex::Array4< const amrex::Real > &, const amrex::Array4< const amrex::Real > &, const amrex::Array4< const amrex::Real > &, const amrex::Array4< const amrex::Real > &, const amrex::Array4< const amrex::Real > &t_surf_arr) const

AMREX_GPU_DEVICE AMREX_FORCE_INLINE amrex::Real compute_u_flux (const int &i, const int &j, const int &k, const int &, const amrex::Array4< const amrex::Real > &cons_arr, const amrex::Array4< const amrex::Real > &velx_arr, const amrex::Array4< const amrex::Real > &vely_arr, const amrex::Array4< const amrex::Real > &, const amrex::Array4< const amrex::Real > &, const amrex::Array4< const amrex::Real > &, const amrex::Array4< const amrex::Real > &, const amrex::Array4< const amrex::Real > &, const amrex::Array4< const amrex::Real > &) const

AMREX_GPU_DEVICE AMREX_FORCE_INLINE amrex::Real compute_v_flux (const int &i, const int &j, const int &k, const int &, const amrex::Array4< const amrex::Real > &cons_arr, const amrex::Array4< const amrex::Real > &velx_arr, const amrex::Array4< const amrex::Real > &vely_arr, const amrex::Array4< const amrex::Real > &, const amrex::Array4< const amrex::Real > &, const amrex::Array4< const amrex::Real > &, const amrex::Array4< const amrex::Real > &, const amrex::Array4< const amrex::Real > &, const amrex::Array4< const amrex::Real > &) const


Private Attributes

most_data mdata


Detailed Description

Bulk coefficient flux formulation

Constructor & Destructor Documentation

◆ bulk_coeff_flux()

bulk_coeff_flux::bulk_coeff_flux ( amrex::Real  m_Cd,
amrex::Real  m_Ch,
amrex::Real  m_Cq
)
inline

Construct the bulk-coefficient flux calculator.

Parameters
[in]m_Cddrag coefficient
[in]m_Chheat-transfer coefficient
[in]m_Cqmoisture-transfer coefficient
2610  {
2611  mdata.Cd = m_Cd;
2612  mdata.Ch = m_Ch;
2613  mdata.Cq = m_Cq;
2614  }
bulk_coeff_flux::mdata
most_data mdata
Definition: ERF_MOSTStress.H:2765
most_data::Ch
amrex::Real Ch
Definition: ERF_MOSTUtils.H:29
most_data::Cd
amrex::Real Cd
Definition: ERF_MOSTUtils.H:28
most_data::Cq
amrex::Real Cq
Definition: ERF_MOSTUtils.H:30

Member Function Documentation

◆ compute_q_flux()

AMREX_GPU_DEVICE AMREX_FORCE_INLINE amrex::Real bulk_coeff_flux::compute_q_flux ( const int &  i,
const int &  j,
const int &  k,
const int &  ,
const amrex::Array4< const amrex::Real > &  cons_arr,
const amrex::Array4< const amrex::Real > &  velx_arr,
const amrex::Array4< const amrex::Real > &  vely_arr,
const amrex::Array4< const amrex::Real > &  ,
const amrex::Array4< const amrex::Real > &  ,
const amrex::Array4< const amrex::Real > &  ,
const amrex::Array4< const amrex::Real > &  ,
const amrex::Array4< const amrex::Real > &  ,
const amrex::Array4< const amrex::Real > &  q_surf_arr
) const
inline

Compute moisture flux for one surface point.

Calling sequence
i, j, k, cons_arr, velx_arr, vely_arr, umm_arr, qvm_arr, u_star_arr, q_star_arr, q_surf_arr.
2639  {
2640  amrex::Real rho = cons_arr(i,j,k,Rho_comp);
2641  amrex::Real qv = cons_arr(i,j,k,RhoQ1_comp)/cons_arr(i,j,k,Rho_comp);
2642  amrex::Real qvsurf = q_surf_arr(i,j,0);
2643  amrex::Real velx = myhalf * ( velx_arr(i,j,k) + velx_arr(i+1,j ,k) );
2644  amrex::Real vely = myhalf * ( vely_arr(i,j,k) + vely_arr(i ,j+1,k) );
2645  amrex::Real wsp = std::sqrt(velx*velx+vely*vely);
2646
2647  // NOTE: this is rho*<q'w'> = -K dqdz
2648  amrex::Real moflux = rho * mdata.Cq * wsp * (qvsurf - qv);
2649
2650  return moflux;
2651  }
Rho_comp
#define Rho_comp
Definition: ERF_IndexDefines.H:53
RhoQ1_comp
#define RhoQ1_comp
Definition: ERF_IndexDefines.H:66
myhalf
constexpr amrex::Real myhalf
Definition: ERF_NumericalConstants.H:41
Real
amrex::Real Real
Definition: ERF_ShocInterface.H:19
MicVar_Kess::rho
@ rho
Definition: ERF_Kessler.H:25
MicVar_Kess::qv
@ qv
Definition: ERF_Kessler.H:31

◆ compute_t_flux()

AMREX_GPU_DEVICE AMREX_FORCE_INLINE amrex::Real bulk_coeff_flux::compute_t_flux ( const int &  i,
const int &  j,
const int &  k,
const int &  ,
const amrex::Array4< const amrex::Real > &  cons_arr,
const amrex::Array4< const amrex::Real > &  velx_arr,
const amrex::Array4< const amrex::Real > &  vely_arr,
const amrex::Array4< const amrex::Real > &  ,
const amrex::Array4< const amrex::Real > &  ,
const amrex::Array4< const amrex::Real > &  ,
const amrex::Array4< const amrex::Real > &  ,
const amrex::Array4< const amrex::Real > &  ,
const amrex::Array4< const amrex::Real > &  t_surf_arr
) const
inline

Compute heat flux for one surface point.

Calling sequence
i, j, k, cons_arr, velx_arr, vely_arr, umm_arr, tm_arr, u_star_arr, t_star_arr, t_surf_arr.
2676  {
2677  amrex::Real rho = cons_arr(i,j,k,Rho_comp);
2678  amrex::Real th = cons_arr(i,j,k,RhoTheta_comp)/cons_arr(i,j,k,Rho_comp);
2679  amrex::Real thsurf = t_surf_arr(i,j,0);
2680  amrex::Real velx = myhalf * ( velx_arr(i,j,k) + velx_arr(i+1,j ,k) );
2681  amrex::Real vely = myhalf * ( vely_arr(i,j,k) + vely_arr(i ,j+1,k) );
2682  amrex::Real wsp = std::sqrt(velx*velx+vely*vely);
2683
2684  // NOTE: this is rho*<T'w'> = -K dTdz
2685  amrex::Real moflux = rho * mdata.Ch * wsp * (thsurf - th);
2686
2687  return moflux;
2688  }
RhoTheta_comp
#define RhoTheta_comp
Definition: ERF_IndexDefines.H:54

◆ compute_u_flux()

AMREX_GPU_DEVICE AMREX_FORCE_INLINE amrex::Real bulk_coeff_flux::compute_u_flux ( const int &  i,
const int &  j,
const int &  k,
const int &  ,
const amrex::Array4< const amrex::Real > &  cons_arr,
const amrex::Array4< const amrex::Real > &  velx_arr,
const amrex::Array4< const amrex::Real > &  vely_arr,
const amrex::Array4< const amrex::Real > &  ,
const amrex::Array4< const amrex::Real > &  ,
const amrex::Array4< const amrex::Real > &  ,
const amrex::Array4< const amrex::Real > &  ,
const amrex::Array4< const amrex::Real > &  ,
const amrex::Array4< const amrex::Real > &
) const
inline

Compute x-momentum flux for one surface face.

Calling sequence
i, j, k, cons_arr, velx_arr, vely_arr, umm_arr, um_arr, u_star_arr.
2713  {
2714  amrex::Real rho = myhalf * ( cons_arr(i-1,j,k,Rho_comp) + cons_arr(i,j,k,Rho_comp) );
2715  amrex::Real velx = velx_arr(i,j,k);
2716  amrex::Real vely = fourth * ( vely_arr(i ,j,k) + vely_arr(i ,j+1,k)
2717  + vely_arr(i-1,j,k) + vely_arr(i-1,j+1,k) );
2718  amrex::Real wsp = std::sqrt(velx*velx+vely*vely);
2719
2720  // NOTE: this is rho*<u'w'> = -K dudz
2721  // NOTE: tau_tot = rho * Cd * wsp^2, multiply by u/wsp to get tau_13
2722  amrex::Real stressx = -rho * mdata.Cd * wsp * velx;
2723
2724  return stressx;
2725  }
fourth
constexpr amrex::Real fourth
Definition: ERF_NumericalConstants.H:42

◆ compute_v_flux()

AMREX_GPU_DEVICE AMREX_FORCE_INLINE amrex::Real bulk_coeff_flux::compute_v_flux ( const int &  i,
const int &  j,
const int &  k,
const int &  ,
const amrex::Array4< const amrex::Real > &  cons_arr,
const amrex::Array4< const amrex::Real > &  velx_arr,
const amrex::Array4< const amrex::Real > &  vely_arr,
const amrex::Array4< const amrex::Real > &  ,
const amrex::Array4< const amrex::Real > &  ,
const amrex::Array4< const amrex::Real > &  ,
const amrex::Array4< const amrex::Real > &  ,
const amrex::Array4< const amrex::Real > &  ,
const amrex::Array4< const amrex::Real > &
) const
inline

Compute y-momentum flux for one surface face.

Calling sequence
i, j, k, cons_arr, velx_arr, vely_arr, umm_arr, vm_arr, u_star_arr.
2750  {
2751  amrex::Real rho = myhalf * ( cons_arr(i,j-1,k,Rho_comp) + cons_arr(i,j,k,Rho_comp) );
2752  amrex::Real velx = fourth * ( velx_arr(i,j ,k) + velx_arr(i+1,j ,k)
2753  + velx_arr(i,j-1,k) + velx_arr(i+1,j-1,k) );
2754  amrex::Real vely = vely_arr(i,j,k);
2755  amrex::Real wsp = std::sqrt(velx*velx+vely*vely);
2756
2757  // NOTE: this is rho*<v'w'> = -K dvdz
2758  // NOTE: tau_tot = rho * Cd * wsp^2, multiply by v/wsp to get tau_13
2759  amrex::Real stressy = -rho * mdata.Cd * wsp * vely;
2760
2761  return stressy;
2762  }

Member Data Documentation

◆ mdata

most_data bulk_coeff_flux::mdata
private

Referenced by bulk_coeff_flux(), compute_q_flux(), compute_t_flux(), compute_u_flux(), and compute_v_flux().

The documentation for this struct was generated from the following file:
