surface_flux_wave_coupled Struct Reference

#include <ERF_MOSTStress.H>

Collaboration diagram for surface_flux_wave_coupled:

Public Member Functions
	surface_flux_wave_coupled (amrex::Real Tflux, amrex::Real Qvflux, bool cons_qflux)
AMREX_GPU_DEVICE AMREX_FORCE_INLINE void	iterate_flux (const int &i, const int &j, const int &k, const int &max_iters, const amrex::Array4< const amrex::Real > &zref_arr, const amrex::Array4< amrex::Real > &z0_arr, const amrex::Array4< const amrex::Real > &umm_arr, const amrex::Array4< const amrex::Real > &tm_arr, const amrex::Array4< const amrex::Real > &tvm_arr, const amrex::Array4< const amrex::Real > &qvm_arr, const amrex::Array4< amrex::Real > &u_star_arr, const amrex::Array4< amrex::Real > &w_star_arr, const amrex::Array4< amrex::Real > &t_star_arr, const amrex::Array4< amrex::Real > &q_star_arr, const amrex::Array4< amrex::Real > &t_surf_arr, const amrex::Array4< amrex::Real > &q_surf_arr, const amrex::Array4< amrex::Real > &olen_arr, const amrex::Array4< amrex::Real > &pblh_arr, const amrex::Array4< amrex::Real > &Hwave_arr, const amrex::Array4< amrex::Real > &Lwave_arr, const amrex::Array4< amrex::Real > &eta_arr) const

Private Attributes
most_data	mdata
bool	spec_qflux
similarity_funs	sfuns
const amrex::Real	tol = amrex::Real(1.0e-5)
const amrex::Real	eps = amrex::Real(1e-15)
const amrex::Real	z0_eps = amrex::Real(1.0e-6)
const amrex::Real	z0_max = amrex::Real(0.1)
const amrex::Real	WSMIN = amrex::Real(0.1)

Detailed Description

Surface flux with wave-coupled roughness

Constructor & Destructor Documentation

surface_flux_wave_coupled()

surface_flux_wave_coupled::surface_flux_wave_coupled ( amrex::Real  Tflux, amrex::Real  Qvflux, bool  cons_qflux  )

inline

Construct specified-flux, wave-coupled roughness MOST data.

Parameters

[in]	Tflux	prescribed heat flux
[in]	Qvflux	prescribed moisture flux
[in]	cons_qflux	whether the moisture flux is specified

    {
        mdata.surf_temp_flux  = Tflux;
        mdata.surf_moist_flux = Qvflux;
        spec_qflux = cons_qflux;
    }

Member Function Documentation

iterate_flux()

AMREX_GPU_DEVICE AMREX_FORCE_INLINE void surface_flux_wave_coupled::iterate_flux ( const int &  i, const int &  j, const int &  k, const int &  max_iters, const amrex::Array4< const amrex::Real > &  zref_arr, const amrex::Array4< amrex::Real > &  z0_arr, const amrex::Array4< const amrex::Real > &  umm_arr, const amrex::Array4< const amrex::Real > &  tm_arr, const amrex::Array4< const amrex::Real > &  tvm_arr, const amrex::Array4< const amrex::Real > &  qvm_arr, const amrex::Array4< amrex::Real > &  u_star_arr, const amrex::Array4< amrex::Real > &  w_star_arr, const amrex::Array4< amrex::Real > &  t_star_arr, const amrex::Array4< amrex::Real > &  q_star_arr, const amrex::Array4< amrex::Real > &  t_surf_arr, const amrex::Array4< amrex::Real > &  q_surf_arr, const amrex::Array4< amrex::Real > &  olen_arr, const amrex::Array4< amrex::Real > &  pblh_arr, const amrex::Array4< amrex::Real > &  Hwave_arr, const amrex::Array4< amrex::Real > &  Lwave_arr, const amrex::Array4< amrex::Real > &  eta_arr  ) const

inline

Iterate MOST state for one surface point.

Calling sequence

i, j, k, max_iters, zref_arr, z0_arr, umm_arr, tm_arr, tvm_arr, qvm_arr, u_star_arr, w_star_arr, t_star_arr, q_star_arr, t_surf_arr, q_surf_arr, olen_arr, pblh_arr, Hwave_arr, Lwave_arr, eta_arr.

    {
        int iter = 0;
        amrex::Real ustar = zero;
        amrex::Real wstar = zero;
        amrex::Real tflux = zero;
        amrex::Real qflux = zero;
        amrex::Real z0    = zero;
        amrex::Real zeta  = zero;
        amrex::Real psi_m = zero;
        amrex::Real psi_h = zero;
        amrex::Real Olen  = zero;
        amrex::Real zref  = zref_arr(i,j,k);
        int ie, je;
        ie = i  < lbound(eta_arr).x ? lbound(eta_arr).x : i;
        je = j  < lbound(eta_arr).y ? lbound(eta_arr).y : j;
        ie = ie > ubound(eta_arr).x ? ubound(eta_arr).x : ie;
        je = je > ubound(eta_arr).y ? ubound(eta_arr).y : je;
        amrex::Real umm   = std::max(umm_arr(i,j,k), WSMIN);
        if (u_star_arr(i,j,k) == bogus_large_value) {
            u_star_arr(i,j,k) = mdata.kappa * umm / std::log(zref / z0_arr(i,j,k));
        } else {
            Olen  = olen_arr(i,j,k);
            zeta  = zref / Olen;
            psi_m = sfuns.calc_psi_m(zeta);
            psi_h = sfuns.calc_psi_h(zeta);
        }
        do {
            ustar = u_star_arr(i,j,k);
            z0    = std::min( std::max(amrex::Real(1200.0) * Hwave_arr(i,j,k) * std::pow( Hwave_arr(i,j,k)/(Lwave_arr(i,j,k)+eps), amrex::Real(4.5) )
                                      + amrex::Real(0.11) * eta_arr(ie,je,k,EddyDiff::Mom_v) / ustar, z0_eps), z0_max );
            qflux = (spec_qflux) ? mdata.surf_moist_flux :
                                 -(qvm_arr(i,j,k) - q_surf_arr(i,j,k)) * ustar * mdata.kappa /
                                  (std::log(zref / z0_arr(i,j,k)) - psi_h); // <w'Qv'>
            tflux = mdata.surf_temp_flux*(one + epsv*qvm_arr(i,j,k)) + qflux*epsv*tm_arr(i,j,k);
            if (w_star_arr) {
                // update w* and Umagmean
                w_star_arr(i,j,k) = calc_wstar(tflux, pblh_arr(i,j,k), tvm_arr(i,j,k));
                wstar = mdata.Bjr_beta * w_star_arr(i,j,k);
                umm = std::sqrt(umm_arr(i,j,k)*umm_arr(i,j,k) + wstar*wstar);
                umm = std::max(umm, WSMIN);
            }
            Olen  = -ustar * ustar * ustar * tvm_arr(i,j,k) / (mdata.kappa * mdata.gravity * tflux);
            zeta  = zref / Olen;
            psi_m = sfuns.calc_psi_m(zeta);
            psi_h = sfuns.calc_psi_h(zeta);
            u_star_arr(i,j,k) = mdata.kappa * umm / (std::log(zref / z0) - psi_m);
            ++iter;
        } while ((std::abs(u_star_arr(i,j,k) - ustar) > tol) && iter <= max_iters);
        AMREX_ALWAYS_ASSERT_WITH_MESSAGE(iter < max_iters,
                                         "Maximum number of MOST iterations reached.");

        // Populate the stored MOST arrays
        z0_arr(i,j,k)     = z0;
        olen_arr(i,j,k)   = Olen;
        t_surf_arr(i,j,k) = mdata.surf_temp_flux * (std::log(zref / z0) - psi_h) /
                            (u_star_arr(i,j,k) * mdata.kappa) + tm_arr(i,j,k);
        t_star_arr(i,j,k) = -mdata.surf_temp_flux / u_star_arr(i,j,k);
        if (spec_qflux) {
            q_surf_arr(i,j,k) = mdata.surf_moist_flux * (std::log(zref / z0_arr(i,j,k)) - psi_h) /
                                (u_star_arr(i,j,k) * mdata.kappa) + qvm_arr(i,j,k);
            q_star_arr(i,j,k) = -mdata.surf_moist_flux / u_star_arr(i,j,k);
        } else {
            q_star_arr(i,j,k) = mdata.kappa * (qvm_arr(i,j,k) - q_surf_arr(i,j,k)) /
                                (std::log(zref / z0_arr(i,j,k)) - psi_h);
        }
    }

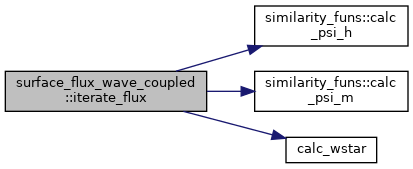

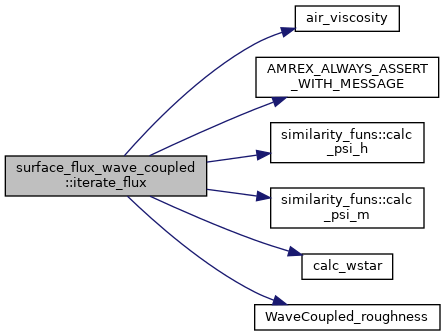

Here is the call graph for this function:

Member Data Documentation

eps

const amrex::Real surface_flux_wave_coupled::eps = amrex::Real(1e-15)

private

Referenced by iterate_flux().

mdata

most_data surface_flux_wave_coupled::mdata

private

Referenced by iterate_flux(), and surface_flux_wave_coupled().

sfuns

similarity_funs surface_flux_wave_coupled::sfuns

private

Referenced by iterate_flux().

spec_qflux

bool surface_flux_wave_coupled::spec_qflux

private

Referenced by iterate_flux(), and surface_flux_wave_coupled().

tol

const amrex::Real surface_flux_wave_coupled::tol = amrex::Real(1.0e-5)

private

Referenced by iterate_flux().

WSMIN

const amrex::Real surface_flux_wave_coupled::WSMIN = amrex::Real(0.1)

private

Referenced by iterate_flux().

z0_eps

const amrex::Real surface_flux_wave_coupled::z0_eps = amrex::Real(1.0e-6)

private

Referenced by iterate_flux().

z0_max

const amrex::Real surface_flux_wave_coupled::z0_max = amrex::Real(0.1)

private

Referenced by iterate_flux().

---

The documentation for this struct was generated from the following file:

• Source/BoundaryConditions/ERF_MOSTStress.H
