ERF_Interpolation.H File Reference

#include "ERF_DataStruct.H"
#include "ERF_Interpolation_UPW.H"
#include "ERF_Interpolation_WENO.H"
#include "ERF_Interpolation_WENO_Z.H"

Include dependency graph for ERF_Interpolation.H:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE bool	isSupportedInterpolationAdvType (const AdvType adv_type) noexcept
AMREX_GPU_DEVICE AMREX_FORCE_INLINE amrex::Real	interpolatedVal (amrex::Real avg1, amrex::Real avg2, amrex::Real avg3, amrex::Real diff1, amrex::Real diff2, amrex::Real diff3, amrex::Real scaled_upw, const AdvType adv_type)
AMREX_GPU_DEVICE AMREX_FORCE_INLINE amrex::Real	InterpolateInX (int i, int j, int k, const amrex::Array4< const amrex::Real > &qty, int qty_index, amrex::Real upw, const AdvType adv_type)
AMREX_GPU_DEVICE AMREX_FORCE_INLINE amrex::Real	InterpolateInY (int i, int j, int k, const amrex::Array4< const amrex::Real > &qty, int qty_index, amrex::Real upw, const AdvType adv_type)
AMREX_GPU_DEVICE AMREX_FORCE_INLINE amrex::Real	InterpolateInZ (int i, int j, int k, const amrex::Array4< const amrex::Real > &qty, int qty_index, amrex::Real upw, const AdvType adv_type)
AMREX_GPU_DEVICE AMREX_FORCE_INLINE amrex::Real	InterpolatePertFromCell (int i, int j, int k, const amrex::Array4< const amrex::Real > &qty, int qty_index, amrex::Real upw, Coord coordDir, const AdvType adv_type, const amrex::Array4< const amrex::Real > &r0_arr)
AMREX_GPU_DEVICE AMREX_FORCE_INLINE amrex::Real	InterpolateDensityPertFromCellToFace (int i, int j, int k, const amrex::Array4< const amrex::Real > &cons_in, amrex::Real upw, Coord coordDir, const AdvType adv_type, const amrex::Array4< const amrex::Real > &r0_arr)

Function Documentation

InterpolateDensityPertFromCellToFace()

AMREX_GPU_DEVICE AMREX_FORCE_INLINE amrex::Real InterpolateDensityPertFromCellToFace	(	int	i,
		int	j,
		int	k,
		const amrex::Array4< const amrex::Real > &	cons_in,
		amrex::Real	upw,
		Coord	coordDir,
		const AdvType	adv_type,
		const amrex::Array4< const amrex::Real > &	r0_arr
	)

Interpolate the density perturbation from cell center to face.

Parameters

i	x-index
j	y-index
k	z-index
cons_in	Conservative variable field
upw	Upwind direction
coordDir	Coordinate direction
adv_type	Advection scheme type
r0_arr	Base state field

Returns

Interpolated density perturbation

{
    return InterpolatePertFromCell(i, j, k, cons_in, Rho_comp, upw, coordDir, adv_type, r0_arr);
}

Here is the call graph for this function:

interpolatedVal()

AMREX_GPU_DEVICE AMREX_FORCE_INLINE amrex::Real interpolatedVal	(	amrex::Real	avg1,
		amrex::Real	avg2,
		amrex::Real	avg3,
		amrex::Real	diff1,
		amrex::Real	diff2,
		amrex::Real	diff3,
		amrex::Real	scaled_upw,
		const AdvType	adv_type
	)

Compute interpolated value based on averages, differences, and advection type.

Parameters

avg1	First average
avg2	Second average
avg3	Third average
diff1	First difference
diff2	Second difference
diff3	Third difference
scaled_upw	Scaled upwind factor
adv_type	Advection scheme type

Returns

Interpolated value

{
    AMREX_ALWAYS_ASSERT_WITH_MESSAGE(
        isSupportedInterpolationAdvType(adv_type),
        "interpolatedVal only supports Centered_2nd, Upwind_3rd, Centered_4th, Upwind_5th, and Centered_6th");

    amrex::Real myInterpolatedVal(amrex::Real(0));
    if (adv_type == AdvType::Centered_2nd) {
        myInterpolatedVal = myhalf * avg1;
    } else if (adv_type == AdvType::Upwind_3rd) {
        myInterpolatedVal = (amrex::Real(7.0)/amrex::Real(12.0))*avg1 -(amrex::Real(1)/amrex::Real(12.0))*avg2 + (scaled_upw/amrex::Real(12.0))*(diff2 - amrex::Real(3)*diff1);
    } else if (adv_type == AdvType::Centered_4th) {
        myInterpolatedVal = (amrex::Real(7.0)/amrex::Real(12.0))*avg1 -(amrex::Real(1)/amrex::Real(12.0))*avg2;
    } else if (adv_type == AdvType::Upwind_5th) {
        myInterpolatedVal = (amrex::Real(37.0)/amrex::Real(60.0))*avg1 -(amrex::Real(2)/amrex::Real(15.0))*avg2 +(amrex::Real(1)/amrex::Real(60.0))*avg3
                          -(scaled_upw/amrex::Real(60.0))*(diff3 - amrex::Real(5.0)*diff2 + amrex::Real(10.0)*diff1);
    } else if (adv_type == AdvType::Centered_6th) {
        myInterpolatedVal = (amrex::Real(37.0)/amrex::Real(60.0))*avg1 -(amrex::Real(2)/amrex::Real(15.0))*avg2 +(amrex::Real(1)/amrex::Real(60.0))*avg3;
    } else {
        AMREX_ALWAYS_ASSERT_WITH_MESSAGE(
            false,
            "interpolatedVal only supports Centered_2nd, Upwind_3rd, Centered_4th, Upwind_5th, and Centered_6th");
    }
    return myInterpolatedVal;
}

Referenced by InterpolateInX(), InterpolateInY(), InterpolateInZ(), and InterpolatePertFromCell().

Here is the call graph for this function:

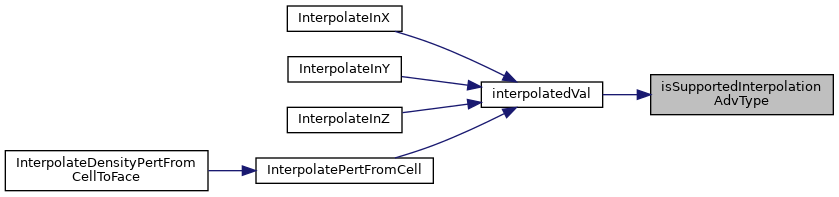

Here is the caller graph for this function:

InterpolateInX()

AMREX_GPU_DEVICE AMREX_FORCE_INLINE amrex::Real InterpolateInX	(	int	i,
		int	j,
		int	k,
		const amrex::Array4< const amrex::Real > &	qty,
		int	qty_index,
		amrex::Real	upw,
		const AdvType	adv_type
	)

Interpolate a quantity in the x-direction.

Parameters

i	x-index
j	y-index
k	z-index
qty	Quantity field
qty_index	Component index
upw	Upwind direction
adv_type	Advection scheme type

Returns

Interpolated value in x

{

    if (adv_type == AdvType::Centered_2nd) {
        return myhalf * (qty(i,j,k,qty_index) + qty(i-1,j,k,qty_index));
    } else {

        amrex::Real avg1 = amrex::Real(0); amrex::Real avg2 = amrex::Real(0); amrex::Real avg3 = amrex::Real(0);
        amrex::Real diff1 = amrex::Real(0); amrex::Real diff2 = amrex::Real(0); amrex::Real diff3 = amrex::Real(0);
        amrex::Real scaled_upw = amrex::Real(0);
        //
        // The value that comes in has not been normalized so we do that here
        if (upw != amrex::Real(0)) { scaled_upw = (upw > 0) ? amrex::Real(1) : -amrex::Real(1); }

        avg1  = (qty(i, j, k, qty_index) + qty(i-1, j, k, qty_index));
        diff1 = (qty(i, j, k, qty_index) - qty(i-1, j, k, qty_index));
        avg2  = (qty(i+1, j, k, qty_index) + qty(i-2, j, k, qty_index));
        diff2 = (qty(i+1, j, k, qty_index) - qty(i-2, j, k, qty_index));
        if (adv_type == AdvType::Upwind_5th || adv_type == AdvType::Centered_6th)
        {
            avg3  = (qty(i+2, j, k, qty_index) + qty(i-3, j, k, qty_index));
            diff3 = (qty(i+2, j, k, qty_index) - qty(i-3, j, k, qty_index));
        }
        return interpolatedVal(avg1,avg2,avg3,diff1,diff2,diff3,scaled_upw,adv_type);
    }
}

Here is the call graph for this function:

InterpolateInY()

AMREX_GPU_DEVICE AMREX_FORCE_INLINE amrex::Real InterpolateInY	(	int	i,
		int	j,
		int	k,
		const amrex::Array4< const amrex::Real > &	qty,
		int	qty_index,
		amrex::Real	upw,
		const AdvType	adv_type
	)

Interpolate a quantity in the y-direction.

Parameters

i	x-index
j	y-index
k	z-index
qty	Quantity field
qty_index	Component index
upw	Upwind direction
adv_type	Advection scheme type

Returns

Interpolated value in y

{
    if (adv_type == AdvType::Centered_2nd) {
        return myhalf * (qty(i,j,k,qty_index) + qty(i,j-1,k,qty_index));
    } else {

        amrex::Real avg1; amrex::Real avg2; amrex::Real avg3 = amrex::Real(0);
        amrex::Real diff1; amrex::Real diff2; amrex::Real diff3 = amrex::Real(0);
        amrex::Real scaled_upw = amrex::Real(0);

        // The value that comes in has not been normalized so we do that here
        if (upw != amrex::Real(0)) { scaled_upw = (upw > 0) ? amrex::Real(1) : -amrex::Real(1); }

        avg1  = (qty(i, j  , k, qty_index) + qty(i, j-1, k, qty_index));
        diff1 = (qty(i, j  , k, qty_index) - qty(i, j-1, k, qty_index));
        avg2  = (qty(i, j+1, k, qty_index) + qty(i, j-2, k, qty_index));
        diff2 = (qty(i, j+1, k, qty_index) - qty(i, j-2, k, qty_index));
        if (adv_type == AdvType::Upwind_5th || adv_type == AdvType::Centered_6th)
        {
            avg3  = (qty(i, j+2, k, qty_index) + qty(i, j-3, k, qty_index));
            diff3 = (qty(i, j+2, k, qty_index) - qty(i, j-3, k, qty_index));
        }
        return interpolatedVal(avg1,avg2,avg3,diff1,diff2,diff3,scaled_upw,adv_type);
    }
}

Here is the call graph for this function:

InterpolateInZ()

AMREX_GPU_DEVICE AMREX_FORCE_INLINE amrex::Real InterpolateInZ	(	int	i,
		int	j,
		int	k,
		const amrex::Array4< const amrex::Real > &	qty,
		int	qty_index,
		amrex::Real	upw,
		const AdvType	adv_type
	)

Interpolate a quantity in the z-direction.

Parameters

i	x-index
j	y-index
k	z-index
qty	Quantity field
qty_index	Component index
upw	Upwind direction
adv_type	Advection scheme type

Returns

Interpolated value in z

{
    if (adv_type == AdvType::Centered_2nd) {
        return myhalf * (qty(i,j,k,qty_index) + qty(i,j,k-1,qty_index));
    } else {

        amrex::Real avg1 = amrex::Real(0); amrex::Real avg2 = amrex::Real(0); amrex::Real avg3 = amrex::Real(0);
        amrex::Real diff1 = amrex::Real(0); amrex::Real diff2 = amrex::Real(0); amrex::Real diff3 = amrex::Real(0);
        amrex::Real scaled_upw = amrex::Real(0);
        // The value that comes in has not been normalized so we do that here
        if (upw != amrex::Real(0)) { scaled_upw = (upw > 0) ? amrex::Real(1) : -amrex::Real(1); }

        avg1  = (qty(i, j, k  , qty_index) + qty(i, j, k-1, qty_index));
        diff1 = (qty(i, j, k  , qty_index) - qty(i, j, k-1, qty_index));
        avg2  = (qty(i, j, k+1, qty_index) + qty(i, j, k-2, qty_index));
        diff2 = (qty(i, j, k+1, qty_index) - qty(i, j, k-2, qty_index));
        if (adv_type == AdvType::Upwind_5th || adv_type == AdvType::Centered_6th)
        {
            avg3  = (qty(i, j, k+2, qty_index) + qty(i, j, k-3, qty_index));
            diff3 = (qty(i, j, k+2, qty_index) - qty(i, j, k-3, qty_index));
        }
        return interpolatedVal(avg1,avg2,avg3,diff1,diff2,diff3,scaled_upw,adv_type);
    }
}

Here is the call graph for this function:

InterpolatePertFromCell()

AMREX_GPU_DEVICE AMREX_FORCE_INLINE amrex::Real InterpolatePertFromCell	(	int	i,
		int	j,
		int	k,
		const amrex::Array4< const amrex::Real > &	qty,
		int	qty_index,
		amrex::Real	upw,
		Coord	coordDir,
		const AdvType	adv_type,
		const amrex::Array4< const amrex::Real > &	r0_arr
	)

Interpolate the perturbation of a quantity from cell center to face.

Parameters

i	x-index
j	y-index
k	z-index
qty	Quantity field
qty_index	Component index
upw	Upwind direction
coordDir	Coordinate direction
adv_type	Advection scheme type
r0_arr	Base state field

Returns

Interpolated perturbation value

{
    // Reconstruct the perturbation qty - r0_arr, so both averages and
    // differences must be formed from perturbation quantities.
    amrex::Real avg1 = amrex::Real(0); amrex::Real avg2 = amrex::Real(0); amrex::Real avg3 = amrex::Real(0);
    amrex::Real diff1 = amrex::Real(0); amrex::Real diff2 = amrex::Real(0); amrex::Real diff3 = amrex::Real(0);
    amrex::Real scaled_upw = amrex::Real(0);

    // The value that comes in has not been normalized so we do that here
    if (upw != amrex::Real(0)) { scaled_upw = (upw > 0) ? amrex::Real(1) : -amrex::Real(1); }

    if (coordDir == Coord::x) {
        avg1  = (qty(i  , j, k, qty_index) + qty(i-1, j, k, qty_index));
        avg1 -= (r0_arr(i,j,k) + r0_arr(i-1,j,k));
        diff1 = (qty(i  , j, k, qty_index) - qty(i-1, j, k, qty_index));
        diff1 -= (r0_arr(i,j,k) - r0_arr(i-1,j,k));
        if (adv_type != AdvType::Centered_2nd)
        {
            avg2  = (qty(i+1, j, k, qty_index) + qty(i-2, j, k, qty_index));
            avg2 -= (r0_arr(i+1,j,k) + r0_arr(i-2,j,k));
            diff2 = (qty(i+1, j, k, qty_index) - qty(i-2, j, k, qty_index));
            diff2 -= (r0_arr(i+1,j,k) - r0_arr(i-2,j,k));
        }
        if (adv_type == AdvType::Upwind_5th || adv_type == AdvType::Centered_6th)
        {
            avg3  = (qty(i+2, j, k, qty_index) + qty(i-3, j, k, qty_index));
            avg3 -= (r0_arr(i+2,j,k) + r0_arr(i-3,j,k));
            diff3 = (qty(i+2, j, k, qty_index) - qty(i-3, j, k, qty_index));
            diff3 -= (r0_arr(i+2,j,k) - r0_arr(i-3,j,k));
        }
    } else if (coordDir == Coord::y) {
        avg1  = (qty(i, j  , k, qty_index) + qty(i, j-1, k, qty_index));
        avg1 -= (r0_arr(i,j,k) + r0_arr(i,j-1,k));
        diff1 = (qty(i, j  , k, qty_index) - qty(i, j-1, k, qty_index));
        diff1 -= (r0_arr(i,j,k) - r0_arr(i,j-1,k));
        if (adv_type != AdvType::Centered_2nd)
        {
            avg2  = (qty(i, j+1, k, qty_index) + qty(i, j-2, k, qty_index));
            avg2 -= (r0_arr(i,j+1,k) + r0_arr(i,j-2,k));
            diff2 = (qty(i, j+1, k, qty_index) - qty(i, j-2, k, qty_index));
            diff2 -= (r0_arr(i,j+1,k) - r0_arr(i,j-2,k));
        }
        if (adv_type == AdvType::Upwind_5th || adv_type == AdvType::Centered_6th)
        {
            avg3  = (qty(i, j+2, k, qty_index) + qty(i, j-3, k, qty_index));
            avg3 -= (r0_arr(i,j+2,k) + r0_arr(i,j-3,k));
            diff3 = (qty(i, j+2, k, qty_index) - qty(i, j-3, k, qty_index));
            diff3 -= (r0_arr(i,j+2,k) - r0_arr(i,j-3,k));
        }
    } else {
        avg1  = (qty(i, j, k  , qty_index) + qty(i, j, k-1, qty_index));
        diff1 = (qty(i, j, k  , qty_index) - qty(i, j, k-1, qty_index));
        avg1  -= (r0_arr(i,j,k) + r0_arr(i,j,k-1));
        diff1 -= (r0_arr(i,j,k) - r0_arr(i,j,k-1));

        if (adv_type != AdvType::Centered_2nd)
        {
            avg2  = (qty(i, j, k+1, qty_index) + qty(i, j, k-2, qty_index));
            diff2 = (qty(i, j, k+1, qty_index) - qty(i, j, k-2, qty_index));
            avg2  -= (r0_arr(i,j,k+1) + r0_arr(i,j,k-2));
            diff2 -= (r0_arr(i,j,k+1) - r0_arr(i,j,k-2));
        }
        if (adv_type == AdvType::Upwind_5th || adv_type == AdvType::Centered_6th)
        {
            avg3  = (qty(i, j, k+2, qty_index) + qty(i, j, k-3, qty_index));
            diff3 = (qty(i, j, k+2, qty_index) - qty(i, j, k-3, qty_index));
            avg3  -= (r0_arr(i,j,k+2) + r0_arr(i,j,k-3));
            diff3 -= (r0_arr(i,j,k+2) - r0_arr(i,j,k-3));
        }
    }

    return interpolatedVal(avg1,avg2,avg3,diff1,diff2,diff3,scaled_upw,adv_type);
}

Referenced by InterpolateDensityPertFromCellToFace().

Here is the call graph for this function:

Here is the caller graph for this function:

isSupportedInterpolationAdvType()

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE bool isSupportedInterpolationAdvType ( const AdvType  adv_type )

noexcept

Interpolation operators used in construction of advective fluxes using non-WENO centered/upwind schemes.

{
    return adv_type == AdvType::Centered_2nd ||
           adv_type == AdvType::Upwind_3rd   ||
           adv_type == AdvType::Centered_4th ||
           adv_type == AdvType::Upwind_5th   ||
           adv_type == AdvType::Centered_6th;
}

Referenced by interpolatedVal().

Here is the caller graph for this function:
