ERF_SEBTurbulentFlux.H File Reference

Where the simplified surface energy balance takes its sensible (H) and latent (LE) heat fluxes from. More...

#include <AMReX_MultiFab.H>
#include <AMReX_REAL.H>
#include <ERF_RadStruct.H>

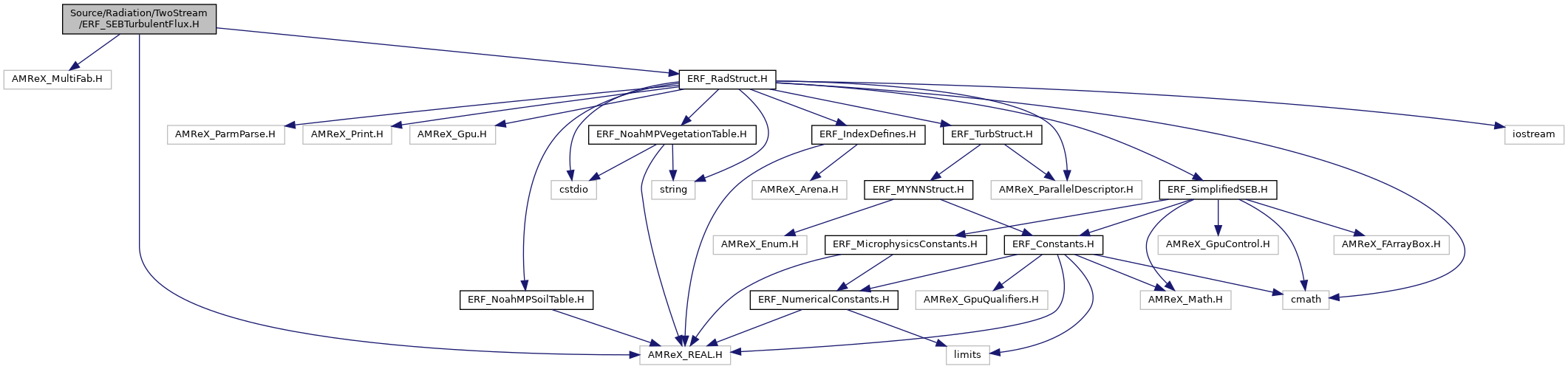

Include dependency graph for ERF_SEBTurbulentFlux.H:

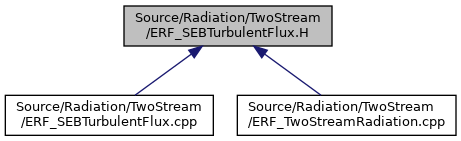

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Enumerations
enum class	SEBFluxOrigin { LandSurface , SurfaceLayer , Default }
	Which of the three sources a field was filled from. More...
enum class	SEBTurbulentFlux { Sensible , Latent }
	The turbulent flux being filled: selects the unit conversion. More...

Functions
SEBFluxOrigin	select_seb_flux_origin (bool land_surface_field_present, SEBTurbulentFluxSource source, bool surface_layer_flux_present) noexcept
	The precedence rule: land-surface field, then surface layer, then default. More...
SEBFluxOrigin	fill_seb_turbulent_flux (amrex::MultiFab &seb_flux, SEBTurbulentFlux kind, const amrex::MultiFab *land_surface_field, const amrex::MultiFab *surface_layer_flux, int surface_k, SEBTurbulentFluxSource source, amrex::Real fallback)
	Fill the SEB's H or LE [W/m^2] on the valid cells of seb_flux. More...
void	fill_seb_field_from_land_surface (amrex::MultiFab &seb_field, const amrex::MultiFab *field, amrex::Real fallback, amrex::Real scale=amrex::Real(1.0), const amrex::MultiFab *add_field=nullptr)
	Fill one 2D surface-energy-balance input from land-surface model fields, cell by cell. More...

Detailed Description

Where the simplified surface energy balance takes its sensible (H) and latent (LE) heat fluxes from.

The force-restore update removes H + LE from the ground. The air above receives the flux the lower surface layer applies, which it computes from the same skin temperature. Unless the two are the same flux the ground never loses what the air gains, so by default the balance takes the surface layer's flux.

Precedence, per field, per level and per cell:

1. a land-surface model field of that name ("hfx" or "lh") where it holds a valid value (is_valid_lsm_value: finite and below the lsm_undefined placeholder a land model leaves in cells it does not process);
2. the surface layer's applied flux, with seb_turbulent_flux_source = surface_layer and the flux field allocated: a zlo surface layer with any diffusion or closure, not on EB terrain; the latent flux only with a moisture model. An adiabatic surface layer has the field and a zero flux, so H (or LE) is then 0, and ERF warns at start-up if the scalar default it replaces is nonzero;
3. the scalar default (seb_hfx_default or seb_lh_default).

The surface-layer flux is the conservative flux on the lowest z face (rho w'theta' and rho w'qv'), converted to W/m^2 by the same helpers as the sensible_heat_flux and latent_heat_flux 2D outputs, so the two cannot disagree. Positive is away from the surface, as in the balance.

Enumeration Type Documentation

SEBFluxOrigin

enum SEBFluxOrigin

strong

Which of the three sources a field was filled from.

Enumerator
LandSurface
SurfaceLayer
Default

{ LandSurface, SurfaceLayer, Default };

SEBTurbulentFlux

enum SEBTurbulentFlux

strong

The turbulent flux being filled: selects the unit conversion.

Enumerator
Sensible
Latent

{ Sensible, Latent };

Function Documentation

fill_seb_field_from_land_surface()

void fill_seb_field_from_land_surface	(	amrex::MultiFab &	seb_field,
		const amrex::MultiFab *	field,
		amrex::Real	fallback,
		amrex::Real	scale = amrex::Real(1.0),
		const amrex::MultiFab *	add_field = nullptr
	)

Fill one 2D surface-energy-balance input from land-surface model fields, cell by cell.

Each valid cell of seb_field is set to scale * field + add_field where both values are valid land-surface values (is_valid_lsm_value), and to fallback elsewhere. A land model leaves the lsm_undefined placeholder in cells it does not process (Noah-MP: open water and sea ice) and everywhere before its first step, which runs after the first radiation call; those cells take the scalar default rather than the placeholder. The halo always holds the fallback; only valid cells take land-surface values.

Parameters

[out]	seb_field	2D SEB field (k = 0), laid out like the land-surface fields
[in]	field	land-surface field, or nullptr
[in]	fallback	the scalar default
[in]	scale	factor on field (Noah-MP's fira is positive upward; the balance wants the absorbed flux, so -1)
[in]	add_field	second land-surface field added on top, or nullptr (Noah-MP splits the absorbed shortwave into sav and sag)

fill_seb_turbulent_flux()

SEBFluxOrigin fill_seb_turbulent_flux	(	amrex::MultiFab &	seb_flux,
		SEBTurbulentFlux	kind,
		const amrex::MultiFab *	land_surface_field,
		const amrex::MultiFab *	surface_layer_flux,
		int	surface_k,
		SEBTurbulentFluxSource	source,
		amrex::Real	fallback
	)

Fill the SEB's H or LE [W/m^2] on the valid cells of seb_flux.

The selected values go to the valid cells; the halo always holds the fallback. The force-restore update, the residual diagnostic and the seb_hfx/seb_lh outputs read valid cells only. A consumer that needs neighbouring values in the halo must fill it first (FillBoundary).

Parameters

[out]	seb_flux	2D SEB field (k = 0), laid out like the level's state
[in]	kind	sensible or latent
[in]	land_surface_field	land-surface field of that name, or nullptr; cells holding no valid value take the next source
[in]	surface_layer_flux	conservative z-face flux the surface layer applies (rho w'theta' or rho w'qv'), or nullptr
[in]	surface_k	z index of the surface face in surface_layer_flux
[in]	source	erf.radiation.seb_turbulent_flux_source
[in]	fallback	the scalar default [W/m^2]

Returns

the highest-precedence source the field was filled from (cells of a land-surface field without a valid value take the next one)

select_seb_flux_origin()

SEBFluxOrigin select_seb_flux_origin ( bool  land_surface_field_present, SEBTurbulentFluxSource  source, bool  surface_layer_flux_present  )

inlinenoexcept

The precedence rule: land-surface field, then surface layer, then default.

Parameters

[in]	land_surface_field_present	a land-surface model exposes the field
[in]	source	erf.radiation.seb_turbulent_flux_source
[in]	surface_layer_flux_present	the surface layer applies this flux

{
    if (land_surface_field_present) { return SEBFluxOrigin::LandSurface; }
    if (source == SEBTurbulentFluxSource::SurfaceLayer && surface_layer_flux_present) {
        return SEBFluxOrigin::SurfaceLayer;
    }
    return SEBFluxOrigin::Default;
}

Referenced by fill_seb_turbulent_flux().
