ERF_TwoStreamCanopyForcing.H File Reference

What the two-stream sweep hands the building faces of the immersed-boundary surface energy balance (erf.ibseb.radiation = two_stream), and how a face reads it. More...

#include <AMReX_Array4.H>
#include <AMReX_Extension.H>
#include <AMReX_GpuQualifiers.H>
#include <AMReX_MultiFab.H>
#include <AMReX_REAL.H>
#include <limits>

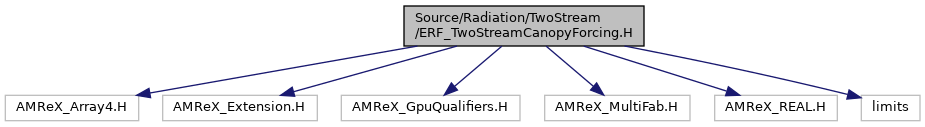

Include dependency graph for ERF_TwoStreamCanopyForcing.H:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	TwoStreamCanopyView
	The fields a level's faces read for one step: the beam and the cosine of the zenith the sweep of that step wrote, and that sweep's interface fluxes. All null when the level has not swept this step (the initial report). More...
struct	TwoStreamFaceSky
	What one face takes from its column (all W/m^2). More...

Functions
AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE void	two_stream_canopy_beam (int i, int j, int kmin, int m_top, const amrex::Array4< const amrex::Real > &scratch, int f_dir_comp, bool sw_on, amrex::Real cos_zenith, amrex::Real cloud_fraction, bool blend, const amrex::Array4< amrex::Real > &beam)
	Write the direct beam on a horizontal surface at the interfaces 0 .. m_top of column (i,j), from the scratch of the evaluation that has just run there, into beam: the clear-sky evaluation's beam as it is, and the cloudy evaluation's blended in with the cloud fraction, by the same expression as the fluxes ((1 - f) clear + f cloudy), so the two round alike in single precision and the shortwave down less the beam is the diffuse light. More...
AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE int	two_stream_canopy_sample (int k, int k0, int dir, int side, amrex::Real &w_up)
	Sample interface of a face and the weight of the one above. A z face takes the interface it lies on: a roof (solid below, side -1) the bottom of its fluid cell (m = k - k0), a ceiling (solid above, side +1, as under an overhang of a building from an STL file) the top of it (m = k - k0 + 1). A wall takes the mean of the two interfaces of its cell (m and m + 1), its mean height. More...
AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE TwoStreamFaceSky	two_stream_face_sky (int i, int j, int k, int k0, int dir, int side, const amrex::Array4< const amrex::Real > &beam, const amrex::Array4< const amrex::Real > &cosz, const amrex::Array4< const amrex::Real > &fluxes)
	The column radiation a face at fluid cell (i,j,k) of direction dir, with its solid on side side, takes: at its sample (two_stream_canopy_sample()), the direct-normal irradiance (the beam over the column's cosine of the zenith), the diffuse light (the shortwave down less the beam, floored at zero against round-off on a transparent column), the longwave down, and the shortwave and longwave up, which the face takes through its view of the ground. More...

Detailed Description

What the two-stream sweep hands the building faces of the immersed-boundary surface energy balance (erf.ibseb.radiation = two_stream), and how a face reads it.

The sweep already writes the interface fluxes of every column into ERF's rad_fluxes (RRTMGP's level layout: index k the lower interface of layer k, component 0 SW up, 1 SW down, 2 LW up, 3 LW down, after the clear/cloudy blend). What it does not keep is the direct beam, which only its scratch holds, and the cosine of the zenith it used. On the levels where ERF::init_ibseb() asks for them (TwoStreamRadiation::supply_canopy_forcing()) every sweep also writes:

• the direct beam on a horizontal surface at the interfaces m = 0 .. m_top of every column, counted from the surface, m_top the highest interface a face of the level reads (a field on the level's grids flattened in z and then given those interfaces, index k = m), blended clear/cloudy like the fluxes;
• the cosine of the zenith angle, floored at zero (a 2D field). A face reads the column of its fluid cell at its own height (two_stream_canopy_sample()): the downwelling fluxes there are the sun and the sky that reach it (for height-map buildings no building stands above a face in its own column; a face under the overhang of an STL building sees only building in IBFaceSet's view fractions, which take each column as solid up to its top, so its column's fluxes carry no weight), and the upwelling fluxes there are the ground as seen from that height, through the air in between.

Function Documentation

two_stream_canopy_beam()

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE void two_stream_canopy_beam	(	int	i,
		int	j,
		int	kmin,
		int	m_top,
		const amrex::Array4< const amrex::Real > &	scratch,
		int	f_dir_comp,
		bool	sw_on,
		amrex::Real	cos_zenith,
		amrex::Real	cloud_fraction,
		bool	blend,
		const amrex::Array4< amrex::Real > &	beam
	)

Write the direct beam on a horizontal surface at the interfaces 0 .. m_top of column (i,j), from the scratch of the evaluation that has just run there, into beam: the clear-sky evaluation's beam as it is, and the cloudy evaluation's blended in with the cloud fraction, by the same expression as the fluxes ((1 - f) clear + f cloudy), so the two round alike in single precision and the shortwave down less the beam is the diffuse light.

vertical_two_stream_sweep() keeps the Beer-Lambert beam of every interface in its scratch (TwoStreamScratch::F_DIR), but writes it only when the shortwave is on and the sun is up; otherwise the scratch holds the other evaluation's beam or nothing at all, and the beam is zero. Call it right after each evaluation, before the next one overwrites the scratch.

Parameters

scratch	the sweep's scratch, as vertical_two_stream_sweep() takes it
f_dir_comp	the scratch component of the beam (TwoStreamScratch::F_DIR)
kmin	lowest cell of the column (its surface interface)
m_top	highest interface of the beam field, at most the column's top
sw_on	whether the sweep ran its shortwave
cos_zenith	cosine of the zenith angle the sweep used (unfloored)
cloud_fraction	the cloud fraction (used only when blend)
blend	false for the clear-sky evaluation (overwrite), true for the cloudy one
beam	the beam field (component 0, index k = m)

{
    const bool lit = sw_on && (cos_zenith > amrex::Real(0.0));
    for (int m = 0; m <= m_top; ++m) {
        const amrex::Real b = lit ? scratch(i, j, kmin + m, f_dir_comp) : amrex::Real(0.0);
        beam(i, j, m) = blend ? (1.0 - cloud_fraction) * beam(i, j, m) + cloud_fraction * b : b;
    }
}

Referenced by TwoStreamRadiation::advance().

Here is the caller graph for this function:

two_stream_canopy_sample()

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE int two_stream_canopy_sample	(	int	k,
		int	k0,
		int	dir,
		int	side,
		amrex::Real &	w_up
	)

Sample interface of a face and the weight of the one above. A z face takes the interface it lies on: a roof (solid below, side -1) the bottom of its fluid cell (m = k - k0), a ceiling (solid above, side +1, as under an overhang of a building from an STL file) the top of it (m = k - k0 + 1). A wall takes the mean of the two interfaces of its cell (m and m + 1), its mean height.

Parameters

k	fluid cell of the face (the level's index)
k0	the level's domain bottom
dir	face direction (0 x, 1 y, 2 z)
side	side of the fluid cell the solid is on (-1 or +1)
w_up	weight of interface m + 1

Returns

the lower sample interface m

{
    w_up = (dir == 2) ? amrex::Real(0.0) : amrex::Real(0.5);
    return k - k0 + ((dir == 2 && side > 0) ? 1 : 0);
}

Referenced by two_stream_face_sky().

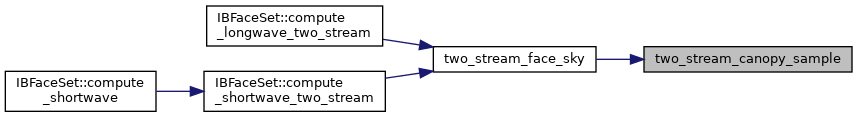

Here is the caller graph for this function:

two_stream_face_sky()

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE TwoStreamFaceSky two_stream_face_sky	(	int	i,
		int	j,
		int	k,
		int	k0,
		int	dir,
		int	side,
		const amrex::Array4< const amrex::Real > &	beam,
		const amrex::Array4< const amrex::Real > &	cosz,
		const amrex::Array4< const amrex::Real > &	fluxes
	)

The column radiation a face at fluid cell (i,j,k) of direction dir, with its solid on side side, takes: at its sample (two_stream_canopy_sample()), the direct-normal irradiance (the beam over the column's cosine of the zenith), the diffuse light (the shortwave down less the beam, floored at zero against round-off on a transparent column), the longwave down, and the shortwave and longwave up, which the face takes through its view of the ground.

Parameters

beam	beam field (index k = m)
cosz	cosine of the zenith, floored at zero (2D)
fluxes	interface fluxes in RRTMGP's level layout (absolute k)

{
    amrex::Real w_up = 0.0;
    const int ms = two_stream_canopy_sample(k, k0, dir, side, w_up);
    const int mu = ms + ((w_up > amrex::Real(0.0)) ? 1 : 0);
    const amrex::Real w_lo = amrex::Real(1.0) - w_up;
    const amrex::Real beam_h = w_lo * beam(i, j, ms) + w_up * beam(i, j, mu);
    const amrex::Real sw_dn  = w_lo * fluxes(i, j, k0 + ms, 1) + w_up * fluxes(i, j, k0 + mu, 1);
    TwoStreamFaceSky s;
    const amrex::Real cz = cosz(i, j, 0);
    // Both operands valid in both arms: an optimiser may evaluate the division
    // before the selection, and 0 / 0 at night would raise the invalid flag.
    s.dni     = (cz > amrex::Real(0.0)) ? beam_h / (cz + std::numeric_limits<amrex::Real>::min()) : amrex::Real(0.0);
    s.diffuse = (sw_dn - beam_h > amrex::Real(0.0)) ? sw_dn - beam_h : amrex::Real(0.0);
    s.lw_down = w_lo * fluxes(i, j, k0 + ms, 3) + w_up * fluxes(i, j, k0 + mu, 3);
    s.sw_up = w_lo * fluxes(i, j, k0 + ms, 0) + w_up * fluxes(i, j, k0 + mu, 0);
    s.lw_up = w_lo * fluxes(i, j, k0 + ms, 2) + w_up * fluxes(i, j, k0 + mu, 2);
    return s;
}

Referenced by IBFaceSet::compute_longwave_two_stream(), and IBFaceSet::compute_shortwave_two_stream().

Here is the call graph for this function:

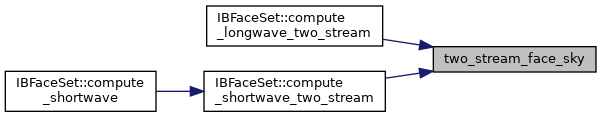

Here is the caller graph for this function:
