ERF_Utils.cpp File Reference

#include "ERF_Utils.H"
#include <AMReX_iMultiFab.H>
#include <AMReX_MultiFabUtil.H>
#include <AMReX_Reduce.H>

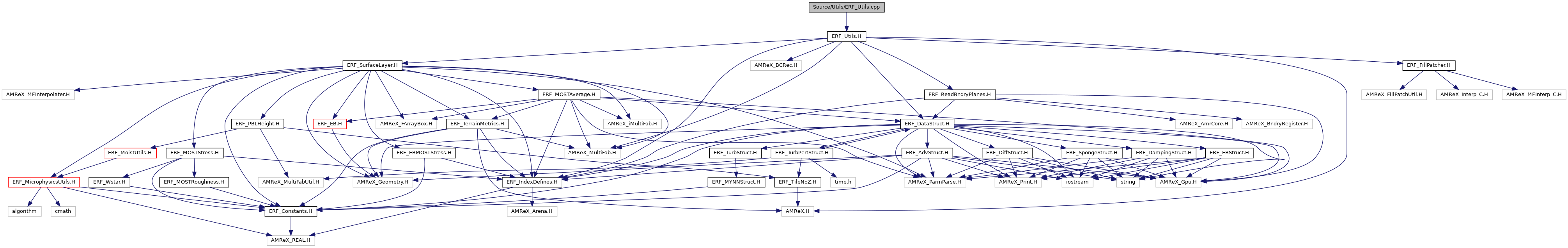

Include dependency graph for ERF_Utils.cpp:

Functions
void	cons_to_prim (const MultiFab &cons_state, MultiFab &S_prim, int ng)
void	fill_wall_dist_ghost_cells (MultiFab &wdist, const Geometry &geom)
void	make_qt (const MultiFab &cons_state, MultiFab &qt, int n_qstate_into_total)
void	if_average_down (const MultiFab &S_fine, MultiFab &S_crse, const MultiFab &beta_fine, const MultiFab &beta_crse, const MultiFab &vol_fine, int scomp, int ncomp, const IntVect &ratio)
std::pair< int, Real >	if_cf_surface_mismatch (const MultiFab &fine_tb, const BoxArray &fine_grids, const BoxArray &crse_grids, const DistributionMapping &crse_dmap, const Geometry &crse_geom, const IntVect &ratio, Real warn)
void	immersed_wall_dist (MultiFab &wdist, const MultiFab &terrain_blank, const MultiFab &z_phys_nd, const MultiFab &z_phys_cc, const Box &domain, Real small_volfrac, MultiFab *wall_height, const MultiFab *wall_height_crse)
void	make_ib_wall_face_masks (const MultiFab &terrain_blank, MultiFab &mask13, MultiFab &mask23, MultiFab &mask33, const Box &domain, Real small_volfrac, int spacing, Real dz, Real z0)

Function Documentation

cons_to_prim()

void cons_to_prim	(	const MultiFab &	cons_state,
		MultiFab &	S_prim,
		int	ng
	)

Convert conservative variables to primitive variables.

Parameters

[in]	cons_state	MultiFab containing conservative state variables
[out]	S_prim	MultiFab to be filled with primitive state variables
[in]	ng	Number of ghost cells

{
    BL_PROFILE("cons_to_prim()");

    int ncomp_prim = S_prim.nComp();

#ifdef _OPENMP
#pragma omp parallel if (amrex::Gpu::notInLaunchRegion())
#endif
    for (MFIter mfi(cons_state,TilingIfNotGPU()); mfi.isValid(); ++mfi)
    {
        const Box& gbx = mfi.growntilebox(ng);
        const Array4<const Real>& cons_arr     = cons_state.array(mfi);
        const Array4<      Real>& prim_arr     = S_prim.array(mfi);

        //
        // We may need > one ghost cells of prim in order to compute higher order advective terms
       //
       amrex::ParallelFor(gbx, [=] AMREX_GPU_DEVICE (int i, int j, int k) noexcept
       {
           Real rho       = cons_arr(i,j,k,Rho_comp);
           Real rho_theta = cons_arr(i,j,k,RhoTheta_comp);
           prim_arr(i,j,k,PrimTheta_comp) = rho_theta / rho;
           for (int n = 1; n < ncomp_prim; ++n) {
               prim_arr(i,j,k,PrimTheta_comp + n) = cons_arr(i,j,k,RhoTheta_comp + n) / rho;
           }
       });
    } // mfi
}

Referenced by ERF::advance_dycore(), ERF::compute_max_buoyancy_gradp_diagnostic(), and ERF::FillPlot3DVars().

Here is the call graph for this function:

Here is the caller graph for this function:

fill_wall_dist_ghost_cells()

void fill_wall_dist_ghost_cells	(	MultiFab &	wdist,
		const Geometry &	geom
	)

Fill the ghost cells of the wall distance field.

The wall distance is only computed on the valid region of each box (whether from the analytic shortcuts, the Poisson solve, or the thin-body correction), so without this the ghost cells still hold the large sentinel value they were initialized with. Any operator that reads wall distance from a grown box – e.g. the RANS Dirichlet-k boundary condition in SurfaceLayer::update_fluxes – would then propagate that sentinel into the state.

Ghost cells shared with a neighboring box or across a periodic boundary are filled by FillBoundary; ghost cells outside the domain in a non-periodic direction are filled by zero-order extrapolation. Note that the analytic wall distances vary only with k, so the extrapolation is exact in those cases.

Parameters

[in,out]	wdist	MultiFab holding the wall distance
[in]	geom	Geometry at this level

{
    BL_PROFILE("fill_wall_dist_ghost_cells()");

    wdist.FillBoundary(geom.periodicity());

    const Box& domain = geom.Domain();
    const auto dom_lo = amrex::lbound(domain);
    const auto dom_hi = amrex::ubound(domain);

    const GpuArray<int,AMREX_SPACEDIM> is_per = {AMREX_D_DECL(geom.isPeriodic(0),
                                                              geom.isPeriodic(1),
                                                              geom.isPeriodic(2))};

    for (MFIter mfi(wdist); mfi.isValid(); ++mfi)
    {
        const Box& gbx = mfi.fabbox();
        const Array4<Real>& d_arr = wdist.array(mfi);

        //
        // Note that the cells we read from are always inside the domain in
        // every non-periodic direction, hence already filled, and are disjoint
        // from the cells we write to.
        //
        ParallelFor(gbx, [=] AMREX_GPU_DEVICE (int i, int j, int k) noexcept
        {
            const int ii = (is_per[0]) ? i : amrex::min(amrex::max(i,dom_lo.x),dom_hi.x);
            const int jj = (is_per[1]) ? j : amrex::min(amrex::max(j,dom_lo.y),dom_hi.y);
            const int kk = (is_per[2]) ? k : amrex::min(amrex::max(k,dom_lo.z),dom_hi.z);
            if (ii != i || jj != j || kk != k) {
                d_arr(i,j,k) = d_arr(ii,jj,kk);
            }
        });
    } // mfi
}

Referenced by ERF::make_wall_dist(), and ERF::poisson_wall_dist().

Here is the call graph for this function:

Here is the caller graph for this function:

if_average_down()

void if_average_down	(	const MultiFab &	S_fine,
		MultiFab &	S_crse,
		const MultiFab &	beta_fine,
		const MultiFab &	beta_crse,
		const MultiFab &	vol_fine,
		int	scomp,
		int	ncomp,
		const IntVect &	ratio
	)

Fluid-mass-weighted average down over immersed-forcing levels (see ERF_Utils.H).

{
    BL_PROFILE("if_average_down()");
    AMREX_ALWAYS_ASSERT(S_fine.is_cell_centered() && S_crse.is_cell_centered());
    AMREX_ALWAYS_ASSERT(scomp >= 0 && ncomp > 0 && scomp + ncomp <= S_crse.nComp());
    AMREX_ALWAYS_ASSERT(S_fine.boxArray().coarsenable(ratio));
    AMREX_ALWAYS_ASSERT(beta_fine.boxArray() == S_fine.boxArray() && vol_fine.boxArray() == S_fine.boxArray());
    AMREX_ALWAYS_ASSERT(beta_fine.DistributionMap() == S_fine.DistributionMap() &&
                        vol_fine.DistributionMap() == S_fine.DistributionMap());
    AMREX_ALWAYS_ASSERT(beta_crse.boxArray() == S_crse.boxArray() &&
                        beta_crse.DistributionMap() == S_crse.DistributionMap());

    // Per coarse cell, on the coarsened fine layout: the fluid-mass-weighted sums of the
    // components, the fluid volume and the fluid mass
    BoxArray cba = S_fine.boxArray(); cba.coarsen(ratio);
    const int nsum = ncomp + 2;
    MultiFab csum(cba, S_fine.DistributionMap(), nsum, 0);
    const int rx = ratio[0], ry = ratio[1], rz = ratio[2];

#ifdef _OPENMP
#pragma omp parallel if (amrex::Gpu::notInLaunchRegion())
#endif
    for (MFIter mfi(csum, TilingIfNotGPU()); mfi.isValid(); ++mfi) {
        auto const c = csum.array(mfi);
        auto const f = S_fine.const_array(mfi);
        auto const b = beta_fine.const_array(mfi);
        auto const v = vol_fine.const_array(mfi);
        ParallelFor(mfi.tilebox(), [=] AMREX_GPU_DEVICE (int i, int j, int k) noexcept
        {
            Real w = zero, wr = zero;
            for (int n = 0; n < ncomp; ++n) { c(i,j,k,n) = zero; }
            for (int kk = k*rz; kk < (k+1)*rz; ++kk) {
            for (int jj = j*ry; jj < (j+1)*ry; ++jj) {
            for (int ii = i*rx; ii < (i+1)*rx; ++ii) {
                // fluid volume of the fine cell (prvalues: the constants are not odr-used)
                const Real wf = (one - amrex::min(amrex::max(b(ii,jj,kk), Real(zero)), Real(one)))
                              * v(ii,jj,kk);
                w  += wf;
                wr += wf * f(ii,jj,kk,Rho_comp);
                for (int n = 0; n < ncomp; ++n) { c(i,j,k,n) += wf * f(ii,jj,kk,scomp+n); }
            }}}
            c(i,j,k,ncomp)   = w;
            c(i,j,k,ncomp+1) = wr;
        });
    }

    // The sums on the coarse layout: zero where the fine level does not cover the coarse level
    MultiFab csum_c(S_crse.boxArray(), S_crse.DistributionMap(), nsum, 0);
    csum_c.setVal(zero);
    csum_c.ParallelCopy(csum, 0, 0, nsum);

#ifdef _OPENMP
#pragma omp parallel if (amrex::Gpu::notInLaunchRegion())
#endif
    for (MFIter mfi(S_crse, TilingIfNotGPU()); mfi.isValid(); ++mfi) {
        auto const s  = S_crse.array(mfi);
        auto const c  = csum_c.const_array(mfi);
        auto const bc = beta_crse.const_array(mfi);
        ParallelFor(mfi.tilebox(), [=] AMREX_GPU_DEVICE (int i, int j, int k) noexcept
        {
            // uncovered coarse cells, coarse cells solid on their own level and coarse cells
            // without a fluid fine cell under them keep their value
            if (c(i,j,k,ncomp) > zero && c(i,j,k,ncomp+1) > zero && bc(i,j,k) < one) {
                // the coarse density: the fluid-volume mean of the fine density when it is in
                // the range, else the coarse cell's own
                const Real rho_c = (scomp == Rho_comp) ? c(i,j,k,ncomp+1) / c(i,j,k,ncomp)
                                                       : s(i,j,k,Rho_comp);
                const Real fac = rho_c / c(i,j,k,ncomp+1);
                for (int n = 0; n < ncomp; ++n) {
                    s(i,j,k,scomp+n) = (scomp+n == Rho_comp) ? rho_c : fac * c(i,j,k,n);
                }
            }
        });
    }
}

Referenced by ERF::AverageDownTo().

Here is the call graph for this function:

Here is the caller graph for this function:

if_cf_surface_mismatch()

std::pair<int, Real> if_cf_surface_mismatch	(	const MultiFab &	fine_tb,
		const BoxArray &	fine_grids,
		const BoxArray &	crse_grids,
		const DistributionMapping &	crse_dmap,
		const Geometry &	crse_geom,
		const IntVect &	ratio,
		Real	warn
	)

{
    const IntVect rr = ratio;
    const iMultiFab covered = makeFineMask(crse_grids, crse_dmap, IntVect(1,1,0), fine_grids, rr,
                                           crse_geom.periodicity(), 0, 1);

    // spread of the fine fractions under each coarse cell, formed on the coarsened fine layout
    MultiFab ftmp(amrex::coarsen(fine_grids, rr), fine_tb.DistributionMap(), 1, 0);
    const int rx = rr[0], ry = rr[1], rz = rr[2];
    for (MFIter mfi(ftmp, TilingIfNotGPU()); mfi.isValid(); ++mfi) {
        auto const s = ftmp.array(mfi);
        auto const f = fine_tb.const_array(mfi);
        ParallelFor(mfi.tilebox(), [=] AMREX_GPU_DEVICE (int i, int j, int k) noexcept
        {
            Real bmin = Real(one), bmax = Real(zero);
            for (int kk = k*rz; kk < (k+1)*rz; ++kk) {
            for (int jj = j*ry; jj < (j+1)*ry; ++jj) {
            for (int ii = i*rx; ii < (i+1)*rx; ++ii) {
                const Real b = amrex::min(amrex::max(f(ii,jj,kk), Real(zero)), Real(one));
                bmin = amrex::min(bmin, b);
                bmax = amrex::max(bmax, b);
            }}}
            s(i,j,k) = bmax - bmin;
        });
    }
    MultiFab spread(crse_grids, crse_dmap, 1, 0);
    spread.setVal(zero);
    spread.ParallelCopy(ftmp, 0, 0, 1);

    const Box& dom = crse_geom.Domain();
    const int per_x = crse_geom.isPeriodic(0), per_y = crse_geom.isPeriodic(1);
    const int dlo_x = dom.smallEnd(0), dhi_x = dom.bigEnd(0), dlo_y = dom.smallEnd(1), dhi_y = dom.bigEnd(1);
    ReduceOps<ReduceOpSum, ReduceOpMax> reduce_op;
    ReduceData<int, Real> reduce_data(reduce_op);
    using ReduceTuple = typename decltype(reduce_data)::Type;
    for (MFIter mfi(spread, TilingIfNotGPU()); mfi.isValid(); ++mfi) {
        auto const m  = covered.const_array(mfi);
        auto const sp = spread.const_array(mfi);
        reduce_op.eval(mfi.tilebox(), reduce_data, [=] AMREX_GPU_DEVICE (int i, int j, int k) noexcept -> ReduceTuple
        {
            if (m(i,j,k) != 1) { return {0, Real(zero)}; }
            const bool edge = ((per_x || i > dlo_x) && m(i-1,j,k) == 0) || ((per_x || i < dhi_x) && m(i+1,j,k) == 0)
                           || ((per_y || j > dlo_y) && m(i,j-1,k) == 0) || ((per_y || j < dhi_y) && m(i,j+1,k) == 0);
            if (!edge) { return {0, Real(zero)}; }
            return {(sp(i,j,k) >= warn) ? 1 : 0, sp(i,j,k)};
        });
    }
    ReduceTuple hv = reduce_data.value(reduce_op);
    int  nflagged = amrex::get<0>(hv);
    Real worst    = amrex::get<1>(hv);
    ParallelDescriptor::ReduceIntSum(nflagged);
    ParallelDescriptor::ReduceRealMax(worst);
    return {nflagged, worst};
}

Referenced by ERF::check_if_cf_mismatch().

Here is the call graph for this function:

Here is the caller graph for this function:

immersed_wall_dist()

void immersed_wall_dist	(	MultiFab &	wdist,
		const MultiFab &	terrain_blank,
		const MultiFab &	z_phys_nd,
		const MultiFab &	z_phys_cc,
		const Box &	domain,
		Real	small_volfrac,
		MultiFab *	wall_height,
		const MultiFab *	wall_height_crse
	)

{
    BL_PROFILE("immersed_wall_dist()");

    const int  klo     = domain.smallEnd(2);
    const int  khi     = domain.bigEnd(2);
    const Real small   = small_volfrac;
    const Real d_floor = std::numeric_limits<Real>::epsilon();
    const bool have_crse = (wall_height_crse != nullptr);

    for (MFIter mfi(wdist); mfi.isValid(); ++mfi)
    {
        const Box& bx = mfi.validbox();
        AMREX_ALWAYS_ASSERT_WITH_MESSAGE(have_crse || (bx.smallEnd(2) == klo && bx.bigEnd(2) == khi),
            "immersed_wall_dist: the wall distance over immersed terrain needs whole columns in each box");

        const int kb_lo = bx.smallEnd(2);
        const int kb_hi = bx.bigEnd(2);
        Box bx2d = bx; bx2d.setRange(2, klo);
        auto const tb_arr   = terrain_blank.const_array(mfi);
        auto const znd_arr  = z_phys_nd.const_array(mfi);
        auto const zcc_arr  = z_phys_cc.const_array(mfi);
        auto       dist_arr = wdist.array(mfi);
        auto const hw_arr   = (wall_height)  ? wall_height->array(mfi) : Array4<Real>{};
        auto const hc_arr   = (have_crse) ? wall_height_crse->const_array(mfi) : Array4<const Real>{};

        ParallelFor(bx2d, [=] AMREX_GPU_DEVICE (int i, int j, int) noexcept
        {
            // the height of the cell face kk, the mean of its four nodes
            auto z_face = [=] (int kk) -> Real {
                return fourth * ( znd_arr(i,j,kk) + znd_arr(i+1,j,kk)
                                + znd_arr(i,j+1,kk) + znd_arr(i+1,j+1,kk) );
            };
            // topmost cell of the box that is not fluid
            int kt = kb_lo - 1;
            for (int kk = kb_hi; kk >= kb_lo; --kk) {
                if (!ib_wall::is_fluid(tb_arr(i,j,kk), small)) { kt = kk; break; }
            }
            // The box sees the surface of its column if it holds the whole column, if it has
            // fluid above its top solid cell, or if it starts at the bottom and holds no solid.
            // Otherwise (a fine box wholly inside the solid, or above the surface) the wall
            // height comes from the coarser level.
            const bool whole  = (kb_lo == klo) && (kb_hi == khi);
            const bool sees   = whole || (kt >= kb_lo && kt < kb_hi) || (kt < kb_lo && kb_lo == klo);
            const bool local  = sees || !have_crse;

            // h: the surface height; kw: the wall cell (none below kb_lo). A local box without
            // solid starts at the bottom (klo).
            Real h;
            int  kw = kb_lo - 1;
            if (!local) {
                h = hc_arr(i,j,klo);
            } else {
                kw = kb_lo;
                h  = z_face(kb_lo);
                if (kt >= kb_lo) {
                    const Real b = amrex::min(tb_arr(i,j,kt), Real(one));
                    h  = z_face(kt) + b * (z_face(kt+1) - z_face(kt));
                    kw = ib_wall::is_solid(tb_arr(i,j,kt), small) ? kt + 1 : kt;
                }
            }
            if (hw_arr) { hw_arr(i,j,klo) = h; }
            for (int kk = kb_lo; kk <= kb_hi; ++kk) {
                // the wall cell is represented by its fluid centroid
                const Real d = (kk == kw) ? myhalf * (z_face(kk+1) - h)
                                          : std::abs(zcc_arr(i,j,kk) - h);
                dist_arr(i,j,kk) = amrex::max(d, d_floor);
            }
        });
    } // mfi
}

Referenced by ERF::poisson_wall_dist().

Here is the call graph for this function:

Here is the caller graph for this function:

make_ib_wall_face_masks()

void make_ib_wall_face_masks	(	const MultiFab &	terrain_blank,
		MultiFab &	mask13,
		MultiFab &	mask23,
		MultiFab &	mask33,
		const Box &	domain,
		Real	small_volfrac,
		int	spacing,
		Real	dz,
		Real	z0
	)

{
    BL_PROFILE("make_ib_wall_face_masks()");
    // the masks are built on their ghost cells too, reading the blanking one cell sideways and two
    // cells up and down the column (clamped to the domain in k, not to the box)
    AMREX_ALWAYS_ASSERT(terrain_blank.nGrowVect().allGE(mask13.nGrowVect() + IntVect(1,1,2)) &&
                        terrain_blank.nGrowVect().allGE(mask23.nGrowVect() + IntVect(1,1,2)) &&
                        terrain_blank.nGrowVect().allGE(mask33.nGrowVect() + IntVect(0,0,2)));

    const int  klo   = domain.smallEnd(2);
    const int  khi   = domain.bigEnd(2);
    const Real small = small_volfrac;

    // the solid fraction of a face column, clamped to the domain in k, fluid below small
    for (MFIter mfi(mask13); mfi.isValid(); ++mfi) {
        auto const tb = terrain_blank.const_array(mfi);
        auto const m  = mask13.array(mfi);
        ParallelFor(mfi.fabbox(), [=] AMREX_GPU_DEVICE (int i, int j, int k) noexcept
        {
            auto b = [=] (int kk) -> Real {
                const int kc = amrex::min(amrex::max(kk, klo), khi);
                const Real v = myhalf * (tb(i-1,j,kc) + tb(i,j,kc));
                return (v < small) ? zero : v;
            };
            m(i,j,k) = ib_wall_face_mask_value(k, klo, khi, small, dz, z0, spacing, b);
        });
    }
    for (MFIter mfi(mask23); mfi.isValid(); ++mfi) {
        auto const tb = terrain_blank.const_array(mfi);
        auto const m  = mask23.array(mfi);
        ParallelFor(mfi.fabbox(), [=] AMREX_GPU_DEVICE (int i, int j, int k) noexcept
        {
            auto b = [=] (int kk) -> Real {
                const int kc = amrex::min(amrex::max(kk, klo), khi);
                const Real v = myhalf * (tb(i,j-1,kc) + tb(i,j,kc));
                return (v < small) ? zero : v;
            };
            m(i,j,k) = ib_wall_face_mask_value(k, klo, khi, small, dz, z0, spacing, b);
        });
    }
    for (MFIter mfi(mask33); mfi.isValid(); ++mfi) {
        auto const tb = terrain_blank.const_array(mfi);
        auto const m  = mask33.array(mfi);
        ParallelFor(mfi.fabbox(), [=] AMREX_GPU_DEVICE (int i, int j, int k) noexcept
        {
            auto b = [=] (int kk) -> Real {
                const Real v = tb(i,j,amrex::min(amrex::max(kk, klo), khi));
                return (v < small) ? zero : v;
            };
            m(i,j,k) = ib_wall_face_mask_value(k, klo, khi, small, dz, z0, spacing, b);
        });
    }
}

Referenced by ERF::make_ib_wall_face_masks_lev().

Here is the call graph for this function:

Here is the caller graph for this function:

make_qt()

void make_qt	(	const MultiFab &	cons_state,
		MultiFab &	qt,
		int	n_qstate_into_total
	)

Compute the total water mixing ratio from conservative variables.

Parameters

[in]	cons_state	MultiFab containing conservative state variables
[out]	qt	MultiFab to store the total water mixing ratio
[in]	n_qstate_into_total	Number of moisture components to include in the total

{
    BL_PROFILE("make_qt()");

    // All moisture models are guaranteed to have RhoQ1_comp.
    MultiFab::Copy(qt, cons_state, RhoQ1_comp, 0, 1, qt.nGrowVect());

    for (int n = 1; n < n_qstate_into_total; ++n) {
        MultiFab::Add(qt, cons_state, RhoQ1_comp+n, 0, 1, qt.nGrowVect());
    }

    MultiFab::Divide(qt, cons_state, Rho_comp, 0, 1, qt.nGrowVect());
}

Referenced by ERF::compute_max_buoyancy_gradp_diagnostic(), ERF::compute_max_pressure_gradient_diagnostic(), and ERF::FillPlot3DVars().

Here is the caller graph for this function:
