BuildingsIF Class Reference

Buildings implicit function backed by STL triangle mesh. More...

#include <ERF_EBIFBuildings.H>

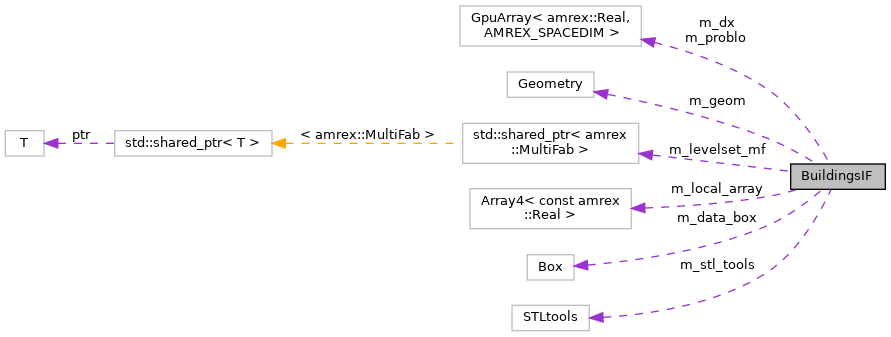

Collaboration diagram for BuildingsIF:

Public Member Functions
	BuildingsIF (std::string const &stl_file, amrex::Real scale, amrex::Array< amrex::Real, 3 > const &center, int reverse_normal, amrex::Geometry const &geom)
	Construct a buildings implicit function from an STL file. More...
AMREX_GPU_HOST_DEVICE amrex::Real	operator() (AMREX_D_DECL(amrex::Real x, amrex::Real y, amrex::Real z)) const noexcept
	Evaluate signed distance at a point. More...
AMREX_GPU_HOST_DEVICE amrex::Real	operator() (const amrex::RealArray &p) const noexcept
	Evaluate signed distance at a point array. More...

Protected Attributes
amrex::Geometry	m_geom
	Domain geometry (for coordinate transformations) More...
amrex::STLtools	m_stl_tools
	STL tools object (for loading and processing STL files) More...
std::shared_ptr< amrex::MultiFab >	m_levelset_mf
	Pre-sampled signed distance field (distributed MultiFab for parallel computation) More...
amrex::Box	m_data_box
	Bounding box of sampled data. More...
amrex::GpuArray< amrex::Real, AMREX_SPACEDIM >	m_problo
	Cached geometry data for GPU-compatible access. More...
amrex::GpuArray< amrex::Real, AMREX_SPACEDIM >	m_dx
amrex::Array4< const amrex::Real >	m_local_array
	Local array view for GPU-compatible operator() access. More...

Detailed Description

Buildings implicit function backed by STL triangle mesh.

This class provides an implicit function interface for building geometry loaded from STL files. It uses AMReX's STL infrastructure with BVH (Bounding Volume Hierarchy) acceleration for efficient signed distance queries.

The operator evaluates signed distance at any 3D point, following the AMReX EB convention: positive = inside solid (building), zero = boundary, negative = fluid.

Note: This class pre-samples the STL geometry onto a reference grid and interpolates at query points. For very large or complex geometries, consider using AMReX's IndexSpaceSTL directly instead.

Constructor & Destructor Documentation

BuildingsIF()

BuildingsIF::BuildingsIF ( std::string const &  stl_file, amrex::Real  scale, amrex::Array< amrex::Real, 3 > const &  center, int  reverse_normal, amrex::Geometry const &  geom  )

inline

Construct a buildings implicit function from an STL file.

Parameters

stl_file	Path to the STL mesh file (binary or ASCII format).
scale	Uniform scaling factor applied to STL coordinates (typically 1.0).
center	Translation vector to recenter the mesh [m].
reverse_normal	Non-zero to flip triangle normals if needed.
geom	Domain geometry for grid setup and BVH optimization.

The constructor:

1. Loads the STL file using AMReX::STLtools
2. Builds a BVH acceleration structure for fast distance queries
3. Pre-samples signed distances onto a reference grid
4. Stores interpolation data for operator() calls

        : m_geom(geom)
    {
        using namespace amrex;

        // Load STL file with BVH optimization
        // This broadcasts triangle data to all ranks internally
        m_stl_tools.setBVHOptimization(true);
        m_stl_tools.read_stl_file(stl_file, scale, center, reverse_normal);

        // Pre-sample signed distance field onto a reference grid
        // This grid covers the entire domain with sufficient resolution
        // to capture building features (match computational grid)
        Box const& domain = geom.Domain();
        IntVect ngrow_vec(2); // Ghost cells for interpolation

        Box sampled_box = domain;
        sampled_box.grow(ngrow_vec);

        // Create distributed BoxArray and DistributionMapping for parallel computation
        // Chunk the domain into reasonable-sized boxes for load balancing
        BoxArray ba(sampled_box);
        ba.maxSize(32);
        DistributionMapping dm(ba);

        // Create distributed MultiFab to hold signed distance values
        // Each rank will compute its portion in parallel
        MultiFab mf_distributed(ba, dm, 1, ngrow_vec);

        // Compute signed distances in parallel across all ranks
        // fillSignedDistance uses ParallelFor internally, distributing work
        // across the MultiFab's boxes according to the DistributionMapping
        m_stl_tools.fillSignedDistance(mf_distributed, ngrow_vec, geom);

        // Now create a replicated MultiFab where each rank has a copy of the full domain
        // This is needed because operator() must access data locally (no MPI in GPU kernels)

        // Create BoxArray with one box per rank, all covering the same spatial region
        int nprocs = ParallelDescriptor::NProcs();
        Vector<Box> boxes(nprocs, sampled_box);  // All boxes cover the full domain
        BoxList bl;
        for (const auto& bx : boxes) {
            bl.push_back(bx);
        }
        BoxArray ba_replicated(std::move(bl));

        // Create DistributionMapping so each rank owns exactly one box
        Vector<int> pmap(nprocs);
        std::iota(pmap.begin(), pmap.end(), 0);  // pmap = [0, 1, 2, ..., nprocs-1]
        DistributionMapping dm_replicated(std::move(pmap));

        // Each rank will own one box covering the full domain
        m_levelset_mf = std::make_shared<MultiFab>(ba_replicated, dm_replicated, 1, 0);

        // ParallelCopy from distributed to replicated
        // Source: mf_distributed (each rank has different spatial portions)
        // Dest: m_levelset_mf (each rank will receive the full domain)
        IntVect dst_nghost(0);
        m_levelset_mf->ParallelCopy(mf_distributed, 0, 0, 1, ngrow_vec, dst_nghost);

        // Store bounds for interpolation
        m_data_box = sampled_box;

        // Cache geometry data for GPU-compatible access
        const Real* problo_ptr = geom.ProbLo();
        const Real* dx_ptr = geom.CellSize();
        for (int d = 0; d < AMREX_SPACEDIM; ++d) {
            m_problo[d] = problo_ptr[d];
            m_dx[d] = dx_ptr[d];
        }

        // Set up local array view for operator() access
        // Each rank iterates its own local box (which contains the full domain)
        for (MFIter mfi(*m_levelset_mf); mfi.isValid(); ++mfi) {
            m_local_array = (*m_levelset_mf)[mfi].const_array();
            break;  // Only one box per rank
        }
    }

Member Function Documentation

operator()() [1/2]

AMREX_GPU_HOST_DEVICE amrex::Real BuildingsIF::operator() ( AMREX_D_DECL(amrex::Real x, amrex::Real y, amrex::Real z)  ) const

inlinenoexcept

Evaluate signed distance at a point.

Parameters

x	Physical x-coordinate [m]
y	Physical y-coordinate [m]
z	Physical z-coordinate [m]

Returns

Signed distance value: >0 inside building, <0 in fluid, =0 at boundary.

This operator performs trilinear interpolation of the pre-sampled signed distance field. For points outside the sampled domain, it returns a negative value (fluid region).

Note: The signed distance field is computed in parallel across ranks during construction, then replicated for fast operator() access.

    {
        using namespace amrex;

        // fillSignedDistance samples at prob_lo + (index + 0.5) * dx.
        // Convert physical coordinates to continuous cell-centered indices.
        Real i_real = (x - m_problo[0]) / m_dx[0] - 0.5;
        Real j_real = (y - m_problo[1]) / m_dx[1] - 0.5;
        Real k_real = (z - m_problo[2]) / m_dx[2] - 0.5;

        // Get integer cell indices
        int i = static_cast<int>(std::floor(i_real));
        int j = static_cast<int>(std::floor(j_real));
        int k = static_cast<int>(std::floor(k_real));

        // Check if point is within data bounds
        if (!m_data_box.contains(IntVect(AMREX_D_DECL(i, j, k))) ||
            !m_data_box.contains(IntVect(AMREX_D_DECL(i + 1, j + 1, k + 1)))) {
            // Outside sampled region - assume fluid (negative distance)
            return -1.0;
        }

        // Trilinear interpolation weights
        Real wx = i_real - static_cast<Real>(i);
        Real wy = j_real - static_cast<Real>(j);
        Real wz = k_real - static_cast<Real>(k);

        // Access replicated levelset data
        auto const& arr = m_local_array;

        // Trilinear interpolation
        Real phi_000 = arr(i, j, k);
        Real phi_100 = arr(i + 1, j, k);
        Real phi_010 = arr(i, j + 1, k);
        Real phi_110 = arr(i + 1, j + 1, k);
        Real phi_001 = arr(i, j, k + 1);
        Real phi_101 = arr(i + 1, j, k + 1);
        Real phi_011 = arr(i, j + 1, k + 1);
        Real phi_111 = arr(i + 1, j + 1, k + 1);

        Real phi_00 = phi_000 * (1.0 - wx) + phi_100 * wx;
        Real phi_01 = phi_001 * (1.0 - wx) + phi_101 * wx;
        Real phi_10 = phi_010 * (1.0 - wx) + phi_110 * wx;
        Real phi_11 = phi_011 * (1.0 - wx) + phi_111 * wx;

        Real phi_0 = phi_00 * (1.0 - wy) + phi_10 * wy;
        Real phi_1 = phi_01 * (1.0 - wy) + phi_11 * wy;

        Real phi = phi_0 * (1.0 - wz) + phi_1 * wz;

        // fillSignedDistance has the opposite sign to STLtools::fillFab,
        // including with reversed normals. Match EB: positive solid, negative fluid.
        return -phi;
    }

Referenced by operator()().

Here is the call graph for this function:

Here is the caller graph for this function:

operator()() [2/2]

AMREX_GPU_HOST_DEVICE amrex::Real BuildingsIF::operator() ( const amrex::RealArray &  p ) const

inlinenoexcept

Evaluate signed distance at a point array.

Parameters

p	Physical coordinate array [x, y, z] in meters.

Returns

Signed distance value.

    {
        return this->operator()(AMREX_D_DECL(p[0], p[1], p[2]));
    }

Here is the call graph for this function:

Member Data Documentation

m_data_box

amrex::Box BuildingsIF::m_data_box

protected

Bounding box of sampled data.

Referenced by BuildingsIF(), and operator()().

m_dx

amrex::GpuArray<amrex::Real, AMREX_SPACEDIM> BuildingsIF::m_dx

protected

Referenced by BuildingsIF(), and operator()().

m_geom

amrex::Geometry BuildingsIF::m_geom

protected

Domain geometry (for coordinate transformations)

m_levelset_mf

std::shared_ptr<amrex::MultiFab> BuildingsIF::m_levelset_mf

protected

Pre-sampled signed distance field (distributed MultiFab for parallel computation)

Referenced by BuildingsIF().

m_local_array

amrex::Array4<const amrex::Real> BuildingsIF::m_local_array

mutableprotected

Local array view for GPU-compatible operator() access.

Referenced by BuildingsIF(), and operator()().

m_problo

amrex::GpuArray<amrex::Real, AMREX_SPACEDIM> BuildingsIF::m_problo

protected

Cached geometry data for GPU-compatible access.

Referenced by BuildingsIF(), and operator()().

m_stl_tools

amrex::STLtools BuildingsIF::m_stl_tools

protected

STL tools object (for loading and processing STL files)

Referenced by BuildingsIF().

---

The documentation for this class was generated from the following file:

• Source/EB/ERF_EBIFBuildings.H
