HSEutils Namespace Reference

Functions
AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE void	Newton_Raphson_hse (const Real &m_tol, const Real &RdoCp, const Real &dz, const Real &g, const Real &C, const Real &Th, const Real &T, const Real &qt, const Real &qv, Real &P, Real &rd, Real &F, const bool &maintain_Th)
AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE void	init_isentropic_hse_constant_dz (const amrex::Real &r_sfc, const amrex::Real &theta, amrex::Real *r, amrex::Real *p, const amrex::Real &dz, const int klo, const int khi)
AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE void	init_isentropic_hse_stretched_dz (const amrex::Real &r_sfc, const amrex::Real &theta, amrex::Real *r, amrex::Real *p, const amrex::Real *stretched_dz, const int klo, const int khi)
AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE void	init_isentropic_hse_terrain (int i, int j, const amrex::Real &r_sfc, const amrex::Real &theta, amrex::Real *r, amrex::Real *p, const amrex::Array4< amrex::Real const > z_cc, const int &klo, const int &khi)
AMREX_FORCE_INLINE AMREX_GPU_HOST_DEVICE Real	compute_saturation_pressure (const Real T_b, const bool use_empirical)
AMREX_FORCE_INLINE AMREX_GPU_HOST_DEVICE Real	compute_relative_humidity (const Real p_b, const Real T_b, const bool use_empirical, const int which_zone, const Real scaled_height)
AMREX_FORCE_INLINE AMREX_GPU_HOST_DEVICE Real	vapor_mixing_ratio (const Real p_b, const Real T_b, const Real RH, const bool use_empirical, int which_zone)
AMREX_FORCE_INLINE AMREX_GPU_HOST_DEVICE Real	compute_F_for_temp_in_zone (const Real T_b, const Real p_b, const Real q_t, const Real eq_pot_temp, const bool use_empirical, const int which_zone, const Real scaled_height)
AMREX_FORCE_INLINE AMREX_GPU_HOST_DEVICE Real	compute_temperature (const Real p_b, const Real q_t, const Real eq_pot_temp, const bool use_empirical, const int which_zone, const Real scaled_height)
AMREX_FORCE_INLINE AMREX_GPU_HOST_DEVICE Real	compute_dewpoint_temperature (const Real T_b, const Real RH)
AMREX_FORCE_INLINE AMREX_GPU_HOST_DEVICE Real	compute_theta (const Real scaled_height, const Real theta_0, const Real theta_tr, const Real z_tr, const Real T_tr)
AMREX_FORCE_INLINE AMREX_GPU_HOST_DEVICE void	compute_rho (const Real &pressure, Real &theta, Real &rho, Real &q_v, Real &T_dp, Real &T_b, const Real q_t, const Real eq_pot_temp, const bool use_empirical, const int which_zone, const Real scaled_height, const bool T_from_theta, const Real theta_0, const Real theta_tr, const Real z_tr, const Real T_tr)
AMREX_FORCE_INLINE AMREX_GPU_HOST_DEVICE Real	compute_F (const Real &p_k, const Real &p_k_minus_1, Real &theta_k, Real &rho_k, Real &q_v_k, Real &T_dp, Real &T_b, const Real &dz, const Real &rho_k_minus_1, const Real q_t, const Real eq_pot_temp, const bool use_empirical, const int which_zone, const Real scaled_height, const bool T_from_theta, const Real theta_0, const Real theta_tr, const Real z_tr, const Real T_tr)
AMREX_FORCE_INLINE AMREX_GPU_HOST_DEVICE Real	compute_p_k_in_zone (Real &p_k, const Real p_k_minus_1, Real &theta_k, Real &rho_k, Real &q_v_k, Real &T_dp, Real &T_b, const Real dz, const Real rho_k_minus_1, const Real q_t, const Real eq_pot_temp, const bool use_empirical, const int which_zone, const Real scaled_height, const bool T_from_theta, const Real theta_0, const Real theta_tr, const Real z_tr, const Real T_tr)
AMREX_FORCE_INLINE AMREX_GPU_HOST_DEVICE void	init_isentropic_hse_no_terrain (Real *theta, Real *r, Real *p, Real *q_v, const Real &dz, const int &khi, const Real q_t, const Real eq_pot_temp, const bool use_empirical, const bool T_from_theta=false, const Real z_tr_1=-one, const Real z_tr_2=-one, const Real theta_0=amrex::Real(300), const Real theta_tr=amrex::Real(300), const Real T_tr=amrex::Real(300))

Variables
const int	MAX_ITER = 10
const amrex::Real	TOL = Real(1.e-8)

Detailed Description

Utility functions for calculating a hydrostatic equilibrium (HSE) base state

Function Documentation

compute_dewpoint_temperature()

AMREX_FORCE_INLINE AMREX_GPU_HOST_DEVICE Real HSEutils::compute_dewpoint_temperature	(	const Real	T_b,
		const Real	RH
	)

{
    Real T_dp, gamma, T;
    T = T_b - Real(273.15);

    Real b = Real(18.678), c = Real(257.14), d = Real(234.5);
    gamma = std::log(RH*std::exp((b - T/d)*T/(c + T)));

    T_dp = c*gamma/(b - gamma);

    return T_dp;
}

Referenced by compute_rho().

Here is the caller graph for this function:

compute_F()

AMREX_FORCE_INLINE AMREX_GPU_HOST_DEVICE Real HSEutils::compute_F	(	const Real &	p_k,
		const Real &	p_k_minus_1,
		Real &	theta_k,
		Real &	rho_k,
		Real &	q_v_k,
		Real &	T_dp,
		Real &	T_b,
		const Real &	dz,
		const Real &	rho_k_minus_1,
		const Real	q_t,
		const Real	eq_pot_temp,
		const bool	use_empirical,
		const int	which_zone,
		const Real	scaled_height,
		const bool	T_from_theta,
		const Real	theta_0,
		const Real	theta_tr,
		const Real	z_tr,
		const Real	T_tr
	)

{
    Real F;

    compute_rho(p_k, theta_k, rho_k, q_v_k, T_dp, T_b, q_t, eq_pot_temp, use_empirical, which_zone, scaled_height,
                T_from_theta, theta_0, theta_tr, z_tr, T_tr);

    if(rho_k_minus_1 == amrex::Real(0)) // This loop is for the first point above the ground
    {
        F = p_k - p_k_minus_1 + rho_k*CONST_GRAV*dz/two;
    }
    else
    {
        F = p_k - p_k_minus_1 + myhalf * (rho_k + rho_k_minus_1)*CONST_GRAV*dz;
    }

    return F;
}

Referenced by compute_p_k_in_zone().

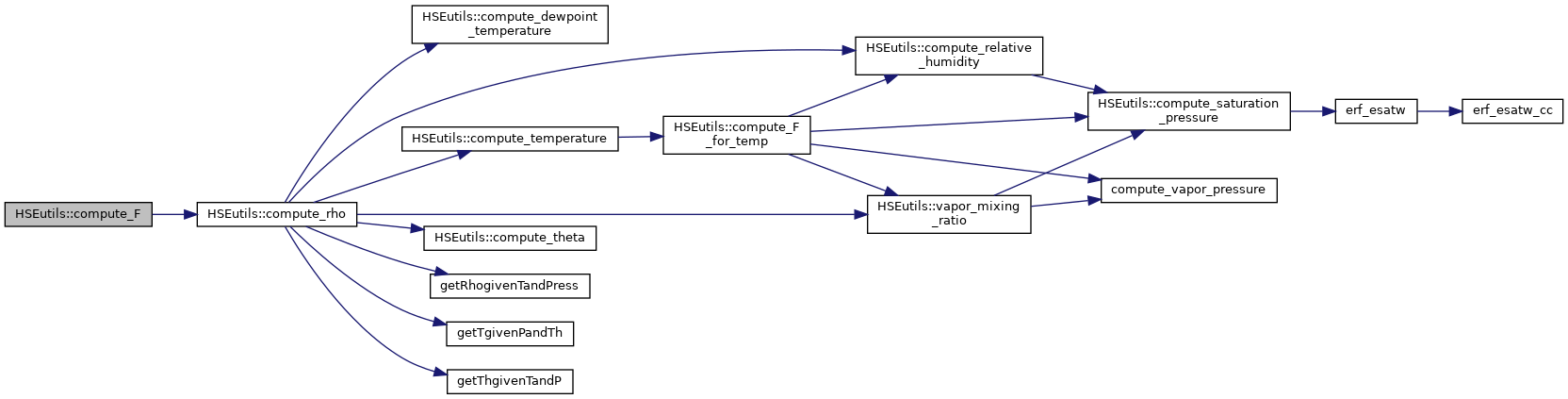

Here is the call graph for this function:

Here is the caller graph for this function:

compute_F_for_temp_in_zone()

AMREX_FORCE_INLINE AMREX_GPU_HOST_DEVICE Real HSEutils::compute_F_for_temp_in_zone	(	const Real	T_b,
		const Real	p_b,
		const Real	q_t,
		const Real	eq_pot_temp,
		const bool	use_empirical,
		const int	which_zone,
		const Real	scaled_height
	)

{
    Real fac = Cp_d + Cp_l*q_t;
    Real RH  = compute_relative_humidity(p_b, T_b, use_empirical, which_zone, scaled_height);
    Real q_v = vapor_mixing_ratio(p_b, T_b, RH, use_empirical, which_zone);
    Real p_s = compute_saturation_pressure(T_b, use_empirical);
    Real p_v = compute_vapor_pressure(p_s, RH);
    return eq_pot_temp - T_b*std::pow((p_b - p_v)/p_0, -R_d/fac)*std::exp(L_v*q_v/(fac*T_b));
}

Referenced by compute_temperature().

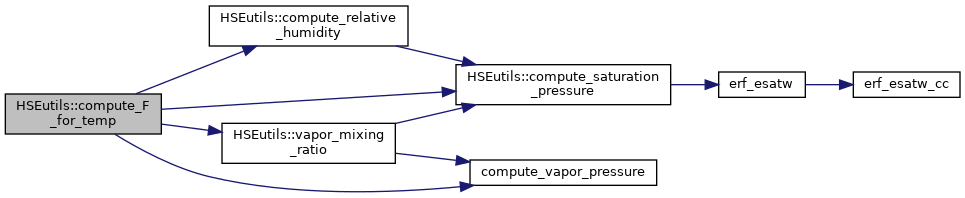

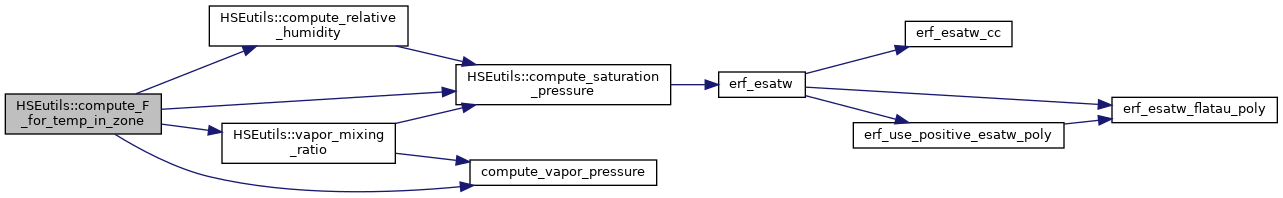

Here is the call graph for this function:

Here is the caller graph for this function:

compute_p_k_in_zone()

AMREX_FORCE_INLINE AMREX_GPU_HOST_DEVICE Real HSEutils::compute_p_k_in_zone	(	Real &	p_k,
		const Real	p_k_minus_1,
		Real &	theta_k,
		Real &	rho_k,
		Real &	q_v_k,
		Real &	T_dp,
		Real &	T_b,
		const Real	dz,
		const Real	rho_k_minus_1,
		const Real	q_t,
		const Real	eq_pot_temp,
		const bool	use_empirical,
		const int	which_zone,
		const Real	scaled_height,
		const bool	T_from_theta,
		const Real	theta_0,
		const Real	theta_tr,
		const Real	z_tr,
		const Real	T_tr
	)

{
    Real delta_p_k;

    // Perturbation used to form the difference quotient for dF/dp.  It has to
    // be scaled by p_k rather than fixed in Pa: the pressures here are O(1e5),
    // and in single precision one ulp at that magnitude is already ~1e-2 Pa,
    // so a fixed 1e-4 Pa perturbation rounds away entirely -- p_k + eps == p_k,
    // the difference quotient is zero, and the iteration returns NaN.  The
    // double-precision perturbation is left exactly as it was so that results
    // in double are unchanged.
#ifdef AMREX_USE_FLOAT
    Real eps = Real(1.e-5) * std::abs(p_k);
#else
    Real eps = Real(1e-10);
#endif

    for(int iter=0; iter<20; iter++)
    {
        Real F         = compute_F(p_k      , p_k_minus_1, theta_k, rho_k, q_v_k, T_dp, T_b, dz, rho_k_minus_1,
                                   q_t, eq_pot_temp, use_empirical, which_zone, scaled_height, T_from_theta,
                                   theta_0, theta_tr, z_tr, T_tr);
        Real F_plus_dF = compute_F(p_k+eps, p_k_minus_1, theta_k, rho_k, q_v_k, T_dp, T_b, dz, rho_k_minus_1,
                                   q_t, eq_pot_temp, use_empirical, which_zone, scaled_height, T_from_theta,
                                   theta_0, theta_tr, z_tr, T_tr);
        Real F_prime   = (F_plus_dF - F)/eps;
        delta_p_k = -F/F_prime;
        p_k            = p_k + delta_p_k;
    }

    // Convergence is measured on the last Newton step relative to p_k, for the
    // same reason: an absolute tolerance in Pa that is smaller than an ulp of
    // p_k can never be met in single precision.  The double-precision value is
    // set so that p_rel_tol * p_k reproduces the previous absolute tolerance of
    // 1e-8 at the O(1e5) Pa pressures this is used at.
#ifdef AMREX_USE_FLOAT
    const Real p_rel_tol = Real(1.e-5);
#else
    const Real p_rel_tol = Real(1.e-13);
#endif
    if (std::fabs(delta_p_k) > p_rel_tol * std::abs(p_k)) {
        amrex::Abort("Newton Raphson for pressure could not converge");
    }

    return p_k;
}

Referenced by init_isentropic_hse_no_terrain().

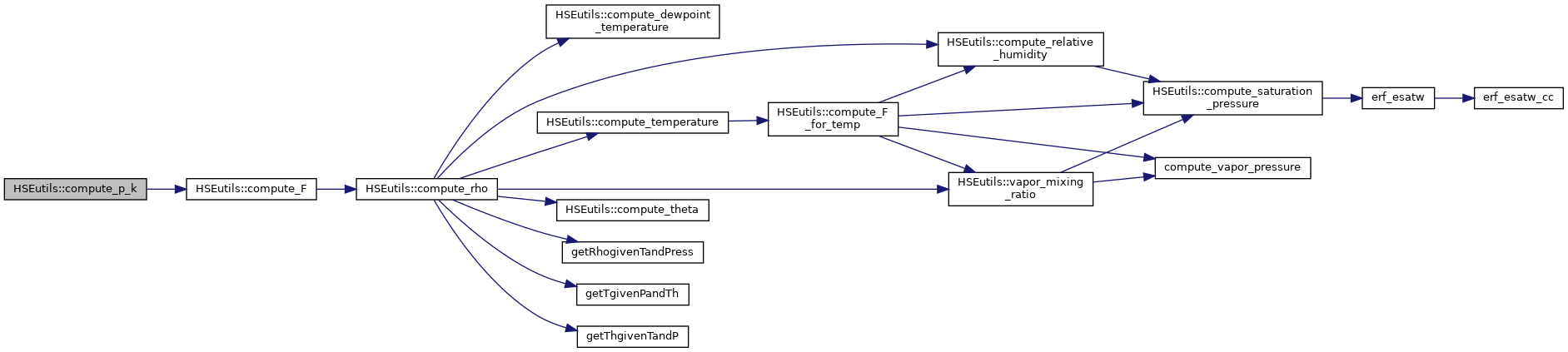

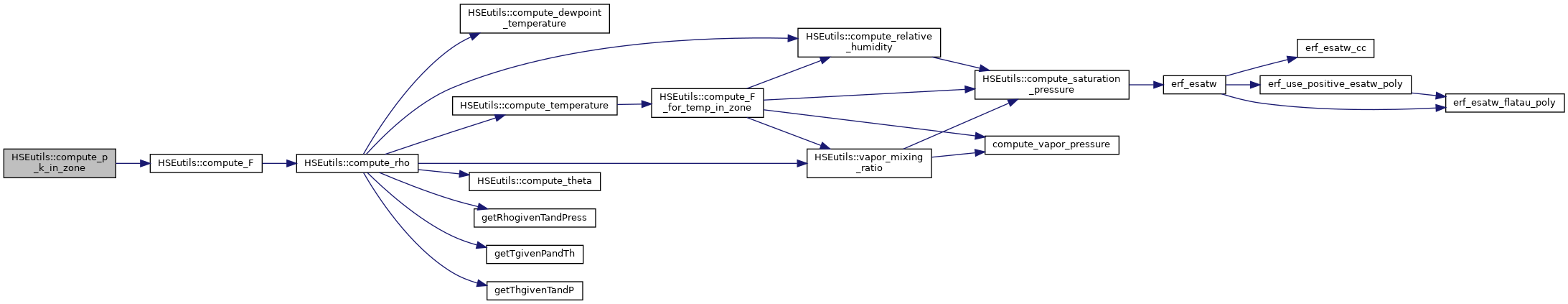

Here is the call graph for this function:

Here is the caller graph for this function:

compute_relative_humidity()

AMREX_FORCE_INLINE AMREX_GPU_HOST_DEVICE Real HSEutils::compute_relative_humidity	(	const Real	p_b,
		const Real	T_b,
		const bool	use_empirical,
		const int	which_zone,
		const Real	scaled_height
	)

{
    if (which_zone > 0) {
        if (which_zone == 1) { // z <= height
            Real p_s = compute_saturation_pressure(T_b, use_empirical);
            Real q_s = RdoRv*p_s/(p_b - p_s);
            return Real(0.014)/q_s;
        } else if (which_zone == 2) { // z > height and z <= z_tr; scaled_height = z/z_tr
            return one - Real(0.75)*std::pow(scaled_height,Real(1.25));
        } else { // z > z_tr
            return fourth;
        }
    } else {
        return one;
    }
}

Referenced by compute_F_for_temp_in_zone(), compute_rho(), and ParallelFor().

Here is the call graph for this function:

Here is the caller graph for this function:

compute_rho()

AMREX_FORCE_INLINE AMREX_GPU_HOST_DEVICE void HSEutils::compute_rho	(	const Real &	pressure,
		Real &	theta,
		Real &	rho,
		Real &	q_v,
		Real &	T_dp,
		Real &	T_b,
		const Real	q_t,
		const Real	eq_pot_temp,
		const bool	use_empirical,
		const int	which_zone,
		const Real	scaled_height,
		const bool	T_from_theta,
		const Real	theta_0,
		const Real	theta_tr,
		const Real	z_tr,
		const Real	T_tr
	)

{

    if (T_from_theta) {
        theta   = compute_theta(scaled_height, theta_0, theta_tr, z_tr, T_tr);
        T_b     = getTgivenPandTh(pressure, theta, RdoCp);
    } else {
        T_b     = compute_temperature(pressure, q_t, eq_pot_temp, use_empirical, which_zone, scaled_height);
        theta   = getThgivenTandP(T_b, pressure, RdoCp);
    }

    Real RH = compute_relative_humidity(pressure, T_b, use_empirical, which_zone, scaled_height);

    q_v     = vapor_mixing_ratio(pressure, T_b, RH, use_empirical, which_zone);

    rho     = getRhogivenTandPress(T_b, pressure, q_v);

    if (T_from_theta) {
        rho *= (one + q_v);
    } else {
        rho *= (one + q_t);
    }

    T_dp    = compute_dewpoint_temperature(T_b, RH);
}

Referenced by compute_F().

Here is the call graph for this function:

Here is the caller graph for this function:

compute_saturation_pressure()

AMREX_FORCE_INLINE AMREX_GPU_HOST_DEVICE Real HSEutils::compute_saturation_pressure	(	const Real	T_b,
		const bool	use_empirical
	)

{
    Real p_s = erf_esatw(T_b,use_empirical);
    return p_s * Real(100.0);
}

Referenced by compute_F_for_temp_in_zone(), compute_relative_humidity(), and vapor_mixing_ratio().

Here is the call graph for this function:

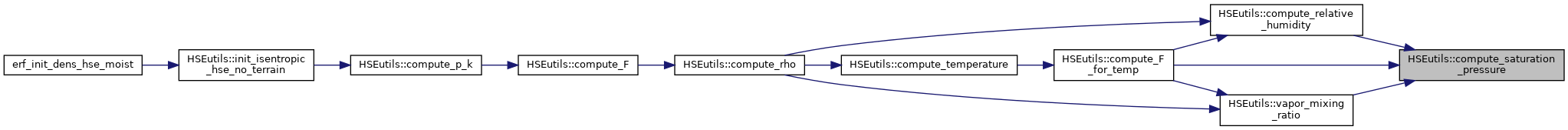

Here is the caller graph for this function:

compute_temperature()

AMREX_FORCE_INLINE AMREX_GPU_HOST_DEVICE Real HSEutils::compute_temperature	(	const Real	p_b,
		const Real	q_t,
		const Real	eq_pot_temp,
		const bool	use_empirical,
		const int	which_zone,
		const Real	scaled_height
	)

{
    Real T_b = Real(200.0), delta_T; // Initial guess

#ifdef AMREX_USE_FLOAT
    Real eps = Real(1.e-4) * T_b;
#else
    Real eps = Real(1.e-10) * T_b;
#endif
    for (int iter=0; iter<20; iter++)
    {
        Real F         = compute_F_for_temp_in_zone(T_b    , p_b, q_t, eq_pot_temp, use_empirical, which_zone, scaled_height);
        Real F_plus_dF = compute_F_for_temp_in_zone(T_b+eps, p_b, q_t, eq_pot_temp, use_empirical, which_zone, scaled_height);
        Real F_prime   = (F_plus_dF - F)/eps;
        delta_T = -F/F_prime;
        T_b = T_b + delta_T;
    }

    if (std::fabs(delta_T) > TOL * T_b) {
         amrex::Abort("Newton Raphson for temperature could not converge");
    }

    return T_b;
}

Referenced by compute_rho(), and ShocPDF::diagnose_pdf().

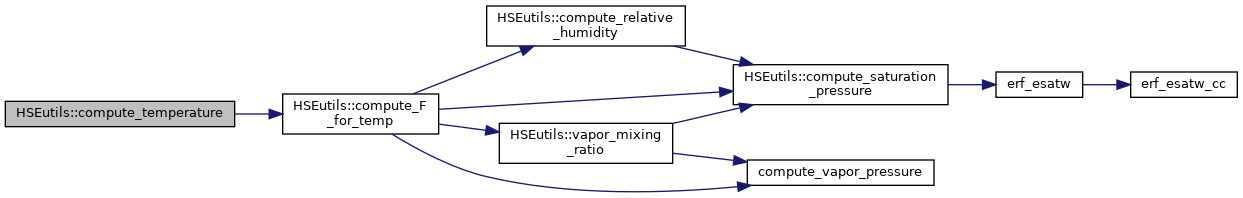

Here is the call graph for this function:

Here is the caller graph for this function:

compute_theta()

AMREX_FORCE_INLINE AMREX_GPU_HOST_DEVICE Real HSEutils::compute_theta	(	const Real	scaled_height,
		const Real	theta_0,
		const Real	theta_tr,
		const Real	z_tr,
		const Real	T_tr
	)

{
    if(scaled_height <= one) {
        return theta_0 + (theta_tr - theta_0)*std::pow(scaled_height,Real(1.25));
    } else {
        return theta_tr*std::exp(CONST_GRAV/(Cp_d*T_tr)*z_tr*(scaled_height - one));
    }
}

Referenced by compute_rho().

Here is the caller graph for this function:

init_isentropic_hse_constant_dz()

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE void HSEutils::init_isentropic_hse_constant_dz	(	const amrex::Real &	r_sfc,
		const amrex::Real &	theta,
		amrex::Real *	r,
		amrex::Real *	p,
		const amrex::Real &	dz,
		const int	klo,
		const int	khi
	)

Function to calculate the hydrostatic density and pressure with constant dz

Parameters

[in]	r_sfc	surface density
[in]	theta	surface potential temperature
[out]	r	hydrostatically balanced density profile
[out]	p	hydrostatically balanced pressure profile
[in]	dz	vertical grid spacing (constant)
[in]	klo	z-index corresponding to the small end of the domain
[in]	khi	z-index corresponding to the big end of the domain

    {
      int kstart;

      // r_sfc / p_0 are the density / pressure at klo

      // Initial guess
      Real myhalf_dz = myhalf*dz;
      r[klo] = r_sfc;
      p[klo] = p_0 - myhalf_dz * r[klo] * CONST_GRAV;

      if (klo == 0)
      {
          kstart = 1;

          // We do a Newton iteration to satisfy the EOS & HSE (with constant theta)
          bool converged_hse = false;
          Real p_hse;
          Real p_eos;

          for (int iter = 0; iter < MAX_ITER && !converged_hse; iter++)
          {
              p_hse = p_0 - myhalf_dz * r[klo] * CONST_GRAV;
              p_eos = getPgivenRTh(r[klo]*theta);

              Real A = p_hse - p_eos;

              Real dpdr = getdPdRgivenConstantTheta(r[klo],theta);

              Real drho = A / (dpdr + myhalf_dz * CONST_GRAV);

              r[klo] = r[klo] + drho;
              p[klo] = getPgivenRTh(r[klo]*theta);

              if (std::abs(drho) < TOL)
              {
                  converged_hse = true;
                  break;
              }
          }

          // if (!converged_hse) amrex::Print() << "DOING ITERATIONS AT K = " << klo << std::endl;
          // if (!converged_hse) amrex::Error("Didn't converge the iterations in init");
      } else {
          kstart = klo; // because we need to solve for r[klo] here; r[klo-1] is what was passed in r_sfc
          r[klo-1] = r_sfc; // r_sfc is really the interpolated density in the ghost cell in this case
          p[klo-1] = getPgivenRTh(r[klo-1]*theta);
      }

      // To get values at k > 0 we do a Newton iteration to satisfy the EOS (with constant theta) and
      for (int k = kstart; k <= khi; k++)
      {
          // To get values at k > 0 we do a Newton iteration to satisfy the EOS (with constant theta) and
          // to discretely satisfy HSE -- here we assume spatial_order = 2 -- we can generalize this later if needed
          bool converged_hse = false;

          r[k] = r[k-1];

          Real p_eos = getPgivenRTh(r[k]*theta);
          Real p_hse;

          for (int iter = 0; iter < MAX_ITER && !converged_hse; iter++)
          {
              Real r_avg = myhalf * (r[k-1]+r[k]);
              p_hse = p[k-1] -  dz * r_avg * CONST_GRAV;
              p_eos = getPgivenRTh(r[k]*theta);

              Real A = p_hse - p_eos;

              Real dpdr = getdPdRgivenConstantTheta(r[k],theta);
              // Gamma * p_0 * std::pow( (R_d * theta / p_0), Gamma) * std::pow(r[k], Gamma-one) ;

              Real drho = A / (dpdr + dz * CONST_GRAV);

              r[k] = r[k] + drho;
              p[k] = getPgivenRTh(r[k]*theta);

              if (std::abs(drho) < TOL * r[k-1])
              {
                  converged_hse = true;
                  // amrex::Print() << " converged " << std::endl;
                  break;
              }
          }

          // if (!converged_hse) amrex::Print() << "DOING ITERATIONS AT K = " << k << std::endl;
          // if (!converged_hse) amrex::Error("Didn't converge the iterations in init");
      }
      r[khi+1] = r[khi];
    }

Referenced by erf_init_dens_hse_dry().

Here is the call graph for this function:

Here is the caller graph for this function:

init_isentropic_hse_no_terrain()

AMREX_FORCE_INLINE AMREX_GPU_HOST_DEVICE void HSEutils::init_isentropic_hse_no_terrain	(	Real *	theta,
		Real *	r,
		Real *	p,
		Real *	q_v,
		const Real &	dz,
		const int &	khi,
		const Real	q_t,
		const Real	eq_pot_temp,
		const bool	use_empirical,
		const bool	T_from_theta = false,
		const Real	z_tr_1 = -one,
		const Real	z_tr_2 = -one,
		const Real	theta_0 = amrex::Real(300),
		const Real	theta_tr = amrex::Real(300),
		const Real	T_tr = amrex::Real(300)
	)

Initialize an isentropic hydrostatic equilibrium base state without terrain.

Parameters

[out]	theta	Potential temperature profile.
[out]	r	Density profile.
[out]	p	Pressure profile.
[out]	q_v	Water vapor mixing ratio profile.
[in]	dz	Vertical grid spacing.
[in]	khi	Top index of the domain.
[in]	q_t	Total water mixing ratio.
[in]	eq_pot_temp	Equilibrium potential temperature.
[in]	use_empirical	Use empirical saturation formulas.
[in]	T_from_theta	Whether temperature is derived from potential temperature.
[in]	z_tr_1	First transition height.
[in]	z_tr_2	Second transition height.
[in]	theta_0	Surface potential temperature.
[in]	theta_tr	Potential temperature at transition height.
[in]	T_tr	Temperature at transition height.

{
    // theta_0, theta_tr and T_tr are used only when T_from_theta is set. Their
    // defaults are still physical temperatures: compute_theta is inlined into
    // the Newton loops and optimised builds evaluate its arm speculatively, so
    // zeros would raise an FPE (g/(Cp_d*0), then 0*exp(inf)) on a discarded value.
    Real T_b, T_dp;

    int which_zone = -1;
    Real scaled_height = amrex::Real(0);

    // Compute the quantities at z = myhalf*dz (first cell center)
    p[0] = p_0;
    if (z_tr_1 > amrex::Real(0)) {
        Real z = myhalf * dz;
        if (z <= z_tr_1) {
            which_zone = 1;
        } else if (z <= z_tr_2) {
            which_zone = 2;
        } else {
            which_zone = 3;
        }
        scaled_height = z/z_tr_2;
    }

    compute_p_k_in_zone(p[0], p_0, theta[0], r[0], q_v[0], T_dp, T_b, dz, amrex::Real(0), q_t, eq_pot_temp,
                        use_empirical, which_zone, scaled_height, T_from_theta,
                        theta_0, theta_tr, z_tr_2, T_tr);

    for (int k=1; k<=khi; k++)
    {
        p[k] = p[k-1];

        if (z_tr_1 > amrex::Real(0)) {
            Real z = (k+myhalf) * dz;
            if (z <= z_tr_1) {
                which_zone = 1;
            } else if (z <= z_tr_2) {
                which_zone = 2;
            } else {
                which_zone = 3;
            }
            scaled_height = z/z_tr_2;
        }

        compute_p_k_in_zone(p[k], p[k-1], theta[k], r[k], q_v[k], T_dp, T_b, dz, r[k-1], q_t, eq_pot_temp,
                            use_empirical, which_zone, scaled_height, T_from_theta,
                            theta_0, theta_tr, z_tr_2, T_tr);
    }

    r[khi+1] = r[khi];
}

Referenced by erf_init_dens_hse_moist(), and if().

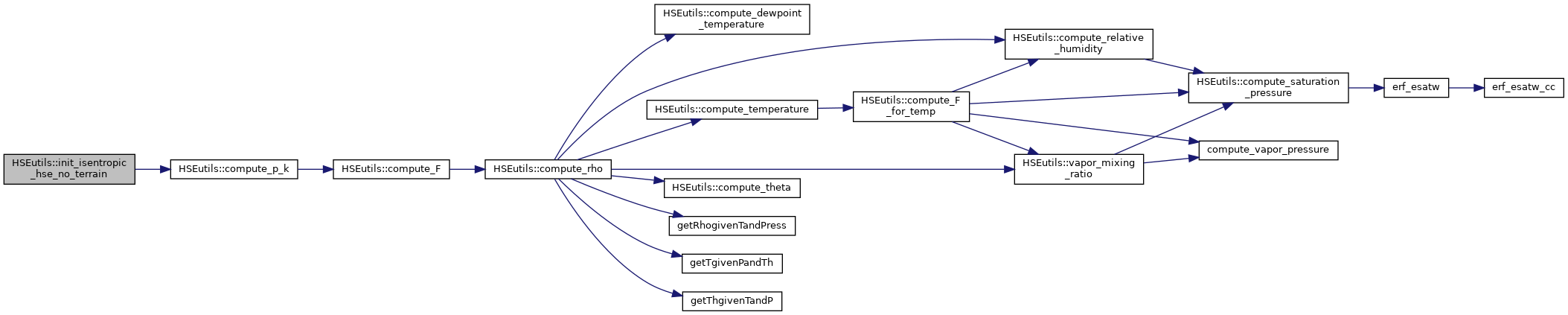

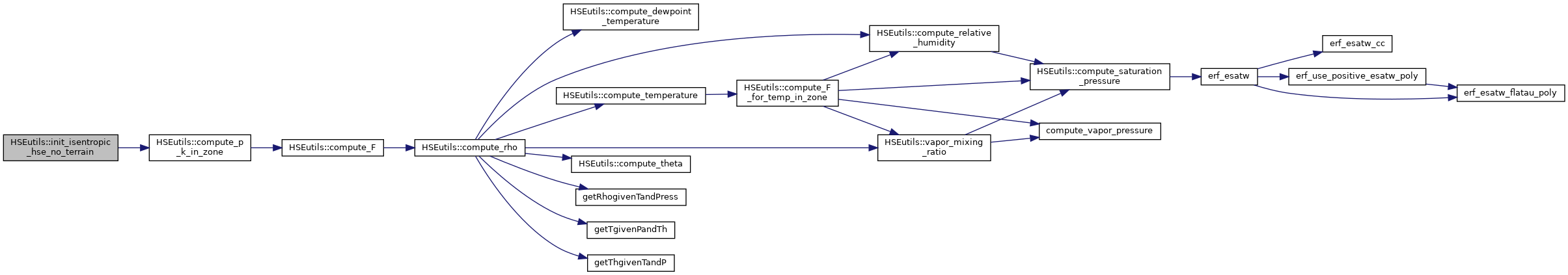

Here is the call graph for this function:

Here is the caller graph for this function:

init_isentropic_hse_stretched_dz()

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE void HSEutils::init_isentropic_hse_stretched_dz	(	const amrex::Real &	r_sfc,
		const amrex::Real &	theta,
		amrex::Real *	r,
		amrex::Real *	p,
		const amrex::Real *	stretched_dz,
		const int	klo,
		const int	khi
	)

Function to calculate the hydrostatic density and pressure with stretched dz

Parameters

[in]	r_sfc	surface density
[in]	theta	surface potential temperature
[out]	r	hydrostatically balanced density profile
[out]	p	hydrostatically balanced pressure profile
[in]	stretched_dz	vertical grid spacing (stretched)
[in]	klo	z-index corresponding to the small end of the domain
[in]	khi	z-index corresponding to the big end of the domain

    {
      int kstart;

      // r_sfc / p_0 are the density / pressure at klo

      // Initial guess
      r[klo] = r_sfc;
      p[klo] = p_0 - myhalf*stretched_dz[klo] * r[klo] * CONST_GRAV;

      if (klo == 0)
      {
          kstart = 1;

          // We do a Newton iteration to satisfy the EOS & HSE (with constant theta)
          bool converged_hse = false;
          Real p_hse;
          Real p_eos;

          for (int iter = 0; iter < MAX_ITER && !converged_hse; iter++)
          {
              p_hse = p_0 - myhalf*stretched_dz[klo] * r[klo] * CONST_GRAV;
              p_eos = getPgivenRTh(r[klo]*theta);

              Real A = p_hse - p_eos;

              Real dpdr = getdPdRgivenConstantTheta(r[klo],theta);

              Real drho = A / (dpdr + myhalf*stretched_dz[klo] * CONST_GRAV);

              r[klo] = r[klo] + drho;
              p[klo] = getPgivenRTh(r[klo]*theta);

              if (std::abs(drho) < TOL)
              {
                  converged_hse = true;
                  break;
              }
          }

          // if (!converged_hse) amrex::Print() << "DOING ITERATIONS AT K = " << klo << std::endl;
          // if (!converged_hse) amrex::Error("Didn't converge the iterations in init");
      } else {
          kstart = klo; // because we need to solve for r[klo] here; r[klo-1] is what was passed in r_sfc
          r[klo-1] = r_sfc; // r_sfc is really the interpolated density in the ghost cell in this case
          p[klo-1] = getPgivenRTh(r[klo-1]*theta);
      }

      // To get values at k > 0 we do a Newton iteration to satisfy the EOS (with constant theta) and
      for (int k = kstart; k <= khi; k++)
      {
          // To get values at k > 0 we do a Newton iteration to satisfy the EOS (with constant theta) and
          // to discretely satisfy HSE -- here we assume spatial_order = 2 -- we can generalize this later if needed
          bool converged_hse = false;

          r[k] = r[k-1];

          Real p_eos = getPgivenRTh(r[k]*theta);
          Real p_hse;

          for (int iter = 0; iter < MAX_ITER && !converged_hse; iter++)
          {
              Real  r_avg = myhalf * (r[k-1]+r[k]);
              Real dz_avg = myhalf * (stretched_dz[k-1] + stretched_dz[k]);
              p_hse = p[k-1] -  dz_avg * r_avg * CONST_GRAV;
              p_eos = getPgivenRTh(r[k]*theta);

              Real A = p_hse - p_eos;

              Real dpdr = getdPdRgivenConstantTheta(r[k],theta);
              // Gamma * p_0 * std::pow( (R_d * theta / p_0), Gamma) * std::pow(r[k], Gamma-one) ;

              Real drho = A / (dpdr + dz_avg * CONST_GRAV);

              r[k] = r[k] + drho;
              p[k] = getPgivenRTh(r[k]*theta);

              if (std::abs(drho) < TOL * r[k-1])
              {
                  converged_hse = true;
                  // amrex::Print() << " converged " << std::endl;
                  break;
              }
          }

          // if (!converged_hse) amrex::Print() << "DOING ITERATIONS AT K = " << k << std::endl;
          // if (!converged_hse) amrex::Error("Didn't converge the iterations in init");
      }
      r[khi+1] = r[khi];
    }

Referenced by erf_init_dens_hse_dry().

Here is the call graph for this function:

Here is the caller graph for this function:

init_isentropic_hse_terrain()

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE void HSEutils::init_isentropic_hse_terrain	(	int	i,
		int	j,
		const amrex::Real &	r_sfc,
		const amrex::Real &	theta,
		amrex::Real *	r,
		amrex::Real *	p,
		const amrex::Array4< amrex::Real const >	z_cc,
		const int &	klo,
		const int &	khi
	)

Function to calculate the hydrostatic density and pressure over terrain

Parameters

[in]	i	x-index
[in]	j	y-index
[in]	r_sfc	surface density
[in]	theta	surface potential temperature
[out]	r	hydrostatically balanced density profile
[out]	p	hydrostatically balanced pressure profile
[in]	z_cc	cell-center heights
[in]	khi	z-index corresponding to the big end of the domain

    {
        int kstart;

        if (klo == 0)  {
            //
            // r_sfc / p_0 are the density / pressure at the surface
            //
            // Initial guess
            int k0 = 0;

            // Where we start the lower iteration
            kstart = 1;

            Real myhalf_dz = z_cc(i,j,k0);
            r[k0] = r_sfc;
            p[k0] = p_0 - myhalf_dz * r[k0] * CONST_GRAV;
            {
                // We do a Newton iteration to satisfy the EOS & HSE (with constant theta)
                bool converged_hse = false;
                Real p_hse;
                Real p_eos;

                for (int iter = 0; iter < MAX_ITER && !converged_hse; iter++)
                {
                    p_hse = p_0 - myhalf_dz * r[k0] * CONST_GRAV;
                    p_eos = getPgivenRTh(r[k0]*theta);

                    Real A = p_hse - p_eos;

                    Real dpdr = getdPdRgivenConstantTheta(r[k0],theta);

                    Real drho = A / (dpdr + myhalf_dz * CONST_GRAV);

                    r[k0] = r[k0] + drho;
                    p[k0] = getPgivenRTh(r[k0]*theta);

                    if (std::abs(drho) < TOL)
                    {
                        converged_hse = true;
                        break;
                    }
                }

                //if (!converged_hse) amrex::Print() << "DOING ITERATIONS AT K = " << k0 << std::endl;
                //if (!converged_hse) amrex::Error("Didn't converge the iterations in init");
            }
        } else {
            kstart = klo; // because we need to solve for r[klo] here; r[klo-1] is what was passed in r_sfc
            r[klo-1] = r_sfc; // r_sfc is really the interpolated density in the ghost cell in this case
            p[klo-1] = getPgivenRTh(r[klo-1]*theta);
        }

         // To get values at k > 0 we do a Newton iteration to satisfy the EOS (with constant theta) and
         for (int k = kstart; k <= khi; k++)
         {
             // To get values at k > 0 we do a Newton iteration to satisfy the EOS (with constant theta) and
             // to discretely satisfy HSE -- here we assume spatial_order = 2 -- we can generalize this later if needed
             bool converged_hse = false;

             Real dz_loc = (z_cc(i,j,k) - z_cc(i,j,k-1));

             r[k] = r[k-1];

             Real p_eos = getPgivenRTh(r[k]*theta);
             Real p_hse;

             for (int iter = 0; iter < MAX_ITER && !converged_hse; iter++)
             {
                 p_hse = p[k-1] -  dz_loc * myhalf * (r[k-1]+r[k]) * CONST_GRAV;
                 p_eos = getPgivenRTh(r[k]*theta);

                 Real A = p_hse - p_eos;

                 Real dpdr = getdPdRgivenConstantTheta(r[k],theta);

                 Real drho = A / (dpdr + dz_loc * CONST_GRAV);

                 r[k] = r[k] + drho;
                 p[k] = getPgivenRTh(r[k]*theta);

                 if (std::abs(drho) < TOL * r[k-1])
                 {
                     converged_hse = true;
                     //amrex::Print() << " converged " << std::endl;
                     break;
                 }
             }

             // if (!converged_hse) amrex::Print() << "DOING ITERATIONS AT K = " << k << std::endl;
             // if (!converged_hse) amrex::Error("Didn't converge the iterations in init");
        }
    }

Referenced by erf_init_dens_hse_dry().

Here is the call graph for this function:

Here is the caller graph for this function:

Newton_Raphson_hse()

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE void HSEutils::Newton_Raphson_hse	(	const Real &	m_tol,
		const Real &	RdoCp,
		const Real &	dz,
		const Real &	g,
		const Real &	C,
		const Real &	Th,
		const Real &	T,
		const Real &	qt,
		const Real &	qv,
		Real &	P,
		Real &	rd,
		Real &	F,
		const bool &	maintain_Th
	)

Function to calculate the hydrostatic density and pressure from Newton-Raphson iterations at constant Th & Qv

Parameters

[in]	m_tol	iteration tolerance
[in]	RdOCp	Rd/Cp
[out]	dz	change in vertical height
[out]	g	magnitude of gravity
[in]	C	sum of known terms in HSE balance
[in]	Th	theta at the current cell center
[in]	qt	total moisture (non-precip and precip)
[in]	qv	water vapor
[in]	P	pressure at cell center
[in]	rd	dry density at cell center
[in]	F	starting residual of non-linear eq
[in]	maintain_Th	maintain theta or temperature?

    {
        // A non-finite residual (or a non-positive initial guess) would make the
        // convergence test below evaluate to false on the very first pass, so we
        // would silently return the initial guess and leave, e.g., an all-zero
        // base state.  Trap that here rather than propagating it downstream.
        if (!(P > amrex::Real(0)) || !(rd > amrex::Real(0)) || !amrex::Math::isfinite(F)) {
            AMREX_DEVICE_PRINTF("ERROR: HSE Newton started from an invalid state: P = %e, rd = %e, F = %e\n",
                                double(P), double(rd), double(F));
            AMREX_DEVICE_PRINTF("       Check the surface pressure/temperature used to seed the integration%s\n", "");
        }
        AMREX_ALWAYS_ASSERT(P > amrex::Real(0) && rd > amrex::Real(0) && amrex::Math::isfinite(F));

        int iter=0;
        int max_iter=20;
        // Written as !(|F| <= tol) so that a NaN residual enters the loop instead
        // of being mistaken for convergence
        while (!(std::abs(F)<=m_tol) && iter<max_iter) {
            // Compute change in pressure
            Real dRdP = (maintain_Th) ? iGamma * rd / P : rd / P;
            Real dFdp = one + myhalf*dRdP*g*dz;
            P -= F/dFdp;
            if (P < Real(1.e3)) amrex::Warning("P < 1000 [Pa]; Domain height may be too large...");
            AMREX_ALWAYS_ASSERT(P > amrex::Real(0));

            // Diagnose density and residual
            rd = (maintain_Th) ? getRhogivenThetaPress(Th, P, RdoCp, qv) :
                                 getRhogivenTandPress(T , P, qv);
            AMREX_ALWAYS_ASSERT(rd > amrex::Real(0));
            Real r_tot = rd * (one + qt);
            F = P + myhalf*r_tot*g*dz + C;
            ++iter;
        }
        if (iter>=max_iter) {
            AMREX_DEVICE_PRINTF("WARNING: HSE Newton iterations did not converge to tolerance!\n%s", "");
            AMREX_DEVICE_PRINTF("HSE Newton tol: %e %e\n",F,m_tol);
        }
    }

Referenced by InputSoundingData::calc_rho_p(), and rebalance_columns().

Here is the call graph for this function:

Here is the caller graph for this function:

vapor_mixing_ratio()

AMREX_FORCE_INLINE AMREX_GPU_HOST_DEVICE Real HSEutils::vapor_mixing_ratio	(	const Real	p_b,
		const Real	T_b,
		const Real	RH,
		const bool	use_empirical,
		int	which_zone
	)

{
    Real p_s = compute_saturation_pressure(T_b,use_empirical);
    Real p_v = compute_vapor_pressure(p_s, RH);
    Real q_v = RdoRv*p_v/(p_b - p_v);

    if (which_zone == 1) { // z <= height
        return Real(0.014);
    } else {
        return q_v;
    }
}

Referenced by compute_F_for_temp_in_zone(), sea_level_pressure_diagnostics::compute_from_erf_lowest_level_state(), compute_rho(), sea_level_pressure_diagnostics::fill_sea_level_pressure(), if(), ParallelFor(), and sea_level_pressure_diagnostics::specific_humidity_from_dry_mixing_ratio().

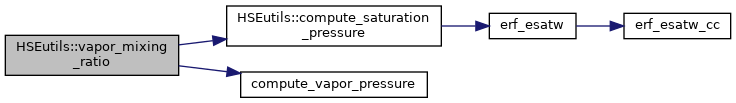

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

MAX_ITER

const int HSEutils::MAX_ITER = 10

Referenced by init_isentropic_hse_constant_dz(), init_isentropic_hse_stretched_dz(), and init_isentropic_hse_terrain().

TOL

const amrex::Real HSEutils::TOL = Real(1.e-8)

Referenced by compute_temperature(), init_isentropic_hse_constant_dz(), init_isentropic_hse_stretched_dz(), and init_isentropic_hse_terrain().
