erf_surface_temperature Namespace Reference

Classes
struct	ConversionFailure

Enumerations
enum class	ConversionError : int {   none = 0 , bad_density , no_moisture_comp , bad_rho_qv ,   bad_qv , bad_theta_to_temperature , bad_temperature_to_theta , bad_pressure ,   bad_skin_temperature , bad_q_air , bad_q_surf }

Functions
AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE amrex::Real	pressure_at_boundary_from_cell (const amrex::Real rho, const amrex::Real rho_theta, const amrex::Real qv, const amrex::Real delta_z)
AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE amrex::Real	pressure_at_surface (const amrex::Real rho, const amrex::Real rho_theta, const amrex::Real qv, const amrex::Real delta_z)
AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE bool	valid_pressure (const amrex::Real pressure)
AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE bool	valid_temperature (const amrex::Real temperature)
AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE bool	theta_to_temperature (const amrex::Real theta, const amrex::Real pressure, const amrex::Real rdOcp, amrex::Real &temperature)
AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE bool	temperature_to_theta (const amrex::Real temperature, const amrex::Real pressure, const amrex::Real rdOcp, amrex::Real &theta)
AMREX_GPU_DEVICE AMREX_FORCE_INLINE void	record_conversion_failure (ConversionFailure *fail, const bool fatal, const ConversionError code, const int i, const int j, const int k, const amrex::Real rho=amrex::Real(0.0), const amrex::Real rho_theta=amrex::Real(0.0), const amrex::Real rho_qv=amrex::Real(0.0), const amrex::Real t_surf=amrex::Real(0.0), const amrex::Real pressure=amrex::Real(0.0), const amrex::Real delta_z=amrex::Real(0.0), const amrex::Real q_air=amrex::Real(0.0))
AMREX_FORCE_INLINE const char *	conversion_error_text (const ConversionError code)
void	abort_on_conversion_failure (const char *who, const int lev, ConversionFailure const &fail)

Enumeration Type Documentation

ConversionError

enum erf_surface_temperature::ConversionError : int

strong

Why a surface conversion could not be made, in the order the kernels test for it.

Every kernel that converts between the atmospheric state and a surface temperature or humidity guards the same sequence of ways that state can be unusable. Which guard tripped is the difference between "the surface layer gave up" and knowing that the state handed to it was already bad – so the guards are named rather than merged into a single flag.

Enumerator
none
bad_density
no_moisture_comp
bad_rho_qv
bad_qv
bad_theta_to_temperature
bad_temperature_to_theta
bad_pressure
bad_skin_temperature
bad_q_air
bad_q_surf

                            : int {
    none = 0,
    bad_density,
    no_moisture_comp,
    bad_rho_qv,
    bad_qv,
    bad_theta_to_temperature,
    bad_temperature_to_theta,
    bad_pressure,
    bad_skin_temperature,
    bad_q_air,
    bad_q_surf
};

Function Documentation

abort_on_conversion_failure()

void erf_surface_temperature::abort_on_conversion_failure ( const char *  who, const int  lev, ConversionFailure const &  fail  )

inline

Describe what this rank recorded, then abort if any rank recorded anything.

Collective: every rank must call this. Each rank that failed describes its own first failure before the abort, so a failure confined to one rank still names the cell and the numbers rather than only the check that tripped.

Parameters

[in]	who	Name of the fill, used to open the message
[in]	lev	Level being filled
[in]	fail	This rank's record

{
    int any_failed = (fail.code != static_cast<int>(ConversionError::none)) ? 1 : 0;
    amrex::ParallelDescriptor::ReduceIntMax(any_failed);
    if (any_failed == 0) { return; }

    if (fail.code != static_cast<int>(ConversionError::none)) {
        const auto code = static_cast<ConversionError>(fail.code);

        const bool is_conversion = (code == ConversionError::bad_theta_to_temperature ||
                                    code == ConversionError::bad_temperature_to_theta);
        const bool has_state = (code != ConversionError::no_moisture_comp);
        const bool has_vapor = (is_conversion ||
                                code == ConversionError::bad_rho_qv ||
                                code == ConversionError::bad_qv     ||
                                code == ConversionError::bad_q_air  ||
                                code == ConversionError::bad_q_surf);
        const bool has_surface = (is_conversion ||
                                  code == ConversionError::bad_pressure ||
                                  code == ConversionError::bad_skin_temperature ||
                                  code == ConversionError::bad_q_surf);
        const bool has_q_air = (code == ConversionError::bad_q_air ||
                                code == ConversionError::bad_q_surf);

        // Assemble the whole report before writing it, so that ranks that failed do not
        // interleave their lines with one another
        std::ostringstream msg;
        msg << who << ": surface conversion failed at level " << lev
            << " [rank " << amrex::ParallelDescriptor::MyProc() << "]\n"
            << "  " << fail.count << " of the cells this fill owns failed";
        if (fail.halo_count > 0) {
            msg << " (and " << fail.halo_count << " halo cells, which are not fatal)";
        }
        msg << "\n  first failure at (" << fail.i << "," << fail.j << "," << fail.k << "): "
            << conversion_error_text(code) << "\n";

        if (has_state) {
            msg << std::setprecision(10) << "    rho = " << fail.rho
                << "   (rho theta) = " << fail.rho_theta;
            if (has_vapor)   { msg << "   (rho qv) = " << fail.rho_qv; }
            if (has_q_air)   { msg << "   q_air = " << fail.q_air; }
            if (has_surface) {
                msg << "\n    surface temperature = " << fail.t_surf
                    << "   pressure = " << fail.pressure
                    << "   delta_z = " << fail.delta_z;
            }
            msg << "\n";
        }

        amrex::AllPrint() << msg.str() << std::flush;
    }

    // Let every rank finish writing before one of them tears the job down
    amrex::ParallelDescriptor::Barrier();
    amrex::Abort(std::string(who) + ": could not convert the surface state (see above)");
}

Referenced by SurfaceLayer::fill_qsurf_with_qsat(), SurfaceLayer::fill_qsurf_with_skin_moisture(), SurfaceLayer::fill_tsurf_with_coupled_sst(), SurfaceLayer::fill_tsurf_with_sfc_sst(), and SurfaceLayer::fill_tsurf_with_skin_temperature().

Here is the call graph for this function:

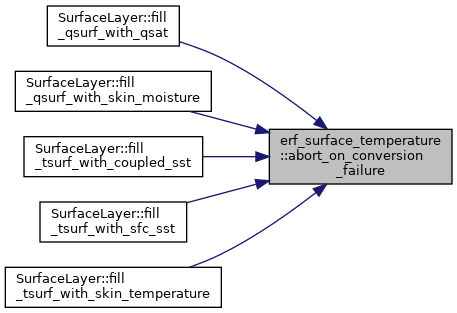

Here is the caller graph for this function:

conversion_error_text()

AMREX_FORCE_INLINE const char* erf_surface_temperature::conversion_error_text

(

const ConversionError

code

)

{
    switch (code) {
    case ConversionError::bad_density:
        return "the density or (rho theta) of the state cell is not usable";
    case ConversionError::no_moisture_comp:
        return "the state carries no water vapor component to convert";
    case ConversionError::bad_rho_qv:
        return "the (rho qv) of the state cell is not usable";
    case ConversionError::bad_qv:
        return "the water vapor mixing ratio derived from the state cell is not usable";
    case ConversionError::bad_theta_to_temperature:
        return "the surface potential temperature could not be converted to absolute temperature";
    case ConversionError::bad_temperature_to_theta:
        return "the surface temperature could not be converted to potential temperature";
    case ConversionError::bad_pressure:
        return "the surface pressure derived from the state cell is not usable";
    case ConversionError::bad_skin_temperature:
        return "the skin temperature is not usable";
    case ConversionError::bad_q_air:
        return "the reference-height water vapor mixing ratio is not usable";
    case ConversionError::bad_q_surf:
        return "the surface mixing ratio came out non-finite";
    default:
        return "the conversion failed for a reason that was not recorded";
    }
}

Referenced by abort_on_conversion_failure().

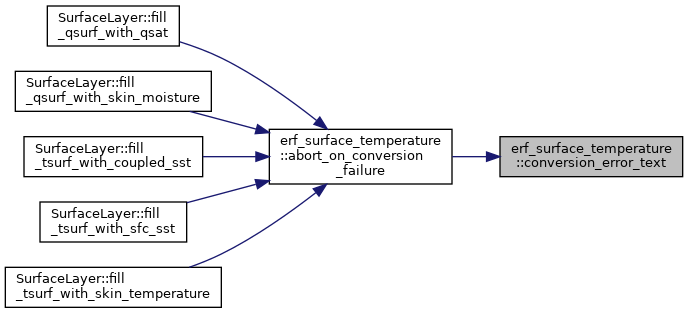

Here is the caller graph for this function:

pressure_at_boundary_from_cell()

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE amrex::Real erf_surface_temperature::pressure_at_boundary_from_cell	(	const amrex::Real	rho,
		const amrex::Real	rho_theta,
		const amrex::Real	qv,
		const amrex::Real	delta_z
	)

Pressure at a boundary face from the adjacent atmospheric cell state.

The state pressure is diagnosed at the cell centre. Adding rho*g*delta_z gives the pressure at the boundary face, where delta_z is the signed distance from the face to the cell centre.

{
    return getPgivenRTh(rho_theta, qv) + rho * CONST_GRAV * delta_z;
}

Referenced by SurfaceLayer::fill_qsurf_with_qsat(), SurfaceLayer::fill_qsurf_with_skin_moisture(), SurfaceLayer::fill_tsurf_with_coupled_sst(), SurfaceLayer::fill_tsurf_with_sfc_sst(), SurfaceLayer::fill_tsurf_with_skin_temperature(), and pressure_at_surface().

Here is the call graph for this function:

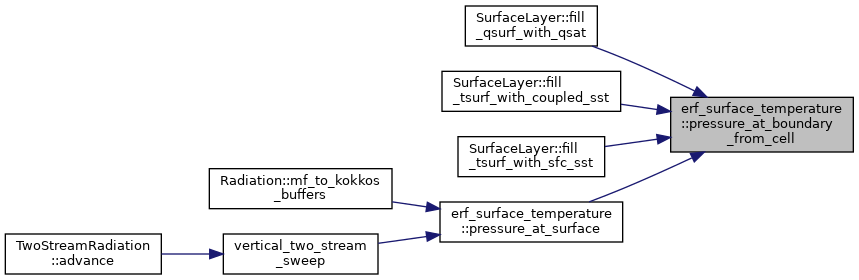

Here is the caller graph for this function:

pressure_at_surface()

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE amrex::Real erf_surface_temperature::pressure_at_surface	(	const amrex::Real	rho,
		const amrex::Real	rho_theta,
		const amrex::Real	qv,
		const amrex::Real	delta_z
	)

{
    return pressure_at_boundary_from_cell(rho, rho_theta, qv, delta_z);
}

Referenced by Radiation::mf_to_kokkos_buffers(), and vertical_two_stream_sweep().

Here is the call graph for this function:

Here is the caller graph for this function:

record_conversion_failure()

AMREX_GPU_DEVICE AMREX_FORCE_INLINE void erf_surface_temperature::record_conversion_failure	(	ConversionFailure *	fail,
		const bool	fatal,
		const ConversionError	code,
		const int	i,
		const int	j,
		const int	k,
		const amrex::Real	rho = amrex::Real(0.0),
		const amrex::Real	rho_theta = amrex::Real(0.0),
		const amrex::Real	rho_qv = amrex::Real(0.0),
		const amrex::Real	t_surf = amrex::Real(0.0),
		const amrex::Real	pressure = amrex::Real(0.0),
		const amrex::Real	delta_z = amrex::Real(0.0),
		const amrex::Real	q_air = amrex::Real(0.0)
	)

Record one cell's failure.

Every failing cell adds to a count; the first authoritative one to arrive also claims the description, so what gets reported is a failure that matters rather than whichever thread happened to finish last. Pass the values the caller has reached by this point: the report prints the ones that mean something for the code it is given.

Parameters

[in,out]	fail	This rank's record
[in]	fatal	Whether this is a cell the fill is authoritative for
[in]	code	Which guard tripped
[in]	i,j,k	The cell whose state was read

{
    if (!fatal) {
        amrex::Gpu::Atomic::Add(&fail->halo_count, 1);
        return;
    }

    amrex::Gpu::Atomic::Add(&fail->count, 1);

    // The first failure to arrive owns the description; the rest only add to the count.
    constexpr int unclaimed = static_cast<int>(ConversionError::none);
    if (amrex::Gpu::Atomic::CAS(&fail->code, unclaimed, static_cast<int>(code)) != unclaimed) {
        return;
    }

    fail->i = i; fail->j = j; fail->k = k;
    fail->rho       = rho;
    fail->rho_theta = rho_theta;
    fail->rho_qv    = rho_qv;
    fail->t_surf    = t_surf;
    fail->pressure  = pressure;
    fail->delta_z   = delta_z;
    fail->q_air     = q_air;
}

Referenced by SurfaceLayer::fill_qsurf_with_qsat(), SurfaceLayer::fill_qsurf_with_skin_moisture(), SurfaceLayer::fill_tsurf_with_coupled_sst(), SurfaceLayer::fill_tsurf_with_sfc_sst(), and SurfaceLayer::fill_tsurf_with_skin_temperature().

Here is the caller graph for this function:

temperature_to_theta()

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE bool erf_surface_temperature::temperature_to_theta	(	const amrex::Real	temperature,
		const amrex::Real	pressure,
		const amrex::Real	rdOcp,
		amrex::Real &	theta
	)

{
    if (!valid_pressure(pressure) || !valid_temperature(temperature) ||
        !amrex::Math::isfinite(rdOcp) || rdOcp <= amrex::Real(0.0)) {
        return false;
    }
    const amrex::Real result = getThgivenTandP(temperature, pressure, rdOcp);
    if (!valid_temperature(result)) {
        return false;
    }
    theta = result;
    return true;
}

Referenced by SurfaceLayer::fill_tsurf_with_coupled_sst(), SurfaceLayer::fill_tsurf_with_sfc_sst(), SurfaceLayer::fill_tsurf_with_skin_temperature(), and metgrid_surface_theta().

Here is the call graph for this function:

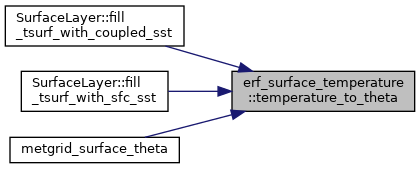

Here is the caller graph for this function:

theta_to_temperature()

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE bool erf_surface_temperature::theta_to_temperature	(	const amrex::Real	theta,
		const amrex::Real	pressure,
		const amrex::Real	rdOcp,
		amrex::Real &	temperature
	)

{
    if (!valid_pressure(pressure) || !valid_temperature(theta) ||
        !amrex::Math::isfinite(rdOcp) || rdOcp <= amrex::Real(0.0)) {
        return false;
    }
    const amrex::Real result = getTgivenPandTh(pressure, theta, rdOcp);
    if (!valid_temperature(result)) {
        return false;
    }
    temperature = result;
    return true;
}

Referenced by SurfaceLayer::fill_qsurf_with_qsat(), rrtmgp::resolve_surface_temperature(), and vertical_two_stream_sweep().

Here is the call graph for this function:

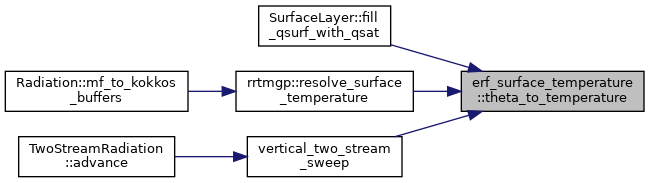

Here is the caller graph for this function:

valid_pressure()

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE bool erf_surface_temperature::valid_pressure

(

const amrex::Real

pressure

)

{
    return amrex::Math::isfinite(pressure) && pressure > amrex::Real(0.0);
}

Referenced by SurfaceLayer::fill_qsurf_with_skin_moisture(), temperature_to_theta(), and theta_to_temperature().

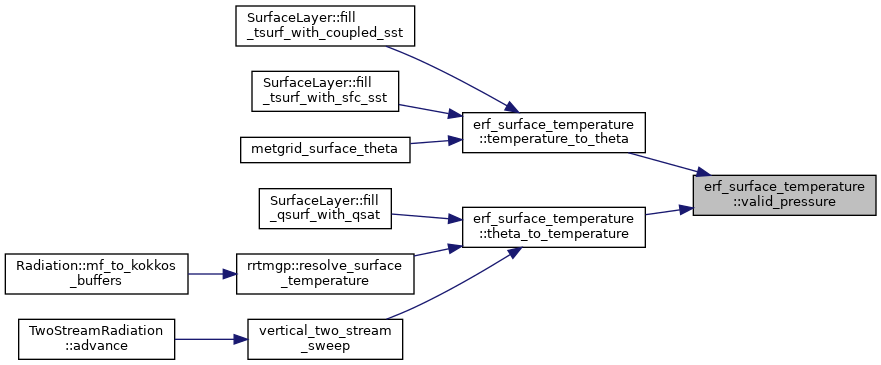

Here is the caller graph for this function:

valid_temperature()

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE bool erf_surface_temperature::valid_temperature

(

const amrex::Real

temperature

)

{
    return amrex::Math::isfinite(temperature) && temperature > amrex::Real(0.0);
}

Referenced by SurfaceLayer::fill_qsurf_with_skin_moisture(), temperature_to_theta(), and theta_to_temperature().

Here is the caller graph for this function:
