obs_nudging Namespace Reference

Classes
struct	ObsNudgingView
struct	StationRecord
struct	StationSeries
struct	Profile

Enumerations
enum	Comp : int {   U = 0 , V = 1 , W = 2 , Theta = 3 ,   NComp = 4 }

Functions
template<int Dir, bool HasZnd>
AMREX_GPU_DEVICE AMREX_FORCE_INLINE void	nudged_point (int i, int j, int k, const Array4< const Real > &cons, const Array4< const Real > &znd, const Array4< const Real > &zs, const GpuArray< Real, AMREX_SPACEDIM > &problo, const GpuArray< Real, AMREX_SPACEDIM > &dx, Real &x, Real &y, Real &z, Real &zg, Real &rho) noexcept
template<int Dir, bool HasZnd>
void	add_face_source (const Box &bx, const Array4< Real > &src, const Array4< const Real > &vel, const Array4< const Real > &cons, const Array4< const Real > &znd, const Array4< const Real > &zs, const Array4< const Real > &blank, bool has_blank, const GpuArray< Real, AMREX_SPACEDIM > problo, const GpuArray< Real, AMREX_SPACEDIM > dx, int klo, int khi, const ObsNudgingView v, int comp)
template<bool HasZnd>
void	add_cell_theta_source (const Box &bx, const Array4< Real > &src, const Array4< const Real > &cons, const Array4< const Real > &znd, const Array4< const Real > &zs, const Array4< const Real > &blank, bool has_blank, const GpuArray< Real, AMREX_SPACEDIM > problo, const GpuArray< Real, AMREX_SPACEDIM > dx, const ObsNudgingView v)
AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE amrex::Real	periodic_separation (amrex::Real d, amrex::Real L) noexcept
AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE amrex::Real	obs_nudging_tendency (const ObsNudgingView &v, int comp, amrex::Real x, amrex::Real y, amrex::Real z, amrex::Real z_ground, amrex::Real phi) noexcept
const char *	comp_name (int comp)
bool	parse_station_series (std::istream &is, const std::string &source, Real missing_value, StationSeries &series, std::string &error)
bool	profiles_at_time (const StationSeries &series, double t, Real cos_alpha, Real sin_alpha, std::array< Profile, NComp > &profiles)

Enumeration Type Documentation

Comp

enum obs_nudging::Comp : int

Enumerator
U
V
W
Theta
NComp

: int { U = 0, V = 1, W = 2, Theta = 3, NComp = 4 };

Function Documentation

add_cell_theta_source()

template<bool HasZnd>

void obs_nudging::add_cell_theta_source	(	const Box &	bx,
		const Array4< Real > &	src,
		const Array4< const Real > &	cons,
		const Array4< const Real > &	znd,
		const Array4< const Real > &	zs,
		const Array4< const Real > &	blank,
		bool	has_blank,
		const GpuArray< Real, AMREX_SPACEDIM >	problo,
		const GpuArray< Real, AMREX_SPACEDIM >	dx,
		const ObsNudgingView	v
	)

{
    ParallelFor(bx, [=] AMREX_GPU_DEVICE (int i, int j, int k) noexcept
    {
        Real x, y, z, zg, rho;
        nudged_point<-1, HasZnd>(i, j, k, cons, znd, zs, problo, dx, x, y, z, zg, rho);

        const Real theta = cons(i,j,k,RhoTheta_comp) / rho;

        Real tend = obs_nudging_tendency(v, Theta, x, y, z, zg, theta);
        if (has_blank) { tend *= (Real(1.0) - blank(i,j,k)); }
        src(i,j,k,RhoTheta_comp) += rho * tend;
    });
}

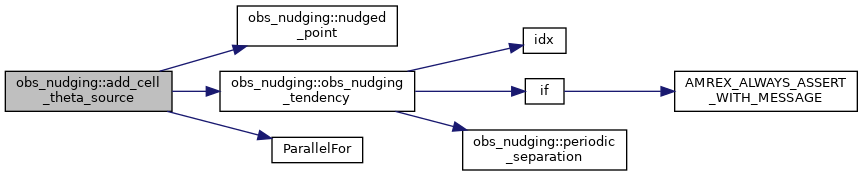

Here is the call graph for this function:

add_face_source()

template<int Dir, bool HasZnd>

void obs_nudging::add_face_source	(	const Box &	bx,
		const Array4< Real > &	src,
		const Array4< const Real > &	vel,
		const Array4< const Real > &	cons,
		const Array4< const Real > &	znd,
		const Array4< const Real > &	zs,
		const Array4< const Real > &	blank,
		bool	has_blank,
		const GpuArray< Real, AMREX_SPACEDIM >	problo,
		const GpuArray< Real, AMREX_SPACEDIM >	dx,
		int	klo,
		int	khi,
		const ObsNudgingView	v,
		int	comp
	)

{
    // w on the bottom and top of the domain is set by the boundary conditions
    const bool skip_walls = (Dir == 2);

    ParallelFor(bx, [=] AMREX_GPU_DEVICE (int i, int j, int k) noexcept
    {
        if (skip_walls && (k <= klo || k > khi)) { return; }

        Real x, y, z, zg, rho;
        nudged_point<Dir, HasZnd>(i, j, k, cons, znd, zs, problo, dx, x, y, z, zg, rho);

        Real tend = obs_nudging_tendency(v, comp, x, y, z, zg, vel(i,j,k));
        if (has_blank) { tend *= (Real(1.0) - blank(i,j,k)); }
        src(i,j,k) += rho * tend;
    });
}

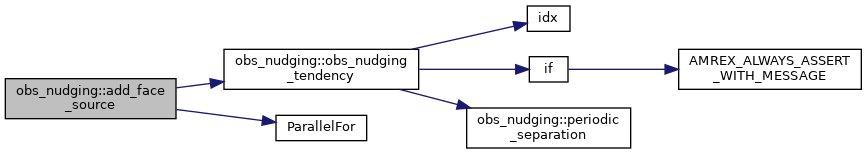

Here is the call graph for this function:

comp_name()

const char * obs_nudging::comp_name

(

int

comp

)

{
    switch (comp) {
        case U:     return "u";
        case V:     return "v";
        case W:     return "w";
        case Theta: return "theta";
        default:    return "?";
    }
}

nudged_point()

template<int Dir, bool HasZnd>

AMREX_GPU_DEVICE AMREX_FORCE_INLINE void obs_nudging::nudged_point ( int  i, int  j, int  k, const Array4< const Real > &  cons, const Array4< const Real > &  znd, const Array4< const Real > &  zs, const GpuArray< Real, AMREX_SPACEDIM > &  problo, const GpuArray< Real, AMREX_SPACEDIM > &  dx, Real &  x, Real &  y, Real &  z, Real &  zg, Real &  rho  )

noexcept

{
    if constexpr (Dir == 0) {
        x   = problo[0] + Real(i) * dx[0];
        y   = problo[1] + (Real(j) + Real(0.5)) * dx[1];
        zg  = Real(0.5) * (zs(i,j,0) + zs(i,j+1,0));
        rho = Real(0.5) * (cons(i-1,j,k,Rho_comp) + cons(i,j,k,Rho_comp));
        if constexpr (HasZnd) {
            z = Real(0.25) * (znd(i,j,k) + znd(i,j+1,k) + znd(i,j,k+1) + znd(i,j+1,k+1));
        } else {
            z = problo[2] + (Real(k) + Real(0.5)) * dx[2];
        }
    } else if constexpr (Dir == 1) {
        x   = problo[0] + (Real(i) + Real(0.5)) * dx[0];
        y   = problo[1] + Real(j) * dx[1];
        zg  = Real(0.5) * (zs(i,j,0) + zs(i+1,j,0));
        rho = Real(0.5) * (cons(i,j-1,k,Rho_comp) + cons(i,j,k,Rho_comp));
        if constexpr (HasZnd) {
            z = Real(0.25) * (znd(i,j,k) + znd(i+1,j,k) + znd(i,j,k+1) + znd(i+1,j,k+1));
        } else {
            z = problo[2] + (Real(k) + Real(0.5)) * dx[2];
        }
    } else if constexpr (Dir == 2) {
        x   = problo[0] + (Real(i) + Real(0.5)) * dx[0];
        y   = problo[1] + (Real(j) + Real(0.5)) * dx[1];
        zg  = Real(0.25) * (zs(i,j,0) + zs(i+1,j,0) + zs(i,j+1,0) + zs(i+1,j+1,0));
        rho = Real(0.5) * (cons(i,j,k-1,Rho_comp) + cons(i,j,k,Rho_comp));
        if constexpr (HasZnd) {
            z = Real(0.25) * (znd(i,j,k) + znd(i+1,j,k) + znd(i,j+1,k) + znd(i+1,j+1,k));
        } else {
            z = problo[2] + Real(k) * dx[2];
        }
    } else {
        x   = problo[0] + (Real(i) + Real(0.5)) * dx[0];
        y   = problo[1] + (Real(j) + Real(0.5)) * dx[1];
        zg  = Real(0.25) * (zs(i,j,0) + zs(i+1,j,0) + zs(i,j+1,0) + zs(i+1,j+1,0));
        rho = cons(i,j,k,Rho_comp);
        if constexpr (HasZnd) {
            z = Real(0.125) * (znd(i,j,k  ) + znd(i+1,j,k  ) + znd(i,j+1,k  ) + znd(i+1,j+1,k  ) +
                               znd(i,j,k+1) + znd(i+1,j,k+1) + znd(i,j+1,k+1) + znd(i+1,j+1,k+1));
        } else {
            z = problo[2] + (Real(k) + Real(0.5)) * dx[2];
        }
    }
}

Referenced by add_cell_theta_source().

Here is the caller graph for this function:

obs_nudging_tendency()

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE amrex::Real obs_nudging::obs_nudging_tendency ( const ObsNudgingView &  v, int  comp, amrex::Real  x, amrex::Real  y, amrex::Real  z, amrex::Real  z_ground, amrex::Real  phi  )

noexcept

{
    amrex::Real sum_w  = amrex::Real(0.0);
    amrex::Real sum_wt = amrex::Real(0.0);

    for (int s = 0; s < v.nstations; ++s)
    {
        const int idx = comp*v.nstations + s;
        const int n = v.count[idx];
        if (n == 0) { continue; }
        const int o = v.offset[idx];

        const amrex::Real h   = (v.agl[s] != 0) ? (z - z_ground) : z;
        const amrex::Real zlo = v.z[o];
        const amrex::Real zhi = v.z[o+n-1];
        const amrex::Real d   = (h < zlo) ? (zlo - h) : ((h > zhi) ? (h - zhi) : amrex::Real(0.0));
        const amrex::Real dxs = periodic_separation(x - v.x[s], v.period_x);
        const amrex::Real dys = periodic_separation(y - v.y[s], v.period_y);
        const amrex::Real q   = (dxs*dxs + dys*dys) * v.inv_rh2 + d*d * v.inv_rz2;
        if (q > v.qmax) { continue; }
        const amrex::Real w = std::exp(amrex::Real(-0.25) * q);

        amrex::Real mean, sig;
        if (h <= zlo) {
            mean = v.mean[o];
            sig  = v.sigma[o];
        } else if (h >= zhi) {
            mean = v.mean[o+n-1];
            sig  = v.sigma[o+n-1];
        } else {
            int k = o;
            while (v.z[k+1] < h) { ++k; }
            const amrex::Real f = (h - v.z[k]) / (v.z[k+1] - v.z[k]);
            mean = (amrex::Real(1.0) - f) * v.mean[k]  + f * v.mean[k+1];
            sig  = (amrex::Real(1.0) - f) * v.sigma[k] + f * v.sigma[k+1];
        }

        const amrex::Real band   = v.sigma_factor * sig;
        const amrex::Real target = amrex::min(amrex::max(phi, mean - band), mean + band);

        sum_w  += w;
        sum_wt += w * target;
    }

    if (sum_w <= amrex::Real(0.0)) { return amrex::Real(0.0); }

    const amrex::Real tbar = sum_wt / sum_w;
    const amrex::Real rate = amrex::min(amrex::min(sum_w, amrex::Real(1.0)) * v.inv_tau, v.max_rate);
    return -rate * (phi - tbar);
}

Referenced by add_cell_theta_source(), and add_face_source().

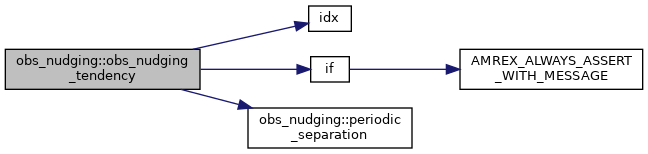

Here is the call graph for this function:

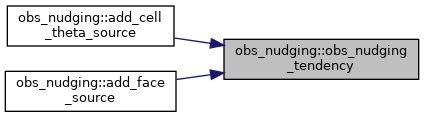

Here is the caller graph for this function:

parse_station_series()

bool obs_nudging::parse_station_series	(	std::istream &	is,
		const std::string &	source,
		Real	missing_value,
		StationSeries &	series,
		std::string &	error
	)

{
    series = StationSeries{};

    int col_of[NColumns];
    std::fill(col_of, col_of + NColumns, -1);
    int ncols = 0;

    const auto is_missing = [missing_value] (double v) {
        return !std::isfinite(v) ||
               std::abs(v - static_cast<double>(missing_value)) <=
               1.0e-6 * std::max(1.0, std::abs(static_cast<double>(missing_value)));
    };

    std::string line;
    int line_no = 0;
    bool have_header = false;
    int nheights = 0;           // heights per record, fixed by the first record
    int ih = 0;                 // height index within the current record

    while (std::getline(is, line))
    {
        ++line_no;
        if (!strip_comment(line)) { continue; }

        std::istringstream ls(line);
        std::vector<std::string> tokens;
        std::string tok;
        while (ls >> tok) { tokens.push_back(tok); }

        if (!have_header)
        {
            for (auto& t : tokens) {
                std::transform(t.begin(), t.end(), t.begin(),
                               [](unsigned char c) { return static_cast<char>(std::tolower(c)); });
                int found = -1;
                for (int c = 0; c < NColumns; ++c) {
                    if (t == column_names[c]) { found = c; break; }
                }
                if (found < 0) {
                    error = where(source, line_no) + "unknown column '" + t + "'; the columns are "
                            "time z u v w theta su sv sw stheta speed direction";
                    return false;
                }
                if (col_of[found] >= 0) {
                    error = where(source, line_no) + "column '" + t + "' is named twice";
                    return false;
                }
                col_of[found] = ncols++;
            }

            const auto has = [&](int c) { return col_of[c] >= 0; };
            if (!has(ColTime) || !has(ColZ)) {
                error = where(source, line_no) + "the header must name the columns time and z";
                return false;
            }
            if (has(ColU) != has(ColV)) {
                error = where(source, line_no) + "u and v must be given together";
                return false;
            }
            if (has(ColSpeed) != has(ColDirection)) {
                error = where(source, line_no) + "speed and direction must be given together";
                return false;
            }
            if (has(ColU) && has(ColSpeed)) {
                error = where(source, line_no) + "give the wind as u v or as speed direction, not both";
                return false;
            }
            const bool has_wind = has(ColU) || has(ColSpeed);
            if ((has(ColSU) || has(ColSV)) && !has_wind) {
                error = where(source, line_no) + "su/sv need a wind column";
                return false;
            }
            if (has(ColSW) && !has(ColW)) {
                error = where(source, line_no) + "sw needs the column w";
                return false;
            }
            if (has(ColSTheta) && !has(ColTheta)) {
                error = where(source, line_no) + "stheta needs the column theta";
                return false;
            }
            if (!has_wind && !has(ColW) && !has(ColTheta)) {
                error = where(source, line_no) + "the file has none of the nudged quantities "
                        "(u v, speed direction, w, theta)";
                return false;
            }

            series.has[U]     = has_wind;
            series.has[V]     = has_wind;
            series.has[W]     = has(ColW);
            series.has[Theta] = has(ColTheta);
            have_header = true;
            continue;
        }

        if (static_cast<int>(tokens.size()) != ncols) {
            error = where(source, line_no) + "expected " + std::to_string(ncols) +
                    " entries, found " + std::to_string(tokens.size());
            return false;
        }

        double v[NColumns];
        std::fill(v, v + NColumns, std::numeric_limits<double>::quiet_NaN());
        for (int c = 0; c < NColumns; ++c) {
            if (col_of[c] < 0) { continue; }
            if (!parse_number(tokens[col_of[c]], v[c])) {
                error = where(source, line_no) + "'" + tokens[col_of[c]] + "' in column " +
                        column_names[c] + " is not a number";
                return false;
            }
        }

        if (is_missing(v[ColTime]) || is_missing(v[ColZ])) {
            error = where(source, line_no) + "time and z may not be missing";
            return false;
        }

        // A new time starts a new record
        const double time = v[ColTime];
        const Real   z    = static_cast<Real>(v[ColZ]);
        if (series.records.empty() || time != series.records.back().time)
        {
            if (!series.records.empty()) {
                if (time < series.records.back().time) {
                    error = where(source, line_no) + "the times must increase down the file";
                    return false;
                }
                if (ih != nheights) {
                    error = where(source, line_no) + "the record at time " +
                            std::to_string(series.records.back().time) + " has " +
                            std::to_string(ih) + " heights, but the first record has " +
                            std::to_string(nheights) + "; every time needs the same heights";
                    return false;
                }
            }
            StationRecord rec;
            rec.time = time;
            series.records.push_back(rec);
            ih = 0;
        }

        StationRecord& rec = series.records.back();

        if (series.records.size() == 1) {
            if (!series.heights.empty() && z <= series.heights.back()) {
                error = where(source, line_no) + "the heights within a time must increase";
                return false;
            }
            series.heights.push_back(z);
            nheights = static_cast<int>(series.heights.size());
        } else if (ih >= nheights || z != series.heights[ih]) {
            error = where(source, line_no) + "height " + std::to_string(z) + " at time " +
                    std::to_string(time) + " does not match the heights of the first time; "
                    "every time needs the same heights, in the same order";
            return false;
        }

        // The measured values of each component, NaN where missing
        const Real nan = std::numeric_limits<Real>::quiet_NaN();
        Real mean[NComp]  = {nan, nan, nan, nan};
        Real sigma[NComp] = {Real(0.0), Real(0.0), Real(0.0), Real(0.0)};

        if (col_of[ColU] >= 0 && !is_missing(v[ColU]) && !is_missing(v[ColV])) {
            mean[U] = static_cast<Real>(v[ColU]);
            mean[V] = static_cast<Real>(v[ColV]);
        }
        if (col_of[ColSpeed] >= 0 && !is_missing(v[ColSpeed]) && !is_missing(v[ColDirection])) {
            const double speed = v[ColSpeed];
            const double dir   = v[ColDirection];
            if (speed < 0.0) {
                error = where(source, line_no) + "the wind speed may not be negative";
                return false;
            }
            if (dir < 0.0 || dir > 360.0) {
                error = where(source, line_no) + "the wind direction must be in [0, 360] degrees";
                return false;
            }
            // Meteorological convention: the direction the wind blows from,
            // clockwise from north
            const double rad = dir * static_cast<double>(PI) / 180.0;
            mean[U] = static_cast<Real>(-speed * std::sin(rad));
            mean[V] = static_cast<Real>(-speed * std::cos(rad));
        }
        if (col_of[ColW] >= 0 && !is_missing(v[ColW])) {
            mean[W] = static_cast<Real>(v[ColW]);
        }
        if (col_of[ColTheta] >= 0 && !is_missing(v[ColTheta])) {
            if (v[ColTheta] <= 0.0) {
                error = where(source, line_no) + "theta must be positive (it is in kelvin)";
                return false;
            }
            mean[Theta] = static_cast<Real>(v[ColTheta]);
        }

        const int scol[NComp] = {ColSU, ColSV, ColSW, ColSTheta};
        for (int c = 0; c < NComp; ++c) {
            if (col_of[scol[c]] < 0 || is_missing(v[scol[c]])) { continue; }
            if (v[scol[c]] < 0.0) {
                error = where(source, line_no) + "the standard deviation " +
                        column_names[scol[c]] + " may not be negative";
                return false;
            }
            sigma[c] = static_cast<Real>(v[scol[c]]);
        }

        for (int c = 0; c < NComp; ++c) {
            rec.mean[c].push_back(mean[c]);
            rec.sigma[c].push_back(sigma[c]);
        }
        ++ih;
    }

    if (!have_header) {
        error = source + ": the file has no header line naming its columns";
        return false;
    }
    if (series.records.empty()) {
        error = source + ": the file has a header but no measurements";
        return false;
    }
    if (ih != nheights) {
        error = source + ": the last record has " + std::to_string(ih) +
                " heights, but the first record has " + std::to_string(nheights) +
                "; every time needs the same heights";
        return false;
    }
    return true;
}

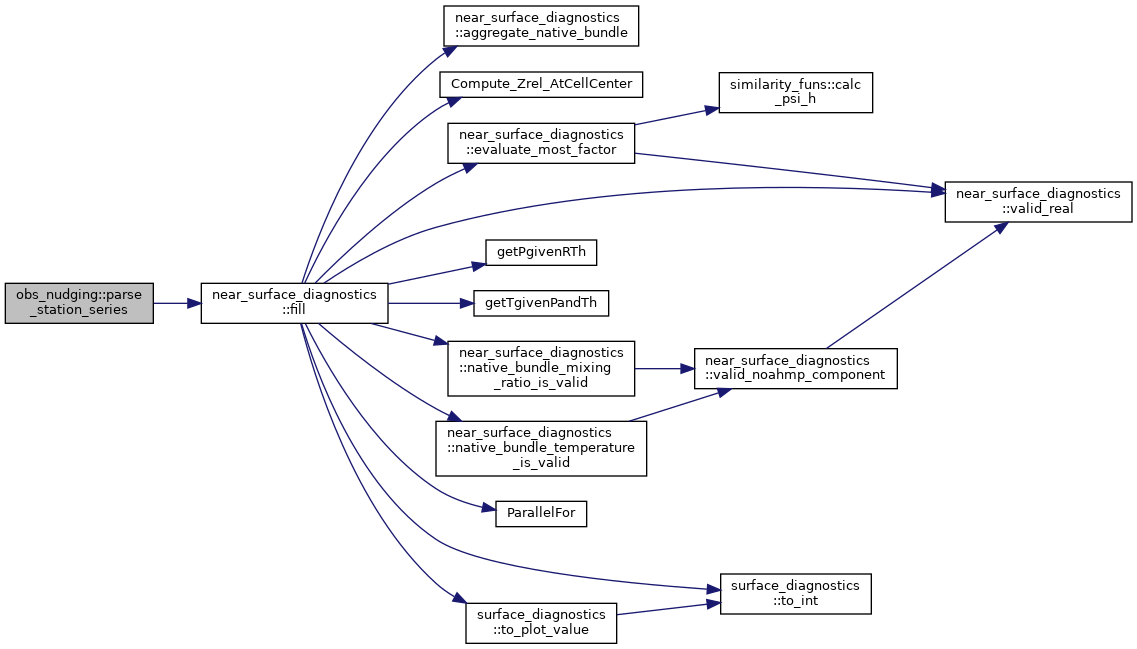

Here is the call graph for this function:

periodic_separation()

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE amrex::Real obs_nudging::periodic_separation ( amrex::Real  d, amrex::Real  L  )

noexcept

{
    if (L > amrex::Real(0.0)) {
        d -= L * amrex::Math::round(d / L);
    }
    return d;
}

Referenced by obs_nudging_tendency().

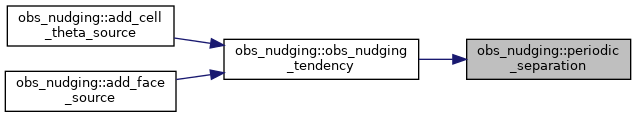

Here is the caller graph for this function:

profiles_at_time()

bool obs_nudging::profiles_at_time	(	const StationSeries &	series,
		double	t,
		Real	cos_alpha,
		Real	sin_alpha,
		std::array< Profile, NComp > &	profiles
	)

{
    for (auto& p : profiles) { p.clear(); }

    const auto& recs = series.records;
    const int nrec = static_cast<int>(recs.size());
    if (nrec == 0) { return false; }

    // The two records bracketing t and the weight of the later one
    int n0 = 0, n1 = 0;
    double f = 0.0;
    if (nrec > 1) {
        if (t < recs.front().time || t > recs.back().time) { return false; }
        while (n0 + 1 < nrec - 1 && recs[n0+1].time <= t) { ++n0; }
        n1 = n0 + 1;
        f = (t - recs[n0].time) / (recs[n1].time - recs[n0].time);
    }

    const int nh = static_cast<int>(series.heights.size());
    const Real nan = std::numeric_limits<Real>::quiet_NaN();

    // The value of component c at height h at time t, NaN when missing
    auto at_time = [&](int c, int h, Real& mean, Real& sigma) {
        const Real m0 = recs[n0].mean[c][h];
        const Real m1 = recs[n1].mean[c][h];
        const Real s0 = recs[n0].sigma[c][h];
        const Real s1 = recs[n1].sigma[c][h];
        if (f <= 0.0) {
            mean = m0; sigma = s0;
        } else if (f >= 1.0) {
            mean = m1; sigma = s1;
        } else if (std::isfinite(m0) && std::isfinite(m1)) {
            const Real w1 = static_cast<Real>(f);
            const Real w0 = Real(1.0) - w1;
            mean  = w0*m0 + w1*m1;
            sigma = w0*s0 + w1*s1;
        } else {
            mean = nan; sigma = Real(0.0);
        }
    };

    const bool rotate = (cos_alpha != Real(1.0) || sin_alpha != Real(0.0));

    for (int h = 0; h < nh; ++h)
    {
        Real mean[NComp], sigma[NComp];
        for (int c = 0; c < NComp; ++c) { at_time(c, h, mean[c], sigma[c]); }

        if (rotate) {
            if (std::isfinite(mean[U]) && std::isfinite(mean[V])) {
                const Real ug =  cos_alpha*mean[U] + sin_alpha*mean[V];
                const Real vg = -sin_alpha*mean[U] + cos_alpha*mean[V];
                const Real su = std::sqrt(cos_alpha*cos_alpha*sigma[U]*sigma[U] +
                                          sin_alpha*sin_alpha*sigma[V]*sigma[V]);
                const Real sv = std::sqrt(sin_alpha*sin_alpha*sigma[U]*sigma[U] +
                                          cos_alpha*cos_alpha*sigma[V]*sigma[V]);
                mean[U] = ug; mean[V] = vg; sigma[U] = su; sigma[V] = sv;
            } else {
                mean[U] = nan; mean[V] = nan;
            }
        }

        for (int c = 0; c < NComp; ++c) {
            if (!std::isfinite(mean[c])) { continue; }
            profiles[c].z.push_back(series.heights[h]);
            profiles[c].mean.push_back(mean[c]);
            profiles[c].sigma.push_back(sigma[c]);
        }
    }

    return true;
}

Referenced by ObsNudging::update_targets().

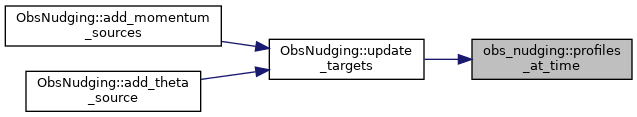

Here is the caller graph for this function:
