ERF_InitForEnsemble.cpp File Reference

#include <ERF.H>
#include <ERF_TileNoZ.H>
#include <AMReX_PlotFileUtil.H>
#include <filesystem>

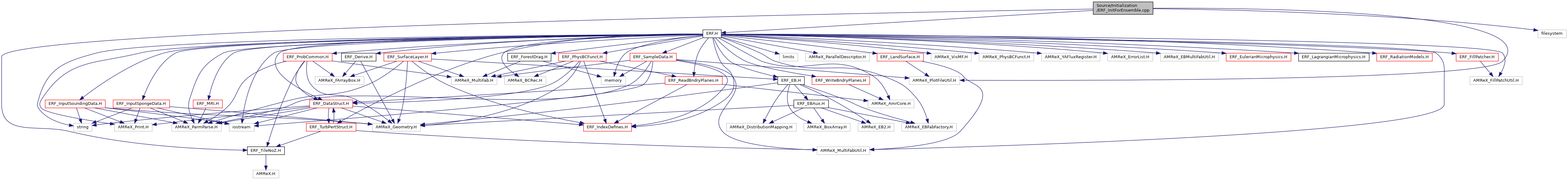

Include dependency graph for ERF_InitForEnsemble.cpp:

Functions
void	NormalizeMultiFabRMS_PerComponent (MultiFab &mf_cc_pert)
void	ApplyNeumannBCs (const Geometry &geom, MultiFab &mf_cc)
void	ReadCustomDataFile (const std::string &filename_custom, int &nx, int &ny, int &nz, int &ng, int &ncomp, std::array< Real, 3 > &problo_ext, std::array< Real, 3 > &probhi_ext, Vector< Real > &data_rho, Vector< Real > &data_theta, Vector< Real > &data_xvel, Vector< Real > &data_yvel, Vector< Real > &data_zvel)
AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE int	idx (int i, int j, int k, int nx, int ny)
AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE Real	interp_trilinear (const Real *f, int i, int j, int k, Real tx, Real ty, Real tz, int nx, int ny, int nz)
void	InterpolateToFineMF (const Vector< Real > &data_rho, const Vector< Real > &data_theta, const Vector< Real > &data_xvel, const Vector< Real > &data_yvel, const Vector< Real > &data_zvel, int nx, int ny, int nz, const std::array< Real, 3 > &problo, const std::array< Real, 3 > &probhi, MultiFab &mf_fine, const Geometry &geom_fine)
void	MakeFinalMultiFabs (const MultiFab &mf_cc_fine, MultiFab &cons_pert, MultiFab &xvel_pert, MultiFab &yvel_pert, MultiFab &zvel_pert)
void	AddPertToBckgnd (MultiFab &mf_cc_fine, const MultiFab &mf_cc_pert)
std::string	get_last_plotfile (const std::string &plotfile_dir)
void	read_plot_file (PlotFileData &pf, const std::vector< std::string > varnames, MultiFab &mf)

Function Documentation

AddPertToBckgnd()

void AddPertToBckgnd	(	MultiFab &	mf_cc_fine,
		const MultiFab &	mf_cc_pert
	)

{
    const int ncomp = mf_cc_fine.nComp();

    // Optional safety check (recommended)
    AMREX_ALWAYS_ASSERT(mf_cc_pert.nComp() == ncomp);

    for (MFIter mfi(mf_cc_fine, TilingIfNotGPU()); mfi.isValid(); ++mfi)
    {
        const Box& bx = mfi.tilebox();

        auto const& bg   = mf_cc_fine.array(mfi);
        auto const& pert = mf_cc_pert.const_array(mfi);

        amrex::ParallelFor(bx, ncomp,
        [=] AMREX_GPU_DEVICE (int i, int j, int k, int n) noexcept
        {
            Real ens_amp = 0.02*std::abs(bg(i,j,k,n));
            bg(i,j,k,n) += ens_amp*pert(i,j,k,n);
        });
    }
}

Referenced by ERF::create_background_state_for_ensemble().

Here is the call graph for this function:

Here is the caller graph for this function:

ApplyNeumannBCs()

void ApplyNeumannBCs	(	const Geometry &	geom,
		MultiFab &	mf_cc
	)

{

     // -------------------------------------------------
    // 2. Fill interior + periodic ghost cells
    // -------------------------------------------------
    mf_cc.FillBoundary(geom.periodicity());
    // -------------------------------------------------
    // 3. Apply FOExtrap (Neumann) at domain boundaries
    // -------------------------------------------------
    const Box& domain = geom.Domain();

    for (MFIter mfi(mf_cc, TilingIfNotGPU()); mfi.isValid(); ++mfi)
    {
        const Box& gbx = mfi.growntilebox();   // includes ghost cells
        const Box& vbx = mfi.validbox();

        auto const& arr = mf_cc.array(mfi);
        int ncomp = mf_cc.nComp();

        ParallelFor(gbx, ncomp,
        [=] AMREX_GPU_DEVICE (int i, int j, int k, int n)
        {
            if (vbx.contains(i,j,k)) return;

            int ii = i;
            int jj = j;
            int kk = k;

            // Clamp to domain interior (FOExtrap)
            ii = amrex::max(domain.smallEnd(0),
                 amrex::min(i, domain.bigEnd(0)));

            jj = amrex::max(domain.smallEnd(1),
                 amrex::min(j, domain.bigEnd(1)));

            kk = amrex::max(domain.smallEnd(2),
                 amrex::min(k, domain.bigEnd(2)));

            arr(i,j,k,n) = arr(ii,jj,kk,n);
        });
    }
}

Referenced by ERF::create_background_state_for_ensemble().

Here is the call graph for this function:

Here is the caller graph for this function:

get_last_plotfile()

std::string get_last_plotfile

(

const std::string &

plotfile_dir

)

{
    std::vector<std::string> pltfiles;

    for (const auto& entry : fs::directory_iterator(plotfile_dir)) {
        if (entry.is_directory()) {
            std::string name = entry.path().filename().string();
            if (name.find("plt") == 0) {
                pltfiles.push_back(entry.path().string());
            }
        }
    }

    std::sort(pltfiles.begin(), pltfiles.end());
    return pltfiles.back();  // last one
}

idx()

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE int idx	(	int	i,
		int	j,
		int	k,
		int	nx,
		int	ny
	)

{
    return i + nx * (j + ny * k);
}

Referenced by br_shift(), ChopGrids2D(), clamp_interp_index(), closest_index(), ERF::FillSurfaceStateMultiFabs(), ERF::init_stuff(), ERF::InitData_post(), MRISplitIntegrator< T >::initialize_data(), interp_trilinear(), NOAHMP::Lsm_DataIndex(), NOAHMP::Lsm_FluxIndex(), parse_fixed_width_int(), ReadBndryPlanes::read_file(), ReadBndryPlanes::read_input_files(), ReadCustomBinaryIC(), ReadCustomDataFile(), ERF::refinement_criteria_setup(), SatMethods::wv_sat_qsat_ice(), SatMethods::wv_sat_qsat_trans(), SatMethods::wv_sat_qsat_water(), SatMethods::wv_sat_svp_ice(), SatMethods::wv_sat_svp_trans(), and SatMethods::wv_sat_svp_water().

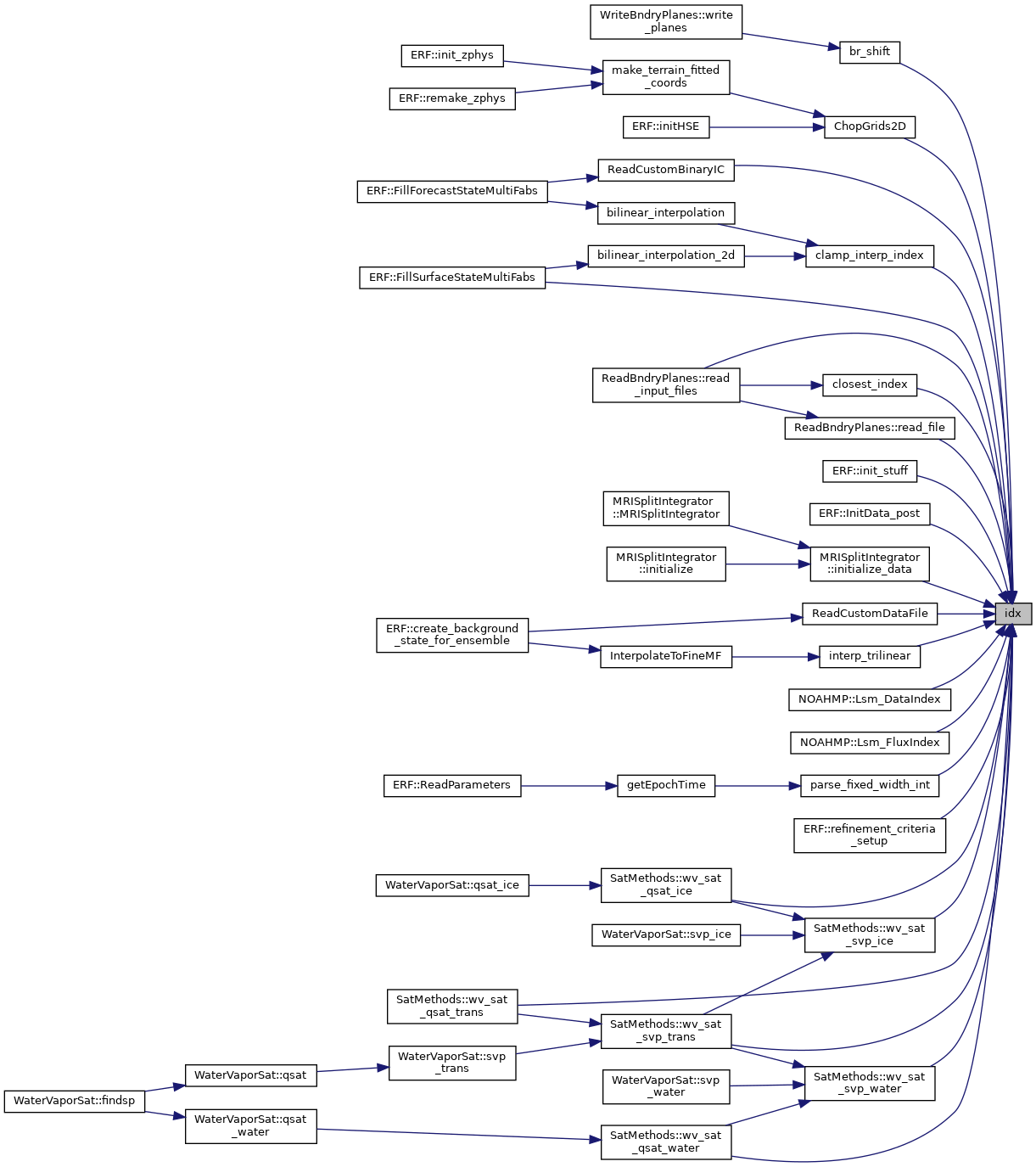

Here is the caller graph for this function:

interp_trilinear()

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE Real interp_trilinear	(	const Real *	f,
		int	i,
		int	j,
		int	k,
		Real	tx,
		Real	ty,
		Real	tz,
		int	nx,
		int	ny,
		int	nz
	)

{
    int i1 = amrex::min(i+1, nx-1);
    int j1 = amrex::min(j+1, ny-1);
    int k1 = amrex::min(k+1, nz-1);

    Real c000 = f[idx(i ,j ,k ,nx,ny)];
    Real c100 = f[idx(i1,j ,k ,nx,ny)];
    Real c010 = f[idx(i ,j1,k ,nx,ny)];
    Real c110 = f[idx(i1,j1,k ,nx,ny)];
    Real c001 = f[idx(i ,j ,k1,nx,ny)];
    Real c101 = f[idx(i1,j ,k1,nx,ny)];
    Real c011 = f[idx(i ,j1,k1,nx,ny)];
    Real c111 = f[idx(i1,j1,k1,nx,ny)];

    Real c00 = c000*(1-tx) + c100*tx;
    Real c10 = c010*(1-tx) + c110*tx;
    Real c01 = c001*(1-tx) + c101*tx;
    Real c11 = c011*(1-tx) + c111*tx;

    Real c0 = c00*(1-ty) + c10*ty;
    Real c1 = c01*(1-ty) + c11*ty;

    return c0*(1-tz) + c1*tz;
}

Referenced by InterpolateToFineMF().

Here is the call graph for this function:

Here is the caller graph for this function:

InterpolateToFineMF()

void InterpolateToFineMF	(	const Vector< Real > &	data_rho,
		const Vector< Real > &	data_theta,
		const Vector< Real > &	data_xvel,
		const Vector< Real > &	data_yvel,
		const Vector< Real > &	data_zvel,
		int	nx,
		int	ny,
		int	nz,
		const std::array< Real, 3 > &	problo,
		const std::array< Real, 3 > &	probhi,
		MultiFab &	mf_fine,
		const Geometry &	geom_fine
	)

{
    // coarse spacing
    Real dx_c[3];
    dx_c[0] = (probhi[0] - problo[0]) / nx;
    dx_c[1] = (probhi[1] - problo[1]) / ny;
    dx_c[2] = (probhi[2] - problo[2]) / nz;

    const auto problo_f = geom_fine.ProbLoArray();
    const auto dx_f     = geom_fine.CellSizeArray();

    // Step 1: declare device vectors with correct size
    amrex::Gpu::DeviceVector<Real> d_rho(data_rho.size());
    amrex::Gpu::DeviceVector<Real> d_theta(data_theta.size());
    amrex::Gpu::DeviceVector<Real> d_xvel(data_xvel.size());
    amrex::Gpu::DeviceVector<Real> d_yvel(data_yvel.size());
    amrex::Gpu::DeviceVector<Real> d_zvel(data_zvel.size());

    // Step 2: copy data from host to device
    amrex::Gpu::copyAsync(amrex::Gpu::hostToDevice,
                      data_rho.begin(), data_rho.end(),
                      d_rho.begin());

    amrex::Gpu::copyAsync(amrex::Gpu::hostToDevice,
                      data_theta.begin(), data_theta.end(),
                      d_theta.begin());

    amrex::Gpu::copyAsync(amrex::Gpu::hostToDevice,
                      data_xvel.begin(), data_xvel.end(),
                      d_xvel.begin());

    amrex::Gpu::copyAsync(amrex::Gpu::hostToDevice,
                      data_yvel.begin(), data_yvel.end(),
                      d_yvel.begin());

    amrex::Gpu::copyAsync(amrex::Gpu::hostToDevice,
                      data_zvel.begin(), data_zvel.end(),
                      d_zvel.begin());

    const Real* rho_ptr   = d_rho.data();
    const Real* theta_ptr = d_theta.data();
    const Real* xvel_ptr  = d_xvel.data();
    const Real* yvel_ptr  = d_yvel.data();
    const Real* zvel_ptr  = d_zvel.data();
    // -------------------------------
    // GPU kernel over MultiFab
    // -------------------------------
    for (MFIter mfi(mf_fine); mfi.isValid(); ++mfi)
    {
        const Box& bx = mfi.validbox();
        auto arr = mf_fine.array(mfi);

        amrex::ParallelFor(bx,
        [=] AMREX_GPU_DEVICE (int i, int j, int k) noexcept
        {
            // physical location (fine cell center)
            Real x = problo_f[0] + (i + 0.5) * dx_f[0];
            Real y = problo_f[1] + (j + 0.5) * dx_f[1];
            Real z = problo_f[2] + (k + 0.5) * dx_f[2];

            // map to coarse index space
            Real rx = (x - problo[0]) / dx_c[0] - 0.5;
            Real ry = (y - problo[1]) / dx_c[1] - 0.5;
            Real rz = (z - problo[2]) / dx_c[2] - 0.5;

            int ic = static_cast<int>(floor(rx));
            int jc = static_cast<int>(floor(ry));
            int kc = static_cast<int>(floor(rz));

            Real tx = rx - ic;
            Real ty = ry - jc;
            Real tz = rz - kc;

            // clamp
            ic = amrex::max(0, amrex::min(ic, nx-1));
            jc = amrex::max(0, amrex::min(jc, ny-1));
            kc = amrex::max(0, amrex::min(kc, nz-1));

            //printf("The values are x, y, z, rx, ry, rz = %0.15g %0.15g %0.15g %0.15g %0.15g %0.15g\n", x, y, z, rx, ry, rz);

            // interpolate each component using device trilinear
            arr(i,j,k,0) = interp_trilinear(rho_ptr,   ic,jc,kc, tx,ty,tz, nx,ny,nz);
            arr(i,j,k,1) = interp_trilinear(theta_ptr, ic,jc,kc, tx,ty,tz, nx,ny,nz);
            arr(i,j,k,2) = interp_trilinear(xvel_ptr,  ic,jc,kc, tx,ty,tz, nx,ny,nz);
            arr(i,j,k,3) = interp_trilinear(yvel_ptr,  ic,jc,kc, tx,ty,tz, nx,ny,nz);
            arr(i,j,k,4) = interp_trilinear(zvel_ptr,  ic,jc,kc, tx,ty,tz, nx,ny,nz);
        });
    }
}

Referenced by ERF::create_background_state_for_ensemble().

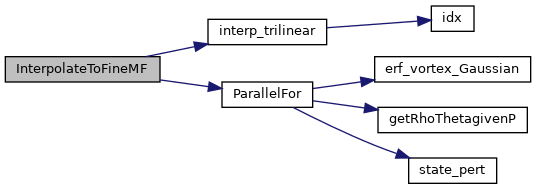

Here is the call graph for this function:

Here is the caller graph for this function:

MakeFinalMultiFabs()

void MakeFinalMultiFabs	(	const MultiFab &	mf_cc_fine,
		MultiFab &	cons_pert,
		MultiFab &	xvel_pert,
		MultiFab &	yvel_pert,
		MultiFab &	zvel_pert
	)

{

    for (MFIter mfi(cons_pert, TilingIfNotGPU()); mfi.isValid(); ++mfi)
    {
        const Box& bx = mfi.tilebox();

        auto const& mf_cc_fine_arr  = mf_cc_fine.const_array(mfi);
        auto const& cons_pert_arr = cons_pert.array(mfi);

        amrex::ParallelFor(bx, [=] AMREX_GPU_DEVICE (int i, int j, int k)
        {
            Real tmp_rho = mf_cc_fine_arr(i,j,k,0);
            Real tmp_theta = mf_cc_fine_arr(i,j,k,1);
            cons_pert_arr(i,j,k,Rho_comp) = tmp_rho;
            cons_pert_arr(i,j,k,RhoTheta_comp) = tmp_rho*tmp_theta;
        });
    }

    // --- X-faces (component 2) ---
    for (MFIter mfi(xvel_pert, TilingIfNotGPU()); mfi.isValid(); ++mfi)
    {
        const Box& bx = mfi.tilebox();
        auto const& uface = xvel_pert.array(mfi);
        auto const& cc    = mf_cc_fine.const_array(mfi);

        amrex::ParallelFor(bx, [=] AMREX_GPU_DEVICE (int i, int j, int k)
        {
            uface(i,j,k) = 0.5 * (cc(i-1,j,k,2) + cc(i,j,k,2));
        });
    }

    // --- Y-faces (component 3) ---
    for (MFIter mfi(yvel_pert, TilingIfNotGPU()); mfi.isValid(); ++mfi)
    {
        const Box& bx = mfi.tilebox();
        auto const& vface = yvel_pert.array(mfi);
        auto const& cc    = mf_cc_fine.const_array(mfi);

        amrex::ParallelFor(bx, [=] AMREX_GPU_DEVICE (int i, int j, int k)
        {
            vface(i,j,k) = 0.5 * (cc(i,j-1,k,3) + cc(i,j,k,3));
        });
    }

    // --- Z-faces (component 4) ---
    for (MFIter mfi(zvel_pert, TilingIfNotGPU()); mfi.isValid(); ++mfi)
    {
        const Box& bx = mfi.tilebox();
        auto const& wface = zvel_pert.array(mfi);
        //auto const& cc    = mf_cc_fine.const_array(mfi);

        amrex::ParallelFor(bx, [=] AMREX_GPU_DEVICE (int i, int j, int k)
        {
            wface(i,j,k) = 0.0;//0.5 * (cc(i,j,k-1,4) + cc(i,j,k,4));
        });
    }
}

Referenced by ERF::create_background_state_for_ensemble().

Here is the call graph for this function:

Here is the caller graph for this function:

NormalizeMultiFabRMS_PerComponent()

void NormalizeMultiFabRMS_PerComponent

(

MultiFab &

mf_cc_pert

)

{
    const int ncomp = mf_cc_pert.nComp();

    for (int n = 0; n < ncomp; ++n)
    {
        // 1. Set up AMReX reduction (sum of squares + count)
        ReduceOps<ReduceOpSum, ReduceOpSum> reduce_op;
        ReduceData<Real, Long> reduce_data(reduce_op);
        using ReduceTuple = typename decltype(reduce_data)::Type;

        // 2. Loop over tiles and accumulate
        for (MFIter mfi(mf_cc_pert, TilingIfNotGPU()); mfi.isValid(); ++mfi)
        {
            const Box& bx = mfi.tilebox();
            auto const& arr = mf_cc_pert.const_array(mfi);

            reduce_op.eval(bx, reduce_data,
                [=] AMREX_GPU_DEVICE (int i, int j, int k) noexcept -> ReduceTuple
                {
                    Real v = arr(i, j, k, n);
                    return { v * v, 1L };
                });
        }

        // 3. Retrieve results (includes implicit GPU sync + host copy)
        auto rv      = reduce_data.value(reduce_op);
        Real h_sumsq = amrex::get<0>(rv);
        Long h_count = amrex::get<1>(rv);

        // 4. Sum across MPI ranks
        ParallelDescriptor::ReduceRealSum(h_sumsq);
        ParallelDescriptor::ReduceLongSum(h_count);

        // 5. Compute RMS and normalize
        if (h_count > 0)
        {
            Real rms = std::sqrt(h_sumsq / static_cast<Real>(h_count));
            if (rms > 0.0) {
                mf_cc_pert.mult(1.0 / rms, n, 1);
            }
        }
    }
}

Referenced by ERF::apply_gaussian_smoothing_to_perturbations().

Here is the caller graph for this function:

read_plot_file()

void read_plot_file	(	PlotFileData &	pf,
		const std::vector< std::string >	varnames,
		MultiFab &	mf
	)

{
    // ------------------------------------------------------------
    // Open plotfile
    // ------------------------------------------------------------
    const std::vector<std::string>& var_names_pf = pf.varNames();

    // ------------------------------------------------------------
    // Validate requested variables
    // ------------------------------------------------------------
    for (auto const& v : varnames) {
        bool found = false;
        for (auto const& vpf : var_names_pf) {
            if (v == vpf) {
                found = true;
                break;
            }
        }
        if (!found) {
            Abort("read_plot_file: invalid variable name: " + v);
        }
    }

    // ------------------------------------------------------------
    // Define destination MultiFab (single level only)
    // ------------------------------------------------------------
    const int level = 0;

    BoxArray ba = pf.boxArray(level);
    DistributionMapping dm(ba);

    int ncomp = varnames.size();

    mf.define(ba, dm, ncomp, 0);

    // ------------------------------------------------------------
    // Copy plotfile data → mf
    // ------------------------------------------------------------
    for (int comp = 0; comp < ncomp; ++comp)
    {
        const MultiFab& src = pf.get(level, varnames[comp]);
        MultiFab::Copy(mf, src, 0, comp, 1, 0);
    }
}

Referenced by ERF::ComputeAndWriteEnsemblePerturbations().

Here is the caller graph for this function:

ReadCustomDataFile()

void ReadCustomDataFile	(	const std::string &	filename_custom,
		int &	nx,
		int &	ny,
		int &	nz,
		int &	ng,
		int &	ncomp,
		std::array< Real, 3 > &	problo_ext,
		std::array< Real, 3 > &	probhi_ext,
		Vector< Real > &	data_rho,
		Vector< Real > &	data_theta,
		Vector< Real > &	data_xvel,
		Vector< Real > &	data_yvel,
		Vector< Real > &	data_zvel
	)

{
    std::ifstream ifs(filename_custom, std::ios::binary);
    if (!ifs.is_open()) {
        Abort("Failed to open file " + filename_custom + " for reading");
    }

    // ----------------------------
    // Read header
    // ----------------------------
    ifs.read(reinterpret_cast<char*>(&nx), sizeof(int));
    ifs.read(reinterpret_cast<char*>(&ny), sizeof(int));
    ifs.read(reinterpret_cast<char*>(&nz), sizeof(int));

    ifs.read(reinterpret_cast<char*>(&ng), sizeof(int));
    ifs.read(reinterpret_cast<char*>(&ncomp), sizeof(int));

    ifs.read(reinterpret_cast<char*>(&problo_ext[0]), sizeof(Real));
    ifs.read(reinterpret_cast<char*>(&problo_ext[1]), sizeof(Real));
    ifs.read(reinterpret_cast<char*>(&problo_ext[2]), sizeof(Real));

    ifs.read(reinterpret_cast<char*>(&probhi_ext[0]), sizeof(Real));
    ifs.read(reinterpret_cast<char*>(&probhi_ext[1]), sizeof(Real));
    ifs.read(reinterpret_cast<char*>(&probhi_ext[2]), sizeof(Real));

    const std::size_t ncell = static_cast<std::size_t>(nx) * ny * nz;

    // ----------------------------
    // Allocate storage
    // ----------------------------
    data_rho.resize(ncell);
    data_theta.resize(ncell);
    data_xvel.resize(ncell);
    data_yvel.resize(ncell);
    data_zvel.resize(ncell);

    // ----------------------------
    // Read data
    // ----------------------------
    std::size_t idx = 0;

    for (int k = 0; k < nz; ++k)
    {
        for (int j = 0; j < ny; ++j)
        {
            for (int i = 0; i < nx; ++i)
            {
                // Skip coordinates
                Real x, y, z;
                ifs.read(reinterpret_cast<char*>(&x), sizeof(Real));
                ifs.read(reinterpret_cast<char*>(&y), sizeof(Real));
                ifs.read(reinterpret_cast<char*>(&z), sizeof(Real));

                // Read components (fixed order)
                ifs.read(reinterpret_cast<char*>(&data_rho[idx]),   sizeof(Real));
                ifs.read(reinterpret_cast<char*>(&data_theta[idx]), sizeof(Real));
                ifs.read(reinterpret_cast<char*>(&data_xvel[idx]),  sizeof(Real));
                ifs.read(reinterpret_cast<char*>(&data_yvel[idx]),  sizeof(Real));
                ifs.read(reinterpret_cast<char*>(&data_zvel[idx]),  sizeof(Real));

                ++idx;
            }
        }
    }

    ifs.close();
}

Referenced by ERF::create_background_state_for_ensemble().

Here is the call graph for this function:

Here is the caller graph for this function:
