IBSEBParams Struct Reference

#include <ERF_IBSEBParams.H>

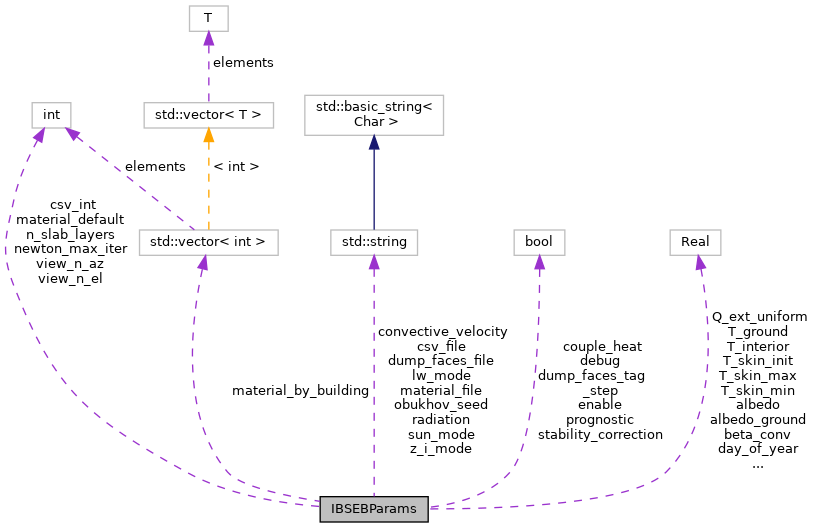

Collaboration diagram for IBSEBParams:

Public Member Functions
void	init_params ()

Public Attributes
bool	enable = false
	Master switch. More...
int	n_slab_layers = 4
	Conduction layers per face. More...
amrex::Real	T_skin_init = 300.0
	Initial skin temperature [K]. More...
amrex::Real	T_interior = 293.0
	Interior (deep) temperature [K]. More...
std::string	csv_file = "ibseb_buildings.csv"
	Per-building report. More...
int	csv_int = 100
	Steps between report rows; <= 0 disables. More...
bool	debug = false
	[IBSEB DEBUG] prints: set description at build, per-step summary, per-building rows More...
std::string	dump_faces_file
	Per-rank face dump at report time (empty = off); a refined level N adds ".levN". More...
bool	dump_faces_tag_step = false
	Name each dump by its step (keeps every one) instead of overwriting. More...
std::string	radiation = "prescribed"
std::string	sun_mode = "fixed"
amrex::Real	sun_zenith_deg = 45.0
	fixed: zenith angle [deg] More...
amrex::Real	sun_azimuth_deg = 180.0
	fixed: azimuth clockwise from north [deg]; 180 = sun in the south More...
amrex::Real	sw_direct_normal = 800.0
	fixed: direct-normal irradiance [W/m2] More...
amrex::Real	sw_diffuse = 100.0
	fixed: diffuse irradiance on a horizontal surface [W/m2] More...
amrex::Real	latitude_deg = 40.0
	solar: site latitude, north positive More...
amrex::Real	longitude_deg = -105.0
	solar: site longitude, east positive More...
amrex::Real	day_of_year = 172.0
	solar: day of year More...
amrex::Real	time_zero_utc_s = 12.0 * 3600.0
	solar: seconds after 00:00 UTC at simulation time zero (the sun follows UTC and the longitude) More...
amrex::Real	solar_constant = 1361.0
	solar: [W/m2] More...
amrex::Real	sw_transmission = 0.7
	solar, two_stream: bulk clear-sky transmission (Bird) More...
amrex::Real	sw_diffuse_coeff = 0.5
	solar, two_stream: share of the attenuated beam that arrives as diffuse light More...
amrex::Real	albedo = 0.3
	Face shortwave albedo. More...
amrex::Real	albedo_ground = 0.2
	Ground albedo for the reflected diffuse term. More...
amrex::Real	emissivity = 0.9
	Face longwave emissivity. More...
amrex::Real	emissivity_ground = 0.95
	Ground emissivity for the ground term. More...
int	view_n_az = 16
int	view_n_el = 8
std::string	lw_mode = "gray"
amrex::Real	lw_down = 300.0
	fixed: sky longwave [W/m2] More...
amrex::Real	sky_emissivity = 0.83
	gray: effective clear-sky emissivity More...
amrex::Real	T_ground = 300.0
	Ground temperature for the ground term [K]. More...
amrex::Real	z0_wall = 0.01
	Momentum roughness of the faces [m]. More...
amrex::Real	z0h_wall = 0.001
	Heat roughness of the faces [m]. More...
bool	stability_correction = false
bool	couple_heat = true
	Add the face flux to the temperature equation. More...
std::string	material_file
int	material_default = 1
std::vector< int >	material_by_building
amrex::Real	k_therm = 1.0
	Uniform conductivity [W/m/K]. More...
amrex::Real	rho_cp = 1.6e6
	Uniform volumetric heat capacity [J/m3/K]. More...
amrex::Real	thickness = 0.3
	Uniform slab thickness [m]. More...
bool	prognostic = true
amrex::Real	T_skin_min = 260.0
	Lower bound of the skin temperature [K]. More...
amrex::Real	T_skin_max = 380.0
	Upper bound [K]; raise it for faces under a fire. More...
int	newton_max_iter = 20
	Newton iteration cap per face and step. More...
amrex::Real	newton_tol_K = 1.0e-3
	Newton stops when a step changes T_skin by less than this [K]. More...
amrex::Real	newton_max_step_K = 20.0
	Largest Newton step [K]. More...
amrex::Real	Q_ext_uniform = 0.0
	Uniform external incident flux on every face [W/m2] (test hook) More...
std::string	obukhov_seed = "ground"
	"ground" or "neutral" More...
std::string	convective_velocity = "none"
	"none" or "deardorff" More...
amrex::Real	beta_conv = 1.2
	Gustiness factor on w*. More...
std::string	z_i_mode = "bulk_ri"
	"bulk_ri", "pblh" or "fixed" More...
amrex::Real	z_i = 1000.0
	Fixed mixed-layer depth [m] (z_i_mode = fixed, and the fallback) More...
amrex::Real	ri_crit = 0.25
	Critical bulk Richardson number of the diagnostic. More...
amrex::Real	obukhov_relax = 0.5
	Under-relaxation of the roof's u*, theta* iteration (1 = none), as erf-model #3486. More...

Member Function Documentation

init_params()

void IBSEBParams::init_params ( )

inline

Read the erf.ibseb.* inputs and validate them.

Only queried, never required: a deck without any erf.ibseb key gets the defaults above with the balance off. Validation is skipped when the balance is off so an unrelated deck cannot abort on an unused key.

    {
        amrex::ParmParse pp("erf.ibseb");
        pp.query("enable",        enable);
        pp.query("n_slab_layers", n_slab_layers);
        pp.query("T_skin_init",   T_skin_init);
        pp.query("T_interior",    T_interior);
        pp.query("csv_file",      csv_file);
        pp.query("csv_int",       csv_int);
        pp.query("debug",         debug);
        pp.query("dump_faces_file", dump_faces_file);
        pp.query("dump_faces_tag_step", dump_faces_tag_step);
        pp.query("radiation",        radiation);
        pp.query("sun_mode",         sun_mode);
        pp.query("sun_zenith_deg",   sun_zenith_deg);
        pp.query("sun_azimuth_deg",  sun_azimuth_deg);
        pp.query("sw_direct_normal", sw_direct_normal);
        pp.query("sw_diffuse",       sw_diffuse);
        pp.query("latitude_deg",     latitude_deg);
        pp.query("longitude_deg",    longitude_deg);
        pp.query("day_of_year",      day_of_year);
        pp.query("time_zero_utc_s",  time_zero_utc_s);
        pp.query("solar_constant",   solar_constant);
        pp.query("sw_transmission",  sw_transmission);
        pp.query("sw_diffuse_coeff", sw_diffuse_coeff);
        pp.query("albedo",           albedo);
        pp.query("albedo_ground",    albedo_ground);
        pp.query("emissivity",       emissivity);
        pp.query("emissivity_ground", emissivity_ground);
        pp.query("view_n_az",        view_n_az);
        pp.query("view_n_el",        view_n_el);
        pp.query("lw_mode",          lw_mode);
        pp.query("lw_down",          lw_down);
        pp.query("sky_emissivity",   sky_emissivity);
        pp.query("T_ground",         T_ground);
        pp.query("z0_wall",          z0_wall);
        pp.query("z0h_wall",         z0h_wall);
        pp.query("stability_correction", stability_correction);
        pp.query("couple_heat",      couple_heat);
        pp.query("material_file",    material_file);
        pp.query("material_default", material_default);
        pp.queryarr("material_by_building", material_by_building);
        pp.query("k_therm",          k_therm);
        pp.query("rho_cp",           rho_cp);
        pp.query("thickness",        thickness);
        pp.query("prognostic",       prognostic);
        pp.query("T_skin_min",       T_skin_min);
        pp.query("T_skin_max",       T_skin_max);
        pp.query("newton_max_iter",  newton_max_iter);
        pp.query("newton_tol_K",     newton_tol_K);
        pp.query("newton_max_step_K", newton_max_step_K);
        pp.query("Q_ext_uniform",    Q_ext_uniform);
        pp.query("obukhov_seed",        obukhov_seed);
        pp.query("convective_velocity", convective_velocity);
        pp.query("beta_conv",           beta_conv);
        pp.query("z_i_mode",            z_i_mode);
        pp.query("z_i",                 z_i);
        pp.query("ri_crit",             ri_crit);
        pp.query("obukhov_relax",       obukhov_relax);
        if (enable) {
            if (radiation != "prescribed" && radiation != "two_stream") {
                amrex::Abort("erf.ibseb.radiation must be \"prescribed\" or \"two_stream\"");
            }
            // The column's longwave goes with its shortwave unless the deck says otherwise.
            if (radiation == "two_stream" && !pp.contains("lw_mode")) { lw_mode = "two_stream"; }
            // The columns bring the irradiances and the ground's reflection; the
            // clear-sky formulas and the uniform ground albedo are not used.
            if (radiation == "two_stream") {
                for (const char* k : {"sw_direct_normal", "sw_diffuse", "sw_transmission", "sw_diffuse_coeff",
                                      "solar_constant", "albedo_ground"}) {
                    if (pp.contains(k)) {
                        amrex::Abort(std::string("erf.ibseb.") + k + " is not used with erf.ibseb.radiation = two_stream:"
                                     " the faces take the two-stream columns' irradiances and the ground's reflection;"
                                     " remove it");
                    }
                }
            }
            if (sun_mode != "fixed" && sun_mode != "solar" && sun_mode != "two_stream") {
                amrex::Abort("erf.ibseb.sun_mode must be \"fixed\", \"solar\" or \"two_stream\"");
            }
            // The two-stream sun brings its own position, site, date and irradiance.
            if (sun_mode == "two_stream") {
                for (const char* k : {"latitude_deg", "longitude_deg", "day_of_year", "time_zero_utc_s", "solar_constant",
                                      "sun_zenith_deg", "sun_azimuth_deg", "sw_direct_normal", "sw_diffuse"}) {
                    if (pp.contains(k)) {
                        amrex::Abort(std::string("erf.ibseb.") + k + " is not used with erf.ibseb.sun_mode = two_stream:"
                                     " the faces take the two-stream sun (start_datetime, erf.rad_cons_lat / lon,"
                                     " erf.fixed_total_solar_irradiance); remove it");
                    }
                }
            }
            if (sun_zenith_deg < 0.0 || sun_zenith_deg > 180.0) { amrex::Abort("erf.ibseb.sun_zenith_deg must be in [0, 180]"); }
            if (latitude_deg < -90.0 || latitude_deg > 90.0) { amrex::Abort("erf.ibseb.latitude_deg must be in [-90, 90]"); }
            if (longitude_deg < -180.0 || longitude_deg > 180.0) { amrex::Abort("erf.ibseb.longitude_deg must be in [-180, 180]"); }
            if (day_of_year < 1.0 || day_of_year > 366.0) { amrex::Abort("erf.ibseb.day_of_year must be in [1, 366]"); }
            // The sun is computed from UTC (time_zero_utc_s) and the longitude; a
            // time-zone offset has no place in that and used to cancel silently.
            if (pp.contains("utc_offset_hours")) {
                amrex::Abort("erf.ibseb.utc_offset_hours is not an input: the sun follows time_zero_utc_s (UTC) and longitude_deg; remove it");
            }
            if (sw_direct_normal < 0.0 || sw_diffuse < 0.0) { amrex::Abort("erf.ibseb.sw_direct_normal and sw_diffuse must be >= 0"); }
            if (sw_transmission <= 0.0 || sw_transmission > 1.0) { amrex::Abort("erf.ibseb.sw_transmission must be in (0, 1]"); }
            if (albedo < 0.0 || albedo > 1.0 || albedo_ground < 0.0 || albedo_ground > 1.0) {
                amrex::Abort("erf.ibseb.albedo and albedo_ground must be in [0, 1]");
            }
            if (emissivity <= 0.0 || emissivity > 1.0 || emissivity_ground <= 0.0 || emissivity_ground > 1.0 ||
                sky_emissivity <= 0.0 || sky_emissivity > 1.0) {
                amrex::Abort("erf.ibseb emissivities must be in (0, 1]");
            }
            if (view_n_az < 1 || view_n_el < 1) { amrex::Abort("erf.ibseb.view_n_az and view_n_el must be >= 1"); }
            if (lw_mode != "fixed" && lw_mode != "gray" && lw_mode != "two_stream") {
                amrex::Abort("erf.ibseb.lw_mode must be \"fixed\", \"gray\" or \"two_stream\"");
            }
            if (lw_mode == "two_stream" && radiation != "two_stream") {
                amrex::Abort("erf.ibseb.lw_mode = two_stream needs erf.ibseb.radiation = two_stream");
            }
            if (lw_mode == "two_stream") {
                for (const char* k : {"lw_down", "sky_emissivity", "T_ground", "emissivity_ground"}) {
                    if (pp.contains(k)) {
                        amrex::Abort(std::string("erf.ibseb.") + k + " is not used with erf.ibseb.lw_mode = two_stream:"
                                     " the faces take the two-stream columns' longwave down and the ground's longwave up;"
                                     " remove it");
                    }
                }
            }
            if (lw_down < 0.0 || T_ground <= 0.0) { amrex::Abort("erf.ibseb.lw_down must be >= 0 and T_ground > 0"); }
            if (z0_wall <= 0.0 || z0h_wall <= 0.0) { amrex::Abort("erf.ibseb.z0_wall and z0h_wall must be positive [m]"); }
            if (k_therm <= 0.0 || rho_cp <= 0.0 || thickness <= 0.0) { amrex::Abort("erf.ibseb.k_therm, rho_cp and thickness must be positive"); }
            if (n_slab_layers > 32) { amrex::Abort("erf.ibseb.n_slab_layers must be <= 32 (the slab kernels keep their layers on the stack)"); }
            if (n_slab_layers < 1) { amrex::Abort("erf.ibseb.n_slab_layers must be >= 1"); }
            if (T_skin_init <= 0.0 || T_interior <= 0.0) {
                amrex::Abort("erf.ibseb.T_skin_init and T_interior must be positive [K]");
            }
            if (T_skin_min <= 0.0 || T_skin_max <= T_skin_min) {
                amrex::Abort("erf.ibseb.T_skin_min must be positive and below T_skin_max");
            }
            if (prognostic && (T_skin_init < T_skin_min || T_skin_init > T_skin_max)) {
                amrex::Abort("erf.ibseb.T_skin_init must lie within [T_skin_min, T_skin_max]");
            }
            if (newton_max_iter < 1 || newton_tol_K <= 0.0 || newton_max_step_K <= 0.0) {
                amrex::Abort("erf.ibseb.newton_max_iter must be >= 1, newton_tol_K and newton_max_step_K positive");
            }
            if (Q_ext_uniform < 0.0) { amrex::Abort("erf.ibseb.Q_ext_uniform must be >= 0"); }
            if (obukhov_seed != "ground" && obukhov_seed != "neutral") { amrex::Abort("erf.ibseb.obukhov_seed must be \"ground\" or \"neutral\""); }
            if (convective_velocity != "none" && convective_velocity != "deardorff") {
                amrex::Abort("erf.ibseb.convective_velocity must be \"none\" or \"deardorff\"");
            }
            if (z_i_mode != "bulk_ri" && z_i_mode != "pblh" && z_i_mode != "fixed") {
                amrex::Abort("erf.ibseb.z_i_mode must be \"bulk_ri\", \"pblh\" or \"fixed\"");
            }
            if (beta_conv <= 0.0 || z_i <= 0.0 || ri_crit <= 0.0) { amrex::Abort("erf.ibseb.beta_conv, z_i and ri_crit must be positive"); }
            if (obukhov_relax <= 0.0 || obukhov_relax > 1.0) { amrex::Abort("erf.ibseb.obukhov_relax must be in (0, 1]"); }
        }
    }

Here is the call graph for this function:

Member Data Documentation

albedo

amrex::Real IBSEBParams::albedo = 0.3

Face shortwave albedo.

Referenced by init_params().

albedo_ground

amrex::Real IBSEBParams::albedo_ground = 0.2

Ground albedo for the reflected diffuse term.

Referenced by IBFaceSet::compute_shortwave(), and init_params().

beta_conv

amrex::Real IBSEBParams::beta_conv = 1.2

Gustiness factor on w*.

Referenced by init_params().

convective_velocity

std::string IBSEBParams::convective_velocity = "none"

"none" or "deardorff"

Referenced by init_params().

couple_heat

bool IBSEBParams::couple_heat = true

Add the face flux to the temperature equation.

Referenced by init_params().

csv_file

std::string IBSEBParams::csv_file = "ibseb_buildings.csv"

Per-building report.

Referenced by init_params(), IBFaceSet::print_debug_summary(), and IBFaceSet::report().

csv_int

int IBSEBParams::csv_int = 100

Steps between report rows; <= 0 disables.

Referenced by init_params(), and IBFaceSet::print_debug_summary().

day_of_year

amrex::Real IBSEBParams::day_of_year = 172.0

solar: day of year

Referenced by IBFaceSet::compute_shortwave(), and init_params().

debug

bool IBSEBParams::debug = false

[IBSEB DEBUG] prints: set description at build, per-step summary, per-building rows

Referenced by IBFaceSet::compute_shortwave(), IBFaceSet::compute_shortwave_two_stream(), init_params(), IBFaceSet::load_state(), IBFaceSet::report(), and IBFaceSet::save_state().

dump_faces_file

std::string IBSEBParams::dump_faces_file

Per-rank face dump at report time (empty = off); a refined level N adds ".levN".

Referenced by init_params(), and IBFaceSet::report().

dump_faces_tag_step

bool IBSEBParams::dump_faces_tag_step = false

Name each dump by its step (keeps every one) instead of overwriting.

Referenced by init_params(), and IBFaceSet::report().

emissivity

amrex::Real IBSEBParams::emissivity = 0.9

Face longwave emissivity.

Referenced by init_params().

emissivity_ground

amrex::Real IBSEBParams::emissivity_ground = 0.95

Ground emissivity for the ground term.

Referenced by init_params().

enable

bool IBSEBParams::enable = false

Master switch.

Referenced by ERF::ibseb_after_radiation(), and init_params().

k_therm

amrex::Real IBSEBParams::k_therm = 1.0

Uniform conductivity [W/m/K].

Referenced by init_params().

latitude_deg

amrex::Real IBSEBParams::latitude_deg = 40.0

solar: site latitude, north positive

Referenced by IBFaceSet::compute_shortwave(), and init_params().

longitude_deg

amrex::Real IBSEBParams::longitude_deg = -105.0

solar: site longitude, east positive

Referenced by IBFaceSet::compute_shortwave(), and init_params().

lw_down

amrex::Real IBSEBParams::lw_down = 300.0

fixed: sky longwave [W/m2]

Referenced by init_params().

lw_mode

std::string IBSEBParams::lw_mode = "gray"

Referenced by init_params().

material_by_building

std::vector<int> IBSEBParams::material_by_building

Referenced by init_params().

material_default

int IBSEBParams::material_default = 1

Referenced by init_params().

material_file

std::string IBSEBParams::material_file

Referenced by init_params().

n_slab_layers

int IBSEBParams::n_slab_layers = 4

Conduction layers per face.

Referenced by init_params(), and IBFaceSet::n_layers().

newton_max_iter

int IBSEBParams::newton_max_iter = 20

Newton iteration cap per face and step.

Referenced by init_params().

newton_max_step_K

amrex::Real IBSEBParams::newton_max_step_K = 20.0

Largest Newton step [K].

Referenced by init_params().

newton_tol_K

amrex::Real IBSEBParams::newton_tol_K = 1.0e-3

Newton stops when a step changes T_skin by less than this [K].

Referenced by init_params().

obukhov_relax

amrex::Real IBSEBParams::obukhov_relax = 0.5

Under-relaxation of the roof's u*, theta* iteration (1 = none), as erf-model #3486.

Referenced by init_params().

obukhov_seed

std::string IBSEBParams::obukhov_seed = "ground"

"ground" or "neutral"

Referenced by init_params().

prognostic

bool IBSEBParams::prognostic = true

Referenced by init_params().

Q_ext_uniform

amrex::Real IBSEBParams::Q_ext_uniform = 0.0

Uniform external incident flux on every face [W/m2] (test hook)

Referenced by init_params().

radiation

std::string IBSEBParams::radiation = "prescribed"

Referenced by IBFaceSet::compute_shortwave(), ERF::ibseb_after_radiation(), and init_params().

rho_cp

amrex::Real IBSEBParams::rho_cp = 1.6e6

Uniform volumetric heat capacity [J/m3/K].

Referenced by init_params().

ri_crit

amrex::Real IBSEBParams::ri_crit = 0.25

Critical bulk Richardson number of the diagnostic.

Referenced by init_params().

sky_emissivity

amrex::Real IBSEBParams::sky_emissivity = 0.83

gray: effective clear-sky emissivity

Referenced by init_params().

solar_constant

amrex::Real IBSEBParams::solar_constant = 1361.0

solar: [W/m2]

Referenced by IBFaceSet::compute_shortwave(), and init_params().

stability_correction

bool IBSEBParams::stability_correction = false

Referenced by init_params().

sun_azimuth_deg

amrex::Real IBSEBParams::sun_azimuth_deg = 180.0

fixed: azimuth clockwise from north [deg]; 180 = sun in the south

Referenced by IBFaceSet::compute_shortwave(), and init_params().

sun_mode

std::string IBSEBParams::sun_mode = "fixed"

Referenced by IBFaceSet::compute_shortwave(), and init_params().

sun_zenith_deg

amrex::Real IBSEBParams::sun_zenith_deg = 45.0

fixed: zenith angle [deg]

Referenced by IBFaceSet::compute_shortwave(), and init_params().

sw_diffuse

amrex::Real IBSEBParams::sw_diffuse = 100.0

fixed: diffuse irradiance on a horizontal surface [W/m2]

Referenced by IBFaceSet::compute_shortwave(), and init_params().

sw_diffuse_coeff

amrex::Real IBSEBParams::sw_diffuse_coeff = 0.5

solar, two_stream: share of the attenuated beam that arrives as diffuse light

Referenced by IBFaceSet::compute_shortwave(), and init_params().

sw_direct_normal

amrex::Real IBSEBParams::sw_direct_normal = 800.0

fixed: direct-normal irradiance [W/m2]

Referenced by IBFaceSet::compute_shortwave(), and init_params().

sw_transmission

amrex::Real IBSEBParams::sw_transmission = 0.7

solar, two_stream: bulk clear-sky transmission (Bird)

Referenced by IBFaceSet::compute_shortwave(), and init_params().

T_ground

amrex::Real IBSEBParams::T_ground = 300.0

Ground temperature for the ground term [K].

Referenced by init_params().

T_interior

amrex::Real IBSEBParams::T_interior = 293.0

Interior (deep) temperature [K].

Referenced by init_params(), and IBFaceSet::print_debug_summary().

T_skin_init

amrex::Real IBSEBParams::T_skin_init = 300.0

Initial skin temperature [K].

Referenced by init_params(), and IBFaceSet::print_debug_summary().

T_skin_max

amrex::Real IBSEBParams::T_skin_max = 380.0

Upper bound [K]; raise it for faces under a fire.

Referenced by init_params().

T_skin_min

amrex::Real IBSEBParams::T_skin_min = 260.0

Lower bound of the skin temperature [K].

Referenced by init_params().

thickness

amrex::Real IBSEBParams::thickness = 0.3

Uniform slab thickness [m].

Referenced by init_params().

time_zero_utc_s

amrex::Real IBSEBParams::time_zero_utc_s = 12.0 * 3600.0

solar: seconds after 00:00 UTC at simulation time zero (the sun follows UTC and the longitude)

Referenced by IBFaceSet::compute_shortwave(), and init_params().

view_n_az

int IBSEBParams::view_n_az = 16

Referenced by init_params().

view_n_el

int IBSEBParams::view_n_el = 8

Referenced by init_params().

z0_wall

amrex::Real IBSEBParams::z0_wall = 0.01

Momentum roughness of the faces [m].

Referenced by init_params().

z0h_wall

amrex::Real IBSEBParams::z0h_wall = 0.001

Heat roughness of the faces [m].

Referenced by init_params().

z_i

amrex::Real IBSEBParams::z_i = 1000.0

Fixed mixed-layer depth [m] (z_i_mode = fixed, and the fallback)

Referenced by init_params().

z_i_mode

std::string IBSEBParams::z_i_mode = "bulk_ri"

"bulk_ri", "pblh" or "fixed"

Referenced by init_params().

---

The documentation for this struct was generated from the following file:

• Source/ImmersedBoundarySEB/ERF_IBSEBParams.H
