MoistureComponentIndices::CompList Struct Reference

An ordered list of conserved-state components forming an aggregate moisture output variable (qt, qn, qp, moist_density). More...

#include <ERF_DataStruct.H>

Collaboration diagram for MoistureComponentIndices::CompList:

Public Member Functions
void	append (int c)
	Append a component, ignoring the ones the scheme does not carry. More...
bool	empty () const

Public Attributes
int	comp [max_size] = {absent, absent, absent, absent, absent, absent}
int	size = 0

Static Public Attributes
static constexpr int	max_size = 6
	qv, qc, qi, qr, qs, qg More...

Detailed Description

An ordered list of conserved-state components forming an aggregate moisture output variable (qt, qn, qp, moist_density).

Only the species the active scheme carries are appended, so a consumer can sum the list without first asking which ones exist.

Member Function Documentation

append()

void MoistureComponentIndices::CompList::append ( int  c )

inline

Append a component, ignoring the ones the scheme does not carry.

                            {
            if ( (c >= 0) && (size < max_size) ) { comp[size++] = c; }
        }

Referenced by MoistureComponentIndices::nonprecipitating_comps(), MoistureComponentIndices::precipitating_comps(), and MoistureComponentIndices::total_water_comps().

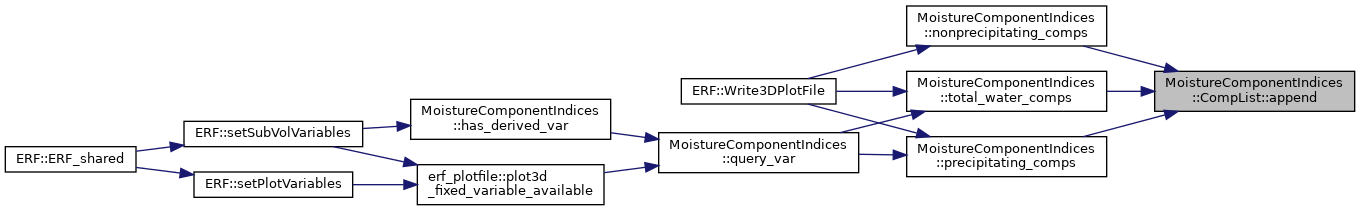

Here is the caller graph for this function:

empty()

bool MoistureComponentIndices::CompList::empty ( ) const

inline

{ return (size == 0); }

Referenced by MoistureComponentIndices::query_var().

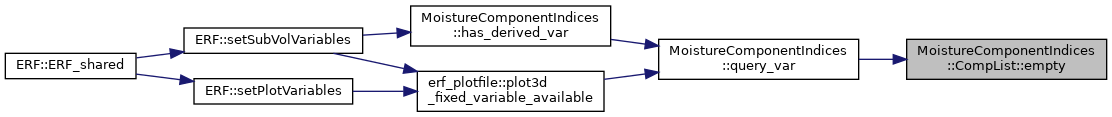

Here is the caller graph for this function:

Member Data Documentation

comp

int MoistureComponentIndices::CompList::comp[max_size] = {absent, absent, absent, absent, absent, absent}

Referenced by append().

max_size

constexpr int MoistureComponentIndices::CompList::max_size = 6

staticconstexpr

qv, qc, qi, qr, qs, qg

Referenced by append().

size

int MoistureComponentIndices::CompList::size = 0

Referenced by append(), and empty().

---

The documentation for this struct was generated from the following file:

• Source/DataStructs/ERF_DataStruct.H
