ERF_GetRhoAlpha.H File Reference

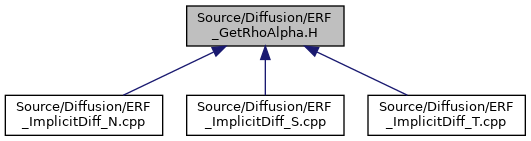

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE void	getRhoAlpha (int i, int j, int k, amrex::Real &rhoAlpha_lo, amrex::Real &rhoAlpha_hi, const amrex::Array4< const amrex::Real > &cell_data, const amrex::Array4< const amrex::Real > &mu_turb, const amrex::Real *d_alpha_eff, const int *d_eddy_diff_idz, int prim_index, int prim_scal_index, bool l_consA, bool l_turb)

Function Documentation

getRhoAlpha()

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE void getRhoAlpha	(	int	i,
		int	j,
		int	k,
		amrex::Real &	rhoAlpha_lo,
		amrex::Real &	rhoAlpha_hi,
		const amrex::Array4< const amrex::Real > &	cell_data,
		const amrex::Array4< const amrex::Real > &	mu_turb,
		const amrex::Real *	d_alpha_eff,
		const int *	d_eddy_diff_idz,
		int	prim_index,
		int	prim_scal_index,
		bool	l_consA,
		bool	l_turb
	)

Average rhoAlpha from cell centers to the lower and upper z-faces.

Parameters

[in]	i	cell-centered i-index
[in]	j	cell-centered j-index
[in]	k	cell-centered k-index
[out]	rhoAlpha_lo	rhoAlpha averaged to the lower z-face
[out]	rhoAlpha_hi	rhoAlpha averaged to the upper z-face
[in]	cell_data	conserved cell-centered state
[in]	mu_turb	turbulent diffusivity
[in]	d_alpha_eff	effective molecular diffusivity by primitive component
[in]	d_eddy_diff_idz	vertical eddy-diffusivity component map
[in]	prim_index	primitive component index
[in]	prim_scal_index	scalar primitive component index
[in]	l_consA	flag for conservative constant-alpha diffusion
[in]	l_turb	flag for turbulent diffusion

{
    if (l_consA && l_turb) {
        rhoAlpha_lo = myhalf * ( cell_data(i,j,k,Rho_comp) + cell_data(i,j,k-1,Rho_comp) ) * d_alpha_eff[prim_scal_index]
                    + myhalf * ( mu_turb(i,j,k  , d_eddy_diff_idz[prim_scal_index])
                               + mu_turb(i,j,k-1, d_eddy_diff_idz[prim_scal_index]) );
        rhoAlpha_hi = myhalf * ( cell_data(i,j,k,Rho_comp) + cell_data(i,j,k+1,Rho_comp) ) * d_alpha_eff[prim_scal_index]
                    + myhalf * ( mu_turb(i,j,k  , d_eddy_diff_idz[prim_scal_index])
                               + mu_turb(i,j,k+1, d_eddy_diff_idz[prim_scal_index]) );
    }
    else if (l_turb) // with MolecDiffType::Constant or None
    {
        rhoAlpha_lo = d_alpha_eff[prim_index]
                    + myhalf * ( mu_turb(i,j,k  , d_eddy_diff_idz[prim_index])
                               + mu_turb(i,j,k-1, d_eddy_diff_idz[prim_index]) );
        rhoAlpha_hi =  d_alpha_eff[prim_index]
                    + myhalf * ( mu_turb(i,j,k  , d_eddy_diff_idz[prim_index])
                               + mu_turb(i,j,k+1, d_eddy_diff_idz[prim_index]) );
    }
    else if (l_consA) // without an LES/PBL model
    {
        rhoAlpha_lo = myhalf * ( cell_data(i,j,k,Rho_comp) + cell_data(i,j,k-1,Rho_comp) ) * d_alpha_eff[prim_index];
        rhoAlpha_hi = myhalf * ( cell_data(i,j,k,Rho_comp) + cell_data(i,j,k+1,Rho_comp) ) * d_alpha_eff[prim_index];
    }
    else // with MolecDiffType::Constant or None - without an LES/PBL model
    {
        rhoAlpha_lo = d_alpha_eff[prim_index];
        rhoAlpha_hi = d_alpha_eff[prim_index];
    }
}

Referenced by ImplicitDiffForStateLU_N(), ImplicitDiffForStateLU_S(), and ImplicitDiffForStateLU_T().

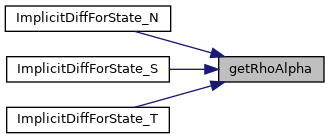

Here is the caller graph for this function:
