ERF_PlanarBoundary.cpp File Reference

#include <ERF_PlanarBoundary.H>
#include <algorithm>

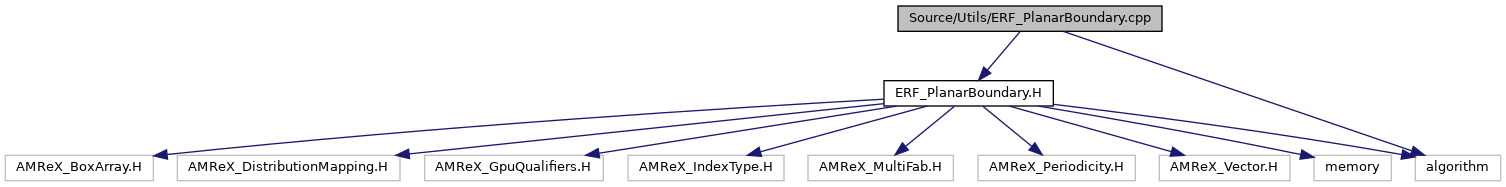

Include dependency graph for ERF_PlanarBoundary.cpp:

Functions
std::unique_ptr< MultiFab >	copy_ground_plane (const MultiFab &src, int klo)
void	sum_over_stacked_boxes (MultiFab &mf, int comp, int ncomp)

Function Documentation

copy_ground_plane()

std::unique_ptr<MultiFab> copy_ground_plane	(	const MultiFab &	src,
		int	klo
	)

The ground plane of a field on a level's 3D grids, on one planar box per 3D box (see ERF_PlanarBoundary.H).

Parameters

[in]	src	field on the level's 3D grids
[in]	klo	index of the lowest cell of the domain

{
    const IndexType ixtype = src.ixType();
    const BoxArray& ba = src.boxArray();
    const int ncomp = src.nComp();

    BoxList bl(ixtype);
    for (int ib = 0; ib < static_cast<int>(ba.size()); ++ib) {
        Box b = enclosedCells(ba[ib]);
        b.setRange(2, klo);
        bl.push_back(convert(b, ixtype));
    }
    auto plane = std::make_unique<MultiFab>(BoxArray(std::move(bl)), src.DistributionMap(), ncomp, 0);

    // Every box first holds the lowest plane of its own 3D box, so that it holds finite
    // values even over columns in which no box reaches the ground
    for (MFIter mfi(*plane); mfi.isValid(); ++mfi) {
        const Box& pbx = mfi.validbox();
        const int dk = enclosedCells(ba[mfi.index()]).smallEnd(2) - klo;
        (*plane)[mfi].copy<RunOn::Device>(src[mfi], amrex::shift(pbx, 2, dk), 0, pbx, 0, ncomp);
    }

    // Then the ground plane, from the boxes that hold it
    plane->ParallelCopy(src, 0, 0, ncomp);

    return plane;
}

Referenced by ERF::check_mesh_type(), ERF::FillPlot2DVars(), SLM::Init(), and SLM::initialize_zrefxy().

Here is the caller graph for this function:

sum_over_stacked_boxes()

void sum_over_stacked_boxes	(	MultiFab &	mf,
		int	comp,
		int	ncomp
	)

Finish a column sum computed box by box on a planar MultiFab (see ERF_PlanarBoundary.H).

Parameters

[in,out]	mf	planar MultiFab, one box per 3D box
[in]	comp	first component holding a column sum
[in]	ncomp	number of components

{
    if (mf.boxArray().isDisjoint()) { return; }

    // The columns covered by the planar boxes, each in exactly one box
    BoxArray ba_cols(mf.boxArray().boxList());
    ba_cols.removeOverlap();
    MultiFab sums(ba_cols, DistributionMapping(ba_cols), ncomp, 0);
    sums.setVal(0.0);

    // Every planar box adds its part into the columns it covers, then each takes the totals back
    sums.ParallelAdd(mf, comp, 0, ncomp);
    mf.ParallelCopy(sums, 0, comp, ncomp);
}

Referenced by ERF::FillPlot2DVars(), and ERF::volWgtColumnSum().

Here is the caller graph for this function:
