ERF_TimestepUtils.H File Reference

#include <ERF_Constants.H>
#include <ERF_TerrainMetrics.H>
#include <AMReX.H>
#include <AMReX_REAL.H>
#include <AMReX_Array.H>
#include <AMReX_Array4.H>
#include <AMReX_Algorithm.H>
#include <AMReX_Math.H>
#include <cmath>

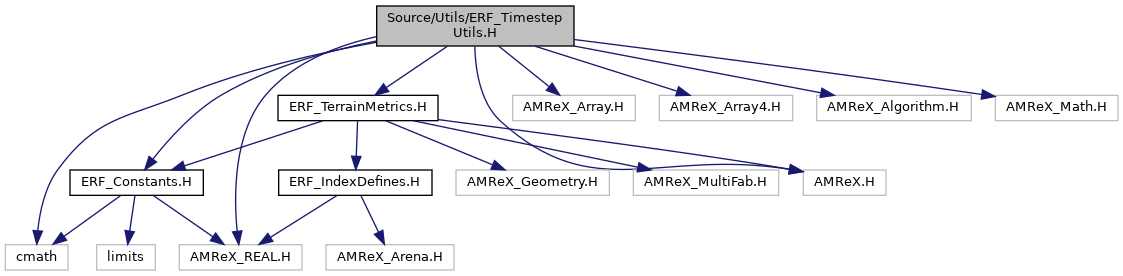

Include dependency graph for ERF_TimestepUtils.H:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE amrex::Real	Compute_InvDt_Compressible (const int i, const int j, const int k, const amrex::Real c, const amrex::Real u, const amrex::Real v, const amrex::Real w, const amrex::Array4< const amrex::Real > &z_nd, const amrex::Real mf_x, const amrex::Real mf_y, const amrex::GpuArray< amrex::Real, AMREX_SPACEDIM > &dxinv, const bool l_terrain_aware, const bool l_substepping, const int nxc=2, const int nyc=2)
AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE amrex::Real	Compute_InvDt_Anelastic (const int i, const int j, const int k, const amrex::Real u, const amrex::Real v, const amrex::Real w, const amrex::Array4< const amrex::Real > &z_nd, const amrex::Real mf_x, const amrex::Real mf_y, const amrex::GpuArray< amrex::Real, AMREX_SPACEDIM > &dxinv, const bool l_terrain_aware)

Function Documentation

Compute_InvDt_Anelastic()

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE amrex::Real Compute_InvDt_Anelastic	(	const int	i,
		const int	j,
		const int	k,
		const amrex::Real	u,
		const amrex::Real	v,
		const amrex::Real	w,
		const amrex::Array4< const amrex::Real > &	z_nd,
		const amrex::Real	mf_x,
		const amrex::Real	mf_y,
		const amrex::GpuArray< amrex::Real, AMREX_SPACEDIM > &	dxinv,
		const bool	l_terrain_aware
	)

Pointwise inverse time step (1/dt, before the CFL is applied) for the anelastic (low Mach) solver – this is a purely advective constraint.

As above, the metric terms are computed here from z_nd:

terrain aware : the vertical spacing is the local dxinv[2]/h_zeta and w should be the contravariant (Omega) vertical velocity terrain unaware : the vertical spacing is dxinv[2] and w should be the Cartesian vertical velocity

The slope metrics h_xi and h_eta do not appear explicitly: for the advective constraint their effect is already carried by Omega, which is the vertical velocity relative to the terrain-following surfaces.

As in the compressible estimate, the horizontal terms use the physical cell widths dx/mf_x and dy/mf_y.

Parameters

[in]	i	x-index
[in]	j	y-index
[in]	k	z-index
[in]	u	cell-centered x-velocity
[in]	v	cell-centered y-velocity
[in]	w	cell-centered vertical velocity (Omega if terrain aware)
[in]	z_nd	nodal physical height field (not accessed if terrain unaware)
[in]	mf_x	x map factor at the cell center
[in]	mf_y	y map factor at the cell center
[in]	dxinv	inverse cell spacing of the computational mesh
[in]	l_terrain_aware	true to include the metric terms

Returns

1/dt for this cell

{
    amrex::Real idz = dxinv[2];
    if (l_terrain_aware) {
        idz /= Compute_h_zeta_AtCellCenter(i,j,k,dxinv,z_nd);
    }

    return ( amrex::Math::abs(u)*mf_x*dxinv[0]
           + amrex::Math::abs(v)*mf_y*dxinv[1]
           + amrex::Math::abs(w)*idz     );
}

Referenced by ERF::estTimeStep().

Here is the call graph for this function:

Here is the caller graph for this function:

Compute_InvDt_Compressible()

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE amrex::Real Compute_InvDt_Compressible	(	const int	i,
		const int	j,
		const int	k,
		const amrex::Real	c,
		const amrex::Real	u,
		const amrex::Real	v,
		const amrex::Real	w,
		const amrex::Array4< const amrex::Real > &	z_nd,
		const amrex::Real	mf_x,
		const amrex::Real	mf_y,
		const amrex::GpuArray< amrex::Real, AMREX_SPACEDIM > &	dxinv,
		const bool	l_terrain_aware,
		const bool	l_substepping,
		const int	nxc = 2,
		const int	nyc = 2
	)

Pointwise inverse time step (1/dt, before the CFL is applied) for the compressible solver.

The terrain metric terms are computed here from z_nd, so the same routine returns either the terrain aware or the terrain unaware estimate:

terrain aware : h_xi and h_eta are retained and the vertical spacing is the local dxinv[2]/h_zeta – w should be the contravariant (Omega) vertical velocity terrain unaware : h_xi = h_eta = 0 and the vertical spacing is dxinv[2] – w should be the Cartesian vertical velocity

Note that dxinv[2]*(h_xi/h_zeta) == h_xi*idz, which is why h_zeta only ever enters through idz.

The physical horizontal cell widths are dx/mf_x and dy/mf_y, so every horizontal term (advective and acoustic, including the h_xi and h_eta slope contributions) is scaled by the map factor in that direction. The map factors do not touch the vertical.

Parameters

[in]	i	x-index
[in]	j	y-index
[in]	k	z-index
[in]	c	sound speed
[in]	u	cell-centered x-velocity
[in]	v	cell-centered y-velocity
[in]	w	cell-centered vertical velocity (Omega if terrain aware)
[in]	z_nd	nodal physical height field (not accessed if terrain unaware)
[in]	mf_x	x map factor at the cell center
[in]	mf_y	y map factor at the cell center
[in]	dxinv	inverse cell spacing of the computational mesh
[in]	l_terrain_aware	true to include the metric terms
[in]	l_substepping	true if implicit acoustic substepping is used
[in]	nxc	number of cells in x on the level 0 domain
[in]	nyc	number of cells in y on the level 0 domain

Returns

1/dt for this cell

{
    amrex::Real h_xi  = zero;
    amrex::Real h_eta = zero;
    amrex::Real idz   = dxinv[2];

    // Inverse physical horizontal spacing
    const amrex::Real idx = mf_x * dxinv[0];
    const amrex::Real idy = mf_y * dxinv[1];

    if (l_terrain_aware) {
        h_xi  =   Compute_h_xi_AtCellCenter(i,j,k,dxinv,z_nd);
        h_eta =  Compute_h_eta_AtCellCenter(i,j,k,dxinv,z_nd);
        idz  /= Compute_h_zeta_AtCellCenter(i,j,k,dxinv,z_nd);
    }

    const amrex::Real abs_u = amrex::Math::abs(u);
    const amrex::Real abs_v = amrex::Math::abs(v);
    const amrex::Real abs_w = amrex::Math::abs(w);

    amrex::Real inv_dt = -bogus_large_value;

    // If we are doing implicit acoustic substepping, then the z-direction is not constrained
    //    by the speed of sound for the computation of the time step
    if (l_substepping) {
        // Implicit substepping removes the g33 metric
        // Acoustic contribution limits dtau, whose max is in the first RK stage (1/3 dt)
        const amrex::Real Uacoustic = third * c * idx;
        const amrex::Real Vacoustic = third * c * idy;
        if ((nxc > 1) && (nyc == 1)) {
            // 2-D in x-z
            inv_dt = abs_u*idx + Uacoustic
                   + abs_w*idz;
        } else if ((nyc > 1) && (nxc == 1)) {
            // 2-D in y-z
            inv_dt = abs_v*idy + Vacoustic
                   + abs_w*idz;
        } else {
            // 3-D
            inv_dt = abs_u*idx + Uacoustic
                   + abs_v*idy + Vacoustic
                   + abs_w*idz;
        }

    // If we are not doing implicit acoustic substepping, then the z-direction is constrained
    //    by the speed of sound for the computation of the time step
    } else {
        // All the metric terms
        const amrex::Real Uacoustic = c * amrex::Math::abs(mf_x * (dxinv[0] + idz * h_xi ));
        const amrex::Real Vacoustic = c * amrex::Math::abs(mf_y * (dxinv[1] + idz * h_eta));
        const amrex::Real Oacoustic = c * amrex::Math::abs(idz);
        if (nxc > 1 && nyc > 1) {
            // 3-D
            inv_dt = abs_u*idx + Uacoustic
                   + abs_v*idy + Vacoustic
                   + abs_w*idz      + Oacoustic;
        } else if (nxc > 1) {
            // 2-D in x-z
            inv_dt = abs_u*idx + Uacoustic
                   + abs_w*idz      + Oacoustic;
        } else if (nyc > 1) {
            // 2-D in y-z
            inv_dt = abs_v*idy + Vacoustic
                   + abs_w*idz      + Oacoustic;
        } else {
            // 1-D in z
            inv_dt = abs_w*idz + Oacoustic;
        }
    }

    return inv_dt;
}

Referenced by ERF::estTimeStep().

Here is the call graph for this function:

Here is the caller graph for this function:
