Owns and exposes cell-centered and face-centered EB factories. More...

#include <ERF_EB.H>

Collaboration diagram for eb_:

[legend]

Public Member Functions
	~eb_ ()
	Destroy the EB factory manager. More...

	eb_ (amrex::Geometry const &a_geom, amrex::FArrayBox const &terrain_fab, amrex::Gpu::DeviceVector< amrex::Real > &a_dz_stretched, bool is_anelastic)
	Construct an EB description from terrain data. More...

	eb_ ()
	Construct an empty EB factory manager. More...

void	define (int level, amrex::Geometry const &a_geom, amrex::EB2::Level const *a_eb_level, bool is_anelastic)
	Define the EB level metadata used by this factory manager. More...

void	make_all_factories (int level, amrex::Geometry const &a_geom, amrex::BoxArray const &ba, amrex::DistributionMapping const &dm, amrex::EB2::Level const &a_eb_level)
	Build cell-centered and staggered EB factories for the level. More...

void	make_cc_factory (int level, amrex::Geometry const &a_geom, amrex::BoxArray const &ba, amrex::DistributionMapping const &dm, amrex::EB2::Level const &a_eb_level)
	Build only the cell-centered EB factory for the level. More...

int	nghost_basic () const
	Number of ghost cells needed for basic EB flags. More...

int	nghost_volume () const
	Number of ghost cells needed for EB volume data. More...

int	nghost_full () const
	Number of ghost cells needed for full EB geometric data. More...

const std::unique_ptr< amrex::EBFArrayBoxFactory > &	get_const_factory () const noexcept
	Return the cell-centered EB factory. More...

void	set_connection_flags (amrex::EBFArrayBoxFactory *factory)
	Disconnect covered neighbors in an EB factory's cell flags. More...

void	mask_fc_from_cc (amrex::EBFArrayBoxFactory fc_factory, const amrex::EBFArrayBoxFactory cc_factory, int idim)
	Enforce FC-CC consistency by marking FC faces as covered when both CC neighbors are covered. More...

eb_aux_ const *	get_u_const_factory () const noexcept
	Return the ERF auxiliary x-face EB factory. More...

eb_aux_ const *	get_v_const_factory () const noexcept
	Return the ERF auxiliary y-face EB factory. More...

eb_aux_ const *	get_w_const_factory () const noexcept
	Return the ERF auxiliary z-face EB factory. More...

Private Member Functions
void	make_terrain (amrex::Geometry const &a_geom)
	Build terrain EB geometry for the supplied Geometry. More...

template<class F >
void	build_level (amrex::Geometry const &a_geom, amrex::EB2::GeometryShop< F > a_gshop)
	Construct EB levels from an AMReX GeometryShop. More...

amrex::FabArray< amrex::EBCellFlagFab > &	getNonConstEBCellFlags (const amrex::EBFArrayBoxFactory &ebfact)
	Return mutable EB cell flags from an AMReX factory. More...

amrex::MultiFab &	getNonConstVolFrac (const amrex::EBFArrayBoxFactory &ebfact)
	Return mutable volume fractions from an AMReX factory. More...

amrex::MultiCutFab &	getNonConstCentroid (const amrex::EBFArrayBoxFactory &ebfact)
	Return mutable cell centroids from an AMReX factory. More...

amrex::Array< amrex::MultiCutFab *, AMREX_SPACEDIM >	getNonConstAreaFrac (const amrex::EBFArrayBoxFactory &ebfact)
	Return mutable area-fraction arrays from an AMReX factory. More...

amrex::Array< amrex::MultiCutFab *, AMREX_SPACEDIM >	getNonConstFaceCent (const amrex::EBFArrayBoxFactory &ebfact)
	Return mutable face-centroid arrays from an AMReX factory. More...

Private Attributes
int	m_has_eb

std::string	m_type

amrex::EBSupport	m_support_level

int	m_write_eb_surface

amrex::FabArray< amrex::EBCellFlagFab > *	m_cellflags = nullptr

amrex::EB2::Level const *	m_eb_level
	EB level constructed from building GeometryShop. More...

std::unique_ptr< amrex::EBFArrayBoxFactory >	m_factory = nullptr

eb_aux_	m_u_factory

eb_aux_	m_v_factory

eb_aux_	m_w_factory

std::unique_ptr< amrex::EBFArrayBoxFactory >	m_u_factory_fc = nullptr

std::unique_ptr< amrex::EBFArrayBoxFactory >	m_v_factory_fc = nullptr

std::unique_ptr< amrex::EBFArrayBoxFactory >	m_w_factory_fc = nullptr

Detailed Description

Owns and exposes cell-centered and face-centered EB factories.

The class builds AMReX EB factories for cell-centered state data and, depending on USE_FC_FACTORY, either native AMReX or ERF auxiliary factories for staggered velocity components.

Constructor & Destructor Documentation

◆ ~eb_()

eb_::~eb_ ( )

Destroy the EB factory manager.

 {
     // if (m_factory) { m_factory.reset(nullptr); }
 }

◆ eb_() [1/2]

eb_::eb_	(	amrex::Geometry const &	a_geom,
		amrex::FArrayBox const &	terrain_fab,
		amrex::Gpu::DeviceVector< amrex::Real > &	a_dz_stretched,
		bool	is_anelastic
	)

Construct an EB description from terrain data.

Parameters

a_geom	Geometry used to place the terrain EB.
terrain_fab	Terrain height data.
a_dz_stretched	Device vector containing stretched vertical spacing.
is_anelastic	Whether the owning level is using anelastic dynamics.

◆ eb_() [2/2]

eb_::eb_ ( )

Construct an empty EB factory manager.

     : m_has_eb(0),
       m_support_level(EBSupport::full),
       m_write_eb_surface(0)
 { }

Member Function Documentation

◆ build_level()

template<class F >

void eb_::build_level	(	amrex::Geometry const &	a_geom,
		amrex::EB2::GeometryShop< F >	a_gshop
	)

inlineprivate

Construct EB levels from an AMReX GeometryShop.

Template Parameters

F	Implicit-function type stored by the GeometryShop.

Parameters

a_geom	Geometry used to build the EB index space.
a_gshop	GeometryShop describing the implicit EB.

     {
       int const req_lev(0);
       int const max_lev(2);

       amrex::EB2::Build(a_gshop, a_geom, req_lev, max_lev);
       const amrex::EB2::IndexSpace& ebis = amrex::EB2::IndexSpace::top();
       m_eb_level = &(ebis.getLevel(a_geom));
     }

◆ define()

void eb_::define	(	int	level,
		amrex::Geometry const &	a_geom,
		amrex::EB2::Level const *	a_eb_level,
		bool	is_anelastic
	)

Define the EB level metadata used by this factory manager.

Parameters

level	AMR level index.
a_geom	Geometry for the level.
a_eb_level	AMReX EB level owned by the global EB index space.
is_anelastic	Whether the owning level is using anelastic dynamics.

◆ get_const_factory()

const std::unique_ptr<amrex::EBFArrayBoxFactory>& eb_::get_const_factory ( ) const

inlinenoexcept

Return the cell-centered EB factory.

102 { return m_factory; }

eb_::m_factory

std::unique_ptr< amrex::EBFArrayBoxFactory > m_factory

Definition: ERF_EB.H:153

Referenced by compute_gradp_xy(), compute_gradp_z(), ComputeTurbulentViscosityLES_EB(), erf_make_tau_terms(), erf_slow_rhs_post(), erf_slow_rhs_pre(), ERF::estTimeStep(), and make_buoyancy().

Here is the caller graph for this function:

◆ get_u_const_factory()

eb_aux_ const* eb_::get_u_const_factory ( ) const

inlinenoexcept

Return the ERF auxiliary x-face EB factory.

129 { return &m_u_factory; }

eb_::m_u_factory

eb_aux_ m_u_factory

Definition: ERF_EB.H:156

Referenced by AdvectionSrcForMom_EB(), compute_gradp_xy(), ComputeStrain_EB(), ComputeTurbulentViscosityLES_EB(), DiffusionSrcForMom_EB(), and make_mom_sources().

Here is the caller graph for this function:

◆ get_v_const_factory()

eb_aux_ const* eb_::get_v_const_factory ( ) const

inlinenoexcept

Return the ERF auxiliary y-face EB factory.

131 { return &m_v_factory; }

eb_::m_v_factory

eb_aux_ m_v_factory

Definition: ERF_EB.H:157

Referenced by AdvectionSrcForMom_EB(), compute_gradp_xy(), ComputeStrain_EB(), ComputeTurbulentViscosityLES_EB(), DiffusionSrcForMom_EB(), and make_mom_sources().

Here is the caller graph for this function:

◆ get_w_const_factory()

eb_aux_ const* eb_::get_w_const_factory ( ) const

inlinenoexcept

Return the ERF auxiliary z-face EB factory.

133 { return &m_w_factory; }

eb_::m_w_factory

eb_aux_ m_w_factory

Definition: ERF_EB.H:158

Referenced by AdvectionSrcForMom_EB(), compute_gradp_z(), ComputeStrain_EB(), ComputeTurbulentViscosityLES_EB(), DiffusionSrcForMom_EB(), and make_mom_sources().

Here is the caller graph for this function:

◆ getNonConstAreaFrac()

amrex::Array<amrex::MultiCutFab*, AMREX_SPACEDIM> eb_::getNonConstAreaFrac ( const amrex::EBFArrayBoxFactory & ebfact )

inlineprivate

Return mutable area-fraction arrays from an AMReX factory.

     {
       auto afrac_const = ebfact.getAreaFrac();
       amrex::Array<amrex::MultiCutFab*, AMREX_SPACEDIM> afrac;
       for (int dir = 0; dir < AMREX_SPACEDIM; ++dir) {
           afrac[dir] = const_cast<amrex::MultiCutFab*>(afrac_const[dir]);
       }
       return afrac;
     }

◆ getNonConstCentroid()

amrex::MultiCutFab& eb_::getNonConstCentroid ( const amrex::EBFArrayBoxFactory & ebfact )

inlineprivate

Return mutable cell centroids from an AMReX factory.

     {
       const amrex::MultiCutFab& vcent_const = ebfact.getCentroid();
       return const_cast<amrex::MultiCutFab&>(vcent_const);
     }

◆ getNonConstEBCellFlags()

amrex::FabArray<amrex::EBCellFlagFab>& eb_::getNonConstEBCellFlags ( const amrex::EBFArrayBoxFactory & ebfact )

inlineprivate

Return mutable EB cell flags from an AMReX factory.

     {
       const amrex::FabArray<amrex::EBCellFlagFab>& flags_const = ebfact.getMultiEBCellFlagFab();
       return const_cast<amrex::FabArray<amrex::EBCellFlagFab>&>(flags_const);
     }

Referenced by mask_fc_from_cc(), and set_connection_flags().

Here is the caller graph for this function:

◆ getNonConstFaceCent()

amrex::Array<amrex::MultiCutFab*, AMREX_SPACEDIM> eb_::getNonConstFaceCent ( const amrex::EBFArrayBoxFactory & ebfact )

inlineprivate

Return mutable face-centroid arrays from an AMReX factory.

     {
       auto fcent_const = ebfact.getFaceCent();
       amrex::Array<amrex::MultiCutFab*, AMREX_SPACEDIM> fcent;
       for (int dir = 0; dir < AMREX_SPACEDIM; ++dir) {
           fcent[dir] = const_cast<amrex::MultiCutFab*>(fcent_const[dir]);
       }
       return fcent;
     }

◆ getNonConstVolFrac()

amrex::MultiFab& eb_::getNonConstVolFrac ( const amrex::EBFArrayBoxFactory & ebfact )

inlineprivate

Return mutable volume fractions from an AMReX factory.

     {
       const amrex::MultiFab& vfrac_const = ebfact.getVolFrac();
       return const_cast<amrex::MultiFab&>(vfrac_const);
     }

Referenced by mask_fc_from_cc().

Here is the caller graph for this function:

◆ make_all_factories()

void eb_::make_all_factories	(	int	level,
		amrex::Geometry const &	a_geom,
		amrex::BoxArray const &	ba,
		amrex::DistributionMapping const &	dm,
		amrex::EB2::Level const &	a_eb_level
	)

Build cell-centered and staggered EB factories for the level.

Parameters

level	AMR level index.
a_geom	Geometry for the level.
ba	BoxArray over which factories are defined.
dm	DistributionMapping for the BoxArray.
a_eb_level	AMReX EB level used to populate factory data.

 {
     Print() << "making EB factory\n";
     m_factory = std::make_unique<EBFArrayBoxFactory>(a_eb_level, a_geom, ba, dm,
         Vector<int>{nghost_basic(), nghost_volume(), nghost_full()}, m_support_level);

     // Correct cell connectivity
     eb_::set_connection_flags(m_factory.get());

 #if USE_FC_FACTORY
     // New: Native AMReX FC factories (EB2::BuildFC called in ERF.cpp)
     { int const idim(0);
         Print() << "making EB staggered u-factory\n";
         m_u_factory_fc = std::make_unique<EBFArrayBoxFactory>(
             a_eb_level, a_geom, ba, dm,
             Vector<int>{nghost_basic(), nghost_volume(), nghost_full()},
             m_support_level, idim);
         eb_::mask_fc_from_cc(m_u_factory_fc.get(), m_factory.get(), idim);
         eb_::set_connection_flags(m_u_factory_fc.get());
     }

     { int const idim(1);
         Print() << "making EB staggered v-factory\n";
         m_v_factory_fc = std::make_unique<EBFArrayBoxFactory>(
             a_eb_level, a_geom, ba, dm,
             Vector<int>{nghost_basic(), nghost_volume(), nghost_full()},
             m_support_level, idim);
         eb_::mask_fc_from_cc(m_v_factory_fc.get(), m_factory.get(), idim);
         eb_::set_connection_flags(m_v_factory_fc.get());
     }

     { int const idim(2);
         Print() << "making EB staggered w-factory\n";
         m_w_factory_fc = std::make_unique<EBFArrayBoxFactory>(
             a_eb_level, a_geom, ba, dm,
             Vector<int>{nghost_basic(), nghost_volume(), nghost_full()},
             m_support_level, idim);
         eb_::mask_fc_from_cc(m_w_factory_fc.get(), m_factory.get(), idim);
         eb_::set_connection_flags(m_w_factory_fc.get());
     }
 #else
     // Original: eb_aux_ factories
     { int const idim(0);
         Print() << "making EB staggered u-factory\n";
         m_u_factory.define(level, idim, a_geom, ba, dm,
             Vector<int>{nghost_basic(), nghost_volume(), nghost_full()},
             m_factory.get());
     }

     { int const idim(1);
         Print() << "making EB staggered v-factory\n";
         m_v_factory.define(level, idim, a_geom, ba, dm,
             Vector<int>{nghost_basic(), nghost_volume(), nghost_full()},
             m_factory.get());
     }

     { int const idim(2);
         Print() << "making EB staggered w-factory\n";
         m_w_factory.define(level, idim, a_geom, ba, dm,
             Vector<int>{nghost_basic(), nghost_volume(), nghost_full()},
             m_factory.get());
     }
 #endif
     Print() << "\nDone making EB factory at level = " << level << ".\n\n";
 }

Here is the call graph for this function:

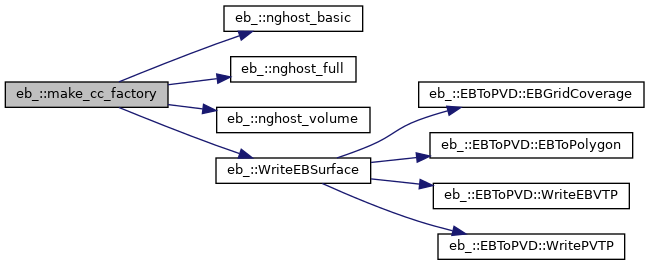

◆ make_cc_factory()

void eb_::make_cc_factory	(	int	level,
		amrex::Geometry const &	a_geom,
		amrex::BoxArray const &	ba,
		amrex::DistributionMapping const &	dm,
		amrex::EB2::Level const &	a_eb_level
	)

Build only the cell-centered EB factory for the level.

Parameters

level	AMR level index.
a_geom	Geometry for the level.
ba	BoxArray over which the factory is defined.
dm	DistributionMapping for the BoxArray.
a_eb_level	AMReX EB level used to populate factory data.

 {
     Print() << "making EB factory\n";
     m_factory = std::make_unique<EBFArrayBoxFactory>(a_eb_level, a_geom, ba, dm,
         Vector<int>{nghost_basic(), nghost_volume(), nghost_full()}, m_support_level);

     Print() << "\nDone making EB factory at level " << level << ".\n\n";
 }

Here is the call graph for this function:

◆ make_terrain()

void eb_::make_terrain ( amrex::Geometry const & a_geom )

private

Build terrain EB geometry for the supplied Geometry.

Parameters

a_geom Geometry used to define the EB index space.

◆ mask_fc_from_cc()

void eb_::mask_fc_from_cc	(	amrex::EBFArrayBoxFactory *	fc_factory,
		const amrex::EBFArrayBoxFactory *	cc_factory,
		int	idim
	)

Enforce FC-CC consistency by marking FC faces as covered when both CC neighbors are covered.

Mask FC faces as covered when both neighboring CC cells are covered.

Parameters

fc_factory	Face-centered factory to modify (non-const)
cc_factory	Cell-centered factory to read neighbor states (const)
idim	Direction of face centering (0=x, 1=y, 2=z)

For each face in the FC factory, if BOTH neighboring cell-centered cells are marked as covered, this function sets the FC face's volume fraction to zero and marks it as covered. This maintains consistency between CC and FC EB representations.

 {

     FabArray<EBCellFlagFab>& fc_cellflag = getNonConstEBCellFlags(*fc_factory);
     MultiFab& fc_volfrac = getNonConstVolFrac(*fc_factory);
     const FabArray<EBCellFlagFab>& cc_cellflag = cc_factory->getMultiEBCellFlagFab();

     for (MFIter mfi(fc_cellflag, false); mfi.isValid(); ++mfi) {
         const Box face_box = mfi.nodaltilebox(idim);
         const Box gbx = amrex::grow(face_box, fc_cellflag.nGrow()-1);

         Array4<EBCellFlag> const& fc_flag = fc_cellflag.array(mfi);
         Array4<Real> const& fc_vfrac = fc_volfrac.array(mfi);
         Array4<EBCellFlag const> const& cc_flag = cc_cellflag.const_array(mfi);

         if (idim == 0) {
             ParallelFor(gbx, [=] AMREX_GPU_DEVICE (int i, int j, int k) noexcept {
                 if (cc_flag(i-1,j,k).isCovered() && cc_flag(i,j,k).isCovered()) {
                     fc_vfrac(i,j,k) = Real(0.0);
                     fc_flag(i,j,k).setCovered();
                 }
             });
         } else if (idim == 1) {
             ParallelFor(gbx, [=] AMREX_GPU_DEVICE (int i, int j, int k) noexcept {
                 if (cc_flag(i,j-1,k).isCovered() && cc_flag(i,j,k).isCovered()) {
                     fc_vfrac(i,j,k) = Real(0.0);
                     fc_flag(i,j,k).setCovered();
                 }
             });
         } else if (idim == 2) {
             ParallelFor(gbx, [=] AMREX_GPU_DEVICE (int i, int j, int k) noexcept {
                 if (cc_flag(i,j,k-1).isCovered() && cc_flag(i,j,k).isCovered()) {
                     fc_vfrac(i,j,k) = Real(0.0);
                     fc_flag(i,j,k).setCovered();
                 }
             });
         }
     }
 }

Referenced by make_all_factories().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ nghost_basic()

int eb_::nghost_basic ( ) const

inline

Number of ghost cells needed for basic EB flags.

86 { return 5; } // nghost_eb_basic ()

Referenced by make_all_factories(), and make_cc_factory().

Here is the caller graph for this function:

◆ nghost_full()

int eb_::nghost_full ( ) const

inline

Number of ghost cells needed for full EB geometric data.

90 { return 4; } // nghost_eb_full ()

Referenced by make_all_factories(), and make_cc_factory().

Here is the caller graph for this function:

◆ nghost_volume()

int eb_::nghost_volume ( ) const

inline

Number of ghost cells needed for EB volume data.

88 { return 5; } // nghost_eb_volume ()

Referenced by make_all_factories(), and make_cc_factory().

Here is the caller graph for this function:

◆ set_connection_flags()

void eb_::set_connection_flags ( amrex::EBFArrayBoxFactory * factory )

Disconnect covered neighbors in an EB factory's cell flags.

Reset cell flags to disconnect cells with zero volume fraction.

Parameters

factory Factory whose non-const flag data are updated.

The factory EBCellFlagFab data are updated through a non-const reference.

 {
     // Get non-const reference to EBCellFlagFab FabArray
     FabArray<EBCellFlagFab>& cellflag = getNonConstEBCellFlags(*factory);

     const MultiFab& volfrac = factory->getVolFrac();

     for (MFIter mfi(cellflag, false); mfi.isValid(); ++mfi) {
         const Box& bx = mfi.validbox();
         const Box gbx = amrex::grow(bx, cellflag.nGrow()-1); // Leave one cell layer

         Array4<EBCellFlag> const& flag = cellflag.array(mfi);
         Array4<Real const> const& vfrac = volfrac.const_array(mfi);

         ParallelFor(gbx, [=] AMREX_GPU_DEVICE (int i, int j, int k) noexcept
         {
             for(int kk(-1); kk<=1; kk++) {
             for(int jj(-1); jj<=1; jj++) {
             for(int ii(-1); ii<=1; ii++)
             {
                 if (vfrac(i+ii,j+jj,k+kk) == zero) {
                     flag(i,j,k).setDisconnected(ii,jj,kk);
                 }
             }}}
         });

         ParallelFor(gbx, [=] AMREX_GPU_DEVICE (int i, int j, int k) noexcept
         {
             if (vfrac(i,j,k)==zero) {
                 flag(i,j,k).setCovered();
             }
         });

     }
 }

Referenced by make_all_factories().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ m_cellflags

amrex::FabArray<amrex::EBCellFlagFab>* eb_::m_cellflags = nullptr

private

◆ m_eb_level

amrex::EB2::Level const* eb_::m_eb_level

private

EB level constructed from building GeometryShop.

Referenced by build_level().

◆ m_factory

std::unique_ptr<amrex::EBFArrayBoxFactory> eb_::m_factory = nullptr

private

Referenced by get_const_factory(), make_all_factories(), and make_cc_factory().

◆ m_has_eb

int eb_::m_has_eb

private

◆ m_support_level

amrex::EBSupport eb_::m_support_level

private

Referenced by make_all_factories(), and make_cc_factory().

◆ m_type

std::string eb_::m_type

private

◆ m_u_factory

eb_aux_ eb_::m_u_factory

private

Referenced by get_u_const_factory(), and make_all_factories().

◆ m_u_factory_fc

std::unique_ptr<amrex::EBFArrayBoxFactory> eb_::m_u_factory_fc = nullptr

private

Referenced by make_all_factories().

◆ m_v_factory

eb_aux_ eb_::m_v_factory

private

Referenced by get_v_const_factory(), and make_all_factories().

◆ m_v_factory_fc

std::unique_ptr<amrex::EBFArrayBoxFactory> eb_::m_v_factory_fc = nullptr

private

Referenced by make_all_factories().

◆ m_w_factory

eb_aux_ eb_::m_w_factory

private

Referenced by get_w_const_factory(), and make_all_factories().

◆ m_w_factory_fc

std::unique_ptr<amrex::EBFArrayBoxFactory> eb_::m_w_factory_fc = nullptr

private

Referenced by make_all_factories().

◆ m_write_eb_surface

int eb_::m_write_eb_surface

private

The documentation for this class was generated from the following files:

Source/EB/ERF_EB.H
Source/EB/ERF_EB.cpp

Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ ~eb_()

◆ eb_() [1/2]

◆ eb_() [2/2]

Member Function Documentation

◆ build_level()

◆ define()

◆ get_const_factory()

◆ get_u_const_factory()

◆ get_v_const_factory()

◆ get_w_const_factory()

◆ getNonConstAreaFrac()

◆ getNonConstCentroid()

◆ getNonConstEBCellFlags()

◆ getNonConstFaceCent()

◆ getNonConstVolFrac()

◆ make_all_factories()

◆ make_cc_factory()

◆ make_terrain()

◆ mask_fc_from_cc()

◆ nghost_basic()

◆ nghost_full()

◆ nghost_volume()

◆ set_connection_flags()

Member Data Documentation

◆ m_cellflags

◆ m_eb_level

◆ m_factory

◆ m_has_eb

◆ m_support_level

◆ m_type

◆ m_u_factory

◆ m_u_factory_fc

◆ m_v_factory

◆ m_v_factory_fc

◆ m_w_factory

◆ m_w_factory_fc

◆ m_write_eb_surface
