erf_sbm::SBMLayout Class Reference

#include <ERF_SBMLayout.H>

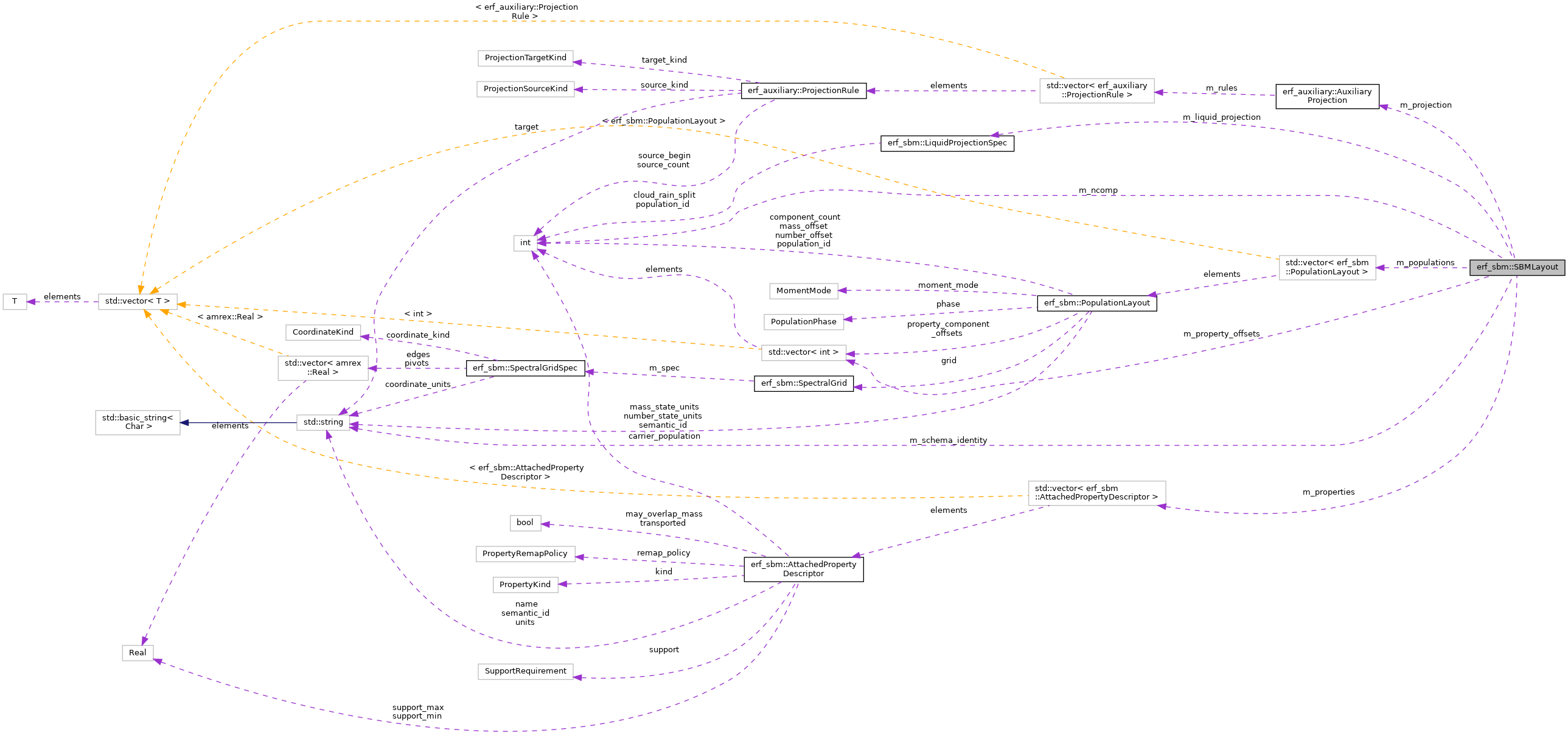

Collaboration diagram for erf_sbm::SBMLayout:

Public Member Functions
	SBMLayout (SBMLayoutSpec spec)
const std::vector< PopulationLayout > &	populations () const noexcept
const std::vector< AttachedPropertyDescriptor > &	attached_properties () const noexcept
const ::erf_auxiliary::AuxiliaryProjection &	bulk_projection () const noexcept
const LiquidProjectionSpec &	liquid_projection () const noexcept
int	ncomp () const noexcept
int	mass_offset (const int population) const
int	property_offset (const int property) const
std::string	schema_identity () const noexcept
std::string	inspection () const
::erf_auxiliary::AuxiliaryStateLayout	auxiliary_layout () const

Static Public Member Functions
static LayoutValidation	validate (const SBMLayoutSpec &spec)

Private Attributes
std::vector< PopulationLayout >	m_populations
std::vector< AttachedPropertyDescriptor >	m_properties
std::vector< int >	m_property_offsets
LiquidProjectionSpec	m_liquid_projection
::erf_auxiliary::AuxiliaryProjection	m_projection
int	m_ncomp {0}
std::string	m_schema_identity

Detailed Description

Immutable runtime SBM component and projection layout.

Constructor & Destructor Documentation

SBMLayout()

erf_sbm::SBMLayout::SBMLayout ( SBMLayoutSpec  spec )

explicit

{
    const auto result = validate(spec);
    if (!result.valid) throw std::invalid_argument("invalid SBM layout: " + result.message);

    // Input order is part of the deterministic schema.  Offsets are assigned
    // once and never changed after construction.
    int offset = 0;
    for (std::size_t i = 0; i < spec.populations.size(); ++i) {
        const auto& input = spec.populations[i];
        PopulationLayout population{input.population_id, input.semantic_id, input.phase,
                                    SpectralGrid(input.grid), input.moment_mode,
                                    input.mass_state_units, input.number_state_units,
                                    offset, -1, 0, {}};
        population.component_count = population.grid.nbins();
        offset += population.component_count;
        if (population.moment_mode == MomentMode::TwoMoment) {
            population.number_offset = offset;
            population.component_count += population.grid.nbins();
            offset += population.grid.nbins();
        }
        m_populations.push_back(std::move(population));
    }
    for (const auto& property : spec.attached_properties) {
        m_properties.push_back(property);
        auto carrier = std::find_if(m_populations.begin(), m_populations.end(),
            [&](const PopulationLayout& candidate) {
                return candidate.population_id == m_properties.back().carrier_population;
            });
        if (carrier == m_populations.end()) {
            throw std::invalid_argument("attached property refers to an unknown population");
        }
        // An attached extensive property is represented per carrier bin.  A
        // number-carried property is not folded into the number block and a
        // mass-bounded subset is not folded into liquid mass; both remain
        // typed, independently addressable transport components.
        m_property_offsets.push_back(offset);
        carrier->property_component_offsets.push_back(offset);
        offset += carrier->grid.nbins();
    }
    m_ncomp = offset;

    std::vector<::erf_auxiliary::ProjectionRule> rules;
    m_liquid_projection = spec.liquid_projection;
    const auto liquid = std::find_if(m_populations.begin(), m_populations.end(),
        [&](const PopulationLayout& population) {
            return population.population_id == m_liquid_projection.population_id;
        });
    const int split = m_liquid_projection.cloud_rain_split;
    rules.push_back({"qc", liquid->mass_offset, split});
    rules.push_back({"qr", liquid->mass_offset + split, liquid->grid.nbins() - split});
    m_projection = ::erf_auxiliary::AuxiliaryProjection(std::move(rules));
    if (!m_projection.validate(m_ncomp).valid) {
        throw std::invalid_argument("SBM projection does not match layout");
    }

    std::ostringstream schema;
    schema << "sbm-layout-v1|ncomp=" << m_ncomp
           << "|constraint_policy=nonnegative-bin-mass-and-moments-v1"
           << "|projection=liquid-mass-sum-to-qc-qr-v1"
           << "|projection_population=" << m_liquid_projection.population_id
           << "|projection_cloud_rain_split=" << m_liquid_projection.cloud_rain_split << '|';
    for (const auto& p : m_populations) {
        const auto identity = representation_identity(p.moment_mode);
        schema << "population=" << p.population_id << ':' << p.semantic_id
               << ":phase=" << static_cast<int>(p.phase) << ':' << p.grid.identity()
               << ":moment=" << static_cast<int>(p.moment_mode)
               << ":representation=" << identity.representation
               << ":reconstruction=" << identity.reconstruction
               << ":packet_remap=" << identity.packet_remap
               << ":mass_units=" << p.mass_state_units
               << ":number_units=" << p.number_state_units
               << ":mass=" << p.mass_offset << ":number=" << p.number_offset << '|';
    }
    for (std::size_t i = 0; i < m_properties.size(); ++i) {
        const auto& p = m_properties[i];
        schema << "property=" << p.name << ':' << p.semantic_id << ':' << p.units
               << ':' << p.carrier_population << ':' << static_cast<int>(p.kind)
               << ":remap=" << static_cast<int>(p.remap_policy)
               << ":support=" << static_cast<int>(p.support)
               << ":transported=" << (p.transported ? 1 : 0)
               << ":may_overlap_mass=" << (p.may_overlap_mass ? 1 : 0)
               << ":support_min=" << canonical_real(p.support_min)
               << ":support_max=" << canonical_real(p.support_max, true)
               << ":offset=" << m_property_offsets[i] << '|';
    }
    m_schema_identity = schema.str();
}

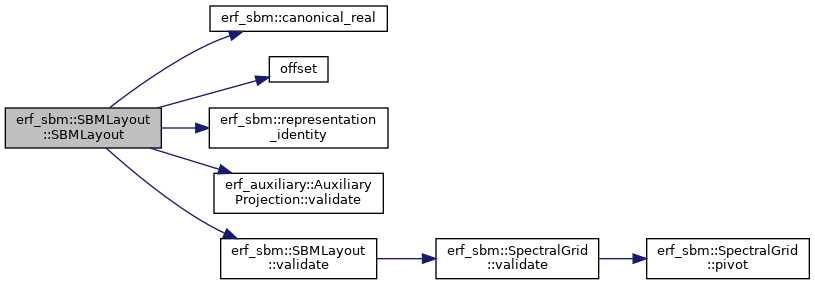

Here is the call graph for this function:

Member Function Documentation

attached_properties()

const std::vector<AttachedPropertyDescriptor>& erf_sbm::SBMLayout::attached_properties ( ) const

inlinenoexcept

{ return m_properties; }

Referenced by erf_sbm::make_attached_property_support_descriptors(), and erf_sbm::make_constraint_groups().

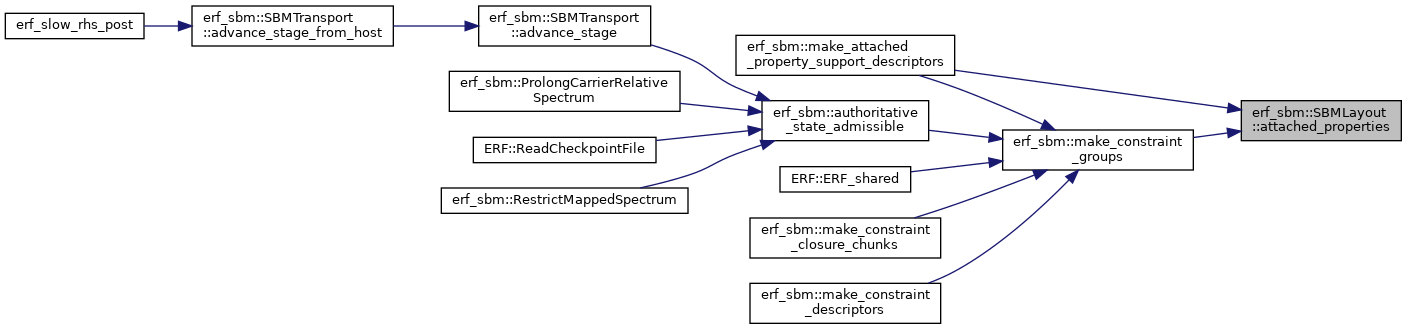

Here is the caller graph for this function:

auxiliary_layout()

erf_auxiliary::AuxiliaryStateLayout erf_sbm::SBMLayout::auxiliary_layout

(

)

const

{
    std::vector<::erf_auxiliary::ComponentDescriptor> components;
    components.reserve(static_cast<std::size_t>(m_ncomp));
    for (const auto& p : m_populations) {
        for (int b = 0; b < p.grid.nbins(); ++b) {
            components.push_back({"population" + std::to_string(p.population_id) + ".mass." + std::to_string(b),
                                  p.semantic_id + ".mass", p.mass_state_units});
        }
        if (p.number_offset >= 0) {
            for (int b = 0; b < p.grid.nbins(); ++b) {
                components.push_back({"population" + std::to_string(p.population_id) + ".number." + std::to_string(b),
                                      p.semantic_id + ".number", p.number_state_units});
            }
        }
    }
    for (std::size_t i = 0; i < m_properties.size(); ++i) {
        const auto& property = m_properties[i];
        const auto& carrier = std::find_if(m_populations.begin(), m_populations.end(),
            [&](const PopulationLayout& candidate) {
                return candidate.population_id == property.carrier_population;
            });
        for (int b = 0; b < carrier->grid.nbins(); ++b) {
            components.push_back({property.name + "." + std::to_string(b),
                                  property.semantic_id, property.units});
        }
    }
    return {m_schema_identity, std::move(components)};
}

bulk_projection()

const ::erf_auxiliary::AuxiliaryProjection& erf_sbm::SBMLayout::bulk_projection ( ) const

inlinenoexcept

{ return m_projection; }

inspection()

std::string erf_sbm::SBMLayout::inspection

(

)

const

{
    std::ostringstream out;
    out << "schema=" << m_schema_identity << "\ncomponents=" << m_ncomp << "\n";
    for (const auto& p : m_populations) {
        const auto identity = representation_identity(p.moment_mode);
        out << "population " << p.population_id << " bins=" << p.grid.nbins()
            << " semantic_id=" << p.semantic_id
            << " moment_mode=" << static_cast<int>(p.moment_mode)
            << " representation=" << identity.representation
            << " reconstruction=" << identity.reconstruction
            << " packet_remap=" << identity.packet_remap
            << " coordinate_units=" << p.grid.coordinate_units()
            << " mass_state_units=" << p.mass_state_units
            << " number_state_units=" << p.number_state_units
            << " mass_offset=" << p.mass_offset
            << " number_offset=" << p.number_offset << "\n";
    }
    const auto liquid = std::find_if(m_populations.begin(), m_populations.end(),
        [&](const PopulationLayout& population) {
            return population.population_id == m_liquid_projection.population_id;
        });
    out << "projection qc=population" << liquid->population_id << "[0:" << m_liquid_projection.cloud_rain_split
        << "] qr=population" << liquid->population_id << "[" << m_liquid_projection.cloud_rain_split << ':'
        << liquid->grid.nbins() << "]\n";
    for (std::size_t i = 0; i < m_properties.size(); ++i) {
        out << "property " << m_properties[i].name
            << " kind=" << static_cast<int>(m_properties[i].kind)
            << " remap=" << static_cast<int>(m_properties[i].remap_policy)
            << " carrier=" << m_properties[i].carrier_population
            << " offset=" << m_property_offsets[i] << '\n';
    }
    return out.str();
}

Here is the call graph for this function:

liquid_projection()

const LiquidProjectionSpec& erf_sbm::SBMLayout::liquid_projection ( ) const

inlinenoexcept

{ return m_liquid_projection; }

Referenced by erf_sbm::SBMTransport::advance_stage(), and erf_sbm::SBMBulkProjection::SBMBulkProjection().

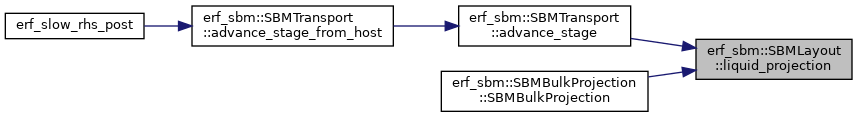

Here is the caller graph for this function:

mass_offset()

int erf_sbm::SBMLayout::mass_offset

(

const int

population

)

const

{
    for (const auto& p : m_populations) if (p.population_id == population) return p.mass_offset;
    throw std::out_of_range("unknown SBM population");
}

Referenced by erf_sbm::SBMTransport::advance_stage().

Here is the caller graph for this function:

ncomp()

int erf_sbm::SBMLayout::ncomp ( ) const

inlinenoexcept

{ return m_ncomp; }

Referenced by erf_sbm::SBMTransport::advance_stage(), erf_sbm::authoritative_state_admissible(), erf_sbm::SBMStateManager::define(), erf_sbm::SBMTransport::define(), erf_sbm::make_constraint_descriptors(), erf_sbm::ProlongCarrierRelativeSpectrum(), erf_sbm::RestrictMappedSpectrum(), and erf_sbm::SBMTransport::SBMTransport().

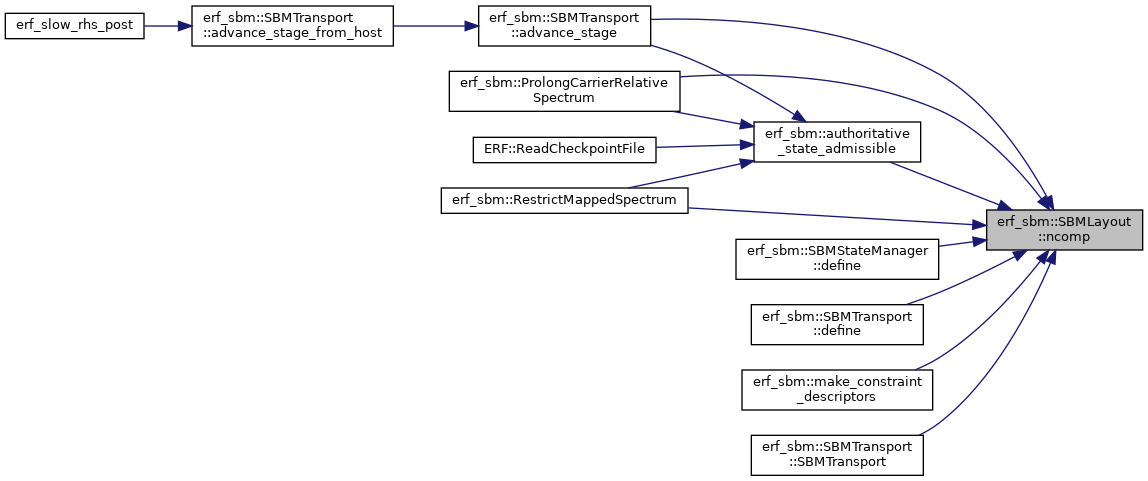

Here is the caller graph for this function:

populations()

const std::vector<PopulationLayout>& erf_sbm::SBMLayout::populations ( ) const

inlinenoexcept

{ return m_populations; }

Referenced by erf_sbm::SBMTransport::advance_stage(), erf_sbm::authoritative_state_admissible(), erf_sbm::make_attached_property_support_descriptors(), erf_sbm::make_constraint_groups(), erf_sbm::SBMBulkProjection::SBMBulkProjection(), and erf_sbm::SBMTransport::SBMTransport().

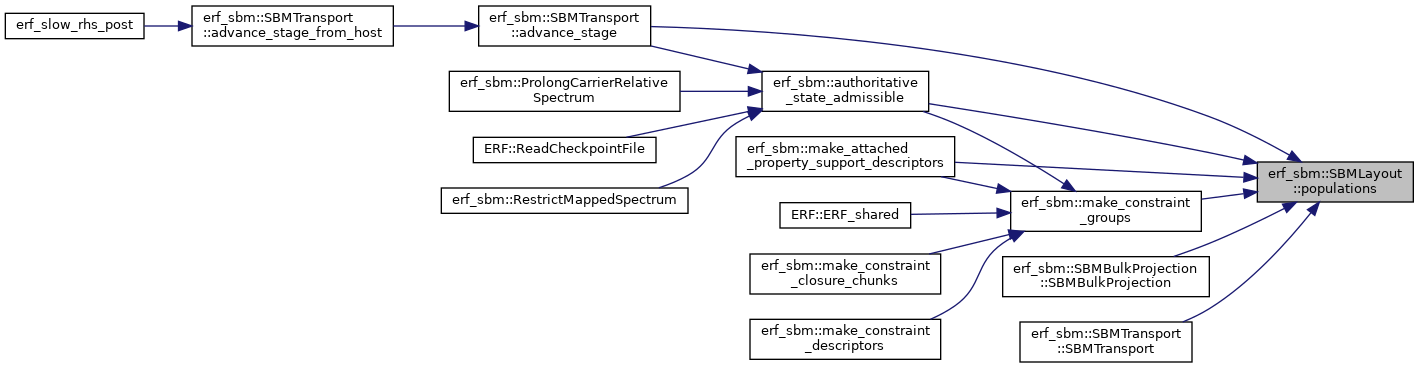

Here is the caller graph for this function:

property_offset()

int erf_sbm::SBMLayout::property_offset

(

const int

property

)

const

{
    if (property < 0 || property >= static_cast<int>(m_property_offsets.size())) {
        throw std::out_of_range("unknown SBM attached property");
    }
    return m_property_offsets[static_cast<std::size_t>(property)];
}

Referenced by erf_sbm::make_attached_property_support_descriptors(), and erf_sbm::make_constraint_groups().

Here is the caller graph for this function:

schema_identity()

std::string erf_sbm::SBMLayout::schema_identity ( ) const

inlinenoexcept

{ return m_schema_identity; }

Referenced by erf_sbm::restart_schema().

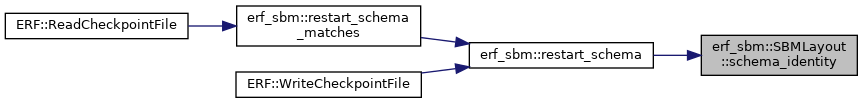

Here is the caller graph for this function:

validate()

LayoutValidation erf_sbm::SBMLayout::validate ( const SBMLayoutSpec &  spec )

static

{
    if (spec.populations.empty()) return {false, "at least one SBM population is required"};
    std::vector<int> ids;
    for (std::size_t i = 0; i < spec.populations.size(); ++i) {
        const auto& population = spec.populations[i];
        const auto grid_result = SpectralGrid::validate(population.grid);
        if (!grid_result.valid) return {false, grid_result.message};
        if (population.grid.coordinate_kind != CoordinateKind::Mass) {
            return {false, "reference SBM representations require individual-particle-mass coordinates"};
        }
        if (population.moment_mode != MomentMode::OneMoment &&
            population.moment_mode != MomentMode::TwoMoment) {
            return {false, "population moment mode is unsupported"};
        }
        if (population.population_id < 0 || population.semantic_id.empty() ||
            population.mass_state_units.empty() || population.number_state_units.empty()) {
            return {false, "population id, semantic id, and state units are required"};
        }
        if (population.moment_mode == MomentMode::OneMoment) {
            for (std::size_t bin = 1; bin < population.grid.pivots.size(); ++bin) {
                if (!(population.grid.pivots[bin - 1] < population.grid.pivots[bin])) {
                    return {false, "one-moment fixed pivots must increase strictly across adjacent bins"};
                }
            }
        }
        if (std::find(ids.begin(), ids.end(), population.population_id) != ids.end()) {
            return {false, "population ids must be unique"};
        }
        ids.push_back(population.population_id);
    }
    const auto liquid = std::find_if(spec.populations.begin(), spec.populations.end(),
        [&](const SpectralPopulationSpec& population) {
            return population.population_id == spec.liquid_projection.population_id;
        });
    if (liquid == spec.populations.end()) return {false, "liquid projection refers to an unknown population"};
    if (liquid->phase != PopulationPhase::Liquid) {
        return {false, "bulk cloud/rain projection must refer to a liquid population"};
    }
    if (spec.liquid_projection.cloud_rain_split <= 0 ||
        spec.liquid_projection.cloud_rain_split >= static_cast<int>(liquid->grid.edges.size()) - 1) {
        return {false, "cloud/rain split must be an interior liquid-population bin index"};
    }
    for (const auto& property : spec.attached_properties) {
        if (property.name.empty() || property.semantic_id.empty() || property.units.empty()) {
            return {false, "attached properties need name, semantic id, and units"};
        }
        if (std::find(ids.begin(), ids.end(), property.carrier_population) == ids.end()) {
            return {false, "attached property refers to an unknown population"};
        }
        if (property.may_overlap_mass && property.kind == PropertyKind::MassBoundedSubset) {
            return {false, "mass-bounded subset cannot overlap liquid mass"};
        }
        if (property.remap_policy != PropertyRemapPolicy::CarrierBinConservative) {
            return {false, "P1 attached properties require carrier-bin conservative remapping"};
        }
        if (!property.transported) {
            return {false, "P1 attached properties must be transported when registered"};
        }
        if (!std::isfinite(property.support_min) || property.support_min < amrex::Real(0.0)) {
            return {false, "attached-property support_min must be finite and nonnegative"};
        }
        if (!std::isnan(property.support_max) &&
            (!std::isfinite(property.support_max) || property.support_max < property.support_min)) {
            return {false, "attached-property support_max must be NaN or finite and >= support_min"};
        }
    }
    return {true, {}};
}

Referenced by SBMLayout().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

m_liquid_projection

LiquidProjectionSpec erf_sbm::SBMLayout::m_liquid_projection

private

Referenced by inspection(), liquid_projection(), and SBMLayout().

m_ncomp

int erf_sbm::SBMLayout::m_ncomp {0}

private

Referenced by auxiliary_layout(), inspection(), ncomp(), and SBMLayout().

m_populations

std::vector<PopulationLayout> erf_sbm::SBMLayout::m_populations

private

Referenced by auxiliary_layout(), inspection(), mass_offset(), populations(), and SBMLayout().

m_projection

::erf_auxiliary::AuxiliaryProjection erf_sbm::SBMLayout::m_projection

private

Referenced by bulk_projection(), and SBMLayout().

m_properties

std::vector<AttachedPropertyDescriptor> erf_sbm::SBMLayout::m_properties

private

Referenced by attached_properties(), auxiliary_layout(), inspection(), and SBMLayout().

m_property_offsets

std::vector<int> erf_sbm::SBMLayout::m_property_offsets

private

Referenced by inspection(), property_offset(), and SBMLayout().

m_schema_identity

std::string erf_sbm::SBMLayout::m_schema_identity

private

Referenced by auxiliary_layout(), inspection(), SBMLayout(), and schema_identity().

---

The documentation for this class was generated from the following files:

• Source/Microphysics/SBM/ERF_SBMLayout.H
• Source/Microphysics/SBM/ERF_SBMLayout.cpp
