erf_cloud_chamber::Config Struct Reference

Configuration parameters for cloud chamber initialization. More...

#include <ERF_CloudChamber.H>

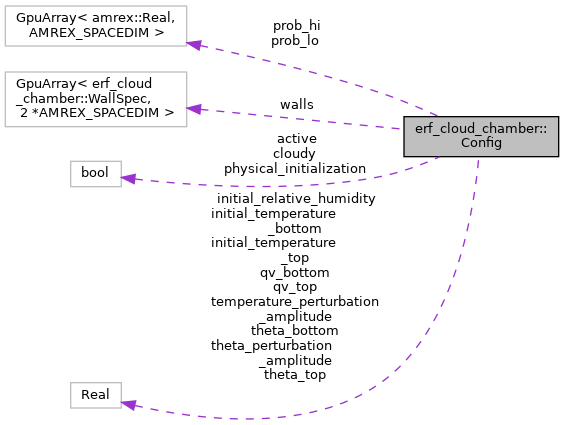

Collaboration diagram for erf_cloud_chamber::Config:

Public Member Functions
erf_wall_thermodynamics::Boundary	wall_boundary () const noexcept
	Collect thermodynamic boundary conditions for all chamber walls. More...
bool	has_bulk_scalar_wall () const noexcept
bool	has_wall_rate_channel () const noexcept

Public Attributes
bool	active = false
bool	has_moisture = false
bool	physical_initialization = false
amrex::Real	initial_temperature_bottom = amrex::Real(0.0)
amrex::Real	initial_temperature_top = amrex::Real(0.0)
amrex::Real	initial_relative_humidity = amrex::Real(0.0)
amrex::Real	temperature_perturbation_amplitude = amrex::Real(0.0)
amrex::Real	theta_bottom = amrex::Real(0.0)
amrex::Real	theta_top = amrex::Real(0.0)
amrex::Real	theta_perturbation_amplitude = amrex::Real(0.0)
amrex::Real	qv_bottom = amrex::Real(0.0)
amrex::Real	qv_top = amrex::Real(0.0)
amrex::GpuArray< amrex::Real, AMREX_SPACEDIM >	prob_lo = {}
amrex::GpuArray< amrex::Real, AMREX_SPACEDIM >	prob_hi = {}
amrex::GpuArray< WallSpec, 2 *AMREX_SPACEDIM >	walls = {}

Detailed Description

Configuration parameters for cloud chamber initialization.

Member Function Documentation

has_bulk_scalar_wall()

bool erf_cloud_chamber::Config::has_bulk_scalar_wall ( ) const

inlinenoexcept

    {
        for (const auto& wall : walls) {
            if (wall.wall.heat.model == erf_wall_thermodynamics::ScalarModel::BulkAero ||
                (wall.wall.vapor.model == erf_wall_thermodynamics::ScalarModel::BulkAero &&
                 wall.wall.moisture ==
                     erf_wall_thermodynamics::MoistureMode::WetEquilibrium)) {
                return true;
            }
        }
        return false;
    }

has_wall_rate_channel()

bool erf_cloud_chamber::Config::has_wall_rate_channel ( ) const

inlinenoexcept

    {
        for (const auto& wall : walls) {
            if (wall.wall.momentum.model ==
                    erf_wall_thermodynamics::MomentumModel::BulkAero ||
                wall.wall.momentum.model ==
                    erf_wall_thermodynamics::MomentumModel::NeutralRoughnessLog ||
                wall.wall.heat.model ==
                    erf_wall_thermodynamics::ScalarModel::BulkAero ||
                wall.wall.heat.model ==
                    erf_wall_thermodynamics::ScalarModel::NeutralRoughnessLog ||
                (wall.wall.vapor.model ==
                     erf_wall_thermodynamics::ScalarModel::BulkAero &&
                 wall.wall.moisture ==
                     erf_wall_thermodynamics::MoistureMode::WetEquilibrium) ||
                (wall.wall.vapor.model ==
                     erf_wall_thermodynamics::ScalarModel::NeutralRoughnessLog &&
                 wall.wall.moisture ==
                     erf_wall_thermodynamics::MoistureMode::WetEquilibrium)) {
                return true;
            }
        }
        return false;
    }

wall_boundary()

erf_wall_thermodynamics::Boundary erf_cloud_chamber::Config::wall_boundary ( ) const

inlinenoexcept

Collect thermodynamic boundary conditions for all chamber walls.

Returns

Boundary array containing thermodynamics for each face.

    {
        erf_wall_thermodynamics::Boundary boundary{};
        for (int n = 0; n < 2 * AMREX_SPACEDIM; ++n) {
            boundary[n] = walls[n].wall;
        }
        return boundary;
    }

Referenced by ERF::ERF_shared(), erf_slow_rhs_post(), and erf_slow_rhs_pre().

Here is the caller graph for this function:

Member Data Documentation

active

bool erf_cloud_chamber::Config::active = false

Referenced by ERF::ERF_shared().

has_moisture

bool erf_cloud_chamber::Config::has_moisture = false

Referenced by erf_slow_rhs_post(), and erf_slow_rhs_pre().

initial_relative_humidity

amrex::Real erf_cloud_chamber::Config::initial_relative_humidity = amrex::Real(0.0)

initial_temperature_bottom

amrex::Real erf_cloud_chamber::Config::initial_temperature_bottom = amrex::Real(0.0)

initial_temperature_top

amrex::Real erf_cloud_chamber::Config::initial_temperature_top = amrex::Real(0.0)

physical_initialization

bool erf_cloud_chamber::Config::physical_initialization = false

Referenced by ERF::ERF_shared(), erf_slow_rhs_post(), and erf_slow_rhs_pre().

prob_hi

amrex::GpuArray<amrex::Real, AMREX_SPACEDIM> erf_cloud_chamber::Config::prob_hi = {}

prob_lo

amrex::GpuArray<amrex::Real, AMREX_SPACEDIM> erf_cloud_chamber::Config::prob_lo = {}

qv_bottom

amrex::Real erf_cloud_chamber::Config::qv_bottom = amrex::Real(0.0)

qv_top

amrex::Real erf_cloud_chamber::Config::qv_top = amrex::Real(0.0)

temperature_perturbation_amplitude

amrex::Real erf_cloud_chamber::Config::temperature_perturbation_amplitude = amrex::Real(0.0)

theta_bottom

amrex::Real erf_cloud_chamber::Config::theta_bottom = amrex::Real(0.0)

theta_perturbation_amplitude

amrex::Real erf_cloud_chamber::Config::theta_perturbation_amplitude = amrex::Real(0.0)

theta_top

amrex::Real erf_cloud_chamber::Config::theta_top = amrex::Real(0.0)

walls

amrex::GpuArray<WallSpec, 2 * AMREX_SPACEDIM> erf_cloud_chamber::Config::walls = {}

Referenced by has_bulk_scalar_wall(), has_wall_rate_channel(), and wall_boundary().

---

The documentation for this struct was generated from the following file:

• Source/Prob/ERF_CloudChamber.H
