ERF_InitCustomPert_MultiSpeciesBubble.H File Reference

Go to the source code of this file.

Functions
ParmParse	pp_prob ("prob")
pp_prob	query ("T_0", T_0)
pp_prob	query ("x_c", x_c)
pp_prob	query ("y_c", y_c)
pp_prob	query ("z_c", z_c)
pp_prob	query ("x_r", x_r)
pp_prob	query ("y_r", y_r)
pp_prob	query ("z_r", z_r)
pp_prob	query ("T_pert", T_pert)
pp_prob	query ("T_pert_is_airtemp", T_pert_is_airtemp)
pp_prob	query ("perturb_rho", perturb_rho)
pp_prob	query ("do_moist_bubble", do_moist_bubble)
pp_prob	query ("theta_pert", theta_pert)
pp_prob	query ("eq_pot_temp", eq_pot_temp)
pp_prob	query ("qt_init", qt_init)
pp_prob	query ("use_empircal_psat", use_empirical)
m_species	clear ()
ParmParse	pp_sdm ("super_droplets_moisture")
	if (pp_sdm.contains(species_input.c_str()))
	for (int i=0;i< m_num_species;i++)
	AMREX_ALWAYS_ASSERT (sc.moisture_type==MoistureType::SuperDroplets)
	if (T_0<=0)
	if (do_moist_bubble)
	AMREX_ALWAYS_ASSERT (n_sp *m_ncomp_per_species==ncomp_species)
Gpu::DeviceVector< Real >	qv_init_d (n_sp)
	ParallelFor (bx, [=] AMREX_GPU_DEVICE(int i, int j, int k) noexcept { const auto prob_lo=geomdata.ProbLo();const auto dx=geomdata.CellSize();const Real x=prob_lo[0]+(i+myhalf) *dx[0];const Real y=prob_lo[1]+(j+myhalf) *dx[1];const Real z=prob_lo[2]+(k+myhalf) *dx[2];amrex::Real L=zero;if(x_r > 0) L+=std::pow((x - x_c)/x_r, 2);if(y_r > 0) L+=std::pow((y - y_c)/y_r, 2);if(z_r > 0) L+=std::pow((z - z_c)/z_r, 2);L=std::sqrt(L);if(L< one) { auto rho=state(i, j, k, Rho_comp)+state_pert(i, j, k, Rho_comp);for(int ns=0;ns< n_sp;ns++) { state_pert(i, j, k, nstart+2 *ns)=rho *qv_arr[ns];state_pert(i, j, k, nstart+2 *ns+1)=zero;} } })

Variables
Real	T_0 = amrex::Real(300.0)
Real	x_c = zero
Real	y_c = zero
Real	z_c = zero
Real	x_r = zero
Real	y_r = zero
Real	z_r = zero
Real	T_pert = -amrex::Real(15.0)
bool	T_pert_is_airtemp = true
bool	perturb_rho = true
bool	do_moist_bubble = false
Real	theta_pert = two
Real	eq_pot_temp = amrex::Real(320.0)
Real	qt_init = amrex::Real(0.02)
bool	use_empirical = false
std::vector< std::string >	m_species
int	m_num_species = 0
const int	m_ncomp_per_species = 2
const int	m_nstart_sp = RhoQ3_comp+1
std::string	species_input = "species"
std::vector< amrex::Real >	m_qv_init_species = std::vector<amrex::Real>(m_num_species,zero)
const auto	khi = geomdata.Domain().bigEnd()[2]
const Real	dz = geomdata.CellSize()[2]
const Real	rdOcp = sc.rdOcp
	else
auto	n_sp = m_num_species
auto	nstart = m_nstart_sp
int	ncomp_species = state_pert.nComp() - nstart
auto	qv_arr = qv_init_d.data()

Function Documentation

AMREX_ALWAYS_ASSERT() [1/2]

AMREX_ALWAYS_ASSERT

(

n_sp *

m_ncomp_per_species = =ncomp_species

)

AMREX_ALWAYS_ASSERT() [2/2]

AMREX_ALWAYS_ASSERT

(

sc.

moisture_type = =MoistureType::SuperDroplets

)

clear()

m_species clear

(

)

for()

for

(

)

                                            {
        std::string key_str = "qv_init_" + m_species[i];
        pp_prob.query(key_str.c_str(), m_qv_init_species[i]);
    }

Referenced by ComputeTurbulentViscosity(), derived::erf_dermaxreflectivity(), and fine_compute_interior_ghost_rhs().

Here is the call graph for this function:

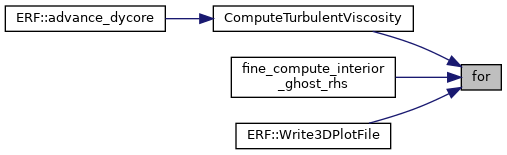

Here is the caller graph for this function:

if() [1/3]

if

(

do_moist_bubble

)

                         {
        Vector<Real> h_r(khi+2);
        Vector<Real> h_p(khi+2);
        Vector<Real> h_t(khi+2);
        Vector<Real> h_q_v(khi+2);

        Gpu::DeviceVector<Real> d_r(khi+2);
        Gpu::DeviceVector<Real> d_p(khi+2);
        Gpu::DeviceVector<Real> d_t(khi+2);
        Gpu::DeviceVector<Real> d_q_v(khi+2);

        HSEutils::init_isentropic_hse_no_terrain(h_t.data(), h_r.data(), h_p.data(),
                                                 h_q_v.data(), dz, khi, qt_init, eq_pot_temp, use_empirical);

        Gpu::copy(Gpu::hostToDevice, h_r.begin(), h_r.end(), d_r.begin());
        Gpu::copy(Gpu::hostToDevice, h_p.begin(), h_p.end(), d_p.begin());
        Gpu::copy(Gpu::hostToDevice, h_t.begin(), h_t.end(), d_t.begin());
        Gpu::copy(Gpu::hostToDevice, h_q_v.begin(), h_q_v.end(), d_q_v.begin());

        Real* theta_back   = d_t.data();
        Real* p_back   = d_p.data();
        Real* q_v_back = d_q_v.data();

        int which_zone = -1;

        ParallelFor(bx, [=] AMREX_GPU_DEVICE(int i, int j, int k)
        {
            // Geometry (note we must include these here to get the data on device)
            const auto prob_lo         = geomdata.ProbLo();
            const auto dx              = geomdata.CellSize();

            const auto x = prob_lo[0] + (i + myhalf) * dx[0];
            const auto y = prob_lo[1] + (j + myhalf) * dx[1];
            const auto z = prob_lo[2] + (k + myhalf) * dx[2];

            Real rad, delta_theta, theta_total, rho, RH;

            // Introduce the warm bubble.
            // Assume that the bubble is pressure matched with the background
            rad = zero;
            if (x_r > 0) rad += std::pow((x - x_c)/x_r, 2);
            if (y_r > 0) rad += std::pow((y - y_c)/y_r, 2);
            if (z_r > 0) rad += std::pow((z - z_c)/z_r, 2);
            rad = std::sqrt(rad);

            if (rad <= one){
                delta_theta = theta_pert*std::pow(cos(PI*rad/two),2);
            } else {
                delta_theta = zero;
            }

            theta_total  = theta_back[k]*(delta_theta/amrex::Real(300.0) + 1);
            Real T = getTgivenPandTh(p_back[k], theta_total, (R_d/Cp_d));
            rho    = p_back[k]/(R_d*T*(one + (R_v/R_d)*q_v_back[k]));
            RH     = one; // compute_relative_humidity();
            Real q_v_hot = HSEutils::vapor_mixing_ratio(p_back[k], T, RH, use_empirical, which_zone);

            // Compute background quantities
            Real T_back   = getTgivenPandTh(p_back[k], theta_back[k], (R_d/Cp_d));
            Real rho_back = p_back[k]/(R_d*T_back*(one + (R_v/R_d)*q_v_back[k]));

            // This version perturbs rho but not p
            state_pert(i, j, k, RhoTheta_comp) = rho*theta_total - rho_back*theta_back[k]*(one + (R_v/R_d)*q_v_back[k]);
            state_pert(i, j, k, Rho_comp)      = rho - rho_back*(one + qt_init);

            // mean states
            state_pert(i, j, k, RhoQ1_comp) = rho*q_v_hot;
        });
    } else {

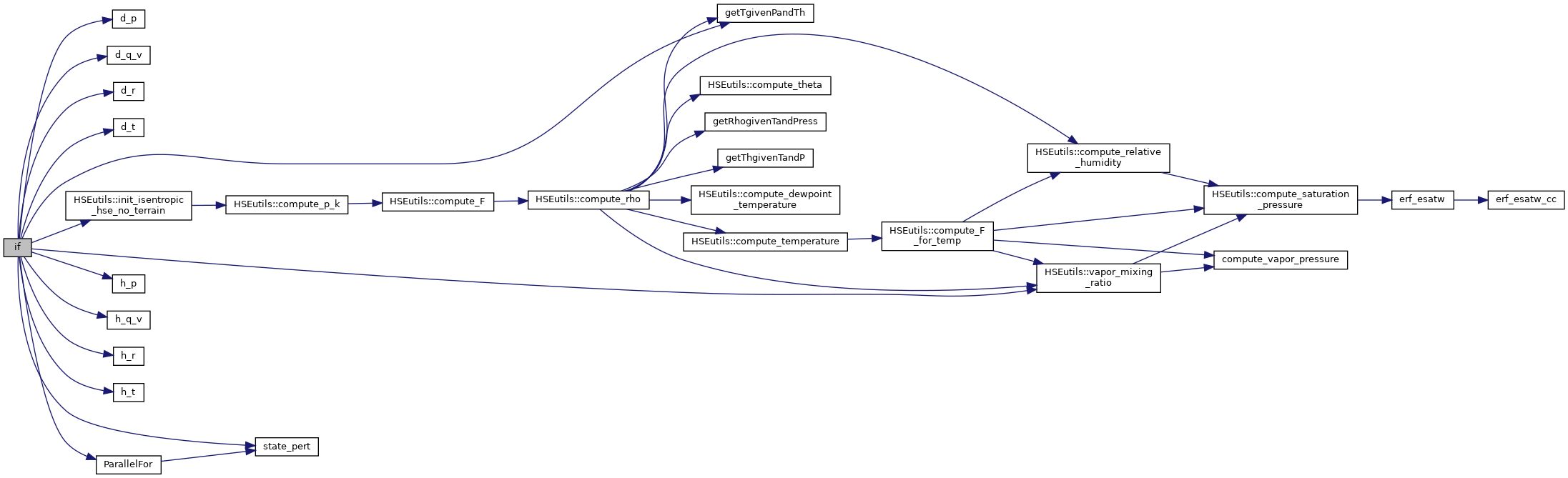

Here is the call graph for this function:

if() [2/3]

if

(

pp_sdm.

containsspecies_input.c_str()

)

                                                {
        int num_species = pp_sdm.countval(species_input.c_str());
        std::string sp_name;
        for (int i = 0; i < num_species; i++) {
            pp_sdm.get(species_input.c_str(), sp_name, i);
            m_species.push_back(sp_name);
        }
    }

Here is the call graph for this function:

if() [3/3]

if

(

T_0<=

0

)

    {
        amrex::Print() << "Ignoring T_0 = " << T_0
                       << ", background fields should have been initialized with erf.init_type"
                       << std::endl;
    }

ParallelFor()

ParallelFor	(	bx	,
		[=] AMREX_GPU_DEVICE(int i, int j, int k) noexcept { const auto prob_lo=geomdata.ProbLo();const auto dx=geomdata.CellSize();const Real x=prob_lo[0]+(i+myhalf) *dx[0];const Real y=prob_lo[1]+(j+myhalf) *dx[1];const Real z=prob_lo[2]+(k+myhalf) *dx[2];amrex::Real L=zero;if(x_r > 0) L+=std::pow((x - x_c)/x_r, 2);if(y_r > 0) L+=std::pow((y - y_c)/y_r, 2);if(z_r > 0) L+=std::pow((z - z_c)/z_r, 2);L=std::sqrt(L);if(L< one) { auto rho=state(i, j, k, Rho_comp)+state_pert(i, j, k, Rho_comp);for(int ns=0;ns< n_sp;ns++) { state_pert(i, j, k, nstart+2 *ns)=rho *qv_arr[ns];state_pert(i, j, k, nstart+2 *ns+1)=zero;} } }
	)

Referenced by if().

Here is the call graph for this function:

Here is the caller graph for this function:

pp_prob()

ParmParse pp_prob

(

"prob"

)

Referenced by for().

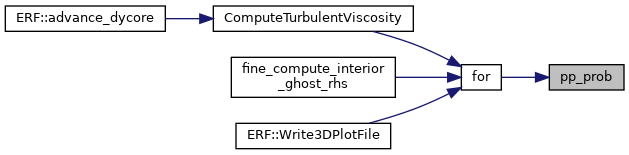

Here is the caller graph for this function:

pp_sdm()

ParmParse pp_sdm

(

"super_droplets_moisture"

)

Referenced by if().

Here is the caller graph for this function:

query() [1/15]

pp_prob query	(	"do_moist_bubble"	,
		do_moist_bubble
	)

query() [2/15]

pp_prob query	(	"eq_pot_temp"	,
		eq_pot_temp
	)

query() [3/15]

pp_prob query	(	"perturb_rho"	,
		perturb_rho
	)

query() [4/15]

pp_prob query	(	"qt_init"	,
		qt_init
	)

query() [5/15]

pp_prob query	(	"T_0"	,
		T_0
	)

query() [6/15]

pp_prob query	(	"T_pert"	,
		T_pert
	)

query() [7/15]

pp_prob query	(	"T_pert_is_airtemp"	,
		T_pert_is_airtemp
	)

query() [8/15]

pp_prob query	(	"theta_pert"	,
		theta_pert
	)

query() [9/15]

pp_prob query	(	"use_empircal_psat"	,
		use_empirical
	)

query() [10/15]

pp_prob query	(	"x_c"	,
		x_c
	)

query() [11/15]

pp_prob query	(	"x_r"	,
		x_r
	)

query() [12/15]

pp_prob query	(	"y_c"	,
		y_c
	)

query() [13/15]

pp_prob query	(	"y_r"	,
		y_r
	)

query() [14/15]

pp_prob query	(	"z_c"	,
		z_c
	)

query() [15/15]

pp_prob query	(	"z_r"	,
		z_r
	)

qv_init_d()

Gpu::DeviceVector<Real> qv_init_d

(

n_sp

)

Variable Documentation

do_moist_bubble

bool do_moist_bubble = false

dz

const Real dz = geomdata.CellSize()[2]

Referenced by if().

else

else

eq_pot_temp

Real eq_pot_temp = amrex::Real(320.0)

Referenced by HSEutils::compute_F(), HSEutils::compute_F_for_temp(), HSEutils::compute_p_k(), HSEutils::compute_rho(), HSEutils::compute_temperature(), erf_init_dens_hse_moist(), if(), and HSEutils::init_isentropic_hse_no_terrain().

khi

const auto khi = geomdata.Domain().bigEnd()[2]

Referenced by if().

m_ncomp_per_species

const int m_ncomp_per_species = 2

m_nstart_sp

const int m_nstart_sp = RhoQ3_comp+1

m_num_species

m_num_species = 0

m_qv_init_species

std::vector<amrex::Real> m_qv_init_species = std::vector<amrex::Real>(m_num_species,zero)

Referenced by for().

m_species

std::vector<std::string> m_species

Referenced by for(), and if().

n_sp

auto n_sp = m_num_species

Referenced by ParallelFor().

ncomp_species

int ncomp_species = state_pert.nComp() - nstart

nstart

auto nstart = m_nstart_sp

Referenced by ParallelFor().

perturb_rho

bool perturb_rho = true

qt_init

Real qt_init = amrex::Real(0.02)

Referenced by if().

qv_arr

auto qv_arr = qv_init_d.data()

Referenced by Morrison::Advance(), WSM6::Advance(), Kessler::Copy_Micro_to_State(), Morrison::Copy_Micro_to_State(), SAM::Copy_Micro_to_State(), SatAdj::Copy_Micro_to_State(), and ParallelFor().

rdOcp

const Real rdOcp = sc.rdOcp

species_input

std::string species_input = "species"

Referenced by if().

T_0

Real T_0 = amrex::Real(300.0)

Referenced by if().

T_pert

Real T_pert = -amrex::Real(15.0)

T_pert_is_airtemp

bool T_pert_is_airtemp = true

theta_pert

Real theta_pert = two

Referenced by if().

use_empirical

bool use_empirical = false

Referenced by HSEutils::compute_F(), HSEutils::compute_F_for_temp(), HSEutils::compute_p_k(), HSEutils::compute_relative_humidity(), HSEutils::compute_rho(), HSEutils::compute_saturation_pressure(), HSEutils::compute_temperature(), erf_esatw(), erf_init_dens_hse_moist(), if(), HSEutils::init_isentropic_hse_no_terrain(), and HSEutils::vapor_mixing_ratio().

x_c

Real x_c = zero

Referenced by if(), and ParallelFor().

x_r

Real x_r = zero

Referenced by if(), and ParallelFor().

y_c

Real y_c = zero

Referenced by if(), and ParallelFor().

y_r

Real y_r = zero

Referenced by if(), and ParallelFor().

z_c

Real z_c = zero

Referenced by if(), and ParallelFor().

z_r

Real z_r = zero

Referenced by if(), and ParallelFor().
