ERF_MakeMomSources.cpp File Reference

#include <AMReX_MultiFab.H>
#include <AMReX_ArrayLim.H>
#include <AMReX_BCRec.H>
#include <AMReX_TableData.H>
#include <AMReX_GpuContainers.H>
#include "ERF_NumericalDiffusion.H"
#include "ERF_PlaneAverage.H"
#include "ERF_TI_slow_headers.H"
#include "ERF_SrcHeaders.H"
#include "ERF_Utils.H"

Include dependency graph for ERF_MakeMomSources.cpp:

Functions
AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE amrex::Real	compute_if_most_target_vel (const amrex::Real u1_2r, const amrex::Real u2_2r, const amrex::Real delta, const amrex::Real z0, const amrex::Real t_blank, const amrex::Real theta_xface, const amrex::Real theta_surf, const amrex::Real tflux_in, const amrex::Real Olen_in, const bool stability_correction)
void	make_mom_sources (double time_d, double dt, const Vector< MultiFab > &S_data, const MultiFab *z_phys_nd, const MultiFab *z_phys_cc, Vector< Real > &stretched_dz_h, const MultiFab &xvel, const MultiFab &yvel, const MultiFab &wvel, MultiFab &xmom_src, MultiFab &ymom_src, MultiFab &zmom_src, const MultiFab &base_state, MultiFab *forest_drag, MultiFab *terrain_blank, MultiFab *cosPhi_mf, MultiFab *sinPhi_mf, const Geometry geom, const SolverChoice &solverChoice, Vector< std::unique_ptr< MultiFab >> &, const Real *dptr_u_geos, const Real *dptr_v_geos, const Real *dptr_wbar_sub, const Vector< Real * > d_rayleigh_ptrs_at_lev, const amrex::Real *d_sinesq_at_lev, const amrex::Real *d_sinesq_stag_at_lev, const Vector< Real * > d_sponge_ptrs_at_lev, const Vector< MultiFab > *forecast_state_at_lev, InputSoundingData &input_sounding_data, const eb_ &ebfact, bool is_slow_step)

Function Documentation

compute_if_most_target_vel()

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE amrex::Real compute_if_most_target_vel	(	const amrex::Real	u1_2r,
		const amrex::Real	u2_2r,
		const amrex::Real	delta,
		const amrex::Real	z0,
		const amrex::Real	t_blank,
		const amrex::Real	theta_xface,
		const amrex::Real	theta_surf,
		const amrex::Real	tflux_in,
		const amrex::Real	Olen_in,
		const bool	stability_correction
	)

{
    const Real tiny             = std::numeric_limits<amrex::Real>::epsilon();
    Real psi_m                  = zero;
    Real psi_h                  = zero;
    Real tang_windspeed2r       = std::sqrt(u1_2r * u1_2r + u2_2r * u2_2r);

    Real ustar = tang_windspeed2r * KAPPA / (std::log(1.5 * delta / z0) - psi_m);
    Real tflux = (tflux_in != Real(1.e-8)) ? tflux_in : -(theta_xface - theta_surf) * ustar * KAPPA / (std::log(1.5 * delta / z0) - psi_h);
    Real Olen  = (Olen_in != Real(1.e-8))  ? Olen_in  : -ustar * ustar * ustar * theta_xface / (KAPPA * CONST_GRAV * tflux + tiny);
    Real zeta  = 1.5 * delta / Olen;

    // similarity functions
    similarity_funs sfuns;
    if (stability_correction){
        psi_m          = sfuns.calc_psi_m(zeta);
        psi_h          = sfuns.calc_psi_h(zeta);
    }
    ustar = tang_windspeed2r * KAPPA / (std::log(1.5 * delta / z0) - psi_m);

    // prevent some unphysical math
    if (!(ustar > zero && !std::isnan(ustar))) { ustar = zero; }
    if (!(ustar < 2.0  && !std::isnan(ustar))) { ustar = 2.0; }
    if (psi_m > std::log(myhalf * delta / z0)) { psi_m = std::log(myhalf * delta / z0); }

    Real uTarget      = (1 - t_blank) * ustar / KAPPA * (std::log(myhalf * delta / z0) - psi_m);
    Real u1Target     = uTarget * u1_2r / (tiny + tang_windspeed2r);

    return u1Target;
}

Referenced by make_mom_sources().

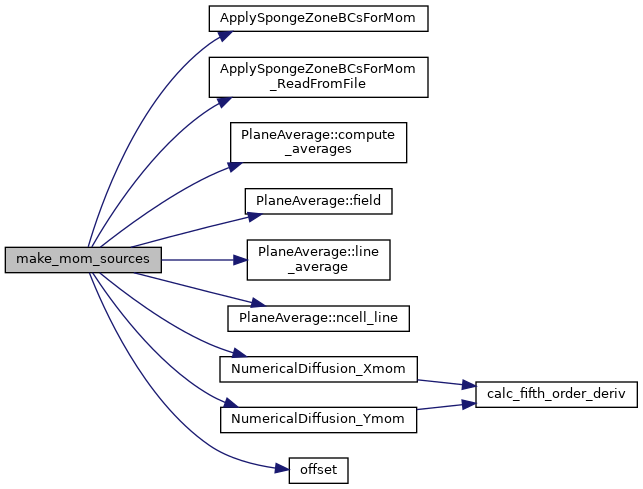

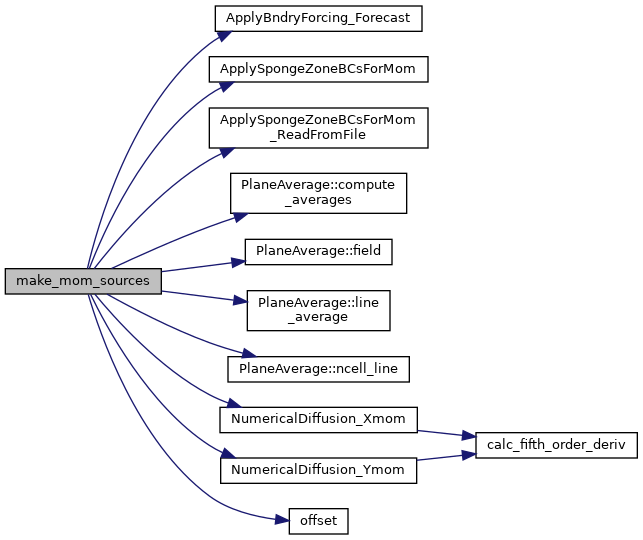

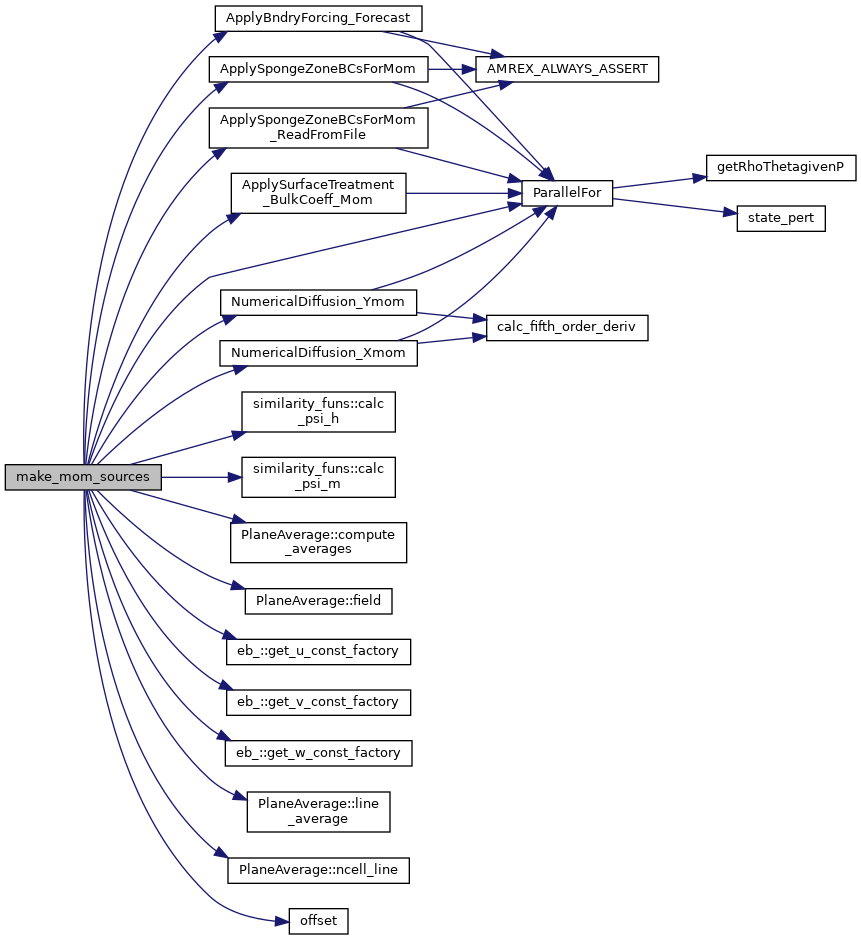

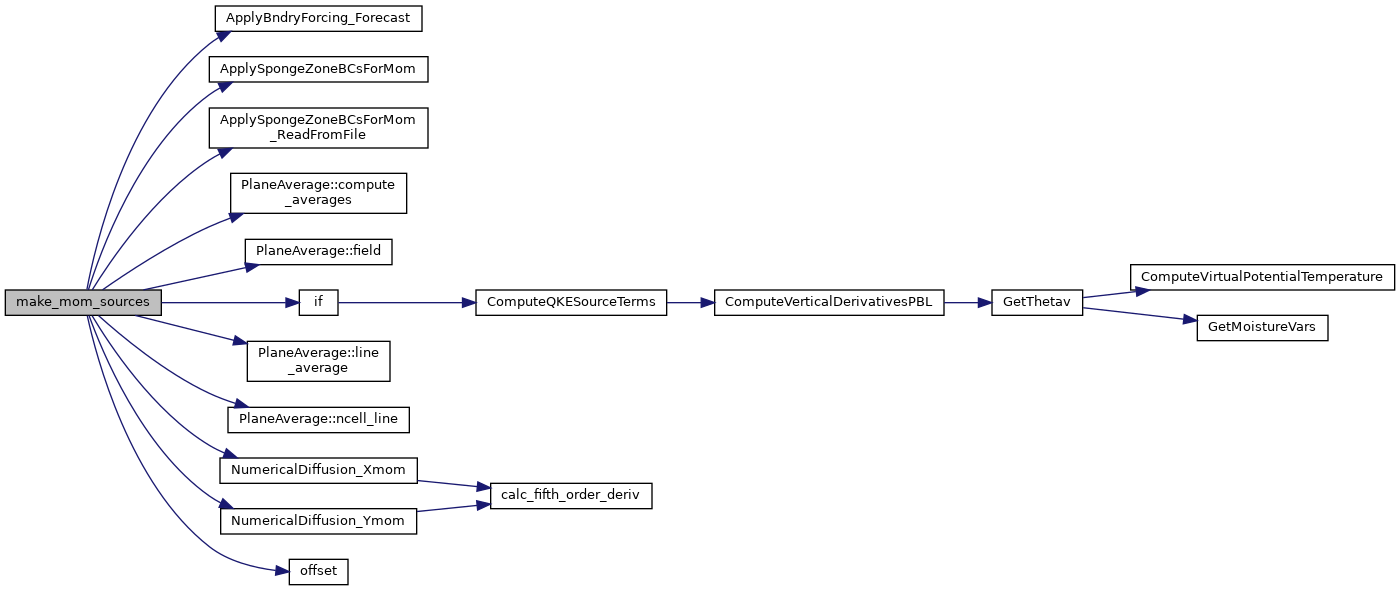

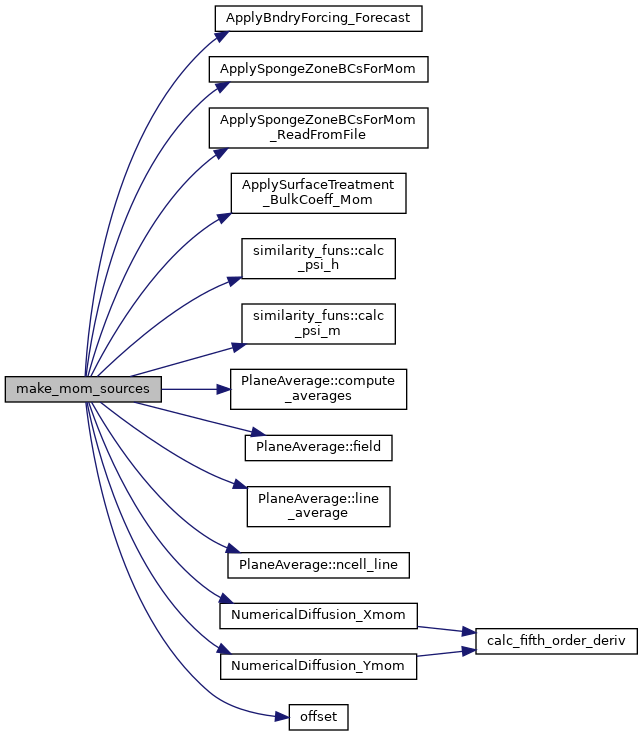

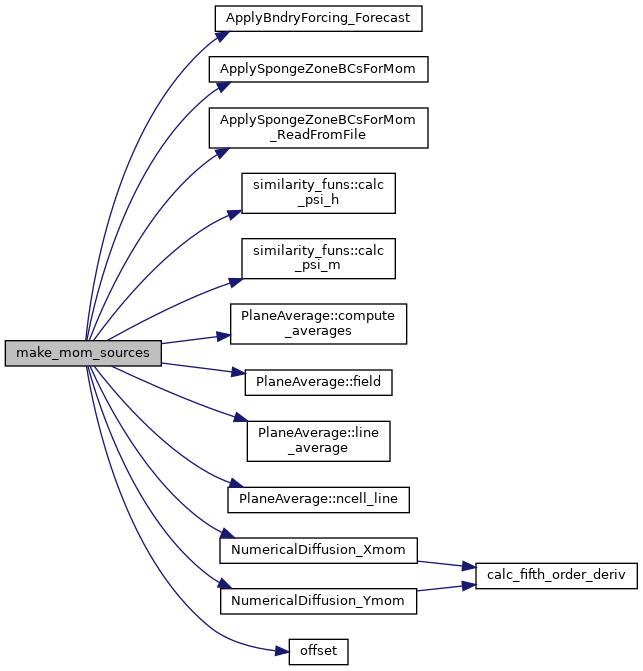

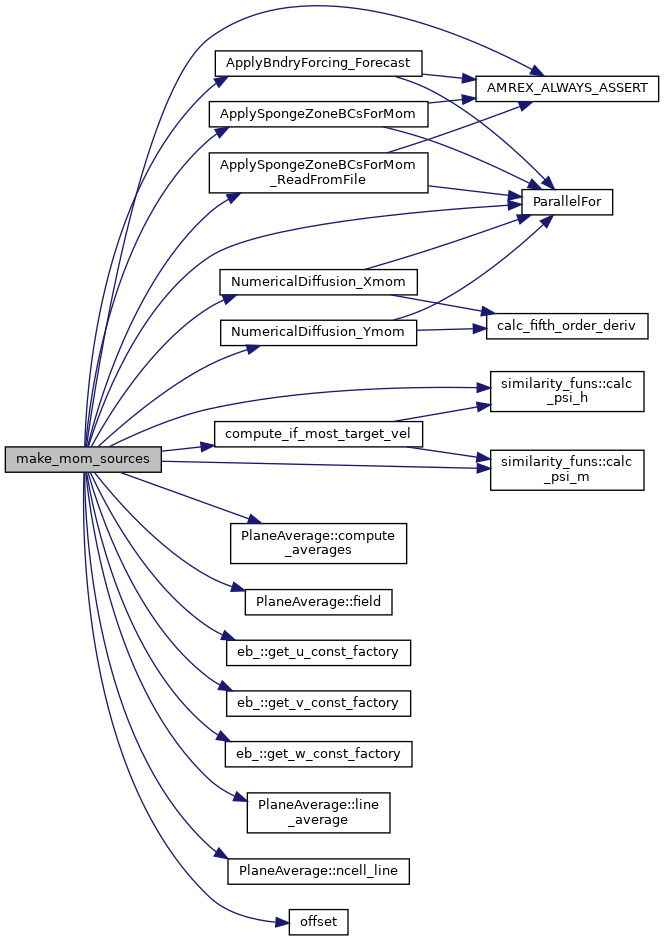

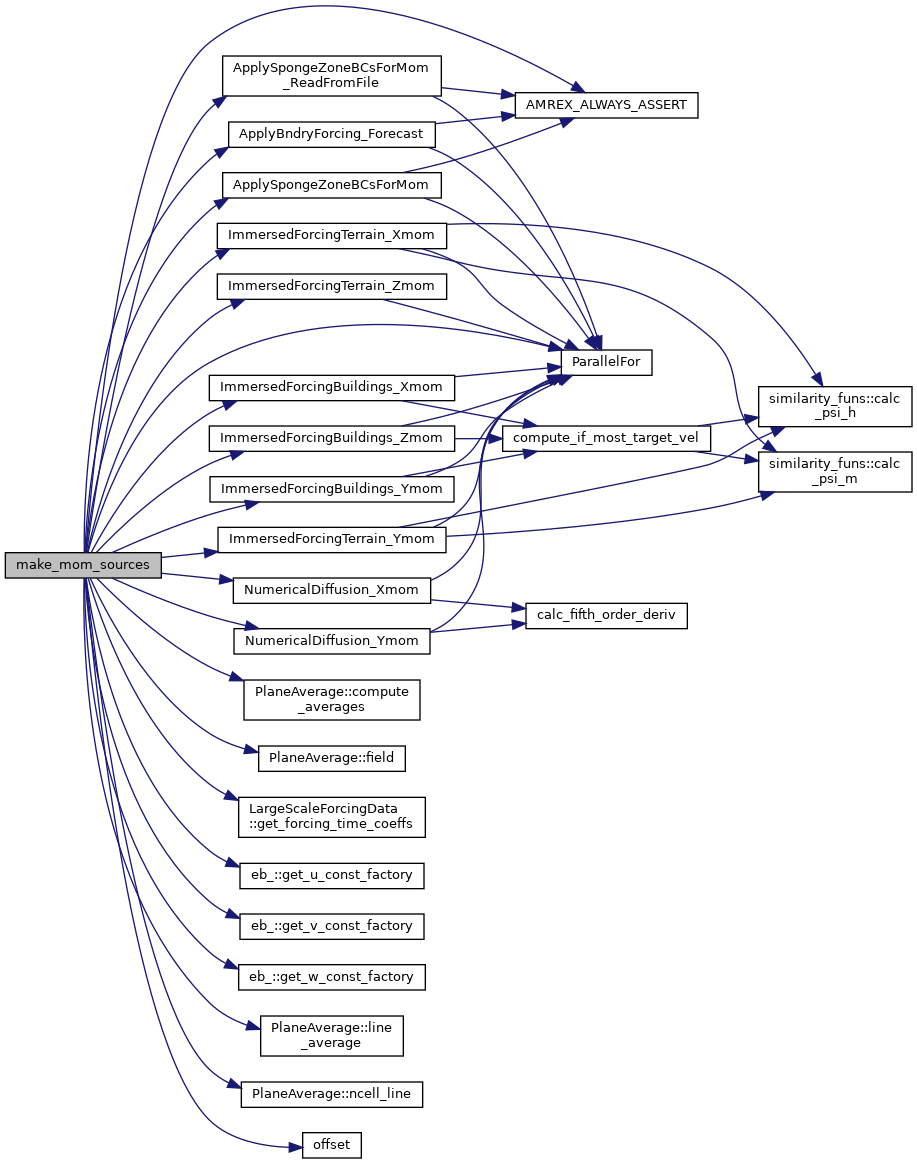

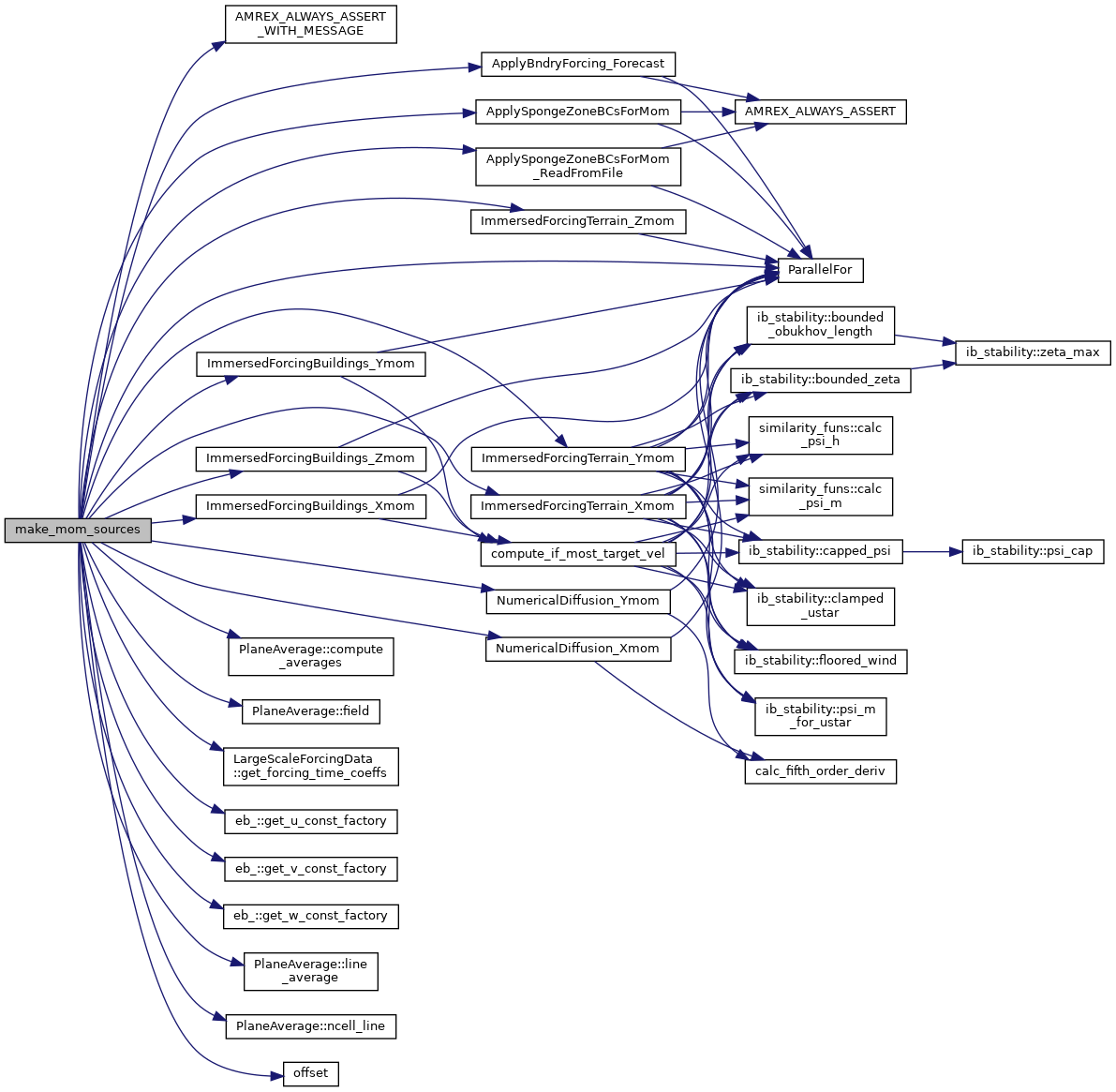

Here is the call graph for this function:

Here is the caller graph for this function:

make_mom_sources()

void make_mom_sources	(	double	time_d,
		double	dt,
		const Vector< MultiFab > &	S_data,
		const MultiFab *	z_phys_nd,
		const MultiFab *	z_phys_cc,
		Vector< Real > &	stretched_dz_h,
		const MultiFab &	xvel,
		const MultiFab &	yvel,
		const MultiFab &	wvel,
		MultiFab &	xmom_src,
		MultiFab &	ymom_src,
		MultiFab &	zmom_src,
		const MultiFab &	base_state,
		MultiFab *	forest_drag,
		MultiFab *	terrain_blank,
		MultiFab *	cosPhi_mf,
		MultiFab *	sinPhi_mf,
		const Geometry	geom,
		const SolverChoice &	solverChoice,
		Vector< std::unique_ptr< MultiFab >> &	,
		const Real *	dptr_u_geos,
		const Real *	dptr_v_geos,
		const Real *	dptr_wbar_sub,
		const Vector< Real * >	d_rayleigh_ptrs_at_lev,
		const amrex::Real *	d_sinesq_at_lev,
		const amrex::Real *	d_sinesq_stag_at_lev,
		const Vector< Real * >	d_sponge_ptrs_at_lev,
		const Vector< MultiFab > *	forecast_state_at_lev,
		InputSoundingData &	input_sounding_data,
		const eb_ &	ebfact,
		bool	is_slow_step
	)

Function for computing the slow RHS for the evolution equations for the density, potential temperature and momentum.

Parameters

[in]	time	current time
[in]	dt	current slow or fast timestep size
[in]	S_data	current solution
[in]	xvel	x-component of velocity
[in]	yvel	y-component of velocity
[in]	xmom_src	source terms for x-momentum
[in]	ymom_src	source terms for y-momentum
[in]	zmom_src	source terms for z-momentum
[in]	geom	Container for geometric information
[in]	solverChoice	Container for solver parameters
[in]	mapfac	map factors
[in]	dptr_u_geos	custom geostrophic wind profile
[in]	dptr_v_geos	custom geostrophic wind profile
[in]	dptr_wbar_sub	subsidence source term
[in]	d_rayleigh_ptrs_at_lev	Vector of {strength of Rayleigh damping, reference value for xvel/yvel/zvel/theta} used to define Rayleigh damping
[in]	d_sinesq_at_lev	sin( (pi/2) (z-z_t)/(damping depth)) at cell centers
[in]	d_sinesq_stag_at_lev	sin( (pi/2) (z-z_t)/(damping depth)) at z-faces

{
    BL_PROFILE_REGION("erf_make_mom_sources()");

    Real time = static_cast<Real>(time_d);

    Box domain(geom.Domain());
    const GpuArray<Real, AMREX_SPACEDIM> dxInv = geom.InvCellSizeArray();

    // Initialize sources to zero each time we may use them
    xmom_src.setVal(0.0);
    ymom_src.setVal(0.0);
    zmom_src.setVal(0.0);

    MultiFab r_hse (base_state, make_alias, BaseState::r0_comp , 1);

    // flags to apply certain source terms in substep call only
    bool use_Rayleigh_fast_uv = ( (solverChoice.dampingChoice.rayleigh_damping_type == RayleighDampingType::FastExplicit) ||
                                  (solverChoice.dampingChoice.rayleigh_damping_type == RayleighDampingType::FastImplicit) );
    bool use_Rayleigh_fast_w  = (solverChoice.dampingChoice.rayleigh_damping_type == RayleighDampingType::FastExplicit);
    bool use_canopy_fast = solverChoice.forest_substep;
    bool use_ImmersedForcing_fast = solverChoice.immersed_forcing_substep;

    // *****************************************************************************
    // Define source term for all three components of momenta from
    //    1. Coriolis forcing for (xmom,ymom,zmom)
    //    2. Rayleigh damping for (xmom,ymom,zmom)
    //    3. Constant / height-dependent geostrophic forcing
    //    4. Subsidence
    //    5. Nudging towards input sounding data
    //    6. Numerical diffusion for (xmom,ymom,zmom)
    //    7. Sponge
    //    8. Forest canopy
    //   9a. Immersed forcing for terrain
    //   9b. Immersed forcing for buildings
    //   10. Constant mass flux
    // *****************************************************************************
    // NOTE: buoyancy is now computed in a separate routine - it should not appear here
    // *****************************************************************************
    //const bool l_use_ndiff       = solverChoice.use_num_diff;

    if (solverChoice.terrain_type == TerrainType::ImmersedForcing) {
        if (solverChoice.do_forest_drag) {
            amrex::Error(" Currently forest canopy cannot be used with immersed forcing");
        }
    }


    // *****************************************************************************
    // Data for Coriolis forcing
    // *****************************************************************************
    auto use_coriolis         = solverChoice.use_coriolis;
    auto coriolis_factor      = solverChoice.coriolis_factor;
    auto cosphi               = solverChoice.cosphi;
    auto sinphi               = solverChoice.sinphi;
    auto var_coriolis         = solverChoice.variable_coriolis;

    // *****************************************************************************
    // Flag for Geostrophic forcing
    // *****************************************************************************
    auto abl_geo_forcing  = solverChoice.abl_geo_forcing;
    auto geo_wind_profile = solverChoice.have_geo_wind_profile;

    // *****************************************************************************
    // Data for Rayleigh damping
    // *****************************************************************************
    auto rayleigh_damp_U  = solverChoice.dampingChoice.rayleigh_damp_U;
    auto rayleigh_damp_V  = solverChoice.dampingChoice.rayleigh_damp_V;
    auto rayleigh_damp_W  = solverChoice.dampingChoice.rayleigh_damp_W;

    Real*     ubar = d_rayleigh_ptrs_at_lev[Rayleigh::ubar];
    Real*     vbar = d_rayleigh_ptrs_at_lev[Rayleigh::vbar];
    Real*     wbar = d_rayleigh_ptrs_at_lev[Rayleigh::wbar];

    // *****************************************************************************
    // Data for constant mass flux
    // *****************************************************************************
    bool enforce_massflux_x = (solverChoice.const_massflux_u != 0);
    bool enforce_massflux_y = (solverChoice.const_massflux_v != 0);
    Real U_target = solverChoice.const_massflux_u;
    Real V_target = solverChoice.const_massflux_v;
    int massflux_klo = solverChoice.massflux_klo;
    int massflux_khi = solverChoice.massflux_khi;

    // These will be updated by integrating through the planar average profiles
    Real rhoUA_target{0};
    Real rhoVA_target{0};
    Real rhoUA{0};
    Real rhoVA{0};

    // *****************************************************************************
    // Planar averages for subsidence, nudging, or constant mass flux
    // *****************************************************************************
    Table1D<Real>     dptr_r_plane, dptr_u_plane, dptr_v_plane;
    TableData<Real, 1> r_plane_tab,  u_plane_tab,  v_plane_tab;

    if (is_slow_step && (dptr_wbar_sub || solverChoice.nudging_from_input_sounding ||
                         enforce_massflux_x || enforce_massflux_y))
    {
        // The plane averaging operates at fixed z not fixed height so is not correct for variable dz
        AMREX_ALWAYS_ASSERT(solverChoice.mesh_type != MeshType::VariableDz);

        const int offset = 1;
        const int u_offset = 1;
        const int v_offset = 1;

        //
        // We use the alias here to control ncomp inside the PlaneAverage
        //
        MultiFab cons(S_data[IntVars::cons], make_alias, 0, 1);

        IntVect ng_c = S_data[IntVars::cons].nGrowVect(); ng_c[2] = offset;
        PlaneAverage r_ave(&cons, geom, solverChoice.ave_plane, ng_c);
        r_ave.compute_averages(ZDir(), r_ave.field());

        int ncell = r_ave.ncell_line();
        Gpu::HostVector<    Real> r_plane_h(ncell);
        Gpu::DeviceVector<  Real> r_plane_d(ncell);

        r_ave.line_average(Rho_comp, r_plane_h);

        Gpu::copyAsync(Gpu::hostToDevice, r_plane_h.begin(), r_plane_h.end(), r_plane_d.begin());

        Real* dptr_r = r_plane_d.data();

        Box tdomain  = domain; tdomain.grow(2,ng_c[2]);
        r_plane_tab.resize({tdomain.smallEnd(2)}, {tdomain.bigEnd(2)});

        dptr_r_plane = r_plane_tab.table();
        ParallelFor(ncell, [=] AMREX_GPU_DEVICE (int k) noexcept
        {
            dptr_r_plane(k-offset) = dptr_r[k];
        });

        // U and V momentum
        IntVect ng_u = S_data[IntVars::xmom].nGrowVect(); ng_u[2] = u_offset;
        PlaneAverage u_ave(&(S_data[IntVars::xmom]), geom, solverChoice.ave_plane, ng_u);

        IntVect ng_v = S_data[IntVars::ymom].nGrowVect(); ng_v[2] = v_offset;
        PlaneAverage v_ave(&(S_data[IntVars::ymom]), geom, solverChoice.ave_plane, ng_v);

        u_ave.compute_averages(ZDir(), u_ave.field());
        v_ave.compute_averages(ZDir(), v_ave.field());

        int u_ncell = u_ave.ncell_line();
        int v_ncell = v_ave.ncell_line();
        Gpu::HostVector<    Real> u_plane_h(u_ncell), v_plane_h(v_ncell);
        Gpu::DeviceVector<  Real> u_plane_d(u_ncell), v_plane_d(v_ncell);

        u_ave.line_average(0, u_plane_h);
        v_ave.line_average(0, v_plane_h);

        Gpu::copyAsync(Gpu::hostToDevice, u_plane_h.begin(), u_plane_h.end(), u_plane_d.begin());
        Gpu::copyAsync(Gpu::hostToDevice, v_plane_h.begin(), v_plane_h.end(), v_plane_d.begin());

        Real* dptr_u = u_plane_d.data();
        Real* dptr_v = v_plane_d.data();

        Box udomain = domain; udomain.grow(2,ng_u[2]);
        Box vdomain = domain; vdomain.grow(2,ng_v[2]);
        u_plane_tab.resize({udomain.smallEnd(2)}, {udomain.bigEnd(2)});
        v_plane_tab.resize({vdomain.smallEnd(2)}, {vdomain.bigEnd(2)});

        dptr_u_plane = u_plane_tab.table();
        ParallelFor(u_ncell, [=] AMREX_GPU_DEVICE (int k) noexcept
        {
            dptr_u_plane(k-u_offset) = dptr_u[k];
        });

        dptr_v_plane = v_plane_tab.table();
        ParallelFor(v_ncell, [=] AMREX_GPU_DEVICE (int k) noexcept
        {
            dptr_v_plane(k-v_offset) = dptr_v[k];
        });

        // sum in z for massflux adjustment
        if (enforce_massflux_x || enforce_massflux_y) {
            Real Lx = geom.ProbHi(0) - geom.ProbLo(0);
            Real Ly = geom.ProbHi(1) - geom.ProbLo(1);

            if (solverChoice.mesh_type == MeshType::ConstantDz) {
                // note: massflux_khi corresponds to unstaggered indices in this case
                rhoUA        = std::accumulate(u_plane_h.begin() + u_offset + massflux_klo,
                                               u_plane_h.begin() + u_offset + massflux_khi+1, zero);
                rhoVA        = std::accumulate(v_plane_h.begin() + v_offset + massflux_klo,
                                               v_plane_h.begin() + v_offset + massflux_khi+1, zero);
                rhoUA_target = std::accumulate(r_plane_h.begin() +   offset + massflux_klo,
                                               r_plane_h.begin() +   offset + massflux_khi+1, zero);
                rhoVA_target = rhoUA_target;

                rhoUA        *= geom.CellSize(2) * Ly;
                rhoVA        *= geom.CellSize(2) * Lx;
                rhoUA_target *= geom.CellSize(2) * Ly;
                rhoVA_target *= geom.CellSize(2) * Lx;

            } else if (solverChoice.mesh_type == MeshType::StretchedDz) {
                // note: massflux_khi corresponds to staggered indices in this case
                for (int k=massflux_klo; k < massflux_khi; ++k) {
                    rhoUA        += u_plane_h[k + u_offset] * stretched_dz_h[k];
                    rhoVA        += v_plane_h[k + v_offset] * stretched_dz_h[k];
                    rhoUA_target += r_plane_h[k +   offset] * stretched_dz_h[k];
                }
                rhoVA_target = rhoUA_target;

                rhoUA        *= Ly;
                rhoVA        *= Lx;
                rhoUA_target *= Ly;
                rhoVA_target *= Lx;
            }

            // at this point, this is integrated rho*dA
            rhoUA_target *= U_target;
            rhoVA_target *= V_target;

            Print() << "Integrated mass flux : " << rhoUA << " " << rhoVA
                << " (target: " << rhoUA_target << " " << rhoVA_target << ")"
                << std::endl;
        }
    }

    // *****************************************************************************
    // Add all the other forcings
    // *****************************************************************************
    for ( MFIter mfi(S_data[IntVars::cons]); mfi.isValid(); ++mfi)
    {
        Box tbx = mfi.nodaltilebox(0);
        Box tby = mfi.nodaltilebox(1);
        Box tbz = mfi.nodaltilebox(2);
        if (tbz.bigEnd(2) == domain.bigEnd(2)+1) tbz.growHi(2,-1);

        const Array4<const Real>& cell_data = S_data[IntVars::cons].array(mfi);
        const Array4<const Real>&     rho_u = S_data[IntVars::xmom].array(mfi);
        const Array4<const Real>&     rho_v = S_data[IntVars::ymom].array(mfi);
        const Array4<const Real>&     rho_w = S_data[IntVars::zmom].array(mfi);

        const Array4<const Real>& u = xvel.array(mfi);
        const Array4<const Real>& v = yvel.array(mfi);
        const Array4<const Real>& w = wvel.array(mfi);

        const Array4<      Real>& xmom_src_arr = xmom_src.array(mfi);
        const Array4<      Real>& ymom_src_arr = ymom_src.array(mfi);
        const Array4<      Real>& zmom_src_arr = zmom_src.array(mfi);

        const Array4<const Real>& r0 = r_hse.const_array(mfi);

        const Array4<const Real>& f_drag_arr = (forest_drag) ? forest_drag->const_array(mfi) :
                                                               Array4<const Real>{};
        const Array4<const Real>& t_blank_arr = (terrain_blank) ? terrain_blank->const_array(mfi) :
                                                               Array4<const Real>{};

        const Array4<const Real>& cphi_arr = (cosPhi_mf) ? cosPhi_mf->const_array(mfi) :
                                                           Array4<const Real>{};
        const Array4<const Real>& sphi_arr = (sinPhi_mf) ? sinPhi_mf->const_array(mfi) :
                                                           Array4<const Real>{};

        const Array4<const Real>& z_nd_arr =  z_phys_nd->const_array(mfi);
        const Array4<const Real>& z_cc_arr =  z_phys_cc->const_array(mfi);


        // *****************************************************************************
        // 1. Add Coriolis forcing (this assumes east is +x, north is +y)
        // *****************************************************************************
        if (use_coriolis && is_slow_step) {
            if(solverChoice.init_type == InitType::HindCast) {
                const Array4<const Real>& latlon_arr = (*forecast_state_at_lev)[4].array(mfi);
                ParallelFor(tbx, tby, tbz,
                [=] AMREX_GPU_DEVICE (int i, int j, int k)
                {
                    Real rho_on_u_face = myhalf * ( cell_data(i,j,k,Rho_comp) + cell_data(i-1,j,k,Rho_comp) );
                    Real v_loc = fourth * (v(i,j+1,k) + v(i,j,k) + v(i-1,j+1,k) + v(i-1,j,k));
                    Real w_loc = fourth * (w(i,j,k+1) + w(i,j,k) + w(i-1,j,k+1) + w(i-1,j,k));
                    Real latitude = latlon_arr(i,j,k,0);
                    Real sphi_loc = std::sin(latitude*PI/Real(180.0));
                    Real cphi_loc = std::cos(latitude*PI/Real(180.0));
                    xmom_src_arr(i, j, k) += coriolis_factor * rho_on_u_face * (v_loc * sphi_loc - w_loc * cphi_loc);
                },
                [=] AMREX_GPU_DEVICE (int i, int j, int k) {
                    Real rho_on_v_face = myhalf * ( cell_data(i,j,k,Rho_comp) + cell_data(i,j-1,k,Rho_comp) );
                    Real u_loc = fourth * (u(i+1,j,k) + u(i,j,k) + u(i+1,j-1,k) + u(i,j-1,k));
                    Real latitude = latlon_arr(i,j,k,0);
                    Real sphi_loc = std::sin(latitude*PI/Real(180.0));
                    ymom_src_arr(i, j, k) += -coriolis_factor * rho_on_v_face * u_loc * sphi_loc;
                },
                [=] AMREX_GPU_DEVICE (int i, int j, int k) {
                    Real rho_on_w_face = myhalf * ( cell_data(i,j,k,Rho_comp) + cell_data(i,j,k-1,Rho_comp) );
                    Real u_loc = fourth * (u(i+1,j,k) + u(i,j,k) + u(i+1,j,k-1) + u(i,j,k-1));
                    Real latitude = latlon_arr(i,j,k,0);
                    Real cphi_loc = std::cos(latitude*PI/Real(180.0));
                    zmom_src_arr(i, j, k) += coriolis_factor * rho_on_w_face * u_loc * cphi_loc;
                });
            }
            else if (var_coriolis && (sinPhi_mf) && (cosPhi_mf)) {
                ParallelFor(tbx, tby, tbz,
                [=] AMREX_GPU_DEVICE (int i, int j, int k)
                {
                    Real rho_on_u_face = myhalf * ( cell_data(i,j,k,Rho_comp) + cell_data(i-1,j,k,Rho_comp) );
                    Real v_loc = fourth * (v(i,j+1,k) + v(i,j,k) + v(i-1,j+1,k) + v(i-1,j,k));
                    Real w_loc = fourth * (w(i,j,k+1) + w(i,j,k) + w(i-1,j,k+1) + w(i-1,j,k));
                    Real sphi_loc  = myhalf  * (sphi_arr(i,j,0) + sphi_arr(i-1,j,0));
                    Real cphi_loc  = myhalf  * (cphi_arr(i,j,0) + cphi_arr(i-1,j,0));
                    xmom_src_arr(i, j, k) += coriolis_factor * rho_on_u_face * (v_loc * sphi_loc - w_loc * cphi_loc);
                },
                [=] AMREX_GPU_DEVICE (int i, int j, int k) {
                    Real rho_on_v_face = myhalf * ( cell_data(i,j,k,Rho_comp) + cell_data(i,j-1,k,Rho_comp) );
                    Real u_loc = fourth * (u(i+1,j,k) + u(i,j,k) + u(i+1,j-1,k) + u(i,j-1,k));
                    Real sphi_loc  = myhalf  * (sphi_arr(i,j,0) + sphi_arr(i,j-1,0));
                    ymom_src_arr(i, j, k) += -coriolis_factor * rho_on_v_face * u_loc * sphi_loc;
                },
                [=] AMREX_GPU_DEVICE (int i, int j, int k) {
                    Real rho_on_w_face = myhalf * ( cell_data(i,j,k,Rho_comp) + cell_data(i,j,k-1,Rho_comp) );
                    Real u_loc = fourth * (u(i+1,j,k) + u(i,j,k) + u(i+1,j,k-1) + u(i,j,k-1));
                    zmom_src_arr(i, j, k) += coriolis_factor * rho_on_w_face * u_loc * cphi_arr(i,j,0);
                });
            } else {
                if (solverChoice.terrain_type == TerrainType::EB) {
                    Array4<const Real> u_volfrac = (ebfact.get_u_const_factory())->getVolFrac().const_array(mfi);
                    Array4<const Real> v_volfrac = (ebfact.get_v_const_factory())->getVolFrac().const_array(mfi);
                    Array4<const Real> w_volfrac = (ebfact.get_w_const_factory())->getVolFrac().const_array(mfi);
                    ParallelFor(tbx, [=] AMREX_GPU_DEVICE (int i, int j, int k) {
                        Real v_loc = 0.0;
                        Real w_loc = 0.0;
                        Real v_vol = v_volfrac(i,j+1,k) + v_volfrac(i,j,k) + v_volfrac(i-1,j+1,k) + v_volfrac(i-1,j,k);
                        Real w_vol = w_volfrac(i,j,k+1) + w_volfrac(i,j,k) + w_volfrac(i-1,j,k+1) + w_volfrac(i-1,j,k);
                        Real rho_on_u_face = myhalf * ( cell_data(i,j,k,Rho_comp) + cell_data(i-1,j,k,Rho_comp) );
                        if (v_vol > 0.0) {
                            v_loc = ( v_volfrac(i  ,j+1,k) * v(i  ,j+1,k) + v_volfrac(i  ,j,k) * v(i  ,j,k)
                                    + v_volfrac(i-1,j+1,k) * v(i-1,j+1,k) + v_volfrac(i-1,j,k) * v(i-1,j,k)) / v_vol;
                        }
                        if (w_vol > 0.0) {
                            w_loc = ( w_volfrac(i  ,j,k+1) * w(i  ,j,k+1) + w_volfrac(i  ,j,k) * w(i  ,j,k)
                                    + w_volfrac(i-1,j,k+1) * w(i-1,j,k+1) + w_volfrac(i-1,j,k) * w(i-1,j,k)) / w_vol;
                        }
                        xmom_src_arr(i, j, k) += coriolis_factor * rho_on_u_face * (v_loc * sinphi - w_loc * cosphi);
                    });
                    ParallelFor(tby, [=] AMREX_GPU_DEVICE (int i, int j, int k) {
                        Real u_loc = 0.0;
                        Real u_vol = u_volfrac(i+1,j,k) + u_volfrac(i,j,k) + u_volfrac(i+1,j-1,k) + u_volfrac(i,j-1,k);
                        Real rho_on_v_face = myhalf * ( cell_data(i,j,k,Rho_comp) + cell_data(i,j-1,k,Rho_comp) );
                        if (u_vol > 0.0) {
                            u_loc = ( u_volfrac(i+1,j  ,k) * u(i+1,j  ,k) + u_volfrac(i,j  ,k) * u(i,j  ,k)
                                    + u_volfrac(i+1,j-1,k) * u(i+1,j-1,k) + u_volfrac(i,j-1,k) * u(i,j-1,k)) / u_vol;
                        }
                        ymom_src_arr(i, j, k) += -coriolis_factor * rho_on_v_face * u_loc * sinphi;
                    });
                    ParallelFor(tbz, [=] AMREX_GPU_DEVICE (int i, int j, int k) {
                        Real u_loc = 0.0;
                        Real u_vol = u_volfrac(i+1,j,k) + u_volfrac(i,j,k) + u_volfrac(i+1,j,k-1) + u_volfrac(i,j,k-1);
                        Real rho_on_w_face = myhalf * ( cell_data(i,j,k,Rho_comp) + cell_data(i,j,k-1,Rho_comp) );
                        if (u_vol > 0.0) {
                            u_loc = ( u_volfrac(i+1,j,k  ) * u(i+1,j,k  ) + u_volfrac(i,j,k)   * u(i,j,k  )
                                    + u_volfrac(i+1,j,k-1) * u(i+1,j,k-1) + u_volfrac(i,j,k-1) * u(i,j,k-1)) / u_vol;
                        }
                        zmom_src_arr(i, j, k) += coriolis_factor * rho_on_w_face * u_loc * cosphi;
                    });
                } else {
                    ParallelFor(tbx, tby, tbz,
                    [=] AMREX_GPU_DEVICE (int i, int j, int k)
                    {
                        Real v_loc = fourth * (v(i,j+1,k) + v(i,j,k) + v(i-1,j+1,k) + v(i-1,j,k));
                        Real w_loc = fourth * (w(i,j,k+1) + w(i,j,k) + w(i-1,j,k+1) + w(i-1,j,k));
                        Real rho_on_u_face = myhalf * ( cell_data(i,j,k,Rho_comp) + cell_data(i-1,j,k,Rho_comp) );
                        xmom_src_arr(i, j, k) += rho_on_u_face * ( coriolis_factor * (v_loc * sinphi - w_loc * cosphi) );
                    },
                    [=] AMREX_GPU_DEVICE (int i, int j, int k) {
                        Real rho_on_v_face = myhalf * ( cell_data(i,j,k,Rho_comp) + cell_data(i,j-1,k,Rho_comp) );
                        Real u_loc = fourth * (u(i+1,j,k) + u(i,j,k) + u(i+1,j-1,k) + u(i,j-1,k));
                        ymom_src_arr(i, j, k) += rho_on_v_face * ( -coriolis_factor * u_loc * sinphi );
                    },
                    [=] AMREX_GPU_DEVICE (int i, int j, int k) {
                        Real u_loc = fourth * (u(i+1,j,k) + u(i,j,k) + u(i+1,j,k-1) + u(i,j,k-1));
                        Real rho_on_w_face = myhalf * ( cell_data(i,j,k,Rho_comp) + cell_data(i,j,k-1,Rho_comp) );
                        zmom_src_arr(i, j, k) += rho_on_w_face * ( coriolis_factor * u_loc * cosphi );
                    });
                }
            } // var_coriolis
        } // use_coriolis

        // *****************************************************************************
        // 2. Add RAYLEIGH damping
        // *****************************************************************************
        Real dampcoef = solverChoice.dampingChoice.rayleigh_dampcoef;

        if ( (is_slow_step && !use_Rayleigh_fast_uv) || (!is_slow_step && use_Rayleigh_fast_uv)) {
            if (rayleigh_damp_U) {
                ParallelFor(tbx, [=] AMREX_GPU_DEVICE (int i, int j, int k)
                {
                    Real rho_on_u_face = myhalf * ( cell_data(i,j,k,Rho_comp) + cell_data(i-1,j,k,Rho_comp) );
                    Real uu = rho_u(i,j,k) / rho_on_u_face;
                    Real sinesq = d_sinesq_at_lev[k];
                    xmom_src_arr(i, j, k) -= dampcoef*sinesq * (uu - ubar[k]) * rho_on_u_face;
                });
            }

            if (rayleigh_damp_V) {
                ParallelFor(tby, [=] AMREX_GPU_DEVICE (int i, int j, int k)
                {
                    Real rho_on_v_face = myhalf * ( cell_data(i,j,k,Rho_comp) + cell_data(i,j-1,k,Rho_comp) );
                    Real vv = rho_v(i,j,k) / rho_on_v_face;
                    Real sinesq = d_sinesq_at_lev[k];
                    ymom_src_arr(i, j, k) -= dampcoef*sinesq * (vv - vbar[k]) * rho_on_v_face;
                });
            }
        } // fast or slow step

        if ( (is_slow_step && !use_Rayleigh_fast_w) || (!is_slow_step && use_Rayleigh_fast_w)) {
            if (rayleigh_damp_W) {
                    ParallelFor(tbz, [=] AMREX_GPU_DEVICE (int i, int j, int k)
                {
                    Real rho_on_w_face = myhalf * ( cell_data(i,j,k,Rho_comp) + cell_data(i,j,k-1,Rho_comp) );
                    Real ww = rho_w(i,j,k) / rho_on_w_face;
                    Real sinesq = d_sinesq_stag_at_lev[k];
                    zmom_src_arr(i, j, k) -= dampcoef*sinesq * (ww - wbar[k]) * rho_on_w_face;
                });
            }
        } // fast or slow step

        // *****************************************************************************
        // 3a. Add constant GEOSTROPHIC forcing
        // *****************************************************************************
        if (is_slow_step) {
            ParallelFor(tbx, tby, tbz,
            [=] AMREX_GPU_DEVICE (int i, int j, int k)
            {
                Real rho_on_u_face = myhalf * ( cell_data(i,j,k,Rho_comp) + cell_data(i-1,j,k,Rho_comp) );
                xmom_src_arr(i, j, k) += rho_on_u_face * abl_geo_forcing[0];
            },
            [=] AMREX_GPU_DEVICE (int i, int j, int k)
            {
                Real rho_on_v_face = myhalf * ( cell_data(i,j,k,Rho_comp) + cell_data(i,j-1,k,Rho_comp) );
                ymom_src_arr(i, j, k) += rho_on_v_face * abl_geo_forcing[1];
            },
            [=] AMREX_GPU_DEVICE (int i, int j, int k)
            {
                Real rho_on_w_face = myhalf * ( cell_data(i,j,k,Rho_comp) + cell_data(i,j,k-1,Rho_comp) );
                zmom_src_arr(i, j, k) += rho_on_w_face * abl_geo_forcing[2];
            });
        }

        // *****************************************************************************
        // 3b. Add height-dependent GEOSTROPHIC forcing
        // *****************************************************************************
        if (geo_wind_profile && is_slow_step) {
            ParallelFor(tbx, tby,
            [=] AMREX_GPU_DEVICE (int i, int j, int k)
            {
                Real rho_on_u_face = myhalf * ( cell_data(i,j,k,Rho_comp) + cell_data(i-1,j,k,Rho_comp) );
                xmom_src_arr(i, j, k) -= coriolis_factor * rho_on_u_face * dptr_v_geos[k] * sinphi;
            },
            [=] AMREX_GPU_DEVICE (int i, int j, int k)
            {
                Real rho_on_v_face = myhalf * ( cell_data(i,j,k,Rho_comp) + cell_data(i,j-1,k,Rho_comp) );
                ymom_src_arr(i, j, k) += coriolis_factor * rho_on_v_face * dptr_u_geos[k] * sinphi;
            });
        } // geo_wind_profile

        // *****************************************************************************
        // 4. Add custom SUBSIDENCE terms
        // *****************************************************************************
        if (solverChoice.custom_w_subsidence && is_slow_step && solverChoice.do_mom_advection) {
            if (solverChoice.custom_forcing_prim_vars) {
                const int nr = Rho_comp;
                ParallelFor(tbx, tby,
                [=] AMREX_GPU_DEVICE (int i, int j, int k) noexcept
                {
                    Real dzInv = myhalf*dxInv[2];
                    if (z_nd_arr) {
                        Real z_xf_lo = fourth * ( z_nd_arr(i,j,k  ) + z_nd_arr(i,j+1,k  )
                                              + z_nd_arr(i,j,k-1) + z_nd_arr(i,j+1,k-1) );
                        Real z_xf_hi = fourth * ( z_nd_arr(i,j,k+1) + z_nd_arr(i,j+1,k+1)
                                              + z_nd_arr(i,j,k+2) + z_nd_arr(i,j+1,k+2) );
                        dzInv = one / (z_xf_hi - z_xf_lo);
                    }
                    Real rho_on_u_face = myhalf * ( cell_data(i,j,k,nr) + cell_data(i-1,j,k,nr) );
                    Real U_hi = dptr_u_plane(k+1) / dptr_r_plane(k+1);
                    Real U_lo = dptr_u_plane(k-1) / dptr_r_plane(k-1);
                    Real wbar_xf = myhalf * (dptr_wbar_sub[k] + dptr_wbar_sub[k+1]);
                    xmom_src_arr(i, j, k) -= rho_on_u_face * wbar_xf * (U_hi - U_lo) * dzInv;
                },
                [=] AMREX_GPU_DEVICE (int i, int j, int k) noexcept
                {
                    Real dzInv = myhalf*dxInv[2];
                    if (z_nd_arr) {
                        Real z_yf_lo = fourth * ( z_nd_arr(i,j,k  ) + z_nd_arr(i+1,j,k  )
                                              + z_nd_arr(i,j,k-1) + z_nd_arr(i+1,j,k-1) );
                        Real z_yf_hi = fourth * ( z_nd_arr(i,j,k+1) + z_nd_arr(i+1,j,k+1)
                                              + z_nd_arr(i,j,k+2) + z_nd_arr(i+1,j,k+2) );
                        dzInv = one / (z_yf_hi - z_yf_lo);
                    }
                    Real rho_on_v_face = myhalf * ( cell_data(i,j,k,nr) + cell_data(i,j-1,k,nr) );
                    Real V_hi = dptr_v_plane(k+1) / dptr_r_plane(k+1);
                    Real V_lo = dptr_v_plane(k-1) / dptr_r_plane(k-1);
                    Real wbar_yf = myhalf * (dptr_wbar_sub[k] + dptr_wbar_sub[k+1]);
                    ymom_src_arr(i, j, k) -= rho_on_v_face * wbar_yf * (V_hi - V_lo) * dzInv;
                });
            } else {
                ParallelFor(tbx, tby,
                [=] AMREX_GPU_DEVICE (int i, int j, int k) noexcept
                {
                    Real dzInv = myhalf*dxInv[2];
                    if (z_nd_arr) {
                        Real z_xf_lo = fourth * ( z_nd_arr(i,j,k  ) + z_nd_arr(i,j+1,k  )
                                              + z_nd_arr(i,j,k-1) + z_nd_arr(i,j+1,k-1) );
                        Real z_xf_hi = fourth * ( z_nd_arr(i,j,k+1) + z_nd_arr(i,j+1,k+1)
                                              + z_nd_arr(i,j,k+2) + z_nd_arr(i,j+1,k+2) );
                        dzInv = one / (z_xf_hi - z_xf_lo);
                    }
                    Real U_hi = dptr_u_plane(k+1) / dptr_r_plane(k+1);
                    Real U_lo = dptr_u_plane(k-1) / dptr_r_plane(k-1);
                    Real wbar_xf = myhalf * (dptr_wbar_sub[k] + dptr_wbar_sub[k+1]);
                    xmom_src_arr(i, j, k) -= wbar_xf * (U_hi - U_lo) * dzInv;
                },
                [=] AMREX_GPU_DEVICE (int i, int j, int k) noexcept
                {
                    Real dzInv = myhalf*dxInv[2];
                    if (z_nd_arr) {
                        Real z_yf_lo = fourth * ( z_nd_arr(i,j,k  ) + z_nd_arr(i+1,j,k  )
                                              + z_nd_arr(i,j,k-1) + z_nd_arr(i+1,j,k-1) );
                        Real z_yf_hi = fourth * ( z_nd_arr(i,j,k+1) + z_nd_arr(i+1,j,k+1)
                                              + z_nd_arr(i,j,k+2) + z_nd_arr(i+1,j,k+2) );
                        dzInv = one / (z_yf_hi - z_yf_lo);
                    }
                    Real V_hi = dptr_v_plane(k+1) / dptr_r_plane(k+1);
                    Real V_lo = dptr_v_plane(k-1) / dptr_r_plane(k-1);
                    Real wbar_yf = myhalf * (dptr_wbar_sub[k] + dptr_wbar_sub[k+1]);
                    ymom_src_arr(i, j, k) -= wbar_yf * (V_hi - V_lo) * dzInv;
                });
            }
        }

        // *************************************************************************************
        // 5. Add nudging towards value specified in input sounding
        // *************************************************************************************
        if (solverChoice.nudging_from_input_sounding && is_slow_step)
        {
            int itime_n    = 0;
            int itime_np1  = 0;
            Real coeff_n   = one;
            Real coeff_np1 = zero;

            Real tau_inv = one / input_sounding_data.tau_nudging;

            int n_sounding_times = input_sounding_data.input_sounding_time.size();

            for (int nt = 1; nt < n_sounding_times; nt++) {
                if (time > input_sounding_data.input_sounding_time[nt]) itime_n = nt;
            }
            if (itime_n == n_sounding_times-1) {
                itime_np1 = itime_n;
            } else {
                itime_np1 = itime_n+1;
                coeff_np1 = (time                                               - input_sounding_data.input_sounding_time[itime_n]) /
                            (input_sounding_data.input_sounding_time[itime_np1] - input_sounding_data.input_sounding_time[itime_n]);
                coeff_n   = one - coeff_np1;
            }

            int nr = Rho_comp;

            const Real* u_inp_sound_n   = input_sounding_data.U_inp_sound_d[itime_n].dataPtr();
            const Real* u_inp_sound_np1 = input_sounding_data.U_inp_sound_d[itime_np1].dataPtr();
            const Real* v_inp_sound_n   = input_sounding_data.V_inp_sound_d[itime_n].dataPtr();
            const Real* v_inp_sound_np1 = input_sounding_data.V_inp_sound_d[itime_np1].dataPtr();
            ParallelFor(tbx, tby,
            [=] AMREX_GPU_DEVICE (int i, int j, int k) noexcept
            {
                Real nudge_u = (coeff_n*u_inp_sound_n[k] + coeff_np1*u_inp_sound_np1[k]) - (dptr_u_plane(k)/dptr_r_plane(k));
                nudge_u *= tau_inv;
                xmom_src_arr(i, j, k) += cell_data(i, j, k, nr) * nudge_u;
            },
            [=] AMREX_GPU_DEVICE (int i, int j, int k) noexcept
            {
                Real nudge_v = (coeff_n*v_inp_sound_n[k] + coeff_np1*v_inp_sound_np1[k]) - (dptr_v_plane(k)/dptr_r_plane(k));
                nudge_v *= tau_inv;
                ymom_src_arr(i, j, k) += cell_data(i, j, k, nr) * nudge_v;
            });
        }

        // *****************************************************************************
        // 6. Add NUMERICAL DIFFUSION terms
        // *****************************************************************************
#if 0
        if (l_use_ndiff) {
            const Array4<const Real>& mf_ux   = mapfac[MapFac::ux]->const_array(mfi);
            const Array4<const Real>& mf_uy   = mapfac[MapFac::uy]->const_array(mfi);
            const Array4<const Real>& mf_vx   = mapfac[MapFac::vx]->const_array(mfi);
            const Array4<const Real>& mf_vy   = mapfac[MapFac::vy]->const_array(mfi);
            NumericalDiffusion_Xmom(tbx, dt, solverChoice.num_diff_coeff,
                                    u, cell_data, xmom_src_arr, mf_ux, mf_uy);
            NumericalDiffusion_Ymom(tby, dt, solverChoice.num_diff_coeff,
                                    v, cell_data, ymom_src_arr, mf_vx, mf_vy);
        }
#endif

        // *****************************************************************************
        // 7. Add SPONGING
        // *****************************************************************************
        if (is_slow_step) {
            if (solverChoice.spongeChoice.sponge_type == SpongeType::Input_Sponge)
            {
                ApplySpongeZoneBCsForMom_ReadFromFile(solverChoice.spongeChoice, geom, tbx, tby, cell_data,
                                                    z_cc_arr, xmom_src_arr, ymom_src_arr,
                                                    rho_u, rho_v, d_sponge_ptrs_at_lev);
            }
            else if (solverChoice.spongeChoice.sponge_type == SpongeType::Standard)
            {
                ApplySpongeZoneBCsForMom(solverChoice.spongeChoice, geom, tbx, tby, tbz,
                                        xmom_src_arr, ymom_src_arr, zmom_src_arr, rho_u, rho_v, rho_w,
                                        r0, z_nd_arr, z_cc_arr);
            }

            if(solverChoice.init_type == InitType::HindCast and solverChoice.hindcast_lateral_forcing){

                const Array4<const Real>& rho_u_forecast_state  = (*forecast_state_at_lev)[IntVars::xmom].array(mfi);
                const Array4<const Real>& rho_v_forecast_state  = (*forecast_state_at_lev)[IntVars::ymom].array(mfi);
                const Array4<const Real>& rho_w_forecast_state  = (*forecast_state_at_lev)[IntVars::zmom].array(mfi);
                const Array4<const Real>& cons_forecast_state   = (*forecast_state_at_lev)[IntVars::cons].array(mfi);
                ApplyBndryForcing_Forecast(solverChoice, geom, tbx, tby, tbz, z_nd_arr,
                                           xmom_src_arr, ymom_src_arr, zmom_src_arr,
                                           rho_u, rho_v, rho_w,
                                           rho_u_forecast_state, rho_v_forecast_state, rho_w_forecast_state,
                                           cons_forecast_state);
            }
        }

        // *****************************************************************************
        // 8. Add CANOPY source terms
        // *****************************************************************************
        if (solverChoice.do_forest_drag &&
           ((is_slow_step && !use_canopy_fast) || (!is_slow_step && use_canopy_fast))) {
            ParallelFor(tbx, tby, tbz,
            [=] AMREX_GPU_DEVICE(int i, int j, int k) noexcept
            {
                const Real ux = u(i, j, k);
                const Real uy = fourth * ( v(i, j  , k  ) + v(i-1, j  , k  )
                                       + v(i, j+1, k  ) + v(i-1, j+1, k  ) );
                const Real uz = fourth * ( w(i, j  , k  ) + w(i-1, j  , k  )
                                       + w(i, j  , k+1) + w(i-1, j  , k+1) );
                const Real windspeed = std::sqrt(ux * ux + uy * uy + uz * uz);
                const Real f_drag = myhalf * (f_drag_arr(i, j, k) + f_drag_arr(i-1, j, k));
                xmom_src_arr(i, j, k) -= f_drag * ux * windspeed;
            },
            [=] AMREX_GPU_DEVICE(int i, int j, int k) noexcept
            {
                const Real ux = fourth * ( u(i  , j  , k  ) + u(i  , j-1, k  )
                                       + u(i+1, j  , k  ) + u(i+1, j-1, k  ) );
                const Real uy = v(i, j, k);
                const Real uz = fourth * ( w(i  , j  , k  ) + w(i  , j-1, k  )
                                       + w(i  , j  , k+1) + w(i  , j-1, k+1) );
                const amrex::Real windspeed = std::sqrt(ux * ux + uy * uy + uz * uz);
                const Real f_drag = myhalf * (f_drag_arr(i, j, k) + f_drag_arr(i, j-1, k));
                ymom_src_arr(i, j, k) -= f_drag * uy * windspeed;
            },
            [=] AMREX_GPU_DEVICE(int i, int j, int k) noexcept
            {
                const amrex::Real ux = fourth * ( u(i  , j  , k  ) + u(i+1, j  , k  )
                                              + u(i  , j  , k-1) + u(i+1, j  , k-1) );
                const amrex::Real uy = fourth * ( v(i  , j  , k  ) + v(i  , j+1, k  )
                                              + v(i  , j  , k-1) + v(i  , j+1, k-1) );
                const amrex::Real uz = w(i, j, k);
                const amrex::Real windspeed = std::sqrt(ux * ux + uy * uy + uz * uz);
                const Real f_drag = myhalf * (f_drag_arr(i, j, k) + f_drag_arr(i, j, k-1));
                zmom_src_arr(i, j, k) -= f_drag * uz * windspeed;
            });
        }
        // *****************************************************************************
        // 9a. Add immersed source terms for terrain
        // *****************************************************************************
        if (solverChoice.terrain_type == TerrainType::ImmersedForcing &&
           ((is_slow_step && !use_ImmersedForcing_fast) || (!is_slow_step && use_ImmersedForcing_fast))) {
            // geometric properties
            const Real* dx_arr = geom.CellSize();
            const Real dx_x = dx_arr[0];
            const Real dx_y = dx_arr[1];

            const Real alpha_m = solverChoice.if_Cd_momentum;
            const Real tiny = std::numeric_limits<amrex::Real>::epsilon();
            const Real U_s = one; // unit velocity scale
            const bool l_implicit_drag = solverChoice.if_implicit_drag;

            // MOST parameters
            similarity_funs sfuns;
            const Real ggg        = CONST_GRAV;
            const Real kappa      = KAPPA;
            const Real z0                 = solverChoice.if_z0;
            const Real tflux_in           = solverChoice.if_surf_temp_flux;
            const Real Olen_in            = solverChoice.if_Olen_in;
            const bool l_use_most         = solverChoice.if_use_most;

            ParallelFor(tbx, [=] AMREX_GPU_DEVICE(int i, int j, int k) noexcept
            {
                const Real ux = u(i, j, k);
                const Real uy = fourth * ( v(i, j  , k  ) + v(i-1, j  , k  )
                                       + v(i, j+1, k  ) + v(i-1, j+1, k  ) );
                const Real uz = fourth * ( w(i, j  , k  ) + w(i-1, j  , k  )
                                       + w(i, j  , k+1) + w(i-1, j  , k+1) );
                const Real windspeed = std::sqrt(ux * ux + uy * uy + uz * uz);
                const Real t_blank = myhalf * (t_blank_arr(i, j, k) + t_blank_arr(i-1, j, k));
                const Real t_blank_above = myhalf * (t_blank_arr(i, j, k+1) + t_blank_arr(i-1, j, k+1));

                const Real dx_z = (z_cc_arr) ? (z_cc_arr(i,j,k) - z_cc_arr(i,j,k-1)) : dx_arr[2];
                const Real drag_coefficient = alpha_m / std::pow(dx_x*dx_y*dx_z, one/three);
                const Real CdM = std::min(drag_coefficient / (windspeed + tiny), drag_coefficient);

                const Real rho_xface = myhalf * ( cell_data(i,j,k,Rho_comp) + cell_data(i-1,j,k,Rho_comp) );

                if ((t_blank > 0 && (t_blank_above == zero)) && l_use_most) { // force to MOST value
                    // calculate tangential velocity one cell above
                    const Real ux2r = u(i, j, k+1) ;
                    const Real uy2r = fourth * ( v(i, j  , k+1) + v(i-1, j  , k+1)
                                       + v(i, j+1, k+1) + v(i-1, j+1, k+1) ) ;
                    const Real h_windspeed2r = std::sqrt(ux2r * ux2r + uy2r * uy2r);

                    // MOST
                    const Real theta_xface = (myhalf * (cell_data(i,j,k  ,RhoTheta_comp) + cell_data(i-1,j,k, RhoTheta_comp))) / rho_xface;
                    const Real rho_xface_below    = myhalf * ( cell_data(i,j,k-1,Rho_comp) + cell_data(i-1,j,k-1,Rho_comp) );
                    const Real theta_xface_below  = (myhalf * (cell_data(i,j,k-1,RhoTheta_comp) + cell_data(i-1,j,k-1, RhoTheta_comp))) / rho_xface_below;
                    const Real theta_surf         = theta_xface_below;

                    Real psi_m = zero;
                    Real psi_h = zero;
                    Real ustar = h_windspeed2r * kappa / (std::log(Real(1.5) * dx_z / z0) - psi_m); // calculated from bottom of cell. Maintains flexibility for different Vf values
                    Real tflux = (tflux_in != Real(1e-8)) ? tflux_in : -(theta_xface - theta_surf) * ustar * kappa / (std::log(Real(1.5) * dx_z / z0) - psi_h);
                    Real Olen  = (Olen_in  != Real(1e-8)) ? Olen_in  : -ustar * ustar * ustar * theta_xface / (kappa * ggg * tflux + tiny);
                    Real zeta  = Real(1.5) * dx_z / Olen;

                    // similarity functions
                    psi_m          = sfuns.calc_psi_m(zeta);
                    psi_h          = sfuns.calc_psi_h(zeta);
                    ustar = h_windspeed2r * kappa / (std::log(Real(1.5) * dx_z / z0) - psi_m);

                    // prevent some unphysical math
                    if (!(ustar > zero && !std::isnan(ustar))) { ustar = zero; }
                    if (!(ustar < two && !std::isnan(ustar))) { ustar = two; }
                    if (psi_m > std::log(myhalf * dx_z / z0)) { psi_m = std::log(myhalf * dx_z / z0); }

                    // determine target velocity
                    const Real uTarget  = ustar / kappa * (std::log(myhalf * dx_z / z0) - psi_m);
                    Real uxTarget = uTarget * ux2r / (tiny + h_windspeed2r);
                    const Real bc_forcing_x = -(uxTarget - ux); // BC forcing pushes nonrelative velocity toward target velocity
                    const Real lambda = (1-t_blank) * CdM * U_s; // affine relaxation rate toward MOST target [1/s]
                    const Real fac    = l_implicit_drag ? lambda / (one + lambda*dt) : lambda; // point-implicit rescale (else explicit)
                    xmom_src_arr(i, j, k) -= fac * rho_xface * bc_forcing_x; // if Vf low, force more strongly to MOST. If high, less forcing.
                } else {
                    const Real lambda = t_blank * CdM * windspeed; // linear drag rate [1/s]
                    const Real fac    = l_implicit_drag ? lambda / (one + lambda*dt) : lambda; // point-implicit rescale (else explicit)
                    xmom_src_arr(i, j, k) -= fac * rho_xface * ux;
                }
            });
            ParallelFor(tby, [=] AMREX_GPU_DEVICE(int i, int j, int k) noexcept
            {
                const Real ux = fourth * ( u(i  , j  , k  ) + u(i  , j-1, k  )
                                       + u(i+1, j  , k  ) + u(i+1, j-1, k  ) );
                const Real uy = v(i, j, k);
                const Real uz = fourth * ( w(i  , j  , k  ) + w(i  , j-1, k  )
                                       + w(i  , j  , k+1) + w(i  , j-1, k+1) );
                const Real windspeed = std::sqrt(ux * ux + uy * uy + uz * uz);
                const Real t_blank = myhalf * (t_blank_arr(i, j, k) + t_blank_arr(i, j-1, k));
                const Real t_blank_above = myhalf * (t_blank_arr(i, j, k+1) + t_blank_arr(i, j-1, k+1));

                const Real dx_z = (z_cc_arr) ? (z_cc_arr(i,j,k) - z_cc_arr(i,j,k-1)) : dx_arr[2];
                const Real drag_coefficient = alpha_m / std::pow(dx_x*dx_y*dx_z, one/three);
                const Real CdM = std::min(drag_coefficient / (windspeed + tiny), drag_coefficient);

                const Real rho_yface =  myhalf * ( cell_data(i,j,k,Rho_comp) + cell_data(i,j-1,k,Rho_comp) );

                if ((t_blank > 0 && (t_blank_above == zero)) && l_use_most) { // force to MOST value
                    // calculate tangential velocity one cell above
                    const Real ux2r = fourth * ( u(i  , j  , k+1) + u(i  , j-1, k+1)
                                       + u(i+1, j  , k+1) + u(i+1, j-1, k+1) );
                    const Real uy2r = v(i, j, k+1) ;
                    const Real h_windspeed2r = std::sqrt(ux2r * ux2r + uy2r * uy2r);

                    // MOST
                    const Real theta_yface = (myhalf * (cell_data(i,j,k  ,RhoTheta_comp) + cell_data(i,j-1,k, RhoTheta_comp))) / rho_yface;
                    const Real rho_yface_below    =  myhalf * ( cell_data(i,j,k-1,Rho_comp) + cell_data(i,j-1,k-1,Rho_comp) );
                    const Real theta_yface_below  = (myhalf * (cell_data(i,j,k-1,RhoTheta_comp) + cell_data(i,j-1,k-1, RhoTheta_comp))) / rho_yface_below;
                    const Real theta_surf         = theta_yface_below;

                    Real psi_m = zero;
                    Real psi_h = zero;
                    Real ustar = h_windspeed2r * kappa / (std::log(Real(1.5) * dx_z / z0) - psi_m); // calculated from bottom of cell. Maintains flexibility for different Vf values
                    Real tflux = (tflux_in != Real(1e-8)) ? tflux_in : -(theta_yface - theta_surf) * ustar * kappa / (std::log(Real(1.5) * dx_z / z0) - psi_h);
                    Real Olen  = (Olen_in  != Real(1e-8)) ? Olen_in  : -ustar * ustar * ustar * theta_yface / (kappa * ggg * tflux + tiny);
                    Real zeta  = Real(1.5) * dx_z / Olen;

                    // similarity functions
                    psi_m          = sfuns.calc_psi_m(zeta);
                    psi_h          = sfuns.calc_psi_h(zeta);
                    ustar = h_windspeed2r * kappa / (std::log(Real(1.5) * dx_z / z0) - psi_m);

                    // prevent some unphysical math
                    if (!(ustar > zero && !std::isnan(ustar))) { ustar = zero; }
                    if (!(ustar < two && !std::isnan(ustar))) { ustar = two; }
                    if (psi_m > std::log(myhalf * dx_z / z0)) { psi_m = std::log(myhalf * dx_z / z0); }

                    // determine target velocity
                    const Real uTarget  = ustar / kappa * (std::log(myhalf * dx_z / z0) - psi_m);
                    Real uyTarget = uTarget * uy2r / (tiny + h_windspeed2r);
                    const Real bc_forcing_y = -(uyTarget - uy);  // BC forcing pushes nonrelative velocity toward target velocity
                    const Real lambda = (1 - t_blank) * CdM * U_s; // affine relaxation rate toward MOST target [1/s]
                    const Real fac    = l_implicit_drag ? lambda / (one + lambda*dt) : lambda; // point-implicit rescale (else explicit)
                    ymom_src_arr(i, j, k) -= fac * rho_yface * bc_forcing_y; // if Vf low, force more strongly to MOST. If high, less forcing.
                } else {
                    const Real lambda = t_blank * CdM * windspeed; // linear drag rate [1/s]
                    const Real fac    = l_implicit_drag ? lambda / (one + lambda*dt) : lambda; // point-implicit rescale (else explicit)
                    ymom_src_arr(i, j, k) -= fac * rho_yface * uy;
                }
            });
            ParallelFor(tbz, [=] AMREX_GPU_DEVICE(int i, int j, int k) noexcept
            {
                const Real ux = fourth * ( u(i  , j  , k  ) + u(i+1, j  , k  )
                                         + u(i  , j  , k-1) + u(i+1, j  , k-1) );
                const Real uy = fourth * ( v(i  , j  , k  ) + v(i  , j+1, k  )
                                         + v(i  , j  , k-1) + v(i  , j+1, k-1) );
                const Real uz = w(i, j, k);
                const Real windspeed = std::sqrt(ux * ux + uy * uy + uz * uz);
                const Real t_blank = myhalf * (t_blank_arr(i, j, k) + t_blank_arr(i, j, k-1));

                const Real dx_z = (z_cc_arr) ? (z_cc_arr(i,j,k) - z_cc_arr(i,j,k-1)) : dx_arr[2];
                const Real drag_coefficient = alpha_m / std::pow(dx_x*dx_y*dx_z, one/three);
                const Real CdM = std::min(drag_coefficient / (windspeed + tiny), drag_coefficient);

                const Real rho_zface =  myhalf * ( cell_data(i,j,k,Rho_comp) + cell_data(i,j,k-1,Rho_comp) );
                const Real lambda = t_blank * CdM * windspeed; // linear drag rate [1/s]
                const Real fac    = l_implicit_drag ? lambda / (one + lambda*dt) : lambda; // point-implicit rescale (else explicit)
                zmom_src_arr(i, j, k) -= fac * rho_zface * uz;
            });
        }

        // *****************************************************************************
        // 9b. Add immersed source terms for buildings
        // *****************************************************************************
        // geometric properties
        const Real* dx_arr = geom.CellSize();
        const Real dx_x = dx_arr[0];
        const Real dx_y = dx_arr[1];
        const Real delta_xy = std::pow(dx_x*dx_y, myhalf);
        if ((solverChoice.buildings_type == BuildingsType::ImmersedForcing ) &&
           ((is_slow_step && !use_ImmersedForcing_fast) || (!is_slow_step && use_ImmersedForcing_fast)) &&
            (delta_xy <= 50.0)) // only apply immersed forcing when grid spacing is less than 50m
        {
            const Real alpha_m          = solverChoice.if_Cd_momentum;
            const Real tiny             = std::numeric_limits<amrex::Real>::epsilon();
            const Real min_t_blank      = Real(1.e-4); // threshold for where immersed forcing acts
            const Real U_s              = one; // unit velocity scale

            // MOST parameters
            const Real z0                      = solverChoice.if_z0;
            const Real tflux_in                = solverChoice.if_surf_temp_flux;
            const Real Olen_in                 = solverChoice.if_Olen_in;
            const bool l_use_most              = solverChoice.if_use_most;
            const bool l_stability_correction  = solverChoice.if_stability_correction;

            // To limit stiffness of drag when using anelastic
            const Real ws_floor           = solverChoice.if_ws_floor;
            const Real damp_alpha         = solverChoice.if_damp_alpha;
            // Point-implicit alternative to the clamp above; stabilizes both compressible and anelastic
            const bool l_implicit_drag    = solverChoice.if_implicit_drag;

            ParallelFor(tbx, [=] AMREX_GPU_DEVICE(int i, int j, int k) noexcept
            {
                const Real ux   = u(i, j, k  );
                const Real uy   = fourth * ( v(i, j  , k  ) + v(i-1, j  , k  )
                                           + v(i, j+1, k  ) + v(i-1, j+1, k  ) );
                const Real uz   = fourth * ( w(i, j  , k  ) + w(i-1, j  , k  )
                                           + w(i, j  , k+1) + w(i-1, j  , k+1) );
                const amrex::Real windspeed = std::sqrt(ux * ux + uy * uy + uz * uz);

                const Real rho_xface   = myhalf * ( cell_data(i,j,k,Rho_comp) + cell_data(i-1,j,k,Rho_comp) );
                const Real theta_xface = (myhalf * (cell_data(i,j,k,RhoTheta_comp) + cell_data(i-1,j,k, RhoTheta_comp))) / rho_xface;

                Real t_blank             = myhalf * (t_blank_arr(i, j  , k  ) + t_blank_arr(i-1, j  , k  ));
                Real t_blank_below       = myhalf * (t_blank_arr(i, j  , k-1) + t_blank_arr(i-1, j  , k-1));
                Real t_blank_above       = myhalf * (t_blank_arr(i, j  , k+1) + t_blank_arr(i-1, j  , k+1));
                Real t_blank_north       = myhalf * (t_blank_arr(i, j+1, k  ) + t_blank_arr(i-1, j+1, k  ));
                Real t_blank_south       = myhalf * (t_blank_arr(i, j-1, k  ) + t_blank_arr(i-1, j-1, k  ));
                if (t_blank < min_t_blank) { t_blank = zero; }
                if (k == 0) { t_blank_below = zero; }
                if (t_blank_below < min_t_blank) { t_blank_below = zero; }
                if (t_blank_above < min_t_blank) { t_blank_above = zero; }
                if (t_blank_north < min_t_blank) { t_blank_north = zero; }
                if (t_blank_south < min_t_blank) { t_blank_south = zero; }
                // round to four decimal places to avoid issues for cells with very small volfracs.
                t_blank       = std::round(t_blank       * Real(10000.0)) / Real(10000.0);
                t_blank_below = std::round(t_blank_below * Real(10000.0)) / Real(10000.0);
                t_blank_above = std::round(t_blank_above * Real(10000.0)) / Real(10000.0);
                t_blank_north = std::round(t_blank_north * Real(10000.0)) / Real(10000.0);
                t_blank_south = std::round(t_blank_south * Real(10000.0)) / Real(10000.0);

                const Real dx_z = (z_cc_arr) ? (z_cc_arr(i,j,k) - z_cc_arr(i,j,k-1)) : dx_arr[2];
                const Real drag_coefficient = alpha_m / std::pow(dx_x*dx_y*dx_z, one/three);
                const Real CdM = std::min(drag_coefficient / (windspeed + tiny), drag_coefficient);

                const Real roof_mask     = (t_blank > zero && t_blank <  t_blank_below && t_blank_above == zero && l_use_most) ? one : zero; // roof cell
                const Real south_mask    = (t_blank > zero && t_blank <= t_blank_north && t_blank_south == zero && l_use_most) ? one : zero; // south wall cell
                const Real north_mask    = (t_blank > zero && t_blank <= t_blank_south && t_blank_north == zero && l_use_most) ? one : zero; // north wall cell
                const Real wall_mask     = (t_blank > zero && t_blank < one && !l_use_most) ? one : zero; // wall cell (not using most)
                const Real interior_mask = (t_blank == 1.0) ? one : zero; // interior cell

                Real drag             = zero;
                Real u1_cellaway      = zero;
                Real u2_cellaway      = zero;
                Real rho_xface_inside = rho_xface;
                Real theta_surf       = theta_xface;
                Real bc_forcing_x     = zero;
                Real u_target         = zero;

                // roof forcing
                u1_cellaway         = u(i, j, k+1) ;
                u2_cellaway         = fourth * ( v(i, j  , k+1) + v(i-1, j  , k+1)
                                               + v(i, j+1, k+1) + v(i-1, j+1, k+1) ) ;
                rho_xface_inside    =  myhalf * (cell_data(i,j,k-1,Rho_comp) + cell_data(i-1,j,k-1,Rho_comp));
                theta_surf          = (myhalf * (cell_data(i,j,k-1,RhoTheta_comp) + cell_data(i-1,j,k-1, RhoTheta_comp))) / rho_xface_inside;
                u_target            = compute_if_most_target_vel(u1_cellaway, u2_cellaway, dx_z, z0, t_blank, theta_xface, theta_surf, tflux_in, Olen_in, l_stability_correction);
                bc_forcing_x        = -(u_target - ux); // BC forcing pushes nonrelative velocity toward target velocity
                drag               += bc_forcing_x * roof_mask * rho_xface * CdM * U_s;

                // south wall forcing
                u1_cellaway         = u(i, j-1, k  );
                u2_cellaway         = fourth * ( w(i, j-1, k  ) + w(i-1, j-1, k  )
                                               + w(i, j-1, k+1) + w(i-1, j-1, k+1) ) ;
                rho_xface_inside    = myhalf * ( cell_data(i,j+1,k,Rho_comp) + cell_data(i-1,j+1,k,Rho_comp) );
                theta_surf          = (myhalf * (cell_data(i,j+1,k,RhoTheta_comp) + cell_data(i-1,j+1,k, RhoTheta_comp))) / rho_xface_inside;
                u_target            = compute_if_most_target_vel(u1_cellaway, u2_cellaway, dx_z, z0, t_blank, theta_xface, theta_surf, tflux_in, Olen_in, l_stability_correction);
                bc_forcing_x        = -(u_target - ux); // BC forcing pushes nonrelative velocity toward target velocity
                drag               += bc_forcing_x * south_mask * rho_xface * CdM * U_s;

                // north wall forcing
                u1_cellaway         = u(i, j+1, k  ) ;
                u2_cellaway         = fourth * ( w(i, j+1, k  ) + w(i-1, j+1, k  )
                                               + w(i, j+1, k+1) + w(i-1, j+1, k+1) ) ;
                rho_xface_inside    = myhalf * ( cell_data(i,j-1,k,Rho_comp) + cell_data(i-1,j-1,k,Rho_comp) );
                theta_surf          = (myhalf * (cell_data(i,j-1,k,RhoTheta_comp) + cell_data(i-1,j-1,k, RhoTheta_comp))) / rho_xface_inside;
                u_target            = compute_if_most_target_vel(u1_cellaway, u2_cellaway, dx_z, z0, t_blank, theta_xface, theta_surf, tflux_in, Olen_in, l_stability_correction);
                bc_forcing_x        = -(u_target - ux); // BC forcing pushes nonrelative velocity toward target velocity
                drag               += bc_forcing_x * north_mask * rho_xface * CdM * U_s;

                // wall forcing (if not using most)
                drag               += wall_mask * t_blank * rho_xface * CdM * ux * windspeed;

                // interior cell forcing
                drag               += interior_mask * rho_xface * CdM * ux * windspeed;

                if (l_implicit_drag) {
                    // point-implicit rescale of the aggregated drag
                    const Real lambda = CdM * ( (roof_mask + south_mask + north_mask) * U_s
                                               + wall_mask * t_blank * windspeed
                                               + interior_mask * windspeed );
                    xmom_src_arr(i,j,k) -= drag / (one + lambda*dt);
                } else if (is_slow_step && !use_ImmersedForcing_fast) {
                    // limit drag term for anelastic for numerical stability
                    Real d_drag = dt * -drag; // time step * acceleration like tendency
                    Real wsmax_change = damp_alpha * amrex::max(amrex::Math::abs(ux), ws_floor); // aims to prevent oscillations around 0.
                    if (amrex::Math::abs(ux) < 0.1){ // no damping for smaller velocities
                        wsmax_change =one * amrex::max(amrex::Math::abs(ux), ws_floor);
                    }
                    d_drag = amrex::min(amrex::max(d_drag, -wsmax_change), wsmax_change);
                    xmom_src_arr(i,j,k) += d_drag / dt; // put back as limited tendency
                } else {
                    xmom_src_arr(i, j, k) -= drag;
                }
            });
            ParallelFor(tby, [=] AMREX_GPU_DEVICE(int i, int j, int k) noexcept
            {
                const Real ux   = fourth * ( u(i  , j  , k  ) + u(i  , j-1, k  )
                                           + u(i+1, j  , k  ) + u(i+1, j-1, k  ) );
                const Real uy   = v(i, j, k);
                const Real uz   = fourth * ( w(i  , j  , k  ) + w(i  , j-1, k  )
                                           + w(i  , j  , k+1) + w(i  , j-1, k+1) );
                const amrex::Real windspeed = std::sqrt(ux * ux + uy * uy + uz * uz);

                const Real rho_yface   = myhalf * ( cell_data(i,j,k,Rho_comp) + cell_data(i,j-1,k,Rho_comp) );
                const Real theta_yface = (myhalf * (cell_data(i,j,k  ,RhoTheta_comp) + cell_data(i,j-1,k,RhoTheta_comp))) / rho_yface;

                Real t_blank             = myhalf * (t_blank_arr(i  , j  , k  ) + t_blank_arr(i-1, j  , k  ));
                Real t_blank_below       = myhalf * (t_blank_arr(i  , j  , k-1) + t_blank_arr(i-1, j  , k-1));
                Real t_blank_above       = myhalf * (t_blank_arr(i  , j  , k+1) + t_blank_arr(i-1, j  , k+1));
                Real t_blank_east        = myhalf * (t_blank_arr(i+1, j  , k  ) + t_blank_arr(i+1, j-1, k  ));
                Real t_blank_west        = myhalf * (t_blank_arr(i-1, j  , k  ) + t_blank_arr(i-1, j-1, k  ));
                if (t_blank < min_t_blank) { t_blank = zero; }
                if (k == 0) { t_blank_below = zero; }
                if (t_blank_below < min_t_blank) { t_blank_below = zero; }
                if (t_blank_above < min_t_blank) { t_blank_above = zero; }
                if (t_blank_east < min_t_blank) { t_blank_east = zero; }
                if (t_blank_west < min_t_blank) { t_blank_west = zero; }
                // round to four decimal places to avoid issues for cells with very small volfracs.
                t_blank       = std::round(t_blank       * Real(10000.0)) / Real(10000.0);
                t_blank_below = std::round(t_blank_below * Real(10000.0)) / Real(10000.0);
                t_blank_above = std::round(t_blank_above * Real(10000.0)) / Real(10000.0);
                t_blank_east  = std::round(t_blank_east  * Real(10000.0)) / Real(10000.0);
                t_blank_west  = std::round(t_blank_west  * Real(10000.0)) / Real(10000.0);

                const Real dx_z = (z_cc_arr) ? (z_cc_arr(i,j,k) - z_cc_arr(i,j,k-1)) : dx_arr[2];
                const Real drag_coefficient = alpha_m / std::pow(dx_x*dx_y*dx_z, one/three);
                const Real CdM = std::min(drag_coefficient / (windspeed + tiny), drag_coefficient);

                const Real roof_mask     = (t_blank > zero && t_blank <  t_blank_below && t_blank_above == zero && l_use_most) ? one : zero; // roof cell
                const Real west_mask     = (t_blank > zero && t_blank <= t_blank_east  && t_blank_west  == zero && l_use_most) ? one : zero; // west wall cell
                const Real east_mask     = (t_blank > zero && t_blank <= t_blank_west  && t_blank_east  == zero && l_use_most) ? one : zero; // east wall cell
                const Real wall_mask     = (t_blank > zero && t_blank < one && !l_use_most) ? one : zero; // wall cell (not using most)
                const Real interior_mask = (t_blank == 1.0) ? one : zero; // interior cell

                Real drag             = zero;
                Real u1_cellaway      = zero;
                Real u2_cellaway      = zero;
                Real rho_yface_inside = rho_yface;
                Real theta_surf       = theta_yface;
                Real bc_forcing_y     = zero;
                Real u_target         = zero;

                // roof forcing
                u1_cellaway         = fourth * ( u(i  , j  , k+1) + u(i  , j-1, k+1)
                                               + u(i+1, j  , k+1) + u(i+1, j-1, k+1) );
                u2_cellaway         = v(i, j, k+1);
                rho_yface_inside    = myhalf * ( cell_data(i,j,k-1,Rho_comp) + cell_data(i,j-1,k-1,Rho_comp) );
                theta_surf          = (myhalf * (cell_data(i,j,k-1,RhoTheta_comp) + cell_data(i,j-1,k-1,RhoTheta_comp))) / rho_yface_inside;
                u_target            = compute_if_most_target_vel(u1_cellaway, u2_cellaway, dx_z, z0, t_blank, theta_yface, theta_surf, tflux_in, Olen_in, l_stability_correction);
                bc_forcing_y        = -(u_target - uy); // BC forcing pushes nonrelative velocity toward target velocity
                drag               += bc_forcing_y * roof_mask * rho_yface * CdM * U_s;

                // west wall forcing
                u1_cellaway         = v(i-1, j , k  );
                u2_cellaway         = fourth * ( w(i-1, j  , k  ) + w(i-1, j-1, k  )
                                               + w(i-1, j  , k+1) + w(i-1, j-1, k+1) );
                rho_yface_inside    = myhalf * ( cell_data(i+1,j,k,Rho_comp) + cell_data(i+1,j-1,k,Rho_comp) );
                theta_surf          = (myhalf * (cell_data(i+1,j,k,RhoTheta_comp) + cell_data(i+1,j-1,k,RhoTheta_comp))) / rho_yface_inside;
                u_target            = compute_if_most_target_vel(u1_cellaway, u2_cellaway, dx_x, z0, t_blank, theta_yface, theta_surf, tflux_in, Olen_in, l_stability_correction);
                bc_forcing_y        = -(u_target - uy); // BC forcing pushes nonrelative velocity toward target velocity
                drag               += bc_forcing_y * west_mask * rho_yface * CdM * U_s;

                // east wall forcing
                u1_cellaway         = v(i+1, j , k  );
                u2_cellaway         = fourth * ( w(i+1, j  , k  ) + w(i+1, j-1, k  )
                                               + w(i+1, j  , k+1) + w(i+1, j-1, k+1) );
                rho_yface_inside    = myhalf * ( cell_data(i-1,j,k,Rho_comp) + cell_data(i-1,j-1,k,Rho_comp) );
                theta_surf          = (myhalf * (cell_data(i-1,j,k,RhoTheta_comp) + cell_data(i-1,j-1,k,RhoTheta_comp))) / rho_yface_inside;
                u_target            = compute_if_most_target_vel(u1_cellaway, u2_cellaway, dx_x, z0, t_blank, theta_yface, theta_surf, tflux_in, Olen_in, l_stability_correction);
                bc_forcing_y        = -(u_target - uy); // BC forcing pushes nonrelative velocity toward target velocity
                drag               += bc_forcing_y * east_mask * rho_yface * CdM * U_s;

                // wall forcing (if not using most)
                drag               += wall_mask * t_blank * rho_yface * CdM * uy * windspeed;

                // interior cell forcing
                drag               += interior_mask * rho_yface * CdM * uy * windspeed;

                if (l_implicit_drag) {
                    // point-implicit rescale of the aggregated drag
                    const Real lambda = CdM * ( (roof_mask + west_mask + east_mask) * U_s
                                               + wall_mask * t_blank * windspeed
                                               + interior_mask * windspeed );
                    ymom_src_arr(i,j,k) -= drag / (one + lambda*dt);
                } else if (is_slow_step && !use_ImmersedForcing_fast) {
                    // limit drag term for anelastic for numerical stability
                    Real d_drag = dt * -drag; // time step * acceleration like tendency
                    Real wsmax_change = damp_alpha * amrex::max(amrex::Math::abs(uy), ws_floor); // aims to prevent oscillations around 0.
                    if (amrex::Math::abs(uy) < 0.1){ // no damping for smaller velocities
                        wsmax_change =one * amrex::max(amrex::Math::abs(uy), ws_floor);
                    }
                    d_drag = amrex::min(amrex::max(d_drag, -wsmax_change), wsmax_change);
                    ymom_src_arr(i,j,k) += d_drag / dt; // put back as limited tendency
                } else {
                    ymom_src_arr(i, j, k) -= drag;
                }
            });
            ParallelFor(tbz, [=] AMREX_GPU_DEVICE(int i, int j, int k) noexcept
            {
                const Real ux   = fourth * ( u(i  , j  , k  ) + u(i+1, j  , k  )
                                           + u(i  , j  , k-1) + u(i+1, j  , k-1) );
                const Real uy   = fourth * ( v(i, j  , k  ) + v(i, j+1, k  )
                                           + v(i, j  , k-1) + v(i, j+1, k-1) );
                const Real uz   = w(i, j, k);
                const amrex::Real windspeed = std::sqrt(ux * ux + uy * uy + uz * uz);

                const Real rho_zface   = myhalf * ( cell_data(i,j,k,Rho_comp) + cell_data(i,j,k-1,Rho_comp) );
                const Real theta_zface = (myhalf * (cell_data(i,j,k,RhoTheta_comp) + cell_data(i,j,k-1,RhoTheta_comp))) / rho_zface;

                Real t_blank        = myhalf * (t_blank_arr(i  ,j  , k)   + t_blank_arr(i  , j  , k-1));
                Real t_blank_below  = myhalf * (t_blank_arr(i  ,j  , k-1) + t_blank_arr(i  , j  , k-2));
                Real t_blank_above  = myhalf * (t_blank_arr(i  ,j  , k)   + t_blank_arr(i  , j  , k+1));
                Real t_blank_north  = myhalf * (t_blank_arr(i  ,j+1, k)   + t_blank_arr(i  , j+1, k-1));
                Real t_blank_south  = myhalf * (t_blank_arr(i  ,j-1, k)   + t_blank_arr(i  , j-1, k-1));
                Real t_blank_east   = myhalf * (t_blank_arr(i+1,j  , k)   + t_blank_arr(i+1, j  , k-1));
                Real t_blank_west   = myhalf * (t_blank_arr(i-1,j  , k)   + t_blank_arr(i-1, j  , k-1));
                if (t_blank < min_t_blank) { t_blank = zero; }
                if (k == 0) { t_blank_below = zero; }
                if (t_blank_below < min_t_blank) { t_blank_below = zero; }
                if (t_blank_above < min_t_blank) { t_blank_above = zero; }
                if (t_blank_north < min_t_blank) { t_blank_north = zero; }
                if (t_blank_south < min_t_blank) { t_blank_south = zero; }
                if (t_blank_east < min_t_blank)  { t_blank_east = zero; }
                if (t_blank_west < min_t_blank)  { t_blank_west = zero; }
                // round to four decimal places to avoid issues for cells with very small volfracs.
                t_blank       = std::round(t_blank       * Real(10000.0)) / Real(10000.0);
                t_blank_below = std::round(t_blank_below * Real(10000.0)) / Real(10000.0);
                t_blank_above = std::round(t_blank_above * Real(10000.0)) / Real(10000.0);
                t_blank_north = std::round(t_blank_north * Real(10000.0)) / Real(10000.0);
                t_blank_south = std::round(t_blank_south * Real(10000.0)) / Real(10000.0);
                t_blank_east  = std::round(t_blank_east  * Real(10000.0)) / Real(10000.0);
                t_blank_west  = std::round(t_blank_west  * Real(10000.0)) / Real(10000.0);

                const Real dx_z = (z_cc_arr) ? (z_cc_arr(i,j,k) - z_cc_arr(i,j,k-1)) : dx_arr[2];
                const Real drag_coefficient = alpha_m / std::pow(dx_x*dx_y*dx_z, one/three);
                const Real CdM = std::min(drag_coefficient / (windspeed + tiny), drag_coefficient);

                const Real south_mask    = (t_blank > zero && t_blank <= t_blank_north && t_blank_south == zero && l_use_most && k >= 1) ? one : zero; // south wall cell
                const Real north_mask    = (t_blank > zero && t_blank <= t_blank_south && t_blank_north == zero && l_use_most && k >= 1) ? one : zero; // north wall cell
                const Real west_mask     = (t_blank > zero && t_blank <= t_blank_east  && t_blank_west  == zero && l_use_most && k >= 1) ? one : zero; // west wall cell
                const Real east_mask     = (t_blank > zero && t_blank <= t_blank_west  && t_blank_east  == zero && l_use_most && k >= 1) ? one : zero; // east wall cell
                const Real wall_mask     = (t_blank > zero && t_blank < one && !l_use_most) ? one : zero; // wall cell (not using most)
                const Real interior_mask = (t_blank == 1.0) ? one : zero; // interior cell

                Real drag             = zero;
                Real u1_cellaway      = zero;
                Real u2_cellaway      = zero;
                Real rho_zface_inside = rho_zface;
                Real theta_surf       = theta_zface;
                Real bc_forcing_z     = zero;
                Real u_target         = zero;

                // south wall forcing
                u1_cellaway         = fourth * ( u(i  , j-1, k  ) + u(i+1, j-1, k  )
                                               + u(i  , j-1, k-1) + u(i+1, j-1, k-1) );
                u2_cellaway         = w(i, j-1, k);
                rho_zface_inside    = myhalf * ( cell_data(i,j+1,k,Rho_comp) + cell_data(i,j+1,k-1,Rho_comp) );
                theta_surf          = (myhalf * (cell_data(i,j+1,k,RhoTheta_comp) + cell_data(i,j+1,k-1,RhoTheta_comp))) / rho_zface_inside;
                u_target            = compute_if_most_target_vel(u1_cellaway, u2_cellaway, dx_y, z0, t_blank, theta_zface, theta_surf, tflux_in, Olen_in, l_stability_correction);
                bc_forcing_z        = -(u_target - uz); // BC forcing pushes nonrelative velocity toward target velocity
                drag               += bc_forcing_z * south_mask * rho_zface * CdM * U_s;

                // north wall forcing
                u1_cellaway         = fourth * ( u(i  , j+1, k  ) + u(i+1, j+1, k  )
                                               + u(i  , j+1, k-1) + u(i+1, j+1, k-1) );
                u2_cellaway         = w(i, j+1, k);
                rho_zface_inside    = myhalf * ( cell_data(i,j-1,k,Rho_comp) + cell_data(i,j-1,k-1,Rho_comp) );
                theta_surf          = (myhalf * (cell_data(i,j-1,k,RhoTheta_comp) + cell_data(i,j-1,k-1,RhoTheta_comp))) / rho_zface_inside;
                u_target            = compute_if_most_target_vel(u1_cellaway, u2_cellaway, dx_y, z0, t_blank, theta_zface, theta_surf, tflux_in, Olen_in, l_stability_correction);
                bc_forcing_z        = -(u_target - uz); // BC forcing pushes nonrelative velocity toward target velocity
                drag               += bc_forcing_z * north_mask * rho_zface * CdM * U_s;

                // west wall forcing
                u1_cellaway         = fourth * ( v(i-1, j  , k  ) + v(i-1, j+1, k  )
                                               + v(i-1, j  , k-1) + v(i-1, j+1, k-1) );
                u2_cellaway         = w(i-1, j, k);
                rho_zface_inside    = myhalf * ( cell_data(i+1,j,k,Rho_comp) + cell_data(i+1,j,k-1,Rho_comp) );
                theta_surf          = (myhalf * (cell_data(i+1,j,k,RhoTheta_comp) + cell_data(i+1,j,k-1,RhoTheta_comp))) / rho_zface_inside;
                u_target            = compute_if_most_target_vel(u1_cellaway, u2_cellaway, dx_x, z0, t_blank, theta_zface, theta_surf, tflux_in, Olen_in, l_stability_correction);
                bc_forcing_z        = -(u_target - uz); // BC forcing pushes nonrelative velocity toward target velocity
                drag               += bc_forcing_z * west_mask * rho_zface * CdM * U_s;

                // east wall forcing
                u1_cellaway         = fourth * ( v(i+1, j  , k  ) + v(i+1, j+1, k  )
                                               + v(i+1, j  , k-1) + v(i+1, j+1, k-1) );
                u2_cellaway         = w(i+1, j, k);
                rho_zface_inside    = myhalf * ( cell_data(i-1,j,k,Rho_comp) + cell_data(i-1,j,k-1,Rho_comp) );
                theta_surf          = (myhalf * (cell_data(i-1,j,k,RhoTheta_comp) + cell_data(i-1,j,k-1,RhoTheta_comp))) / rho_zface_inside;
                u_target            = compute_if_most_target_vel(u1_cellaway, u2_cellaway, dx_x, z0, t_blank, theta_zface, theta_surf, tflux_in, Olen_in, l_stability_correction);
                bc_forcing_z        = -(u_target - uz); // BC forcing pushes nonrelative velocity toward target velocity
                drag               += bc_forcing_z * east_mask * rho_zface * CdM * U_s;

                // wall forcing (if not using most)
                drag               += wall_mask * t_blank * rho_zface * CdM * uz * windspeed;

                // interior cell forcing
                drag               += interior_mask * rho_zface * CdM * uz * windspeed;

                if (l_implicit_drag) {
                    // point-implicit rescale of the aggregated drag
                    const Real lambda = CdM * ( (south_mask + north_mask + west_mask + east_mask) * U_s
                                               + wall_mask * t_blank * windspeed
                                               + interior_mask * windspeed );
                    zmom_src_arr(i,j,k) -= drag / (one + lambda*dt);
                } else if (is_slow_step && !use_ImmersedForcing_fast) {
                    // limit drag term for anelastic for numerical stability
                    Real d_drag = dt * -drag; // time step * acceleration like tendency
                    Real wsmax_change = damp_alpha * amrex::max(amrex::Math::abs(uz), ws_floor); // aims to prevent oscillations around 0.
                    if (amrex::Math::abs(uz) < 0.1){ // no damping for smaller velocities
                        wsmax_change = one * amrex::max(amrex::Math::abs(uz), ws_floor);
                    }
                    d_drag = amrex::min(amrex::max(d_drag, -wsmax_change), wsmax_change);
                    zmom_src_arr(i,j,k) += d_drag / dt; // put back as limited tendency
                } else {
                    zmom_src_arr(i, j, k) -= drag;
                }
            });
        }

        // *****************************************************************************
        // 10. Enforce constant mass flux
        // *****************************************************************************
        if (is_slow_step && (enforce_massflux_x || enforce_massflux_y)) {
            Real tau_inv = one / solverChoice.const_massflux_tau;

            ParallelFor(tbx, tby,
            [=] AMREX_GPU_DEVICE(int i, int j, int k) noexcept {
                xmom_src_arr(i, j, k) += tau_inv * (rhoUA_target - rhoUA);
            },
            [=] AMREX_GPU_DEVICE(int i, int j, int k) noexcept {
                ymom_src_arr(i, j, k) += tau_inv * (rhoVA_target - rhoVA);
            });
        }

    } // mfi
}

Here is the call graph for this function:
