ERF_TurbKESources.H File Reference

#include <AMReX.H>
#include <AMReX_BCRec.H>
#include "ERF_DataStruct.H"
#include "ERF_IndexDefines.H"
#include "ERF_NumericalConstants.H"
#include "ERF_SurfaceLayer.H"
#include "ERF_PBLModels.H"

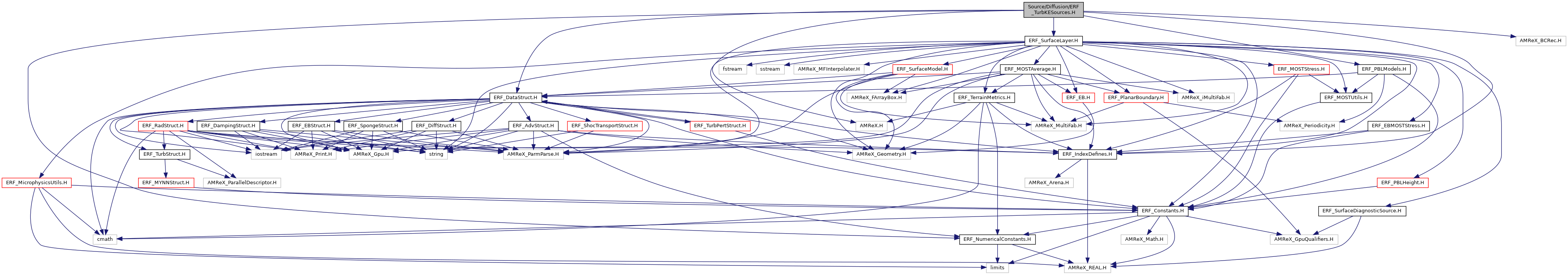

Include dependency graph for ERF_TurbKESources.H:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
template<typename PBLDerivativeDzInvFunctor >
void	AddTurbKESources (const amrex::Box &bx, const amrex::Box &domain, const amrex::Array4< const amrex::Real > &u, const amrex::Array4< const amrex::Real > &v, const amrex::Array4< const amrex::Real > &cell_data, const amrex::Array4< const amrex::Real > &cell_prim, const amrex::Array4< amrex::Real > &cell_rhs, const amrex::Array4< const amrex::Real > &SmnSmn_a, const amrex::Array4< const amrex::Real > &hfx_z, const amrex::Array4< const amrex::Real > &qfx1_z, const amrex::Array4< const amrex::Real > &diss, const amrex::Array4< const amrex::Real > &tau13, const amrex::Array4< const amrex::Real > &tau23, const amrex::Array4< const amrex::Real > &mu_turb, const SolverChoice &solverChoice, const int level, const amrex::Array4< const amrex::Real > &tm_arr, const amrex::GpuArray< amrex::Real, AMREX_SPACEDIM > grav_gpu, const amrex::BCRec *bc_ptr, const bool use_SurfLayer, const amrex::Vector< std::unique_ptr< SurfaceLayer >> &SurfLayer, const PBLDerivativeDzInvFunctor &pbl_derivative_dz_inv)

Function Documentation

AddTurbKESources()

template<typename PBLDerivativeDzInvFunctor >

void AddTurbKESources	(	const amrex::Box &	bx,
		const amrex::Box &	domain,
		const amrex::Array4< const amrex::Real > &	u,
		const amrex::Array4< const amrex::Real > &	v,
		const amrex::Array4< const amrex::Real > &	cell_data,
		const amrex::Array4< const amrex::Real > &	cell_prim,
		const amrex::Array4< amrex::Real > &	cell_rhs,
		const amrex::Array4< const amrex::Real > &	SmnSmn_a,
		const amrex::Array4< const amrex::Real > &	hfx_z,
		const amrex::Array4< const amrex::Real > &	qfx1_z,
		const amrex::Array4< const amrex::Real > &	diss,
		const amrex::Array4< const amrex::Real > &	tau13,
		const amrex::Array4< const amrex::Real > &	tau23,
		const amrex::Array4< const amrex::Real > &	mu_turb,
		const SolverChoice &	solverChoice,
		const int	level,
		const amrex::Array4< const amrex::Real > &	tm_arr,
		const amrex::GpuArray< amrex::Real, AMREX_SPACEDIM >	grav_gpu,
		const amrex::BCRec *	bc_ptr,
		const bool	use_SurfLayer,
		const amrex::Vector< std::unique_ptr< SurfaceLayer >> &	SurfLayer,
		const PBLDerivativeDzInvFunctor &	pbl_derivative_dz_inv
	)

Add the production and dissipation sources of the subgrid TKE (Deardorff or k-eqn RANS) or of the MYNN QKE to the RhoKE RHS.

These sources consume the face fluxes written by the scalar diffusion of the same RK stage, so they must be called after every DiffusionSrcForState_* call of the stage has returned: the RhoTheta call in erf_slow_rhs_pre (hfx_z) and the RhoQ1 call in erf_slow_rhs_post (qfx1_z).

Parameters

[in]	bx	cell center box to loop over
[in]	domain	box of the whole domain
[in]	u	velocity in x-dir
[in]	v	velocity in y-dir
[in]	cell_data	conserved cell center vars
[in]	cell_prim	primitive cell center vars
[in,out]	cell_rhs	RHS for cell center vars
[in]	SmnSmn_a	strain rate magnitude
[in]	hfx_z	rho<w'theta'> on z-faces
[in]	qfx1_z	rho<w'qv'> on z-faces (may be null)
[in]	diss	dissipation of TKE
[in]	tau13	rho<u'w'>; holds the surface-layer stress on the zlo face
[in]	tau23	rho<v'w'>; holds the surface-layer stress on the zlo face
[in]	mu_turb	turbulent viscosity
[in]	solverChoice	container of solver and diffusion parameters
[in]	level	AMR level
[in]	tm_arr	theta mean array
[in]	grav_gpu	gravity vector
[in]	bc_ptr	container with boundary conditions
[in]	use_SurfLayer	whether surface-layer fluxes are applied in the diffusion
[in]	SurfLayer	surface layer objects, one per face
[in]	pbl_derivative_dz_inv	inverse vertical spacings for the mesh type

{
    BL_PROFILE("AddTurbKESources()");

    const TurbChoice& turbChoice = solverChoice.turbChoice[level];

    const bool l_use_keqn      = turbChoice.use_keqn;
    const bool l_implicit_diss = turbChoice.use_keqn && turbChoice.implicit_tke_dissipation;
    const bool l_use_mynn      = turbChoice.use_pbl_tke;

    const bool SurfLayer_zlo = use_SurfLayer && SurfLayer[amrex::Orientation::zlo()] != nullptr;

    // Clamp the divisor to the smallest normal Real before the select: an optimised
    //   build if-converts the select into an unconditional 1/theta_ref (also when
    //   the select is on the divisor), which trips fpe_trap_zero with the default
    //   theta_ref = 0. The clamp is exact for any normal theta_ref > 0 and its
    //   reciprocal is finite in single and double precision.
    const bool use_ref_theta = (turbChoice.theta_ref > 0);
    const amrex::Real inv_theta_ref = one / amrex::max(turbChoice.theta_ref,
                                                       std::numeric_limits<amrex::Real>::min());
    const amrex::Real l_inv_theta0 = (use_ref_theta) ? inv_theta_ref : one;
    const amrex::Real l_abs_g      = std::abs(grav_gpu[2]);

    // Using Deardorff (see Sullivan et al 1994)
    //    or k-eqn RANS (see Axell & Liungman 2001)
    //
    // Note: At this point, the thermal diffusivity ("Khv" field in ERF) and the
    //       subgrid dissipation ("diss" here) have been updated by the closure
    //       at the beginning of each timestep.
    //       The strain rate magnitude is updated at the beginning of the first
    //       RK stage only, therefore the shear production term also does not
    //       change between RK stages.
    //       hfx_z (Hfx3) is z-nodal, (0,0,1): it lives at the w-faces, not at the
    //       cell centre, so a single hfx_z(i,j,k) is the flux at the LOWER face of
    //       the cell and using it as the cell-centred value is not formally correct.
    //       hfx_z holds the face fluxes of the theta diffusion of this stage
    //       (the full flux, independent of the implicit/explicit split); at the
    //       bottom face of the domain that is the surface-layer flux when a
    //       surface layer is used.  The buoyancy production therefore averages the
    //       two faces of every cell, the first cell included, for the cell-centred
    //       vertical heat flux.  The first cell is not special-cased to the surface
    //       flux alone: that would again place a w-face value at the cell centre
    //       (a MOST-profile gradient evaluated at the first cell centre would be
    //       the consistent alternative).
    //       On a terrain-fitted mesh hfx_z holds the flux along zeta only: the slope
    //       corrections and the Jacobian are applied where the fluxes enter the RHS, so
    //       over sloping terrain this source omits those terms (as does the hfx3 output).
    //       REQUIRED WRITER: the RhoTheta call of DiffusionSrcForState_{N,S,T}
    //       in erf_slow_rhs_pre, on the same RK stage, which writes every z-face
    //       of each valid box (zbx = surroundingNodes(bx,2), top face included).
    //       Running the RhoKE source without that same-stage theta pass would
    //       read stale faces.
    if (l_use_keqn) {
        int qty_index = RhoKE_comp;
        // The source reads hfx_z at k+1: the z-faces of bx must be in hfx_z
        AMREX_ASSERT(hfx_z.contains(bx.smallEnd(0), bx.smallEnd(1), bx.smallEnd(2)) &&
                     hfx_z.contains(bx.bigEnd(0),   bx.bigEnd(1),   bx.bigEnd(2)+1));
        amrex::ParallelFor(bx,[=] AMREX_GPU_DEVICE (int i, int j, int k) noexcept
        {
            // Add Buoyancy Source
            // where the SGS buoyancy flux tau_{theta,i} = -KH * dtheta/dx_i,
            // such that for dtheta/dz < 0, there is a positive (upward) heat
            // flux; the TKE buoyancy production is then
            //   B = g/theta_0 * tau_{theta,w}
            // for a dry atmosphere.
            // TODO: To account for moisture, the Brunt-Vaisala frequency,
            //   N^2 = g[1/theta * dtheta/dz + ...]
            // **should** be a function of the water vapor and total water
            // mixing ratios, depending on whether conditions are saturated or
            // not (see the WRF model description, Skamarock et al 2019).
            // NOTE: reads hfx_z at k+1, one face above bx; Hfx3 is z-nodal and
            //       the theta diffusion writes every face of its valid box, top included.
            const amrex::Real hfx_cc = amrex::Real(0.5) * ( hfx_z(i,j,k) + hfx_z(i,j,k+1) );
            amrex::Real buoyancy_src = l_abs_g * l_inv_theta0 * hfx_cc;
            if (!use_ref_theta) {
                // l_inv_theta0 == 1, divide by actual theta
                buoyancy_src /= cell_prim(i,j,k,PrimTheta_comp);
            }
            cell_rhs(i,j,k,qty_index) += buoyancy_src;

            // TKE shear production
            //   P = -tau_ij * S_ij = 2 * mu_turb * S_ij * S_ij
            // Note: This assumes that the horizontal and vertical diffusivities
            // of momentum are equal
            cell_rhs(i,j,k,qty_index) += two*mu_turb(i,j,k,EddyDiff::Mom_v) * SmnSmn_a(i,j,k);

            // TKE dissipation (explicit); with erf.implicit_tke_dissipation the
            // sink is folded into the update in erf_slow_rhs_post instead
            if (!l_implicit_diss) {
                cell_rhs(i,j,k,qty_index) -= diss(i,j,k);
            }
        });
    }

    // Using PBL
    if (l_use_mynn) {
        int qty_index = RhoKE_comp;
        auto pbl_mynn_B1_l = turbChoice.pbl_mynn.B1;

        // At k = klo the resolved vertical gradients are contaminated by the
        // foextrap/hoextrap ghost cells (ERF #4037). When a SurfaceLayer owns the
        // zlo face, ComputeQKESourceTerms builds the production terms there from
        // the surface stresses and scalar fluxes that are actually applied to the
        // momentum, heat and moisture equations instead.
        const bool l_surface_layer_on_zlo = SurfLayer_zlo;

        amrex::ParallelFor(bx,[=,moist_indices=solverChoice.moisture_indices] AMREX_GPU_DEVICE (int i, int j, int k) noexcept
        {
            bool c_ext_dir_on_zlo = ( (bc_ptr[BCVars::cons_bc].lo(2) == ERFBCType::ext_dir) );
            bool c_ext_dir_on_zhi = ( (bc_ptr[BCVars::cons_bc].hi(2) == ERFBCType::ext_dir) );
            bool u_ext_dir_on_zlo = ( (bc_ptr[BCVars::xvel_bc].lo(2) == ERFBCType::ext_dir) );
            bool u_ext_dir_on_zhi = ( (bc_ptr[BCVars::xvel_bc].hi(2) == ERFBCType::ext_dir) );
            bool v_ext_dir_on_zlo = ( (bc_ptr[BCVars::yvel_bc].lo(2) == ERFBCType::ext_dir) );
            bool v_ext_dir_on_zhi = ( (bc_ptr[BCVars::yvel_bc].hi(2) == ERFBCType::ext_dir) );

            const auto pbl_dz_inv = pbl_derivative_dz_inv(i,j,k);

            // This computes shear production, buoyancy production, and dissipation terms only.
            cell_rhs(i, j, k, qty_index) += ComputeQKESourceTerms(i,j,k,u,v,cell_data,cell_prim,
                                                                  mu_turb,domain,pbl_dz_inv,
                                                                  pbl_mynn_B1_l,tm_arr(i,j,0),
                                                                  moist_indices,
                                                                  c_ext_dir_on_zlo, c_ext_dir_on_zhi,
                                                                  u_ext_dir_on_zlo, u_ext_dir_on_zhi,
                                                                  v_ext_dir_on_zlo, v_ext_dir_on_zhi,
                                                                  tau13, tau23, hfx_z, qfx1_z,
                                                                  l_surface_layer_on_zlo);
        });
    }
}

Referenced by erf_slow_rhs_post().

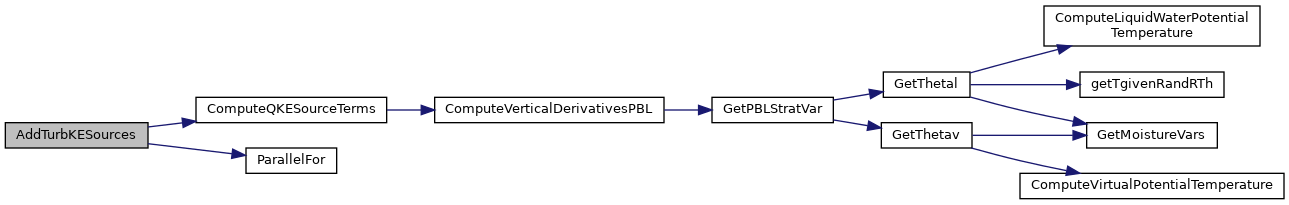

Here is the call graph for this function:

Here is the caller graph for this function:
