#include <ERF_LargeScaleForcingData.H>

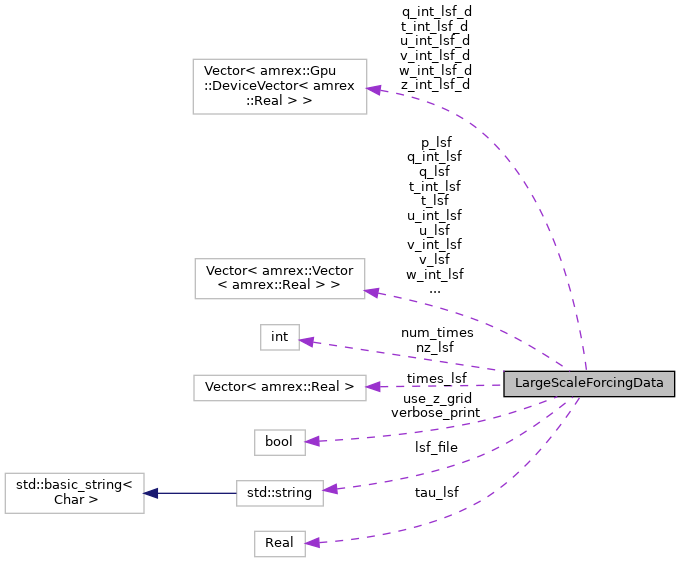

Collaboration diagram for LargeScaleForcingData:

[legend]

Public Member Functions
	LargeScaleForcingData ()
	Construct large-scale forcing metadata from the ERF input namespace. More...

int	get_columns_in_str (std::string &str)
	Count the number of whitespace-separated columns in a line. More...

void	read_forcing_file ()
	Read the forcing file and cache the raw time slices on host. More...

void	interp_forcing (const amrex::GeometryData &geom, const amrex::Vector< amrex::Real > &zlevels_stag, const InputSoundingData &sounding)
	Interpolate the forcing profiles onto the model grid. More...

void	get_forcing_time_coeffs (const amrex::Real &time, int &curr, int &next, amrex::Real &coeff_curr, amrex::Real &coeff_next) const
	Determine interpolation coefficients to apply tendencies for the given time. More...

void	host_to_device (int itime)
	Copy one interpolated forcing slice from host memory to device memory. More...

Public Attributes
amrex::Real	tau_lsf = zero

std::string	lsf_file = ""

bool	use_z_grid = true

bool	verbose_print = false

int	nz_lsf = -1

int	num_times = -1

amrex::Vector< amrex::Real >	times_lsf

amrex::Vector< amrex::Vector< amrex::Real > >	z_lsf

amrex::Vector< amrex::Vector< amrex::Real > >	p_lsf

amrex::Vector< amrex::Vector< amrex::Real > >	t_lsf

amrex::Vector< amrex::Vector< amrex::Real > >	q_lsf

amrex::Vector< amrex::Vector< amrex::Real > >	u_lsf

amrex::Vector< amrex::Vector< amrex::Real > >	v_lsf

amrex::Vector< amrex::Vector< amrex::Real > >	w_lsf

amrex::Vector< amrex::Vector< amrex::Real > >	z_int_lsf

amrex::Vector< amrex::Vector< amrex::Real > >	t_int_lsf

amrex::Vector< amrex::Vector< amrex::Real > >	q_int_lsf

amrex::Vector< amrex::Vector< amrex::Real > >	u_int_lsf

amrex::Vector< amrex::Vector< amrex::Real > >	v_int_lsf

amrex::Vector< amrex::Vector< amrex::Real > >	w_int_lsf

amrex::Vector< amrex::Gpu::DeviceVector< amrex::Real > >	z_int_lsf_d

amrex::Vector< amrex::Gpu::DeviceVector< amrex::Real > >	t_int_lsf_d

amrex::Vector< amrex::Gpu::DeviceVector< amrex::Real > >	q_int_lsf_d

amrex::Vector< amrex::Gpu::DeviceVector< amrex::Real > >	u_int_lsf_d

amrex::Vector< amrex::Gpu::DeviceVector< amrex::Real > >	v_int_lsf_d

amrex::Vector< amrex::Gpu::DeviceVector< amrex::Real > >	w_int_lsf_d

Detailed Description

Data structure storing large-scale forcing data.

This provides time-varying vertical profiles for large scale temperature, and water vapor tendencies, as well as observed large scale zonal and meridonal wind, and vertical subsidence. Profiles are read from a text file, interpolated to the model vertical grid, and then copied to device memory for use during time integration.

This mirrors the lsf functionality as implemented in SAM.

Constructor & Destructor Documentation

◆ LargeScaleForcingData()

LargeScaleForcingData::LargeScaleForcingData ( )

inline

Construct large-scale forcing metadata from the ERF input namespace.

     {
         amrex::ParmParse pp("erf");
         pp.queryAdd("forcing_timescale", tau_lsf);
         pp.queryAdd("large_scale_forcing_file", lsf_file);
     }

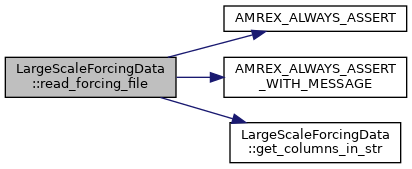

Here is the call graph for this function:

Member Function Documentation

◆ get_columns_in_str()

int LargeScaleForcingData::get_columns_in_str ( std::string & str )

inline

Count the number of whitespace-separated columns in a line.

Parameters

str	Input line to inspect.

Returns: Number of columns in the line.

     {
         std::istringstream iss(str);
         std::string tmp;
         // Get the number of columns in the file
         int ncols = 0;
         while (iss >> tmp) {
             ncols+= 1;
         }
         return ncols;
     }

Referenced by read_forcing_file().

Here is the caller graph for this function:

◆ get_forcing_time_coeffs()

void LargeScaleForcingData::get_forcing_time_coeffs	(	const amrex::Real &	time,
		int &	curr,
		int &	next,
		amrex::Real &	coeff_curr,
		amrex::Real &	coeff_next
	)		const

inline

Determine interpolation coefficients to apply tendencies for the given time.

Parameters

time	Elapsed simulation time in seconds.
curr	Index of the lower bracketing forcing time.
next	Index of the upper bracketing forcing time.
coeff_curr	Interpolation weight for the lower time slice.
coeff_next	Interpolation weight for the upper time slice.

     {
         // helper function to get the current time indices of forcing data to use and
         // coefficients based on the current simulation time.
         curr = 0;
         next = 0;
         coeff_curr = one;
         coeff_next = zero;

         // find the time index of forcing data to use
         for (int nt = 1; nt < num_times; nt++)
         {
             if (time > times_lsf[nt])
             {
                 curr = nt;
             }
         }

         if (curr == num_times - 1)
         {
             // use last set if time > last forcing time
             next = num_times - 1;
             coeff_curr = one;
             coeff_next = zero;
         } else {
             next = curr + 1;
             coeff_next = (time - times_lsf[curr]) / (times_lsf[next] - times_lsf[curr]);
             coeff_curr = (one - coeff_next);
         }
     }

Referenced by ERF::advance_dycore(), and make_mom_sources().

Here is the caller graph for this function:

◆ host_to_device()

void LargeScaleForcingData::host_to_device ( int itime )

inline

Copy one interpolated forcing slice from host memory to device memory.

Parameters

itime Time-slice index to copy.

     {
         const int nz = z_int_lsf[itime].size();
         z_int_lsf_d[itime].resize(nz);
         t_int_lsf_d[itime].resize(nz);
         q_int_lsf_d[itime].resize(nz);
         u_int_lsf_d[itime].resize(nz);
         v_int_lsf_d[itime].resize(nz);
         w_int_lsf_d[itime].resize(nz);

         amrex::Gpu::copy(amrex::Gpu::hostToDevice,
                          z_int_lsf[itime].begin(), z_int_lsf[itime].end(),
                          z_int_lsf_d[itime].begin());
         amrex::Gpu::copy(amrex::Gpu::hostToDevice,
                          t_int_lsf[itime].begin(), t_int_lsf[itime].end(),
                          t_int_lsf_d[itime].begin());
         amrex::Gpu::copy(amrex::Gpu::hostToDevice,
                          q_int_lsf[itime].begin(), q_int_lsf[itime].end(),
                          q_int_lsf_d[itime].begin());
         amrex::Gpu::copy(amrex::Gpu::hostToDevice,
                          u_int_lsf[itime].begin(), u_int_lsf[itime].end(),
                          u_int_lsf_d[itime].begin());
         amrex::Gpu::copy(amrex::Gpu::hostToDevice,
                          v_int_lsf[itime].begin(), v_int_lsf[itime].end(),
                          v_int_lsf_d[itime].begin());
         amrex::Gpu::copy(amrex::Gpu::hostToDevice,
                          w_int_lsf[itime].begin(), w_int_lsf[itime].end(),
                          w_int_lsf_d[itime].begin());
     }

Referenced by interp_forcing().

Here is the caller graph for this function:

◆ interp_forcing()

void LargeScaleForcingData::interp_forcing	(	const amrex::GeometryData &	geom,
		const amrex::Vector< amrex::Real > &	zlevels_stag,
		const InputSoundingData &	sounding
	)

inline

Interpolate the forcing profiles onto the model grid.

Parameters

geom	Geometry defining the vertical grid.
zlevels_stag	Staggered vertical coordinates used for interpolation.
sounding	Input sounding data used when the forcing file is on pressure levels.

     {
         const int klo = 0;
         const int khi = geom.Domain().bigEnd()[AMREX_SPACEDIM-1];
         const int Nz = geom.Domain().size()[AMREX_SPACEDIM-1];
         const amrex::Real dz = geom.CellSize()[AMREX_SPACEDIM-1];

         const bool use_terrain = (zlevels_stag.size() > 0);
         const amrex::Real zbot = (use_terrain) ? zlevels_stag[klo]   : geom.ProbLo(AMREX_SPACEDIM-1);
         const amrex::Real ztop = (use_terrain) ? zlevels_stag[khi+1] : geom.ProbHi(AMREX_SPACEDIM-1);

         AMREX_ALWAYS_ASSERT(num_times == static_cast<int>(times_lsf.size()));
         // On pressure levels, cell k is placed by the sounding's hydrostatic pressure at its
         // centre, pm_integ[k+1] (pm_integ[0] is the surface), so the sounding must be sampled
         // on this same grid and integrated (sounding_type Ideal or Isentropic)
         AMREX_ALWAYS_ASSERT_WITH_MESSAGE(use_z_grid || static_cast<int>(sounding.pm_integ.size()) >= Nz+1,
             "a large-scale forcing file on pressure levels needs the input sounding integrated "
             "hydrostatically on the same grid (erf.sounding_type = Ideal or Isentropic)");

         z_int_lsf.resize(num_times);
         t_int_lsf.resize(num_times);
         q_int_lsf.resize(num_times);
         u_int_lsf.resize(num_times);
         v_int_lsf.resize(num_times);
         w_int_lsf.resize(num_times);

         z_int_lsf_d.resize(num_times);
         t_int_lsf_d.resize(num_times);
         q_int_lsf_d.resize(num_times);
         u_int_lsf_d.resize(num_times);
         v_int_lsf_d.resize(num_times);
         w_int_lsf_d.resize(num_times);
         for (int itime = 0; itime < num_times; itime++)
         {
             z_int_lsf[itime].resize(Nz+1);
             t_int_lsf[itime].resize(Nz+1);
             q_int_lsf[itime].resize(Nz+1);
             u_int_lsf[itime].resize(Nz+1);
             v_int_lsf[itime].resize(Nz+1);
             w_int_lsf[itime].resize(Nz+1);

             for (int k = 0; k < Nz; k++)
             {
                 z_int_lsf[itime][k] = (use_terrain) ? myhalf * (zlevels_stag[k] + zlevels_stag[k+1])
                                                     : zbot + (k + myhalf) * dz;

                 // Level 0 is the zero-forcing surface level added when the file is read, so the
                 //    search starts at the bracket [0, 1] for cells below the first given level
                 bool set = false;
                 for (int lk = 1; lk < nz_lsf + 1; lk++)
                 {
                     // Determine if grid cell k falls in bracket [lk-1, lk]:
                     //   z-grid mode: cell z <= forcing z (z increases with lk)
                     //   p-grid mode: cell p >= forcing p (p decreases with lk)
                     bool in_bracket = use_z_grid
                         ? (z_int_lsf[itime][k] <= z_lsf[itime][lk])
                         : (sounding.pm_integ[k+1] >= p_lsf[itime][lk]);

                     if (in_bracket)
                     {
                         // Interpolation coordinate: z or p depending on mode
                         const auto& coord_lsf = use_z_grid ? z_lsf[itime] : p_lsf[itime];
                         amrex::Real coord_k = use_z_grid ? z_int_lsf[itime][k] : sounding.pm_integ[k+1];
                         amrex::Real coef = (coord_k - coord_lsf[lk - 1]) / (coord_lsf[lk] - coord_lsf[lk - 1]);

                         t_int_lsf[itime][k] = t_lsf[itime][lk - 1] + (t_lsf[itime][lk] - t_lsf[itime][lk-1])*coef;
                         q_int_lsf[itime][k] = q_lsf[itime][lk - 1] + (q_lsf[itime][lk] - q_lsf[itime][lk-1])*coef;
                         u_int_lsf[itime][k] = u_lsf[itime][lk - 1] + (u_lsf[itime][lk] - u_lsf[itime][lk-1])*coef;
                         v_int_lsf[itime][k] = v_lsf[itime][lk - 1] + (v_lsf[itime][lk] - v_lsf[itime][lk-1])*coef;
                         w_int_lsf[itime][k] = w_lsf[itime][lk - 1] + (w_lsf[itime][lk] - w_lsf[itime][lk-1])*coef;
                         set = true;
                         break;
                     }
                 }

                 if (set) {
                     continue;
                 }

                 t_int_lsf[itime][k] = zero;
                 q_int_lsf[itime][k] = zero;
                 u_int_lsf[itime][k] = (k > 0) ? u_int_lsf[itime][k-1] : zero;
                 v_int_lsf[itime][k] = (k > 0) ? v_int_lsf[itime][k-1] : zero;
                 w_int_lsf[itime][k] = zero;
             }

             z_int_lsf[itime][Nz] = ztop;
             t_int_lsf[itime][Nz] = zero;
             q_int_lsf[itime][Nz] = zero;
             u_int_lsf[itime][Nz] = u_int_lsf[itime][Nz-1];
             v_int_lsf[itime][Nz] = v_int_lsf[itime][Nz-1];
             w_int_lsf[itime][Nz] = zero;

             host_to_device(itime);
         }

         // debugging print
         if (verbose_print && !times_lsf.empty()) {
             const int i = 0; // print only the first time block
             amrex::Print() << " INTERPOLATED LSF at time = " << times_lsf[i] << std::endl;
             for (int k = 0; k <= Nz; k++)
             {
                 amrex::Print() << "   level " << k << ": z = " << z_int_lsf[i][k] << " tls = " << t_int_lsf[i][k]
                                << " qls = " << q_int_lsf[i][k] << " uls = " << u_int_lsf[i][k] << " vls = "
                                << v_int_lsf[i][k] << " wls = " << w_int_lsf[i][k] << std::endl;
             }
         }
     }

Here is the call graph for this function:

◆ read_forcing_file()

void LargeScaleForcingData::read_forcing_file ( )

inline

Read the forcing file and cache the raw time slices on host.

     {
         amrex::Print() << "  Opening LSF file '" << lsf_file << "'" << std::endl;
         std::ifstream ifs(lsf_file);
         if (!ifs.is_open())
         {
             amrex::Error("Error opening input forcing file " + lsf_file);
         }

         std::string line;

         // temporary vectors for storing the values at each time
         amrex::Vector<amrex::Real> z_in, p_in, t_in, q_in, u_in, v_in, w_in;

         //   skip first header line
         std::getline(ifs, line);
         // header should have 7 columns: z, p, tls, qls, uls, vls, wls
         AMREX_ALWAYS_ASSERT(get_columns_in_str(line) == 7);

         num_times = 0;
         nz_lsf = 0;

         amrex::Real file_start_time = zero; // first time in file, in days, other inputs are relative to this time

         amrex::Real pres0;
         while(std::getline(ifs, line)) {
             std::istringstream iss(line);

             // The start of each day has 6 columns: day, levels, pres0, "day, levels, pres0"
             int ncol = get_columns_in_str(line);

             if (ncol == 6)
             {
                 // this is a new set of inputs at a given time

                 // have to read these as strings first to split on commas
                 std::string s_time, s_lev, s_pres0;
                 iss >> s_time >> s_lev >> s_pres0;
                 amrex::Real time = std::stod(s_time);
                 int nlev = std::stoi(s_lev);
                 pres0 = std::stod(s_pres0);

                 // convert time to seconds (relative to first time), and pres from mb to Pa
                 if (num_times == 0)
                 {
                     file_start_time = time;
                 }
                 time = (time - file_start_time) * amrex::Real(86400.0);

                 if (times_lsf.size() > 0 && time != times_lsf.back())
                 {
                     // if we started a new time, store data for previous time and reset tmp arrays
                     AMREX_ALWAYS_ASSERT(z_in.size() == nz_lsf + 1);
                     z_lsf.push_back(z_in);
                     p_lsf.push_back(p_in);
                     t_lsf.push_back(t_in);
                     q_lsf.push_back(q_in);
                     u_lsf.push_back(u_in);
                     v_lsf.push_back(v_in);
                     w_lsf.push_back(w_in);

                     z_in.clear();
                     p_in.clear();
                     t_in.clear();
                     q_in.clear();
                     u_in.clear();
                     v_in.clear();
                     w_in.clear();
                 }

                 times_lsf.push_back(time);
                 num_times++;

                 pres0 *= amrex::Real(100.0);
                 if (nz_lsf == 0)
                 {
                     nz_lsf = nlev;
                 } else {
                     // make sure this has the same number of inputs.
                     // TODO: this probably doesn't have to be true since we are interpolating onto the grid?
                     AMREX_ALWAYS_ASSERT(nlev == nz_lsf);
                 }

                 z_in.push_back(zero); // assuming zbot = 0.0 for now, this will get interpolated later once we have grid info
                 p_in.push_back(pres0);
                 t_in.push_back(zero); // assuming temperature change at surf is 0
                 q_in.push_back(zero);
                 u_in.push_back(zero);
                 v_in.push_back(zero);
                 w_in.push_back(zero);
             }
             else if (ncol == 7)
             {
                 // this is defining a level at the current time
                 amrex::Real z, p, tls, qls, uls, vls, wls;
                 iss >> z >> p >> tls >> qls >> uls >> vls >> wls;

                 if (z < zero) {
                     // if z < 0, then LSF is defined on pressure levels
                     use_z_grid = false;
                 }

                 z_in.push_back(z);
                 p_in.push_back(p * amrex::Real(100.0));
                 t_in.push_back(tls);
                 q_in.push_back(qls);
                 u_in.push_back(uls);
                 v_in.push_back(vls);
                 w_in.push_back(wls);
             }
             else {
                 amrex::Error("unexpected line in input file: " + line);
             }
         }

         ifs.close();

         // store the last set from the EOF
         AMREX_ALWAYS_ASSERT(z_in.size() == nz_lsf + 1);
         z_lsf.push_back(z_in);
         p_lsf.push_back(p_in);
         t_lsf.push_back(t_in);
         q_lsf.push_back(q_in);
         u_lsf.push_back(u_in);
         v_lsf.push_back(v_in);
         w_lsf.push_back(w_in);

         num_times = times_lsf.size();
         AMREX_ALWAYS_ASSERT_WITH_MESSAGE(z_lsf.size() == num_times,
                                          "repeated timestamp in the large-scale forcing file");
         amrex::Print() << "  Read " << nz_lsf << " levels at " << num_times << " times" << std::endl;

         // debugging print
         if (verbose_print && !times_lsf.empty()) {
             const int i = 0; // print only the first time block
             amrex::Print() << " LSF at time = " << times_lsf[i] << std::endl;
             for (int lev = 0; lev < nz_lsf + 1; lev++)
             {
                 amrex::Print() << "   level " << lev << ": z = " << z_lsf[i][lev] << " p = " << p_lsf[i][lev] << " tls = "
                                << t_lsf[i][lev] << " qls = " << q_lsf[i][lev] << " uls = " << u_lsf[i][lev] << " vls = "
                                << v_lsf[i][lev] << " wls = " << w_lsf[i][lev] << std::endl;
             }
         }
     }
