Container holding radiation-related choices and parameters. More...

#include <ERF_RadStruct.H>

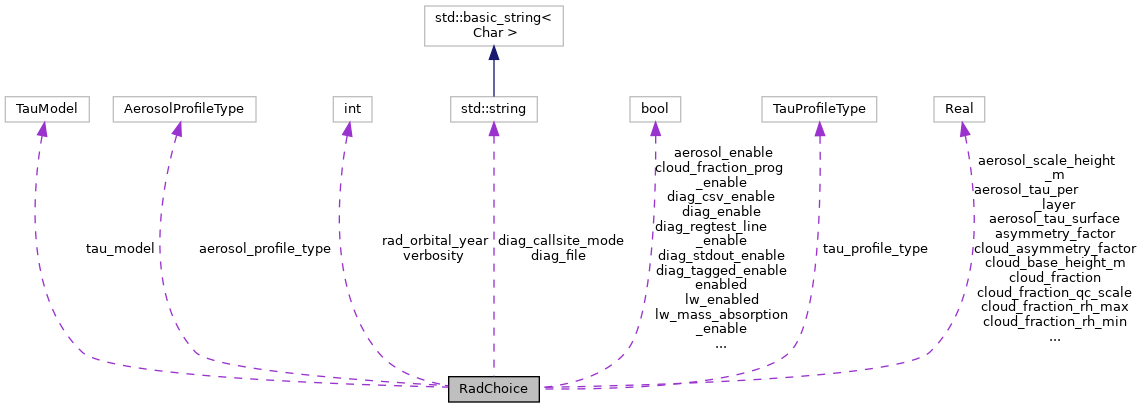

Collaboration diagram for RadChoice:

[legend]

Public Member Functions
void	init_params (bool two_stream_selected, std::string pp_prefix)

bool	uses_two_stream_radiation () const noexcept
	Check if two-stream radiation is active. More...

Static Public Member Functions
static void	clamp_low (const char *key, amrex::Real &value, amrex::Real lo)
	Read radiation options from the input parameter database. More...

static void	clamp_high (const char *key, amrex::Real &value, amrex::Real hi)

static void	reset_nonpositive (const char *key, amrex::Real &value, amrex::Real fallback)

Public Attributes
bool	enabled = false
	True when erf.radiation_model = TwoStream. Set by init_params from the model SolverChoice read; the erf.radiation.* sub-options are read only then. More...

bool	sw_enabled = true
	Enable shortwave (solar) radiation computation. Only used by the two-stream model. More...

bool	lw_enabled = true
	Enable longwave (thermal) radiation computation. Only used by the two-stream model. More...

amrex::Real	tau_per_layer = 0.05
	Shortwave optical depth per layer (constant for all layers). Used in Beer-Lambert direct-beam formula. Only used by the two-stream model. More...

amrex::Real	tau_lw_per_layer = 1.0
	Longwave optical depth per layer (constant for all layers). Used in gray-gas LW two-stream solver. Only used by the two-stream model. More...

TauModel	tau_model = TauModel::PerLayer
	Optical depth model: "per_layer" (default, fixed tau per layer) or "mass" (from the layer mass path in both bands; see TauModel). More...

amrex::Real	sw_kabs_dry = 4.0e-6
	Mass model, SW: dry-air gray absorption coefficient [m^2/kg]. More...

amrex::Real	sw_kscat_dry = 3.0e-6
	Mass model, SW: dry-air (Rayleigh) scattering coefficient [m^2/kg], omega = 1, g = 0. More...

amrex::Real	sw_kabs_vapor = 4.0e-3
	Mass model, SW: water-vapor gray absorption coefficient [m^2/kg]. More...

amrex::Real	sw_kext_cloud = 150.0
	Mass model, SW: cloud-water extinction coefficient m^2/kg. More...

amrex::Real	sw_cloud_omega = 0.9999
	Mass model, SW: cloud-water single-scattering albedo. More...

amrex::Real	sw_cloud_g = 0.85
	Mass model, SW: cloud-water asymmetry factor. More...

bool	lw_mass_absorption_enable = false
	Gray longwave optical depth from the layer mass path instead of the fixed tau_lw_per_layer (also selected by tau_model = mass): tau_lw(k) = rho dz (lw_kabs_dry + lw_kabs_vapor qv + lw_kabs_cloud qc) The cloud term is the Stephens (1978) emissivity, eps = 1 - exp(-a LWP) with a = 0.158 m^2/g, written as an optical depth. The column optical depth is then independent of the vertical resolution. The cloud-band, moisture-coefficient and aerosol additions still apply on top. Default false keeps tau_lw_per_layer. More...

amrex::Real	lw_kabs_dry = 1.0e-4
	Dry-air gray LW mass absorption coefficient [m^2/kg]. More...

amrex::Real	lw_kabs_vapor = 0.1
	Water-vapor gray LW mass absorption coefficient [m^2/kg]. More...

amrex::Real	lw_kabs_cloud = 158.0
	Cloud-water LW mass absorption coefficient m^2/kg. More...

int	verbosity = 0
	Debug verbosity level (0=off, 1+=debug output). Gated debug prints only emit when this is >= 1. More...

std::string	diag_file = "radiation_diag.dat"
	Output file path for radiation diagnostics CSV. Paths are relative to the simulation working directory. More...

bool	diag_enable = false
	Master switch for radiation diagnostics emission. When false, no diagnostics output (stdout/tagged/regtest/csv). Default false: a run that did not ask for the diagnostics should not write a CSV row and a stdout block on every step. The per-stream switches below stay on by default, so setting this one input to true turns the whole set on. More...

bool	diag_stdout_enable = true
	Enable human-readable stdout diagnostics block. Controls tagged [RAD][...] debug line emission (when verbosity >= 1). Default true. More...

bool	diag_tagged_enable = true
	Enable tagged [RAD][...] debug lines. Controls emission of bracketed-tag debug output. Default true. More...

bool	diag_regtest_line_enable = true
	Enable RADIATION_DIAG: line emission. Controls regtest-parsing diagnostics line. Default true. More...

bool	diag_csv_enable = true
	Enable CSV file append behavior. When false, no file writes; other enabled streams may still print. Default true. More...

std::string	diag_callsite_mode = "both"
	Call-site filtering mode: "both" (pre+post rows), "pre_only", or "post_only". More...

amrex::Real	diag_dedup_tol = 1.0e-12
	Tolerance for time equality in duplicate guard [s]. Times within this tolerance are considered equal. Default 1e-12. More...

TauProfileType	tau_profile_type = TauProfileType::Constant
	Optical depth profile type: "constant" (default, the thickness-independent tau) or "cloud_layer" (adds height-varying cloud optical depth between cloud_base_height_m and cloud_top_height_m). More...

amrex::Real	cloud_base_height_m = 500.0
	Cloud layer base height [m]. Only used when tau_profile_type == CloudLayer. More...

amrex::Real	cloud_top_height_m = 1000.0
	Cloud layer top height [m]. Only used when tau_profile_type == CloudLayer. Must be >= cloud_base_height_m. More...

amrex::Real	cloud_tau_per_layer = 0.5
	Additional optical depth per layer contributed by the cloud, added on top of the clear-sky tau_per_layer/tau_lw_per_layer background within [cloud_base_height_m, cloud_top_height_m]. Only used when tau_profile_type == CloudLayer. More...

amrex::Real	cloud_fraction = 0.0
	Cloud fraction in [0, 1] used to blend clear-sky and cloudy-column fluxes: F = (1 - cloud_fraction) * F_clear + cloud_fraction * F_cloudy. Default 0.0 (fully clear sky), which reduces exactly to the clear-sky column regardless of tau_profile_type. More...

amrex::Real	single_scattering_albedo = 0.0
	Clear-sky (background gas) single-scattering albedo in [0, 1] for the SW diffuse (scattering) two-stream calculation. Default 0.0 means the clear-sky column is purely absorbing, and the diffuse SW contribution from the clear-sky column is exactly zero — reducing exactly to the direct-beam-only result. Only used by the two-stream model and sw_enabled == true. More...

amrex::Real	asymmetry_factor = 0.0
	Clear-sky (background gas) scattering asymmetry factor in [-1, 1] (0 = isotropic scattering, close to 1 = strongly forward-scattering). Only meaningful when single_scattering_albedo 0. Default 0.0. More...

amrex::Real	cloud_single_scattering_albedo = 0.0
	Cloud single-scattering albedo in [0, 1], used instead of single_scattering_albedo for levels where the cloud-layer optical depth enhancement applies (i.e., within [cloud_base_height_m, cloud_top_height_m] on the "cloudy" column evaluation). Default 0.0 leaves the cloud band non-scattering for SW_Cloud_Layer unless explicitly configured otherwise. Typical liquid water cloud values are close to 1 (e.g., 0.9999). Only used when tau_profile_type == CloudLayer. More...

amrex::Real	cloud_asymmetry_factor = 0.0
	Cloud scattering asymmetry factor in [-1, 1], used instead of asymmetry_factor for levels where the cloud-layer optical depth enhancement applies. Default 0.0. Typical liquid water cloud droplet values are around 0.85 (strongly forward-scattering). Only meaningful when cloud_single_scattering_albedo > 0. More...

amrex::Real	surface_albedo_sw = 0.3
	Shortwave surface albedo fallback [0, 1] for per-column heterogeneous-surface-property resolution. Used when per-column LSM/radiation interface albedo field is unavailable or invalid. Default 0.3 represents typical land/water reflectivity. Only used when hetero surface fields not present or disabled. More...

amrex::Real	surface_albedo_sw_diffuse = -1.0
	Shortwave surface albedo for diffuse light [0,1]. A negative value (default) uses surface_albedo_sw for both direct and diffuse light. More...

amrex::Real	surface_emissivity_lw = 0.99
	Longwave surface emissivity fallback [0, 1] for per-column heterogeneous-surface-property resolution. Used when per-column LSM/radiation interface emissivity field is unavailable or invalid. Default 0.99 represents typical land/water/ice emissivity (nearly blackbody). Only used when hetero surface fields not present or disabled. More...

bool	seb_enable = false
	Master switch for simplified SEB infrastructure. When false (default), no SEB MultiFabs are allocated and behavior is unchanged. More...

bool	seb_use_radiation_fluxes = false
	Take the SEB's net surface shortwave and longwave fluxes from the two-stream sweep itself (per column, absorbed fluxes positive) wherever the LSM does not expose them. When false (default) those fluxes are the LSM fields or, without an LSM, the seb_sw_flux_default and seb_lw_flux_default constants. Sensible, latent and ground heat fluxes are unaffected. More...

amrex::Real	seb_sw_flux_default = 0.0
	Fallback SEB surface net shortwave flux [W/m^2]. More...

amrex::Real	seb_lw_flux_default = 0.0
	Fallback SEB surface net longwave flux [W/m^2]. More...

SEBTurbulentFluxSource	seb_turbulent_flux_source = SEBTurbulentFluxSource::SurfaceLayer
	Source of the SEB's sensible and latent heat fluxes when no land-surface model supplies them: "surface_layer" (default) or "defaults". See SEBTurbulentFluxSource. More...

bool	seb_surface_layer_uses_skin = false
	Two-way coupling with the zlo surface layer: the surface layer takes its land surface temperature from the SEB's prognostic skin temperature T_s (converted to potential temperature), so its sensible heat flux responds to T_s. Requires seb_prognostic_enable and seb_turbulent_flux_source = surface_layer. Default false: the surface layer keeps its own temperature. More...

bool	seb_surface_layer_uses_moisture = false
	Two-way coupling of moisture as well: the surface layer takes its land surface mixing ratio from the balance's surface water, so its moisture flux follows the soil and dries as the balance's q_s does. Without seb_soil_type it is beta * q_sat(T_s, p_s) + (1 - beta) * q_air with beta the soil-water factor clamp((q_s - seb_soil_moisture_wilt) / (seb_soil_moisture_fc - seb_soil_moisture_wilt), 0, 1). With seb_soil_type, the bare soil evaporates from its pore air (Noah-MP's relative humidity exp(psi g / (R_v T_s)) times q_sat) through Noah-MP's bare-soil resistance, and with seb_vegetation_type the canopy transpires through its own, each in series with the aerodynamic one (erf_surface_moisture::two_source_surface_mixing_ratio). q_s is then the volumetric water content [m^3/m^3] of the top seb_moisture_layer_depth_m of soil. Requires seb_surface_layer_uses_skin. Default false: the surface layer keeps its own surface moisture (erf.most.surf_moist). More...

amrex::Real	seb_soil_moisture_wilt = 0.066
	Wilting point [m^3/m^3]: at or below it the soil-water factor is 0, so the vegetation does not transpire and, without seb_soil_type, the surface does not evaporate (with one, the bare soil's nearly dry pore air keeps it near zero) (seb_surface_layer_uses_moisture; giving it otherwise stops at start-up). Default 0.066, Noah-MP's loam (WLTSMC, STAS soil type 6). More...

amrex::Real	seb_soil_moisture_fc = 0.329
	Field capacity [m^3/m^3]: at or above it the soil-water factor is 1, so without seb_soil_type the surface evaporates at the potential rate (seb_surface_layer_uses_moisture; giving it otherwise stops at start-up). Default 0.329, Noah-MP's loam (REFSMC, STAS soil type 6). More...

int	seb_soil_type = 0
	Noah-MP soil category (STAS, 1-19, not 14 (water), as in NoahmpTable.TBL; see ERF_NoahMPSoilTable.H). The balance takes its wilting point (WLTSMC) and field capacity (REFSMC) – giving either seb_soil_moisture_wilt or seb_soil_moisture_fc as well is an error –, the surface heat capacity of the soil unless seb_surface_heat_capacity is given, with seb_surface_layer_uses_moisture the bare-soil resistance (vegetation or not), and with seb_surface_layer_uses_skin the surface layer's land roughness unless erf.most.z0 is given. 0 (the default): none of these. More...

int	seb_vegetation_type = 0
	Noah-MP land-use category (modified IGBP MODIS, 1-20 except the unvegetated 15, 16 and 17, as in NoahmpTable.TBL; see ERF_NoahMPVegetationTable.H) of the vegetated fraction. With it, the surface's moisture availability comes from a canopy resistance (Jarvis, Noah-MP's parameters RS, RGL, HS, TOPT, RSMAX) for the vegetated fraction and a bare-soil resistance (Noah-MP's Sakaguchi-Zeng form, on seb_soil_type) for the rest, each in series with the aerodynamic one. Needs seb_surface_layer_uses_moisture and seb_soil_type. 0 (the default): bare soil, the soil's resistance alone (f_veg = 0). More...

amrex::Real	seb_vegetation_fraction = 1.0
	Vegetated fraction of the surface [0, 1] (seb_vegetation_type; giving it otherwise stops at start-up). Default 1. More...

amrex::Real	seb_leaf_area_index = -1.0
	Leaf area index [m^2/m^2] of the vegetated fraction (seb_vegetation_type; giving it otherwise stops at start-up). Default: the land-use category's monthly values interpolated to the run's start date and time (start_datetime), as Noah-MP does with its table LAI (noahmp_day_of_year: day 0 at 00:00 on 1 January), shifted half a year when erf.rad_cons_lat < 0 (one latitude for the domain, where Noah-MP uses each column's); fixed for the run. More...

amrex::Real	seb_land_roughness = -1.0
	Land roughness length [m] the coupled surface layer takes when erf.most.z0 is not given (derived, not an input): with seb_surface_layer_uses_skin and seb_soil_type, f_veg Z0MVT + (1 - f_veg) Z0SOIL from Noah-MP's tables (f_veg = 0 without seb_vegetation_type); -1 otherwise. ERF::InitData_post hands it to the zlo surface layer as it builds it (SurfaceLayer::set_default_roughness). More...

amrex::Real	seb_hfx_default = 0.0
	Fallback SEB sensible heat flux [W/m^2]. More...

amrex::Real	seb_lh_default = 0.0
	Fallback SEB latent heat flux [W/m^2]. More...

amrex::Real	seb_grdflx_default = 0.0
	Fallback SEB ground heat flux [W/m^2]. The force-restore restoring term already represents the flux into the soil, so a nonzero value with seb_prognostic_enable counts that flux twice. More...

amrex::Real	seb_q_sfc_default = 0.0
	Fallback SEB surface moisture, and the initial value of the prognostic one. With seb_prognostic_enable q_s follows prognostic_dqs_dt, a volumetric water content [m^3/m^3] of the top seb_moisture_layer_depth_m of soil; with a land model that has one, the balance shows the land model's 2 m mixing ratio [kg/kg] instead. More...

amrex::Real	seb_t_deep_default = 300.0
	Fallback SEB deep soil temperature [K]. More...

amrex::Real	seb_q_deep_default = 0.0
	Deep soil moisture the prognostic q_s restores to, in q_s's units (see seb_q_sfc_default). More...

bool	seb_diagnostic_enable = false
	Enable diagnostic SEB residual computation and reporting. When true, computes and reports SEB residual = (SW_net + LW_net) - H - LE - G. When false (default), no residual computation or new diagnostic output. Requires seb_enable=true to be meaningful; if false but seb_enable=true, auto-enables internally. Note: this is diagnostic-only; it makes no prognostic T_s or flux update. Set seb_prognostic_enable for that. More...

bool	seb_prognostic_enable = false
	Enable prognostic SEB surface temperature and moisture evolution. When true, integrates SEB residual forward in time to evolve T_s and q_s using force-restore formulation. When false (default), no prognostic update occurs. Requires seb_enable=true and seb_diagnostic_enable=true; auto-enables internally if needed. Only active when Noah-MP is NOT driving LSM fields at that level. More...

amrex::Real	seb_surface_heat_capacity = 2.0e4
	Effective surface heat capacity [J/(m^2K)]. Used in force-restore prognostic T_s equation: dT_s/dt = SEB_residual / C_s - (2pi/tau)(T_s - T_deep). Default 2.0e4 J/(m^2K) represents a thin surface-active layer. With seb_soil_type it is derived from Noah-MP's soil instead (seb_force_restore_heat_capacity of the soil's heat capacity and conductivity at seb_q_sfc_default, over seb_restore_timescale_s) unless it is given explicitly. Only used when seb_prognostic_enable=true. Must be > 0: init_params() stops otherwise. More...

amrex::Real	seb_restore_timescale_s = 86400.0
	Force-restore timescale for surface temperature [s]. Relaxation time constant toward T_deep in prognostic T_s equation. Default 86400.0 s (1 day) provides weak damping on diurnal timescales. Only used when seb_prognostic_enable=true. Must be > 0: init_params() stops otherwise. More...

amrex::Real	seb_moisture_layer_depth_m = 0.1
	Effective surface moisture layer depth [m]. Used in force-restore prognostic q_s equation: dq_s/dt = -(LE/(L_vrho_wd_s)) - (1/tau_q)*(q_s - q_deep). Default 0.1 m represents a thin surface-active moisture layer. Only used when seb_prognostic_enable=true. Must be > 0: init_params() stops otherwise. More...

amrex::Real	seb_moisture_restore_timescale_s = 86400.0
	Force-restore timescale for surface moisture [s]. Relaxation time constant toward q_deep in prognostic q_s equation. Default 86400.0 s (1 day) provides weak damping on diurnal timescales. Only used when seb_prognostic_enable=true. Must be > 0: init_params() stops otherwise. More...

amrex::Real	seb_prognostic_t_min_k = 200.0
	Minimum clamping bound for prognostic surface temperature [K]. After each Euler update, T_s is clamped to [seb_prognostic_t_min_k, seb_prognostic_t_max_k] to prevent instability if dt is large relative to C_s/tau. Default 200.0 K (far below realistic surface temperatures). Only used when seb_prognostic_enable=true. More...

amrex::Real	seb_prognostic_t_max_k = 340.0
	Maximum clamping bound for prognostic surface temperature [K]. After each Euler update, T_s is clamped to [seb_prognostic_t_min_k, seb_prognostic_t_max_k]. Default 340.0 K (above typical surface temperatures, but prevents unrealistic excursions). Only used when seb_prognostic_enable=true. More...

amrex::Real	seb_prognostic_q_min = 0.0
	Minimum clamping bound for prognostic surface moisture [kg/kg]. After each Euler update, q_s is clamped to [seb_prognostic_q_min, seb_prognostic_q_max]. Default 0.0 kg/kg prevents negative moisture. Only used when seb_prognostic_enable=true. More...

amrex::Real	seb_prognostic_q_max = 1.0
	Maximum clamping bound for prognostic surface moisture [kg/kg]. After each Euler update, q_s is clamped to [seb_prognostic_q_min, seb_prognostic_q_max]. Default 1.0 kg/kg ensures physically meaningful moisture. Only used when seb_prognostic_enable=true. More...

bool	tau_lw_dynamic_enable = false
	Enable dynamic longwave optical depth diagnosis from moisture/clouds. When true, LW optical depth is computed per-level from qv and qc. When false (default), uses the static tau_lw_per_layer. Only used by the two-stream model and lw_enabled == true. More...

bool	tau_sw_dynamic_enable = false

amrex::Real	tau_sw_coeff_qv = 0.0
	Shortwave optical depth coefficient for water vapor [dimensionless]. Dynamic SW tau = tau_sw_coeff_qv * qv + tau_sw_coeff_qc * qc + tau_per_layer. Default 0.0 means tau is purely from static tau_per_layer (no dynamic component). Only used when tau_sw_dynamic_enable == true. More...

amrex::Real	tau_sw_coeff_qc = 0.0
	Shortwave optical depth coefficient for cloud liquid water [dimensionless]. Default 0.0. When both coefficients are 0, dynamic path still invoked but yields tau_per_layer unchanged. Only used when tau_sw_dynamic_enable == true. More...

amrex::Real	tau_lw_coeff_qv = 0.0
	Longwave optical depth coefficient for water vapor [dimensionless]. Dynamic LW tau = tau_lw_coeff_qv * qv + tau_lw_coeff_qc * qc + tau_lw_per_layer. Default 0.0 means tau is purely from static tau_lw_per_layer (no dynamic component). Only used when tau_lw_dynamic_enable == true. More...

amrex::Real	tau_lw_coeff_qc = 0.0
	Longwave optical depth coefficient for cloud liquid water [dimensionless]. Default 0.0. When both coefficients are 0, dynamic path still invoked but yields tau_lw_per_layer unchanged. Only used when tau_lw_dynamic_enable == true. More...

bool	cloud_fraction_prog_enable = false
	Enable prognostic cloud fraction diagnosis from RH/qc. When true, cloud fraction is computed per-level from relative humidity and cloud water. When false (default), uses the static cloud_fraction. Only used by the two-stream model. More...

amrex::Real	cloud_fraction_rh_min = 0.0
	Minimum relative humidity threshold for cloud fraction diagnosis [0, 1]. Cloud fraction ramps from 0 at rh < cloud_fraction_rh_min to 1 at rh >= cloud_fraction_rh_max. Default 0.0 means cloud fraction depends primarily on qc content. Only used when cloud_fraction_prog_enable == true. More...

amrex::Real	cloud_fraction_rh_max = 1.0
	Maximum relative humidity threshold for cloud fraction diagnosis [0, 1]. Must be >= cloud_fraction_rh_min. Cloud fraction saturates to 1 at this RH. Default 1.0 means cloud fraction increases linearly from rh_min to 1.0 RH. Only used when cloud_fraction_prog_enable == true. More...

amrex::Real	cloud_fraction_qc_scale = 1.0e-3
	Cloud water [kg/kg] at which the liquid-water term alone gives a cloud fraction of 1: cf += min(1, qc / cloud_fraction_qc_scale). Default 1.0e-3 kg/kg, so a typical stratus cloud water saturates the term. Only used when cloud_fraction_prog_enable == true. More...

bool	aerosol_enable = false
	Enable prescribed bulk aerosol/turbidity optical depth. When true, aerosol optical depth is added on top of existing tau_base + cloud + dynamic-moisture contributions. When false (default), there is no aerosol contribution. Only used by the two-stream model and sw_enabled == true. More...

AerosolProfileType	aerosol_profile_type = AerosolProfileType::Constant
	Aerosol optical depth profile type: Constant, Exponential, or Table. More...

amrex::Real	aerosol_tau_per_layer = 0.0
	Constant aerosol optical depth per layer [dimensionless]. Used for AerosolProfileType::Constant profile. Default 0.0 (no aerosol contribution). Only used when aerosol_enable == true and aerosol_profile_type == Constant. More...

amrex::Real	aerosol_scale_height_m = 2000.0
	Scale height for exponential aerosol profile [m]. Controls decay rate: tau_aerosol(k) = aerosol_tau_surface * exp(-z(k) / scale_height). Default 2000.0 m (typical scale height for tropospheric aerosols). Only used when aerosol_enable == true and aerosol_profile_type == Exponential. More...

amrex::Real	aerosol_tau_surface = 0.0
	Total-column aerosol optical depth at surface [dimensionless]. Used for AerosolProfileType::Exponential profile as the surface boundary condition. Default 0.0 (no aerosol contribution). Only used when aerosol_enable == true and aerosol_profile_type == Exponential. More...

Inputs shared with the RRTMGP interface
The two-stream model reads the sun, site and surface-temperature inputs under the same keys, with the same meaning, as the RRTMGP interface (Source/Radiation/RRTMGP/ERF_Radiation.H), so a deck switches between the two models by changing erf.radiation_model alone.
amrex::Real	fixed_solar_zenith_angle = -9999.0
	erf.fixed_solar_zenith_angle: the COSINE of the solar zenith angle (mu0), as RRTMGP takes it, applied to every column when > 0. Otherwise (default) the sun follows the calendar: start_datetime sets the date and time, the position is evaluated at rad_cons_lat/lon or at the per-column latitude and longitude when the grid carries them. More...

amrex::Real	fixed_total_solar_irradiance = -9999.0
	erf.fixed_total_solar_irradiance: top-of-atmosphere irradiance [W/m^2] when >= 0. Otherwise (default) 1360.9 W/m^2 scaled by the Earth-Sun distance factor of the date, as RRTMGP does. More...

amrex::Real	rad_t_sfc = -1.0
	erf.rad_t_sfc: surface temperature [K] used as the longwave boundary condition wherever no land-surface model, surface layer or prognostic surface energy balance supplies one; also the initial value of the prognostic surface temperature. Required, as for RRTMGP. More...

amrex::Real	rad_cons_lat = 39.809860
	erf.rad_cons_lat / erf.rad_cons_lon: site latitude and longitude [degrees] when the grid has no lat/lon fields (RRTMGP defaults). More...

amrex::Real	rad_cons_lon = -98.555183

int	rad_orbital_year = -9999
	erf.rad_orbital_year and the orbital overrides: negative means the year of the timestamp and the Berger (1978) values for that year. More...

amrex::Real	rad_orbital_eccentricity = -9999.0

amrex::Real	rad_orbital_obliquity = -9999.0

amrex::Real	rad_orbital_mvelp = -9999.0

Detailed Description

Container holding radiation-related choices and parameters.

Manages the runtime selection and configuration of radiation solvers.

The two-stream solver builds up from a clear-sky, no-scattering column of uniform optical depth. On top of that it offers height-varying optical depth (a cloud layer) with cloud-fraction masking, which blends clear-sky and cloudy-column fluxes, and a diffuse shortwave component from a two-stream scattering approximation parameterized by single-scattering albedo and asymmetry factor, with independent clear-sky and cloud values. Every addition is off by default, so the defaults reproduce the plain clear-sky column.

Member Function Documentation

◆ clamp_high()

static void RadChoice::clamp_high	(	const char *	key,
		amrex::Real &	value,
		amrex::Real	hi
	)

inlinestatic

   {
     if (value > hi) {
       if (amrex::ParallelDescriptor::IOProcessor()) {
         amrex::Print() << "WARNING: erf.radiation." << key << " = " << value
                        << " is above its maximum " << hi << "; using " << hi << "\n";
       }
       value = hi;
     }
   }

Referenced by init_params().

Here is the caller graph for this function:

◆ clamp_low()

static void RadChoice::clamp_low	(	const char *	key,
		amrex::Real &	value,
		amrex::Real	lo
	)

inlinestatic

Read radiation options from the input parameter database.

Parameters

[in]	two_stream_selected	Whether the two-stream solver is the selected model.
[in]	pp_prefix	ParmParse prefix for the ERF input namespace (e.g., "erf").

Queries:

erf.radiation_model = TwoStream (read by SolverChoice) selects the model
erf.radiation.sw_enabled (bool, optional, default true)
erf.radiation.lw_enabled (bool, optional, default true)
erf.radiation.tau_per_layer (real, optional)
erf.radiation.tau_lw_per_layer (real, optional)
erf.fixed_solar_zenith_angle, erf.fixed_total_solar_irradiance, erf.rad_t_sfc (required), erf.rad_cons_lat, erf.rad_cons_lon, erf.rad_orbital_year, erf.rad_orbital_eccentricity, erf.rad_orbital_obliquity, erf.rad_orbital_mvelp: the RRTMGP interface's keys, with its meanings (see the members above)
erf.radiation.tau_model (string "per_layer"|"mass", optional, default "per_layer")
erf.radiation.sw_kabs_dry, sw_kscat_dry, sw_kabs_vapor, sw_kext_cloud (real, optional, mass model)
erf.radiation.sw_cloud_omega, sw_cloud_g (real, optional, mass model)
erf.radiation.lw_mass_absorption_enable (bool, optional, default false)
erf.radiation.lw_kabs_dry (real, optional, default 1.0e-4 m^2/kg)
erf.radiation.lw_kabs_vapor (real, optional, default 0.1 m^2/kg)
erf.radiation.lw_kabs_cloud (real, optional, default 158.0 m^2/kg)
erf.radiation.surface_albedo_sw_diffuse (real, optional, default -1 = same as direct)
erf.radiation.v (int, optional, debug verbosity)
erf.radiation.diag_file (string, optional)
erf.radiation.tau_profile_type (string "constant"|"cloud_layer", optional)
erf.radiation.cloud_base_height_m (real, optional)
erf.radiation.cloud_top_height_m (real, optional)
erf.radiation.cloud_tau_per_layer (real, optional)
erf.radiation.cloud_fraction (real, optional)
erf.radiation.single_scattering_albedo (real, optional)
erf.radiation.asymmetry_factor (real, optional)
erf.radiation.cloud_single_scattering_albedo (real, optional)
erf.radiation.cloud_asymmetry_factor (real, optional)
erf.radiation.diag_enable (bool, optional, default false)
erf.radiation.diag_stdout_enable (bool, optional, default true)
erf.radiation.diag_tagged_enable (bool, optional, default true)
erf.radiation.diag_regtest_line_enable (bool, optional, default true)
erf.radiation.diag_csv_enable (bool, optional, default true)
erf.radiation.diag_callsite_mode (string, optional, default "both")
erf.radiation.diag_dedup_tol (real, optional, default 1e-12)
erf.radiation.tau_sw_dynamic_enable (bool, optional, default false)
erf.radiation.tau_lw_dynamic_enable (bool, optional, default false)
erf.radiation.tau_sw_coeff_qv (real, optional, default 0.0)
erf.radiation.tau_sw_coeff_qc (real, optional, default 0.0)
erf.radiation.tau_lw_coeff_qv (real, optional, default 0.0)
erf.radiation.tau_lw_coeff_qc (real, optional, default 0.0)
erf.radiation.cloud_fraction_prog_enable (bool, optional, default false)
erf.radiation.cloud_fraction_rh_min (real, optional, default 0.0)
erf.radiation.cloud_fraction_rh_max (real, optional, default 1.0)
erf.radiation.cloud_fraction_qc_scale (real, optional, default 1.0e-3)
erf.radiation.aerosol_enable (bool, optional, default false)
erf.radiation.aerosol_profile_type (string "constant"|"exponential"|"table", optional, default "constant")
erf.radiation.aerosol_tau_per_layer (real, optional, default 0.0)
erf.radiation.aerosol_scale_height_m (real, optional, default 2000.0)
erf.radiation.aerosol_tau_surface (real, optional, default 0.0)
erf.radiation.seb_enable (bool, optional, default false)
erf.radiation.seb_sw_flux_default (real, optional, default 0.0)
erf.radiation.seb_lw_flux_default (real, optional, default 0.0)
erf.radiation.seb_turbulent_flux_source (string "surface_layer"|"defaults", optional, default "surface_layer")
erf.radiation.seb_surface_layer_uses_skin (bool, optional, default false)
erf.radiation.seb_surface_layer_uses_moisture (bool, optional, default false)
erf.radiation.seb_soil_moisture_wilt (real, optional, default 0.066, 0 <= wilt < fc)
erf.radiation.seb_soil_moisture_fc (real, optional, default 0.329, wilt < fc <= 1)
erf.radiation.seb_soil_type (int, optional, default 0 = unset; 1-19, a Noah-MP STAS soil category)
erf.radiation.seb_vegetation_type (int, optional, default 0 = unset; 1-20 except 15-17 (no vegetation), a Noah-MP MODIS land-use category)
erf.radiation.seb_vegetation_fraction (real, optional, default 1, in [0, 1])
erf.radiation.seb_leaf_area_index (real, optional, default from the table at the start date, >= 0)
erf.radiation.seb_hfx_default (real, optional, default 0.0)
erf.radiation.seb_lh_default (real, optional, default 0.0)
erf.radiation.seb_grdflx_default (real, optional, default 0.0)
erf.radiation.seb_q_sfc_default (real, optional, default 0.0)
erf.radiation.seb_t_deep_default (real, optional, default 300.0)
erf.radiation.seb_q_deep_default (real, optional, default 0.0)
erf.radiation.seb_diagnostic_enable (bool, optional, default false)
erf.radiation.seb_prognostic_enable (bool, optional, default false)
erf.radiation.seb_surface_heat_capacity (real, optional, default 2.0e4, > 0, stops at start-up otherwise)
erf.radiation.seb_restore_timescale_s (real, optional, default 86400.0, > 0, stops at start-up otherwise)
erf.radiation.seb_moisture_layer_depth_m (real, optional, default 0.1, > 0, stops at start-up otherwise)
erf.radiation.seb_moisture_restore_timescale_s (real, optional, default 86400.0, > 0, stops at start-up otherwise)
erf.radiation.seb_prognostic_t_min_k (real, optional, default 200.0)
erf.radiation.seb_prognostic_t_max_k (real, optional, default 340.0)
erf.radiation.seb_prognostic_q_min (real, optional, default 0.0, clamped to [0, 1])
erf.radiation.seb_prognostic_q_max (real, optional, default 1.0, clamped to [0, 1])

Sub-option queries are only performed when the two-stream model is selected.

Bring an out-of-range input back into its valid range and say so. Every erf.radiation.* value with a physical range passes through one of these, so a typo in a deck is reported instead of silently corrected.

   {
     if (value < lo) {
       if (amrex::ParallelDescriptor::IOProcessor()) {
         amrex::Print() << "WARNING: erf.radiation." << key << " = " << value
                        << " is below its minimum " << lo << "; using " << lo << "\n";
       }
       value = lo;
     }
   }

Referenced by init_params().

Here is the caller graph for this function:

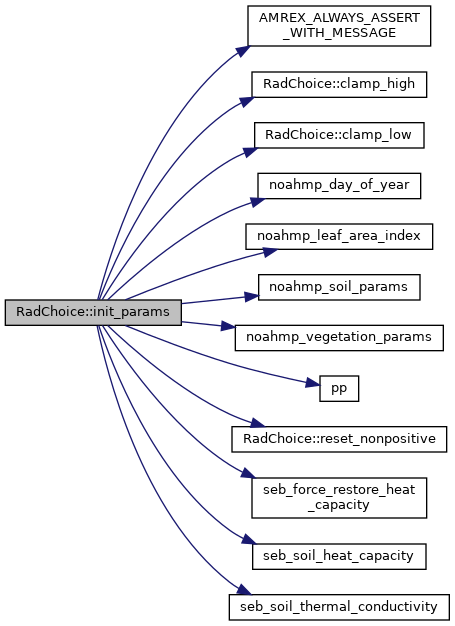

◆ init_params()

void RadChoice::init_params	(	bool	two_stream_selected,
		std::string	pp_prefix
	)

inline

   {
     amrex::ParmParse pp(pp_prefix);
     enabled = two_stream_selected;

     // A refined hierarchy is supported: every level runs its own column sweep
     // and writes its own heating rates. The one requirement is that each
     // level's grids span that level's domain in z, because the sweep imposes
     // top-of-atmosphere and surface boundary conditions at the ends of a box.
     // That is checked where the grids exist, not here: ERF_RefineBox.cpp for
     // an explicit erf.boxN refinement box, and TwoStreamRadiation::define_level
     // for every path including tagged refinement and regrid.

     // Only query sub-options if the two-stream model is selected
     if (enabled) {
       pp.query("radiation.sw_enabled", sw_enabled);
       pp.query("radiation.lw_enabled", lw_enabled);
       pp.query("radiation.tau_per_layer", tau_per_layer);
       pp.query("radiation.tau_lw_per_layer", tau_lw_per_layer);

       // The sun, the site and the surface temperature come from the keys the
       // RRTMGP interface reads, so the two models share one set of inputs.
       // ParmParse ignores a key nobody reads, so a deck still carrying one of
       // the earlier two-stream-only keys would run with silently different
       // settings: stop and name the replacement instead.
       static const char* retired_keys[][2] = {
           {"radiation.solar_zenith",
            "erf.fixed_solar_zenith_angle, which is the cosine of the angle (60 degrees is 0.5)"},
           {"radiation.solar_zenith_deg",
            "erf.fixed_solar_zenith_angle, which is the cosine of the angle (60 degrees is 0.5)"},
           {"radiation.S0", "erf.fixed_total_solar_irradiance"},
           {"radiation.earth_sun_distance_enable",
            "nothing: leave erf.fixed_total_solar_irradiance unset and the irradiance follows the date"},
           {"radiation.surface_temp_k", "erf.rad_t_sfc"},
           {"radiation.solar_geometry_dynamic_enable",
            "nothing: leave erf.fixed_solar_zenith_angle unset and the sun follows start_datetime"},
           {"radiation.latitude_deg", "erf.rad_cons_lat"},
           {"radiation.longitude_deg", "erf.rad_cons_lon"},
           {"radiation.day_of_year", "start_datetime"},
           {"radiation.time_zone_offset_hours",
            "nothing: start_datetime is UTC and the longitude sets the local solar time"},
       };
       for (const auto& entry : retired_keys) {
           if (pp.contains(entry[0])) {
               amrex::Abort(std::string("erf.") + entry[0] + " is no longer read by the "
                            "two-stream model; use " + entry[1] + ".");
           }
       }
       pp.query("fixed_solar_zenith_angle", fixed_solar_zenith_angle);
       if (fixed_solar_zenith_angle > 1.0) {
           amrex::Abort("erf.fixed_solar_zenith_angle = " + std::to_string(fixed_solar_zenith_angle) +
                        " is the cosine of the solar zenith angle (as for RRTMGP) and cannot "
                        "exceed 1; 60 degrees is 0.5.");
       }
       pp.query("fixed_total_solar_irradiance", fixed_total_solar_irradiance);
       if (!pp.query("rad_t_sfc", rad_t_sfc)) {
           amrex::Abort("erf.radiation_model = TwoStream needs erf.rad_t_sfc, the surface "
                        "temperature [K] used where no land-surface model or surface layer "
                        "supplies one (the same input RRTMGP requires).");
       }
       if (!std::isfinite(rad_t_sfc) || rad_t_sfc <= 0.0) {
           amrex::Abort("erf.rad_t_sfc = " + std::to_string(rad_t_sfc) + " must be a positive temperature [K].");
       }
       pp.query("rad_cons_lat", rad_cons_lat);
       pp.query("rad_cons_lon", rad_cons_lon);
       if (!std::isfinite(rad_cons_lat) || rad_cons_lat < -90.0 || rad_cons_lat > 90.0) {
           amrex::Abort("erf.rad_cons_lat = " + std::to_string(rad_cons_lat) + " must lie in [-90, 90] degrees.");
       }
       if (!std::isfinite(rad_cons_lon) || rad_cons_lon < -180.0 || rad_cons_lon > 180.0) {
           amrex::Abort("erf.rad_cons_lon = " + std::to_string(rad_cons_lon) + " must lie in [-180, 180] degrees.");
       }
       pp.query("rad_orbital_year", rad_orbital_year);
       pp.query("rad_orbital_eccentricity", rad_orbital_eccentricity);
       pp.query("rad_orbital_obliquity", rad_orbital_obliquity);
       pp.query("rad_orbital_mvelp", rad_orbital_mvelp);
       if (pp.contains("rad_freq_in_steps") && amrex::ParallelDescriptor::IOProcessor()) {
           amrex::Print() << "WARNING: erf.rad_freq_in_steps is not read by the two-stream model, "
                             "which runs every step.\n";
       }
       std::string tau_model_str = "per_layer";
       pp.query("radiation.tau_model", tau_model_str);
       if (tau_model_str == "per_layer") {
         tau_model = TauModel::PerLayer;
       } else if (tau_model_str == "mass") {
         tau_model = TauModel::Mass;
       } else {
         // The two models give very different column optical depths, so say so
         // rather than let a misspelling quietly pick the default.
         tau_model = TauModel::PerLayer;
       if (amrex::ParallelDescriptor::IOProcessor()) {
         amrex::Print() << "WARNING: unknown erf.radiation.tau_model '"
                          << tau_model_str << "'; valid values are per_layer "
                             "and mass. Using per_layer.\n";
         }
       }
       pp.query("radiation.sw_kabs_dry", sw_kabs_dry);
       pp.query("radiation.sw_kscat_dry", sw_kscat_dry);
       pp.query("radiation.sw_kabs_vapor", sw_kabs_vapor);
       pp.query("radiation.sw_kext_cloud", sw_kext_cloud);
       pp.query("radiation.sw_cloud_omega", sw_cloud_omega);
       pp.query("radiation.sw_cloud_g", sw_cloud_g);
       clamp_low("sw_kabs_dry", sw_kabs_dry, 0.0);
       clamp_low("sw_kscat_dry", sw_kscat_dry, 0.0);
       clamp_low("sw_kabs_vapor", sw_kabs_vapor, 0.0);
       clamp_low("sw_kext_cloud", sw_kext_cloud, 0.0);
       clamp_low("sw_cloud_omega", sw_cloud_omega, 0.0);
       clamp_high("sw_cloud_omega", sw_cloud_omega, 1.0);
       clamp_low("sw_cloud_g", sw_cloud_g, -1.0);
       clamp_high("sw_cloud_g", sw_cloud_g, 1.0);
       pp.query("radiation.lw_mass_absorption_enable", lw_mass_absorption_enable);
       pp.query("radiation.lw_kabs_dry", lw_kabs_dry);
       pp.query("radiation.lw_kabs_vapor", lw_kabs_vapor);
       pp.query("radiation.lw_kabs_cloud", lw_kabs_cloud);
       clamp_low("lw_kabs_dry", lw_kabs_dry, 0.0);
       clamp_low("lw_kabs_vapor", lw_kabs_vapor, 0.0);
       clamp_low("lw_kabs_cloud", lw_kabs_cloud, 0.0);
       pp.query("radiation.v", verbosity);
       pp.query("radiation.diag_file", diag_file);

       // Cloud optical properties (all optional; the defaults leave the
       // column clear-sky)
       std::string tau_profile_type_str = "constant";
       pp.query("radiation.tau_profile_type", tau_profile_type_str);
       if (tau_profile_type_str == "constant") {
         tau_profile_type = TauProfileType::Constant;
       } else if (tau_profile_type_str == "cloud_layer") {
         tau_profile_type = TauProfileType::CloudLayer;
       } else {
         // Falling back to constant drops a requested cloud layer, so say so.
         tau_profile_type = TauProfileType::Constant;
       if (amrex::ParallelDescriptor::IOProcessor()) {
         amrex::Print() << "WARNING: unknown erf.radiation.tau_profile_type '"
                          << tau_profile_type_str << "'; valid values are "
                             "constant and cloud_layer. Using constant, so no "
                             "cloud layer is applied.\n";
         }
       }
       pp.query("radiation.cloud_base_height_m", cloud_base_height_m);
       pp.query("radiation.cloud_top_height_m", cloud_top_height_m);
       pp.query("radiation.cloud_tau_per_layer", cloud_tau_per_layer);
       pp.query("radiation.cloud_fraction", cloud_fraction);

       // Parameter validation (R5/R5'): clip cloud_fraction to [0, 1]
       clamp_low("cloud_fraction", cloud_fraction, 0.0);
       clamp_high("cloud_fraction", cloud_fraction, 1.0);
       clamp_low("cloud_tau_per_layer", cloud_tau_per_layer, 0.0);
       if (cloud_top_height_m < cloud_base_height_m) {
         cloud_top_height_m = cloud_base_height_m;
       }

       // Scattering parameters (all optional; the defaults leave the
       // shortwave direct-beam only)
       pp.query("radiation.single_scattering_albedo", single_scattering_albedo);
       pp.query("radiation.asymmetry_factor", asymmetry_factor);
       pp.query("radiation.cloud_single_scattering_albedo", cloud_single_scattering_albedo);
       pp.query("radiation.cloud_asymmetry_factor", cloud_asymmetry_factor);

       // Parameter validation (R5/R5'): clip albedos to [0, 1] and
       // asymmetry factors to [-1, 1]
       clamp_low("single_scattering_albedo", single_scattering_albedo, 0.0);
       clamp_high("single_scattering_albedo", single_scattering_albedo, 1.0);
       clamp_low("asymmetry_factor", asymmetry_factor, -1.0);
       clamp_high("asymmetry_factor", asymmetry_factor, 1.0);
       clamp_low("cloud_single_scattering_albedo", cloud_single_scattering_albedo, 0.0);
       clamp_high("cloud_single_scattering_albedo", cloud_single_scattering_albedo, 1.0);
       clamp_low("cloud_asymmetry_factor", cloud_asymmetry_factor, -1.0);
       clamp_high("cloud_asymmetry_factor", cloud_asymmetry_factor, 1.0);

       // Runtime diagnostics controls (all optional; every channel is on
       // by default)
       pp.query("radiation.diag_enable", diag_enable);
       pp.query("radiation.diag_stdout_enable", diag_stdout_enable);
       pp.query("radiation.diag_tagged_enable", diag_tagged_enable);
       pp.query("radiation.diag_regtest_line_enable", diag_regtest_line_enable);
       pp.query("radiation.diag_csv_enable", diag_csv_enable);
       pp.query("radiation.diag_callsite_mode", diag_callsite_mode);
       pp.query("radiation.diag_dedup_tol", diag_dedup_tol);

       // Validate the call-site mode
       if (diag_callsite_mode != "both" &&
           diag_callsite_mode != "pre_only" &&
           diag_callsite_mode != "post_only") {
       if (amrex::ParallelDescriptor::IOProcessor()) {
         amrex::Print() << "WARNING: unknown erf.radiation.diag_callsite_mode '"
                          << diag_callsite_mode << "'; valid values are both, "
                             "pre_only and post_only. Using both.\n";
         }
         diag_callsite_mode = "both";
       }
       // Ensure dedup tolerance is non-negative
       clamp_low("diag_dedup_tol", diag_dedup_tol, 0.0);

       // Surface heterogeneity fallback parameters (all optional; only used
       // when hetero
       // LSM/radiation interface fields are absent or invalid)
       pp.query("radiation.surface_albedo_sw", surface_albedo_sw);
       pp.query("radiation.surface_emissivity_lw", surface_emissivity_lw);
       pp.query("radiation.surface_albedo_sw_diffuse", surface_albedo_sw_diffuse);
       clamp_high("surface_albedo_sw_diffuse", surface_albedo_sw_diffuse, 1.0);

       // Clamp albedo/emissivity to [0, 1]
       clamp_low("surface_albedo_sw", surface_albedo_sw, 0.0);
       clamp_high("surface_albedo_sw", surface_albedo_sw, 1.0);
       clamp_low("surface_emissivity_lw", surface_emissivity_lw, 0.0);
       clamp_high("surface_emissivity_lw", surface_emissivity_lw, 1.0);

       // Dynamic optical depth diagnosis from moisture/clouds
       // (all optional; disabled by default)
       pp.query("radiation.tau_sw_dynamic_enable", tau_sw_dynamic_enable);
       pp.query("radiation.tau_lw_dynamic_enable", tau_lw_dynamic_enable);
       pp.query("radiation.tau_sw_coeff_qv", tau_sw_coeff_qv);
       pp.query("radiation.tau_sw_coeff_qc", tau_sw_coeff_qc);
       pp.query("radiation.tau_lw_coeff_qv", tau_lw_coeff_qv);
       pp.query("radiation.tau_lw_coeff_qc", tau_lw_coeff_qc);

       // Clamp the dynamic tau coefficients
       // to nonnegative (negative would give unphysical behavior)
       clamp_low("tau_sw_coeff_qv", tau_sw_coeff_qv, 0.0);
       clamp_low("tau_sw_coeff_qc", tau_sw_coeff_qc, 0.0);
       clamp_low("tau_lw_coeff_qv", tau_lw_coeff_qv, 0.0);
       clamp_low("tau_lw_coeff_qc", tau_lw_coeff_qc, 0.0);

       // Prognostic cloud fraction diagnosis from RH/qc
       // (all optional; disabled by default)
       pp.query("radiation.cloud_fraction_prog_enable", cloud_fraction_prog_enable);
       pp.query("radiation.cloud_fraction_rh_min", cloud_fraction_rh_min);
       pp.query("radiation.cloud_fraction_rh_max", cloud_fraction_rh_max);
       pp.query("radiation.cloud_fraction_qc_scale", cloud_fraction_qc_scale);

       // Clamp the cloud fraction parameters
       // to physically reasonable ranges
       clamp_low("cloud_fraction_rh_min", cloud_fraction_rh_min, 0.0);
       clamp_high("cloud_fraction_rh_min", cloud_fraction_rh_min, 1.0);
       clamp_low("cloud_fraction_rh_max", cloud_fraction_rh_max, 0.0);
       clamp_high("cloud_fraction_rh_max", cloud_fraction_rh_max, 1.0);
       if (cloud_fraction_rh_max < cloud_fraction_rh_min) {
         cloud_fraction_rh_max = cloud_fraction_rh_min;
       }
       clamp_low("cloud_fraction_qc_scale", cloud_fraction_qc_scale, 0.0);

       // Prescribed bulk aerosol/turbidity optical depth
       // (all optional; disabled by default)
       pp.query("radiation.aerosol_enable", aerosol_enable);

       // Parse aerosol profile type as string
       std::string aerosol_profile_type_str = "constant";
       pp.query("radiation.aerosol_profile_type", aerosol_profile_type_str);
       if (aerosol_profile_type_str == "constant") {
         aerosol_profile_type = AerosolProfileType::Constant;
       } else if (aerosol_profile_type_str == "exponential") {
         aerosol_profile_type = AerosolProfileType::Exponential;
       } else if (aerosol_profile_type_str == "table") {
         // The table lookup is not implemented and contributes no optical
         // depth. Keep the selection so the run is not silently given a
         // different profile, and say what it means.
         aerosol_profile_type = AerosolProfileType::Table;
       if (amrex::ParallelDescriptor::IOProcessor()) {
         amrex::Print() << "WARNING: erf.radiation.aerosol_profile_type = table is "
                             "not implemented and contributes no aerosol optical "
                             "depth. Use constant or exponential.\n";
         }
       } else {
         // Falling through to constant would hide a misspelling.
         aerosol_profile_type = AerosolProfileType::Constant;
       if (amrex::ParallelDescriptor::IOProcessor()) {
         amrex::Print() << "WARNING: unknown erf.radiation.aerosol_profile_type '"
                          << aerosol_profile_type_str << "'; valid values are "
                             "constant and exponential. Using constant.\n";
         }
       }

       pp.query("radiation.aerosol_tau_per_layer", aerosol_tau_per_layer);
       pp.query("radiation.aerosol_scale_height_m", aerosol_scale_height_m);
       pp.query("radiation.aerosol_tau_surface", aerosol_tau_surface);

       // Clamp the aerosol parameters
       // to physically reasonable ranges
       clamp_low("aerosol_tau_per_layer", aerosol_tau_per_layer, 0.0);
       clamp_low("aerosol_tau_surface", aerosol_tau_surface, 0.0);
       reset_nonpositive("aerosol_scale_height_m", aerosol_scale_height_m, 2000.0);

       // Simplified SEB infrastructure fallback parameters
       pp.query("radiation.seb_enable", seb_enable);
       pp.query("radiation.seb_use_radiation_fluxes", seb_use_radiation_fluxes);
       pp.query("radiation.seb_sw_flux_default", seb_sw_flux_default);
       pp.query("radiation.seb_lw_flux_default", seb_lw_flux_default);
       // Through the AMREX_ENUM, case-insensitive and ignoring underscores, so
       // surface_layer, SurfaceLayer and surfacelayer all select SurfaceLayer. The
       // parser throws on any other value; turn that into an abort naming the input.
       try {
           pp.query_enum_sloppy("radiation.seb_turbulent_flux_source",
                                seb_turbulent_flux_source, "_");
       } catch (...) {
           std::string value;
           pp.query("radiation.seb_turbulent_flux_source", value);
           amrex::Abort("erf.radiation.seb_turbulent_flux_source must be surface_layer "
                        "or defaults, not '" + value + "'");
       }
       pp.query("radiation.seb_surface_layer_uses_skin", seb_surface_layer_uses_skin);
       pp.query("radiation.seb_surface_layer_uses_moisture", seb_surface_layer_uses_moisture);
       pp.query("radiation.seb_soil_moisture_wilt", seb_soil_moisture_wilt);
       pp.query("radiation.seb_soil_moisture_fc", seb_soil_moisture_fc);
       pp.query("radiation.seb_soil_type", seb_soil_type);
       if (seb_soil_type != 0) {
           if (pp.contains("radiation.seb_soil_moisture_wilt") ||
               pp.contains("radiation.seb_soil_moisture_fc")) {
               amrex::Abort("erf.radiation.seb_soil_type sets the wilting point and field "
                            "capacity from Noah-MP's soil table; do not also give "
                            "seb_soil_moisture_wilt or seb_soil_moisture_fc");
           }
           const NoahMPSoilParams* soil = noahmp_soil_params(seb_soil_type);
           if (soil == nullptr || !(soil->smc_ref > soil->smc_wilt)) {
               amrex::Abort("erf.radiation.seb_soil_type = " + std::to_string(seb_soil_type) +
                            " is not a Noah-MP soil category with a field capacity above its "
                            "wilting point (1-19, not 14, water; see ERF_NoahMPSoilTable.H)");
           }
           seb_soil_moisture_wilt = soil->smc_wilt;
           seb_soil_moisture_fc = soil->smc_ref;
       }
       pp.query("radiation.seb_vegetation_type", seb_vegetation_type);
       pp.query("radiation.seb_vegetation_fraction", seb_vegetation_fraction);
       pp.query("radiation.seb_leaf_area_index", seb_leaf_area_index);
       if (seb_vegetation_type != 0) {
           const NoahMPVegetationParams* veg = noahmp_vegetation_params(seb_vegetation_type);
           if (veg == nullptr) {
               amrex::Abort("erf.radiation.seb_vegetation_type = " + std::to_string(seb_vegetation_type) +
                            " is not a Noah-MP MODIS land-use category (1-20; see "
                            "ERF_NoahMPVegetationTable.H)");
           }
           // Snow and ice (15), barren (16) and water (17) have no vegetation in the table
           // (Z0MVT = 0, LAI 0 all year): Noah-MP treats such a surface as bare ground.
           if (!(veg->z0 > 0.0)) {
               amrex::Abort("erf.radiation.seb_vegetation_type = " + std::to_string(seb_vegetation_type) +
                            " has no vegetation in Noah-MP's table (Z0MVT = 0, LAI 0 all year). "
                            "For bare land leave seb_vegetation_type at 0: the soil's resistance "
                            "and roughness (Z0SOIL) then apply.");
           }
           if (!seb_surface_layer_uses_moisture || seb_soil_type == 0) {
               amrex::Abort("erf.radiation.seb_vegetation_type needs "
                            "erf.radiation.seb_surface_layer_uses_moisture = true and "
                            "erf.radiation.seb_soil_type (the bare-soil resistance uses the "
                            "soil's porosity and Clapp-Hornberger b)");
           }
           if (!(std::isfinite(seb_vegetation_fraction) && seb_vegetation_fraction >= 0.0 &&
                 seb_vegetation_fraction <= 1.0)) {
               amrex::Abort("erf.radiation.seb_vegetation_fraction must be in [0, 1]; got " +
                            std::to_string(seb_vegetation_fraction));
           }
           if (pp.contains("radiation.seb_leaf_area_index")) {
               if (!(std::isfinite(seb_leaf_area_index) && seb_leaf_area_index >= 0.0)) {
                   amrex::Abort("erf.radiation.seb_leaf_area_index must be >= 0; got " +
                                std::to_string(seb_leaf_area_index));
               }
           } else {
               // The table's monthly LAI at the start date and time, as Noah-MP interpolates it
               // (its day of the year counts from 0 at 00:00 on 1 January).
               std::string start;
               amrex::ParmParse pp_top;
               amrex::Real day = 0.0, days_in_year = 0.0;
               if (!pp_top.query("start_datetime", start) ||
                   !noahmp_day_of_year(start, day, days_in_year)) {
                   amrex::Abort("erf.radiation.seb_vegetation_type: give "
                                "erf.radiation.seb_leaf_area_index, or a valid start_datetime "
                                "(YYYY-MM-DD HH:MM:SS) so that it can be taken from the table");
               }
               seb_leaf_area_index = noahmp_leaf_area_index(*veg, day, days_in_year,
                                                            rad_cons_lat < 0.0);
               if (amrex::ParallelDescriptor::IOProcessor()) {
                   amrex::Print() << "NOTE: erf.radiation.seb_leaf_area_index = "
                                  << seb_leaf_area_index << ", Noah-MP's table value for land-use "
                                     "category " << seb_vegetation_type << " at " << start
                                  << ", fixed for the run.\n";
               }
           }
       }
       pp.query("radiation.seb_hfx_default", seb_hfx_default);
       pp.query("radiation.seb_lh_default", seb_lh_default);
       pp.query("radiation.seb_grdflx_default", seb_grdflx_default);
       pp.query("radiation.seb_q_sfc_default", seb_q_sfc_default);
       pp.query("radiation.seb_t_deep_default", seb_t_deep_default);
       pp.query("radiation.seb_q_deep_default", seb_q_deep_default);

       // SEB diagnostic mode
       pp.query("radiation.seb_diagnostic_enable", seb_diagnostic_enable);

       // Auto-enable seb_enable if seb_diagnostic_enable is requested but seb_enable is false
       if (seb_diagnostic_enable && !seb_enable) {
           seb_enable = true;  // Internal auto-enable for safety/simplicity
       }

       // SEB prognostic mode parameters
       pp.query("radiation.seb_prognostic_enable", seb_prognostic_enable);
       pp.query("radiation.seb_surface_heat_capacity", seb_surface_heat_capacity);
       pp.query("radiation.seb_restore_timescale_s", seb_restore_timescale_s);
       pp.query("radiation.seb_moisture_layer_depth_m", seb_moisture_layer_depth_m);
       pp.query("radiation.seb_moisture_restore_timescale_s", seb_moisture_restore_timescale_s);
       pp.query("radiation.seb_prognostic_t_min_k", seb_prognostic_t_min_k);
       pp.query("radiation.seb_prognostic_t_max_k", seb_prognostic_t_max_k);
       pp.query("radiation.seb_prognostic_q_min", seb_prognostic_q_min);
       pp.query("radiation.seb_prognostic_q_max", seb_prognostic_q_max);

       // The prognostic update needs the SEB fields and the residual, so
       // requesting it turns on the infrastructure it depends on. Report that,
       // since it changes settings the user did not set.
       if (seb_prognostic_enable && (!seb_enable || !seb_diagnostic_enable)) {
           if (amrex::ParallelDescriptor::IOProcessor()) {
               amrex::Print() << "NOTE: erf.radiation.seb_prognostic_enable = true "
                                 "also enables seb_enable and "
                                 "seb_diagnostic_enable, which it depends on.\n";
           }
           seb_enable = true;
           seb_diagnostic_enable = true;
       }

       if (!std::isfinite(seb_sw_flux_default)) seb_sw_flux_default = 0.0;
       if (!std::isfinite(seb_lw_flux_default)) seb_lw_flux_default = 0.0;
       if (!std::isfinite(seb_hfx_default)) seb_hfx_default = 0.0;
       if (!std::isfinite(seb_lh_default)) seb_lh_default = 0.0;
       if (!std::isfinite(seb_grdflx_default)) seb_grdflx_default = 0.0;
       if (!std::isfinite(seb_q_sfc_default)) seb_q_sfc_default = 0.0;
       reset_nonpositive("seb_t_deep_default", seb_t_deep_default, 300.0);
       if (!std::isfinite(seb_q_deep_default)) seb_q_deep_default = 0.0;

       seb_sw_flux_default = amrex::max(amrex::Real(-2000.0), amrex::min(amrex::Real(2000.0), seb_sw_flux_default));
       seb_lw_flux_default = amrex::max(amrex::Real(-2000.0), amrex::min(amrex::Real(2000.0), seb_lw_flux_default));
       seb_hfx_default = amrex::max(amrex::Real(-2000.0), amrex::min(amrex::Real(2000.0), seb_hfx_default));
       seb_lh_default = amrex::max(amrex::Real(-2000.0), amrex::min(amrex::Real(2000.0), seb_lh_default));
       seb_grdflx_default = amrex::max(amrex::Real(-2000.0), amrex::min(amrex::Real(2000.0), seb_grdflx_default));
       seb_q_sfc_default = amrex::max(amrex::Real(0.0), amrex::min(amrex::Real(1.0), seb_q_sfc_default));
       seb_q_deep_default = amrex::max(amrex::Real(0.0), amrex::min(amrex::Real(1.0), seb_q_deep_default));

       // Two-way coupling needs a skin that evolves, and a balance that removes the
       // flux the surface layer computes from it.
       if (seb_surface_layer_uses_skin) {
           if (!seb_prognostic_enable) {
               amrex::Abort("erf.radiation.seb_surface_layer_uses_skin = true needs "
                            "erf.radiation.seb_prognostic_enable = true: without it the "
                            "skin temperature does not evolve");
           }
           if (seb_turbulent_flux_source != SEBTurbulentFluxSource::SurfaceLayer) {
               amrex::Abort("erf.radiation.seb_surface_layer_uses_skin = true needs "
                            "erf.radiation.seb_turbulent_flux_source = surface_layer: the "
                            "balance must remove the heat flux the surface layer computes "
                            "from the skin");
           }
       }

       // Moisture coupling: the surface mixing ratio is q_sat at the skin temperature, so
       // it needs the skin coupling; and beta needs a wilting point below field capacity.
       // The wilting point and field capacity: checked whenever they are given or used.
       if (seb_surface_layer_uses_moisture || pp.contains("radiation.seb_soil_moisture_wilt") ||
           pp.contains("radiation.seb_soil_moisture_fc")) {
           if (!(std::isfinite(seb_soil_moisture_wilt) && std::isfinite(seb_soil_moisture_fc) &&
                 seb_soil_moisture_wilt >= 0.0 && seb_soil_moisture_wilt < seb_soil_moisture_fc &&
                 seb_soil_moisture_fc <= 1.0)) {
               amrex::Abort("erf.radiation.seb_soil_moisture_wilt and seb_soil_moisture_fc must "
                            "satisfy 0 <= wilt < fc <= 1 (volumetric water contents); got wilt = " +
                            std::to_string(seb_soil_moisture_wilt) + ", fc = " +
                            std::to_string(seb_soil_moisture_fc));
           }
       }
       // Inputs that only the moisture coupling or a vegetation type use: say so rather than
       // ignore them.
       if (!seb_surface_layer_uses_moisture &&
           (pp.contains("radiation.seb_soil_moisture_wilt") ||
            pp.contains("radiation.seb_soil_moisture_fc"))) {
           amrex::Abort("erf.radiation.seb_soil_moisture_wilt and seb_soil_moisture_fc are used "
                        "only with erf.radiation.seb_surface_layer_uses_moisture = true");
       }
       if (seb_vegetation_type == 0 &&
           (pp.contains("radiation.seb_vegetation_fraction") ||
            pp.contains("radiation.seb_leaf_area_index"))) {
           amrex::Abort("erf.radiation.seb_vegetation_fraction and seb_leaf_area_index are used "
                        "only with erf.radiation.seb_vegetation_type");
       }

       if (seb_surface_layer_uses_moisture) {
           if (!seb_surface_layer_uses_skin) {
               amrex::Abort("erf.radiation.seb_surface_layer_uses_moisture = true needs "
                            "erf.radiation.seb_surface_layer_uses_skin = true: the surface "
                            "mixing ratio is the saturation value at the balance's skin "
                            "temperature");
           }
           if (seb_q_sfc_default <= seb_soil_moisture_wilt &&
               amrex::ParallelDescriptor::IOProcessor()) {
               amrex::Print() << "NOTE: erf.radiation.seb_surface_layer_uses_moisture: the soil "
                                 "starts at or below the wilting point (seb_q_sfc_default = "
                              << seb_q_sfc_default << ", seb_soil_moisture_wilt = "
                              << seb_soil_moisture_wilt << "), so its soil-water factor is zero: "
                              << (seb_soil_type != 0
                                  ? "no transpiration, and the bare soil's pore air is nearly "
                                    "dry (Noah-MP's relative humidity exp(psi g / (R_v T))), so it "
                                    "hardly evaporates and may take up vapour."
                                  : "no evaporation at all.")
                              << " Set seb_q_sfc_default (and seb_q_deep_default, which q_s "
                                 "restores to) to the soil's water content if that is not meant.\n";
           }
           // q_s restores toward q_deep, which defaults to 0: a forgotten q_deep dries the soil
           // over seb_moisture_restore_timescale_s.
           if (seb_q_deep_default < seb_soil_moisture_wilt &&
               amrex::ParallelDescriptor::IOProcessor()) {
               amrex::Print() << "NOTE: erf.radiation.seb_surface_layer_uses_moisture: "
                                 "seb_q_deep_default = " << seb_q_deep_default
                              << " is below the wilting point (" << seb_soil_moisture_wilt
                              << "), and q_s restores toward it over seb_moisture_restore_timescale_s"
                                 " (" << seb_moisture_restore_timescale_s << " s), drying the soil."
                                 " Set seb_q_deep_default to the deep soil's water content if that "
                                 "is not meant.\n";
           }
       }

       // The restoring term -(2 pi / tau)(T_s - T_deep) of the force-restore update
       // is the ground heat flux, so a ground flux in the balance as well removes
       // that heat twice.
       if (seb_prognostic_enable && seb_grdflx_default != 0.0 &&
           amrex::ParallelDescriptor::IOProcessor()) {
           amrex::Print() << "WARNING: erf.radiation.seb_grdflx_default = " << seb_grdflx_default
                          << " with seb_prognostic_enable: the force-restore term already "
                             "carries the ground heat flux, so this counts it twice.\n";
       }


       // Validate the prognostic parameters: each must be positive and finite when given
       // (the defaults are), so a typo stops here rather than running on another value.
       auto require_positive = [] (const char* name, amrex::Real value) {
           if (!(std::isfinite(value) && value > 0.0)) {
               amrex::Abort(std::string("erf.radiation.") + name + " must be > 0; got " +
                            std::to_string(value));
           }
       };
       require_positive("seb_surface_heat_capacity", seb_surface_heat_capacity);
       require_positive("seb_restore_timescale_s", seb_restore_timescale_s);
       require_positive("seb_moisture_layer_depth_m", seb_moisture_layer_depth_m);
       require_positive("seb_moisture_restore_timescale_s", seb_moisture_restore_timescale_s);

       // With a Noah-MP soil, the surface heat capacity of that soil at its initial water
       // content: the layer the restore period's temperature wave reaches.
       // The coupled surface layer's land roughness, from the same tables.
       if (seb_surface_layer_uses_skin && seb_soil_type != 0) {
           const NoahMPVegetationParams* veg = (seb_vegetation_type != 0)
                                             ? noahmp_vegetation_params(seb_vegetation_type) : nullptr;
           const amrex::Real f_veg = veg ? seb_vegetation_fraction : amrex::Real(0.0);
           seb_land_roughness = f_veg * (veg ? veg->z0 : amrex::Real(0.0)) +
                                (amrex::Real(1.0) - f_veg) * noahmp_soil_roughness;
           // At least min(Z0MVT, Z0SOIL) > 0: the categories with Z0MVT = 0 stop above.
           AMREX_ALWAYS_ASSERT_WITH_MESSAGE(seb_land_roughness > 0.0,
               "erf.radiation.seb_*: the land roughness from Noah-MP's tables is not positive");
       }

       // A value given explicitly stands.
       if (seb_prognostic_enable && seb_soil_type != 0) {
           const NoahMPSoilParams* soil = noahmp_soil_params(seb_soil_type);
           const amrex::Real theta = amrex::min(seb_q_sfc_default, soil->smc_max);
           const amrex::Real c = seb_soil_heat_capacity(theta, soil->smc_max, noahmp_soil_heat_capacity);
           const amrex::Real lambda = seb_soil_thermal_conductivity(theta, soil->smc_max, soil->quartz);
           const amrex::Real derived = seb_force_restore_heat_capacity(lambda, c, seb_restore_timescale_s);
           const bool given = pp.contains("radiation.seb_surface_heat_capacity");
           if (!given) { seb_surface_heat_capacity = derived; }
           if (amrex::ParallelDescriptor::IOProcessor()) {
               amrex::Print() << "NOTE: erf.radiation.seb_surface_heat_capacity = "
                              << seb_surface_heat_capacity << " J/m^2/K"
                              << (given ? " as given; Noah-MP soil category " :
                                          ", from Noah-MP soil category ")
                              << seb_soil_type << " at a water content of " << theta
                              << " (heat capacity " << c << " J/m^3/K, conductivity " << lambda
                              << " W/m/K) over " << seb_restore_timescale_s << " s"
                              << (given ? " gives " + std::to_string(derived) : std::string())
                              << ".\n";
           }
       }

       // Clamp temperature bounds
       if (!std::isfinite(seb_prognostic_t_min_k)) seb_prognostic_t_min_k = 200.0;
       if (!std::isfinite(seb_prognostic_t_max_k)) seb_prognostic_t_max_k = 340.0;
       if (seb_prognostic_t_min_k > seb_prognostic_t_max_k) {
           amrex::Real tmp = seb_prognostic_t_min_k;
           seb_prognostic_t_min_k = seb_prognostic_t_max_k;
           seb_prognostic_t_max_k = tmp;
       }

       // Clamp moisture bounds
       if (!std::isfinite(seb_prognostic_q_min)) seb_prognostic_q_min = 0.0;
       if (!std::isfinite(seb_prognostic_q_max)) seb_prognostic_q_max = 1.0;
       seb_prognostic_q_min = amrex::max(amrex::Real(0.0), amrex::min(amrex::Real(1.0), seb_prognostic_q_min));
       seb_prognostic_q_max = amrex::max(amrex::Real(0.0), amrex::min(amrex::Real(1.0), seb_prognostic_q_max));
       if (seb_prognostic_q_min > seb_prognostic_q_max) {
           amrex::Real tmp = seb_prognostic_q_min;
           seb_prognostic_q_min = seb_prognostic_q_max;
           seb_prognostic_q_max = tmp;
       }

   }

 }

Referenced by SolverChoice::init_params().

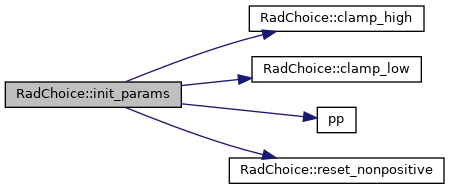

Here is the call graph for this function:

Here is the caller graph for this function:

◆ reset_nonpositive()

static void RadChoice::reset_nonpositive	(	const char *	key,
		amrex::Real &	value,
		amrex::Real	fallback
	)

inlinestatic

   {
     if (!std::isfinite(value) || value <= 0.0) {
       if (amrex::ParallelDescriptor::IOProcessor()) {
         amrex::Print() << "WARNING: erf.radiation." << key << " = " << value
                        << " must be positive; using " << fallback << "\n";
       }
       value = fallback;
     }
   }

Referenced by init_params().

Here is the caller graph for this function:

◆ uses_two_stream_radiation()

bool RadChoice::uses_two_stream_radiation ( ) const

inlinenoexcept

Check if two-stream radiation is active.

Returns: true when erf.radiation_model = TwoStream.

   {
     return enabled;
   }

Member Data Documentation

◆ aerosol_enable

bool RadChoice::aerosol_enable = false

Enable prescribed bulk aerosol/turbidity optical depth. When true, aerosol optical depth is added on top of existing tau_base + cloud + dynamic-moisture contributions. When false (default), there is no aerosol contribution. Only used by the two-stream model and sw_enabled == true.

Referenced by init_params().

◆ aerosol_profile_type

AerosolProfileType RadChoice::aerosol_profile_type = AerosolProfileType::Constant

Aerosol optical depth profile type: Constant, Exponential, or Table.

Constant: uniform aerosol tau per layer (aerosol_tau_per_layer).
Exponential: tau decays with height via tau_aerosol(k) = aerosol_tau_surface * exp(-z(k) / aerosol_scale_height_m).
Table: per-level tau prescribed via lookup (future extension, currently not supported). Default Constant. Only used when aerosol_enable == true.

Referenced by init_params().

◆ aerosol_scale_height_m

amrex::Real RadChoice::aerosol_scale_height_m = 2000.0

Scale height for exponential aerosol profile [m]. Controls decay rate: tau_aerosol(k) = aerosol_tau_surface * exp(-z(k) / scale_height). Default 2000.0 m (typical scale height for tropospheric aerosols). Only used when aerosol_enable == true and aerosol_profile_type == Exponential.

Referenced by init_params().

◆ aerosol_tau_per_layer

amrex::Real RadChoice::aerosol_tau_per_layer = 0.0

Constant aerosol optical depth per layer [dimensionless]. Used for AerosolProfileType::Constant profile. Default 0.0 (no aerosol contribution). Only used when aerosol_enable == true and aerosol_profile_type == Constant.

Referenced by init_params().

◆ aerosol_tau_surface

amrex::Real RadChoice::aerosol_tau_surface = 0.0

Total-column aerosol optical depth at surface [dimensionless]. Used for AerosolProfileType::Exponential profile as the surface boundary condition. Default 0.0 (no aerosol contribution). Only used when aerosol_enable == true and aerosol_profile_type == Exponential.

Referenced by init_params().

◆ asymmetry_factor

amrex::Real RadChoice::asymmetry_factor = 0.0

Clear-sky (background gas) scattering asymmetry factor in [-1, 1] (0 = isotropic scattering, close to 1 = strongly forward-scattering). Only meaningful when single_scattering_albedo

0. Default 0.0.

Referenced by init_params().

◆ cloud_asymmetry_factor

amrex::Real RadChoice::cloud_asymmetry_factor = 0.0

Cloud scattering asymmetry factor in [-1, 1], used instead of asymmetry_factor for levels where the cloud-layer optical depth enhancement applies. Default 0.0. Typical liquid water cloud droplet values are around 0.85 (strongly forward-scattering). Only meaningful when cloud_single_scattering_albedo > 0.

Referenced by init_params().

◆ cloud_base_height_m

amrex::Real RadChoice::cloud_base_height_m = 500.0

Cloud layer base height [m]. Only used when tau_profile_type == CloudLayer.

Referenced by init_params().

◆ cloud_fraction

amrex::Real RadChoice::cloud_fraction = 0.0

Cloud fraction in [0, 1] used to blend clear-sky and cloudy-column fluxes: F = (1 - cloud_fraction) * F_clear + cloud_fraction * F_cloudy. Default 0.0 (fully clear sky), which reduces exactly to the clear-sky column regardless of tau_profile_type.

Referenced by TwoStreamRadiation::advance(), and init_params().

◆ cloud_fraction_prog_enable

bool RadChoice::cloud_fraction_prog_enable = false

Enable prognostic cloud fraction diagnosis from RH/qc. When true, cloud fraction is computed per-level from relative humidity and cloud water. When false (default), uses the static cloud_fraction. Only used by the two-stream model.

Referenced by init_params().

◆ cloud_fraction_qc_scale

amrex::Real RadChoice::cloud_fraction_qc_scale = 1.0e-3

Cloud water [kg/kg] at which the liquid-water term alone gives a cloud fraction of 1: cf += min(1, qc / cloud_fraction_qc_scale). Default 1.0e-3 kg/kg, so a typical stratus cloud water saturates the term. Only used when cloud_fraction_prog_enable == true.

Referenced by init_params().

◆ cloud_fraction_rh_max

amrex::Real RadChoice::cloud_fraction_rh_max = 1.0

Maximum relative humidity threshold for cloud fraction diagnosis [0, 1]. Must be >= cloud_fraction_rh_min. Cloud fraction saturates to 1 at this RH. Default 1.0 means cloud fraction increases linearly from rh_min to 1.0 RH. Only used when cloud_fraction_prog_enable == true.

Referenced by init_params().

◆ cloud_fraction_rh_min

amrex::Real RadChoice::cloud_fraction_rh_min = 0.0

Minimum relative humidity threshold for cloud fraction diagnosis [0, 1]. Cloud fraction ramps from 0 at rh < cloud_fraction_rh_min to 1 at rh >= cloud_fraction_rh_max. Default 0.0 means cloud fraction depends primarily on qc content. Only used when cloud_fraction_prog_enable == true.

Referenced by init_params().

◆ cloud_single_scattering_albedo

amrex::Real RadChoice::cloud_single_scattering_albedo = 0.0

Cloud single-scattering albedo in [0, 1], used instead of single_scattering_albedo for levels where the cloud-layer optical depth enhancement applies (i.e., within [cloud_base_height_m, cloud_top_height_m] on the "cloudy" column evaluation). Default 0.0 leaves the cloud band non-scattering for SW_Cloud_Layer unless explicitly configured otherwise. Typical liquid water cloud values are close to 1 (e.g., 0.9999). Only used when tau_profile_type == CloudLayer.

Referenced by init_params().

◆ cloud_tau_per_layer

amrex::Real RadChoice::cloud_tau_per_layer = 0.5

Additional optical depth per layer contributed by the cloud, added on top of the clear-sky tau_per_layer/tau_lw_per_layer background within [cloud_base_height_m, cloud_top_height_m]. Only used when tau_profile_type == CloudLayer.

Referenced by init_params().

◆ cloud_top_height_m

amrex::Real RadChoice::cloud_top_height_m = 1000.0

Cloud layer top height [m]. Only used when tau_profile_type == CloudLayer. Must be >= cloud_base_height_m.

Referenced by init_params().

◆ diag_callsite_mode

std::string RadChoice::diag_callsite_mode = "both"

Call-site filtering mode: "both" (pre+post rows), "pre_only", or "post_only".

Referenced by TwoStreamRadiation::advance(), and init_params().

◆ diag_csv_enable

bool RadChoice::diag_csv_enable = true

Enable CSV file append behavior. When false, no file writes; other enabled streams may still print. Default true.

Referenced by TwoStreamRadiation::advance(), and init_params().

◆ diag_dedup_tol

amrex::Real RadChoice::diag_dedup_tol = 1.0e-12

Tolerance for time equality in duplicate guard [s]. Times within this tolerance are considered equal. Default 1e-12.

Referenced by TwoStreamRadiation::advance(), and init_params().

◆ diag_enable

bool RadChoice::diag_enable = false

Master switch for radiation diagnostics emission. When false, no diagnostics output (stdout/tagged/regtest/csv). Default false: a run that did not ask for the diagnostics should not write a CSV row and a stdout block on every step. The per-stream switches below stay on by default, so setting this one input to true turns the whole set on.

Referenced by TwoStreamRadiation::advance(), and init_params().

◆ diag_file

std::string RadChoice::diag_file = "radiation_diag.dat"

Output file path for radiation diagnostics CSV. Paths are relative to the simulation working directory.

Referenced by TwoStreamRadiation::advance(), and init_params().

◆ diag_regtest_line_enable

bool RadChoice::diag_regtest_line_enable = true

Enable RADIATION_DIAG: line emission. Controls regtest-parsing diagnostics line. Default true.

Referenced by TwoStreamRadiation::advance(), and init_params().

◆ diag_stdout_enable

bool RadChoice::diag_stdout_enable = true

Enable human-readable stdout diagnostics block. Controls tagged [RAD][...] debug line emission (when verbosity >= 1). Default true.

Referenced by TwoStreamRadiation::advance(), and init_params().

◆ diag_tagged_enable

bool RadChoice::diag_tagged_enable = true

Enable tagged [RAD][...] debug lines. Controls emission of bracketed-tag debug output. Default true.

Referenced by TwoStreamRadiation::advance(), and init_params().

◆ enabled

bool RadChoice::enabled = false

True when erf.radiation_model = TwoStream. Set by init_params from the model SolverChoice read; the erf.radiation.* sub-options are read only then.

Referenced by TwoStreamRadiation::active(), TwoStreamRadiation::define_level(), init_params(), and uses_two_stream_radiation().

◆ fixed_solar_zenith_angle

amrex::Real RadChoice::fixed_solar_zenith_angle = -9999.0

erf.fixed_solar_zenith_angle: the COSINE of the solar zenith angle (mu0), as RRTMGP takes it, applied to every column when > 0. Otherwise (default) the sun follows the calendar: start_datetime sets the date and time, the position is evaluated at rad_cons_lat/lon or at the per-column latitude and longitude when the grid carries them.

Referenced by init_params().

◆ fixed_total_solar_irradiance

amrex::Real RadChoice::fixed_total_solar_irradiance = -9999.0

erf.fixed_total_solar_irradiance: top-of-atmosphere irradiance [W/m^2] when >= 0. Otherwise (default) 1360.9 W/m^2 scaled by the Earth-Sun distance factor of the date, as RRTMGP does.

Referenced by init_params().

◆ lw_enabled

bool RadChoice::lw_enabled = true

Enable longwave (thermal) radiation computation. Only used by the two-stream model.

Referenced by init_params().

◆ lw_kabs_cloud

amrex::Real RadChoice::lw_kabs_cloud = 158.0

Cloud-water LW mass absorption coefficient m^2/kg.

Referenced by init_params().

◆ lw_kabs_dry

amrex::Real RadChoice::lw_kabs_dry = 1.0e-4

Dry-air gray LW mass absorption coefficient [m^2/kg].

Referenced by init_params().

◆ lw_kabs_vapor

amrex::Real RadChoice::lw_kabs_vapor = 0.1

Water-vapor gray LW mass absorption coefficient [m^2/kg].

Referenced by init_params().

◆ lw_mass_absorption_enable

bool RadChoice::lw_mass_absorption_enable = false

Gray longwave optical depth from the layer mass path instead of the fixed tau_lw_per_layer (also selected by tau_model = mass): tau_lw(k) = rho dz (lw_kabs_dry + lw_kabs_vapor qv + lw_kabs_cloud qc) The cloud term is the Stephens (1978) emissivity, eps = 1 - exp(-a LWP) with a = 0.158 m^2/g, written as an optical depth. The column optical depth is then independent of the vertical resolution. The cloud-band, moisture-coefficient and aerosol additions still apply on top. Default false keeps tau_lw_per_layer.

Referenced by init_params().

◆ rad_cons_lat

amrex::Real RadChoice::rad_cons_lat = 39.809860

erf.rad_cons_lat / erf.rad_cons_lon: site latitude and longitude [degrees] when the grid has no lat/lon fields (RRTMGP defaults).

Referenced by init_params().

◆ rad_cons_lon

amrex::Real RadChoice::rad_cons_lon = -98.555183

Referenced by init_params().

◆ rad_orbital_eccentricity

amrex::Real RadChoice::rad_orbital_eccentricity = -9999.0

Referenced by init_params().

◆ rad_orbital_mvelp

amrex::Real RadChoice::rad_orbital_mvelp = -9999.0

Referenced by init_params().

◆ rad_orbital_obliquity

amrex::Real RadChoice::rad_orbital_obliquity = -9999.0

Referenced by init_params().

◆ rad_orbital_year

int RadChoice::rad_orbital_year = -9999

erf.rad_orbital_year and the orbital overrides: negative means the year of the timestamp and the Berger (1978) values for that year.

Referenced by init_params().

◆ rad_t_sfc

amrex::Real RadChoice::rad_t_sfc = -1.0

erf.rad_t_sfc: surface temperature [K] used as the longwave boundary condition wherever no land-surface model, surface layer or prognostic surface energy balance supplies one; also the initial value of the prognostic surface temperature. Required, as for RRTMGP.

Referenced by TwoStreamRadiation::advance(), TwoStreamRadiation::define_level(), and init_params().

◆ seb_diagnostic_enable

bool RadChoice::seb_diagnostic_enable = false

Enable diagnostic SEB residual computation and reporting. When true, computes and reports SEB residual = (SW_net + LW_net) - H - LE - G. When false (default), no residual computation or new diagnostic output. Requires seb_enable=true to be meaningful; if false but seb_enable=true, auto-enables internally. Note: this is diagnostic-only; it makes no prognostic T_s or flux update. Set seb_prognostic_enable for that.

Referenced by TwoStreamRadiation::advance(), and init_params().

◆ seb_enable

bool RadChoice::seb_enable = false

Master switch for simplified SEB infrastructure. When false (default), no SEB MultiFabs are allocated and behavior is unchanged.

Referenced by TwoStreamRadiation::advance(), TwoStreamRadiation::define_level(), init_params(), TwoStreamRadiation::seb_hfx(), TwoStreamRadiation::seb_lh(), TwoStreamRadiation::seb_prognostic_active(), TwoStreamRadiation::seb_q_sfc(), and TwoStreamRadiation::seb_t_sfc().

◆ seb_grdflx_default

amrex::Real RadChoice::seb_grdflx_default = 0.0

Fallback SEB ground heat flux [W/m^2]. The force-restore restoring term already represents the flux into the soil, so a nonzero value with seb_prognostic_enable counts that flux twice.

Referenced by TwoStreamRadiation::advance(), TwoStreamRadiation::define_level(), and init_params().

◆ seb_hfx_default

amrex::Real RadChoice::seb_hfx_default = 0.0

Fallback SEB sensible heat flux [W/m^2].

Referenced by TwoStreamRadiation::advance(), TwoStreamRadiation::define_level(), and init_params().

◆ seb_land_roughness

amrex::Real RadChoice::seb_land_roughness = -1.0

Land roughness length [m] the coupled surface layer takes when erf.most.z0 is not given (derived, not an input): with seb_surface_layer_uses_skin and seb_soil_type, f_veg Z0MVT + (1 - f_veg) Z0SOIL from Noah-MP's tables (f_veg = 0 without seb_vegetation_type); -1 otherwise. ERF::InitData_post hands it to the zlo surface layer as it builds it (SurfaceLayer::set_default_roughness).

Referenced by init_params().

◆ seb_leaf_area_index

amrex::Real RadChoice::seb_leaf_area_index = -1.0

Leaf area index [m^2/m^2] of the vegetated fraction (seb_vegetation_type; giving it otherwise stops at start-up). Default: the land-use category's monthly values interpolated to the run's start date and time (start_datetime), as Noah-MP does with its table LAI (noahmp_day_of_year: day 0 at 00:00 on 1 January), shifted half a year when erf.rad_cons_lat < 0 (one latitude for the domain, where Noah-MP uses each column's); fixed for the run.

Referenced by init_params().

◆ seb_lh_default

amrex::Real RadChoice::seb_lh_default = 0.0

Fallback SEB latent heat flux [W/m^2].

Referenced by TwoStreamRadiation::advance(), TwoStreamRadiation::define_level(), and init_params().

◆ seb_lw_flux_default

amrex::Real RadChoice::seb_lw_flux_default = 0.0

Fallback SEB surface net longwave flux [W/m^2].

Referenced by TwoStreamRadiation::advance(), TwoStreamRadiation::define_level(), and init_params().

◆ seb_moisture_layer_depth_m

amrex::Real RadChoice::seb_moisture_layer_depth_m = 0.1

Effective surface moisture layer depth [m]. Used in force-restore prognostic q_s equation: dq_s/dt = -(LE/(L_v*rho_w*d_s)) - (1/tau_q)*(q_s - q_deep). Default 0.1 m represents a thin surface-active moisture layer. Only used when seb_prognostic_enable=true. Must be > 0: init_params() stops otherwise.

Referenced by TwoStreamRadiation::advance(), and init_params().

◆ seb_moisture_restore_timescale_s

amrex::Real RadChoice::seb_moisture_restore_timescale_s = 86400.0

Force-restore timescale for surface moisture [s]. Relaxation time constant toward q_deep in prognostic q_s equation. Default 86400.0 s (1 day) provides weak damping on diurnal timescales. Only used when seb_prognostic_enable=true. Must be > 0: init_params() stops otherwise.

Referenced by TwoStreamRadiation::advance(), and init_params().

◆ seb_prognostic_enable

bool RadChoice::seb_prognostic_enable = false

Enable prognostic SEB surface temperature and moisture evolution. When true, integrates SEB residual forward in time to evolve T_s and q_s using force-restore formulation. When false (default), no prognostic update occurs. Requires seb_enable=true and seb_diagnostic_enable=true; auto-enables internally if needed. Only active when Noah-MP is NOT driving LSM fields at that level.

Referenced by TwoStreamRadiation::advance(), init_params(), and TwoStreamRadiation::seb_prognostic_active().

◆ seb_prognostic_q_max

amrex::Real RadChoice::seb_prognostic_q_max = 1.0

Maximum clamping bound for prognostic surface moisture [kg/kg]. After each Euler update, q_s is clamped to [seb_prognostic_q_min, seb_prognostic_q_max]. Default 1.0 kg/kg ensures physically meaningful moisture. Only used when seb_prognostic_enable=true.

Referenced by TwoStreamRadiation::advance(), and init_params().

◆ seb_prognostic_q_min

amrex::Real RadChoice::seb_prognostic_q_min = 0.0

Minimum clamping bound for prognostic surface moisture [kg/kg]. After each Euler update, q_s is clamped to [seb_prognostic_q_min, seb_prognostic_q_max]. Default 0.0 kg/kg prevents negative moisture. Only used when seb_prognostic_enable=true.

Referenced by TwoStreamRadiation::advance(), and init_params().

◆ seb_prognostic_t_max_k

amrex::Real RadChoice::seb_prognostic_t_max_k = 340.0

Maximum clamping bound for prognostic surface temperature [K]. After each Euler update, T_s is clamped to [seb_prognostic_t_min_k, seb_prognostic_t_max_k]. Default 340.0 K (above typical surface temperatures, but prevents unrealistic excursions). Only used when seb_prognostic_enable=true.

Referenced by TwoStreamRadiation::advance(), and init_params().

◆ seb_prognostic_t_min_k

amrex::Real RadChoice::seb_prognostic_t_min_k = 200.0

Minimum clamping bound for prognostic surface temperature [K]. After each Euler update, T_s is clamped to [seb_prognostic_t_min_k, seb_prognostic_t_max_k] to prevent instability if dt is large relative to C_s/tau. Default 200.0 K (far below realistic surface temperatures). Only used when seb_prognostic_enable=true.

Referenced by TwoStreamRadiation::advance(), and init_params().

◆ seb_q_deep_default

amrex::Real RadChoice::seb_q_deep_default = 0.0

Deep soil moisture the prognostic q_s restores to, in q_s's units (see seb_q_sfc_default).

Referenced by TwoStreamRadiation::advance(), TwoStreamRadiation::define_level(), and init_params().

◆ seb_q_sfc_default

amrex::Real RadChoice::seb_q_sfc_default = 0.0

Fallback SEB surface moisture, and the initial value of the prognostic one. With seb_prognostic_enable q_s follows prognostic_dqs_dt, a volumetric water content [m^3/m^3] of the top seb_moisture_layer_depth_m of soil; with a land model that has one, the balance shows the land model's 2 m mixing ratio [kg/kg] instead.

Referenced by TwoStreamRadiation::advance(), TwoStreamRadiation::define_level(), and init_params().

◆ seb_restore_timescale_s

amrex::Real RadChoice::seb_restore_timescale_s = 86400.0

Force-restore timescale for surface temperature [s]. Relaxation time constant toward T_deep in prognostic T_s equation. Default 86400.0 s (1 day) provides weak damping on diurnal timescales. Only used when seb_prognostic_enable=true. Must be > 0: init_params() stops otherwise.

Referenced by TwoStreamRadiation::advance(), and init_params().

◆ seb_soil_moisture_fc

amrex::Real RadChoice::seb_soil_moisture_fc = 0.329

Field capacity [m^3/m^3]: at or above it the soil-water factor is 1, so without seb_soil_type the surface evaporates at the potential rate (seb_surface_layer_uses_moisture; giving it otherwise stops at start-up). Default 0.329, Noah-MP's loam (REFSMC, STAS soil type 6).

Referenced by init_params().

◆ seb_soil_moisture_wilt

amrex::Real RadChoice::seb_soil_moisture_wilt = 0.066

Wilting point [m^3/m^3]: at or below it the soil-water factor is 0, so the vegetation does not transpire and, without seb_soil_type, the surface does not evaporate (with one, the bare soil's nearly dry pore air keeps it near zero) (seb_surface_layer_uses_moisture; giving it otherwise stops at start-up). Default 0.066, Noah-MP's loam (WLTSMC, STAS soil type 6).

Referenced by init_params().

◆ seb_soil_type

int RadChoice::seb_soil_type = 0

Noah-MP soil category (STAS, 1-19, not 14 (water), as in NoahmpTable.TBL; see ERF_NoahMPSoilTable.H). The balance takes its wilting point (WLTSMC) and field capacity (REFSMC) – giving either seb_soil_moisture_wilt or seb_soil_moisture_fc as well is an error –, the surface heat capacity of the soil unless seb_surface_heat_capacity is given, with seb_surface_layer_uses_moisture the bare-soil resistance (vegetation or not), and with seb_surface_layer_uses_skin the surface layer's land roughness unless erf.most.z0 is given. 0 (the default): none of these.

Referenced by init_params().

◆ seb_surface_heat_capacity

amrex::Real RadChoice::seb_surface_heat_capacity = 2.0e4

Effective surface heat capacity [J/(m^2*K)]. Used in force-restore prognostic T_s equation: dT_s/dt = SEB_residual / C_s - (2*pi/tau)*(T_s - T_deep). Default 2.0e4 J/(m^2*K) represents a thin surface-active layer. With seb_soil_type it is derived from Noah-MP's soil instead (seb_force_restore_heat_capacity of the soil's heat capacity and conductivity at seb_q_sfc_default, over seb_restore_timescale_s) unless it is given explicitly. Only used when seb_prognostic_enable=true. Must be > 0: init_params() stops otherwise.

Referenced by TwoStreamRadiation::advance(), and init_params().

◆ seb_surface_layer_uses_moisture

bool RadChoice::seb_surface_layer_uses_moisture = false

Two-way coupling of moisture as well: the surface layer takes its land surface mixing ratio from the balance's surface water, so its moisture flux follows the soil and dries as the balance's q_s does. Without seb_soil_type it is beta * q_sat(T_s, p_s) + (1 - beta) * q_air with beta the soil-water factor clamp((q_s - seb_soil_moisture_wilt) / (seb_soil_moisture_fc - seb_soil_moisture_wilt), 0, 1). With seb_soil_type, the bare soil evaporates from its pore air (Noah-MP's relative humidity exp(psi g / (R_v T_s)) times q_sat) through Noah-MP's bare-soil resistance, and with seb_vegetation_type the canopy transpires through its own, each in series with the aerodynamic one (erf_surface_moisture::two_source_surface_mixing_ratio). q_s is then the volumetric water content [m^3/m^3] of the top seb_moisture_layer_depth_m of soil. Requires seb_surface_layer_uses_skin. Default false: the surface layer keeps its own surface moisture (erf.most.surf_moist).

Referenced by TwoStreamRadiation::define_level(), and init_params().

◆ seb_surface_layer_uses_skin

bool RadChoice::seb_surface_layer_uses_skin = false

Two-way coupling with the zlo surface layer: the surface layer takes its land surface temperature from the SEB's prognostic skin temperature T_s (converted to potential temperature), so its sensible heat flux responds to T_s. Requires seb_prognostic_enable and seb_turbulent_flux_source = surface_layer. Default false: the surface layer keeps its own temperature.

Referenced by init_params().

◆ seb_sw_flux_default

amrex::Real RadChoice::seb_sw_flux_default = 0.0

Fallback SEB surface net shortwave flux [W/m^2].

Referenced by TwoStreamRadiation::advance(), TwoStreamRadiation::define_level(), and init_params().

◆ seb_t_deep_default

amrex::Real RadChoice::seb_t_deep_default = 300.0

Fallback SEB deep soil temperature [K].

Referenced by TwoStreamRadiation::advance(), TwoStreamRadiation::define_level(), and init_params().

◆ seb_turbulent_flux_source

SEBTurbulentFluxSource RadChoice::seb_turbulent_flux_source = SEBTurbulentFluxSource::SurfaceLayer

Source of the SEB's sensible and latent heat fluxes when no land-surface model supplies them: "surface_layer" (default) or "defaults". See SEBTurbulentFluxSource.

Referenced by TwoStreamRadiation::advance(), and init_params().

◆ seb_use_radiation_fluxes

bool RadChoice::seb_use_radiation_fluxes = false

Take the SEB's net surface shortwave and longwave fluxes from the two-stream sweep itself (per column, absorbed fluxes positive) wherever the LSM does not expose them. When false (default) those fluxes are the LSM fields or, without an LSM, the seb_sw_flux_default and seb_lw_flux_default constants. Sensible, latent and ground heat fluxes are unaffected.

Referenced by TwoStreamRadiation::advance(), and init_params().

◆ seb_vegetation_fraction

amrex::Real RadChoice::seb_vegetation_fraction = 1.0

Vegetated fraction of the surface [0, 1] (seb_vegetation_type; giving it otherwise stops at start-up). Default 1.

Referenced by init_params().

◆ seb_vegetation_type

int RadChoice::seb_vegetation_type = 0

Noah-MP land-use category (modified IGBP MODIS, 1-20 except the unvegetated 15, 16 and 17, as in NoahmpTable.TBL; see ERF_NoahMPVegetationTable.H) of the vegetated fraction. With it, the surface's moisture availability comes from a canopy resistance (Jarvis, Noah-MP's parameters RS, RGL, HS, TOPT, RSMAX) for the vegetated fraction and a bare-soil resistance (Noah-MP's Sakaguchi-Zeng form, on seb_soil_type) for the rest, each in series with the aerodynamic one. Needs seb_surface_layer_uses_moisture and seb_soil_type. 0 (the default): bare soil, the soil's resistance alone (f_veg = 0).

Referenced by init_params().

◆ single_scattering_albedo

amrex::Real RadChoice::single_scattering_albedo = 0.0

Clear-sky (background gas) single-scattering albedo in [0, 1] for the SW diffuse (scattering) two-stream calculation. Default 0.0 means the clear-sky column is purely absorbing, and the diffuse SW contribution from the clear-sky column is exactly zero — reducing exactly to the direct-beam-only result. Only used by the two-stream model and sw_enabled == true.

Referenced by init_params().

◆ surface_albedo_sw

amrex::Real RadChoice::surface_albedo_sw = 0.3

Shortwave surface albedo fallback [0, 1] for per-column heterogeneous-surface-property resolution. Used when per-column LSM/radiation interface albedo field is unavailable or invalid. Default 0.3 represents typical land/water reflectivity. Only used when hetero surface fields not present or disabled.

Referenced by TwoStreamRadiation::advance(), TwoStreamRadiation::define_level(), and init_params().

◆ surface_albedo_sw_diffuse

amrex::Real RadChoice::surface_albedo_sw_diffuse = -1.0

Shortwave surface albedo for diffuse light [0,1]. A negative value (default) uses surface_albedo_sw for both direct and diffuse light.

Referenced by init_params().

◆ surface_emissivity_lw

amrex::Real RadChoice::surface_emissivity_lw = 0.99

Longwave surface emissivity fallback [0, 1] for per-column heterogeneous-surface-property resolution. Used when per-column LSM/radiation interface emissivity field is unavailable or invalid. Default 0.99 represents typical land/water/ice emissivity (nearly blackbody). Only used when hetero surface fields not present or disabled.

Referenced by TwoStreamRadiation::advance(), TwoStreamRadiation::define_level(), and init_params().

◆ sw_cloud_g

amrex::Real RadChoice::sw_cloud_g = 0.85

Mass model, SW: cloud-water asymmetry factor.

Referenced by init_params().

◆ sw_cloud_omega

amrex::Real RadChoice::sw_cloud_omega = 0.9999

Mass model, SW: cloud-water single-scattering albedo.

Referenced by init_params().

◆ sw_enabled

bool RadChoice::sw_enabled = true

Enable shortwave (solar) radiation computation. Only used by the two-stream model.

Referenced by TwoStreamRadiation::advance(), and init_params().

◆ sw_kabs_dry

amrex::Real RadChoice::sw_kabs_dry = 4.0e-6

Mass model, SW: dry-air gray absorption coefficient [m^2/kg].

Referenced by init_params().

◆ sw_kabs_vapor

amrex::Real RadChoice::sw_kabs_vapor = 4.0e-3

Mass model, SW: water-vapor gray absorption coefficient [m^2/kg].

Referenced by init_params().

◆ sw_kext_cloud

amrex::Real RadChoice::sw_kext_cloud = 150.0

Mass model, SW: cloud-water extinction coefficient m^2/kg.

Referenced by init_params().

◆ sw_kscat_dry

amrex::Real RadChoice::sw_kscat_dry = 3.0e-6

Mass model, SW: dry-air (Rayleigh) scattering coefficient [m^2/kg], omega = 1, g = 0.

Referenced by init_params().

◆ tau_lw_coeff_qc

amrex::Real RadChoice::tau_lw_coeff_qc = 0.0

Longwave optical depth coefficient for cloud liquid water [dimensionless]. Default 0.0. When both coefficients are 0, dynamic path still invoked but yields tau_lw_per_layer unchanged. Only used when tau_lw_dynamic_enable == true.

Referenced by init_params().

◆ tau_lw_coeff_qv

amrex::Real RadChoice::tau_lw_coeff_qv = 0.0

Longwave optical depth coefficient for water vapor [dimensionless]. Dynamic LW tau = tau_lw_coeff_qv * qv + tau_lw_coeff_qc * qc + tau_lw_per_layer. Default 0.0 means tau is purely from static tau_lw_per_layer (no dynamic component). Only used when tau_lw_dynamic_enable == true.

Referenced by init_params().

◆ tau_lw_dynamic_enable

bool RadChoice::tau_lw_dynamic_enable = false

Enable dynamic longwave optical depth diagnosis from moisture/clouds. When true, LW optical depth is computed per-level from qv and qc. When false (default), uses the static tau_lw_per_layer. Only used by the two-stream model and lw_enabled == true.

Referenced by init_params().

◆ tau_lw_per_layer

amrex::Real RadChoice::tau_lw_per_layer = 1.0

Longwave optical depth per layer (constant for all layers). Used in gray-gas LW two-stream solver. Only used by the two-stream model.

Referenced by init_params().

◆ tau_model

TauModel RadChoice::tau_model = TauModel::PerLayer

Optical depth model: "per_layer" (default, fixed tau per layer) or "mass" (from the layer mass path in both bands; see TauModel).

Referenced by init_params().

◆ tau_per_layer

amrex::Real RadChoice::tau_per_layer = 0.05

Shortwave optical depth per layer (constant for all layers). Used in Beer-Lambert direct-beam formula. Only used by the two-stream model.

Referenced by init_params().

◆ tau_profile_type

TauProfileType RadChoice::tau_profile_type = TauProfileType::Constant

Optical depth profile type: "constant" (default, the thickness-independent tau) or "cloud_layer" (adds height-varying cloud optical depth between cloud_base_height_m and cloud_top_height_m).

Referenced by init_params().

◆ tau_sw_coeff_qc

amrex::Real RadChoice::tau_sw_coeff_qc = 0.0

Shortwave optical depth coefficient for cloud liquid water [dimensionless]. Default 0.0. When both coefficients are 0, dynamic path still invoked but yields tau_per_layer unchanged. Only used when tau_sw_dynamic_enable == true.

Referenced by init_params().

◆ tau_sw_coeff_qv

amrex::Real RadChoice::tau_sw_coeff_qv = 0.0

Shortwave optical depth coefficient for water vapor [dimensionless]. Dynamic SW tau = tau_sw_coeff_qv * qv + tau_sw_coeff_qc * qc + tau_per_layer. Default 0.0 means tau is purely from static tau_per_layer (no dynamic component). Only used when tau_sw_dynamic_enable == true.

Referenced by init_params().

◆ tau_sw_dynamic_enable

bool RadChoice::tau_sw_dynamic_enable = false

Referenced by init_params().

◆ verbosity

int RadChoice::verbosity = 0

Debug verbosity level (0=off, 1+=debug output). Gated debug prints only emit when this is >= 1.

Referenced by TwoStreamRadiation::advance(), and init_params().

The documentation for this struct was generated from the following file:

Source/DataStructs/ERF_RadStruct.H

Public Member Functions

Static Public Member Functions

Public Attributes

Detailed Description

Member Function Documentation

◆ clamp_high()

◆ clamp_low()

◆ init_params()

◆ reset_nonpositive()

◆ uses_two_stream_radiation()

Member Data Documentation

◆ aerosol_enable

◆ aerosol_profile_type

◆ aerosol_scale_height_m

◆ aerosol_tau_per_layer

◆ aerosol_tau_surface

◆ asymmetry_factor

◆ cloud_asymmetry_factor

◆ cloud_base_height_m

◆ cloud_fraction

◆ cloud_fraction_prog_enable

◆ cloud_fraction_qc_scale

◆ cloud_fraction_rh_max

◆ cloud_fraction_rh_min

◆ cloud_single_scattering_albedo

◆ cloud_tau_per_layer

◆ cloud_top_height_m

◆ diag_callsite_mode

◆ diag_csv_enable

◆ diag_dedup_tol

◆ diag_enable

◆ diag_file

◆ diag_regtest_line_enable

◆ diag_stdout_enable

◆ diag_tagged_enable

◆ enabled

◆ fixed_solar_zenith_angle

◆ fixed_total_solar_irradiance

◆ lw_enabled

◆ lw_kabs_cloud

◆ lw_kabs_dry

◆ lw_kabs_vapor

◆ lw_mass_absorption_enable

◆ rad_cons_lat

◆ rad_cons_lon

◆ rad_orbital_eccentricity

◆ rad_orbital_mvelp

◆ rad_orbital_obliquity

◆ rad_orbital_year

◆ rad_t_sfc

◆ seb_diagnostic_enable

◆ seb_enable

◆ seb_grdflx_default

◆ seb_hfx_default

◆ seb_land_roughness

◆ seb_leaf_area_index

◆ seb_lh_default

◆ seb_lw_flux_default

◆ seb_moisture_layer_depth_m

◆ seb_moisture_restore_timescale_s

◆ seb_prognostic_enable

◆ seb_prognostic_q_max

◆ seb_prognostic_q_min

◆ seb_prognostic_t_max_k

◆ seb_prognostic_t_min_k

◆ seb_q_deep_default

◆ seb_q_sfc_default

◆ seb_restore_timescale_s

◆ seb_soil_moisture_fc

◆ seb_soil_moisture_wilt

◆ seb_soil_type

◆ seb_surface_heat_capacity

◆ seb_surface_layer_uses_moisture

◆ seb_surface_layer_uses_skin

◆ seb_sw_flux_default

◆ seb_t_deep_default

◆ seb_turbulent_flux_source

◆ seb_use_radiation_fluxes

◆ seb_vegetation_fraction

◆ seb_vegetation_type
